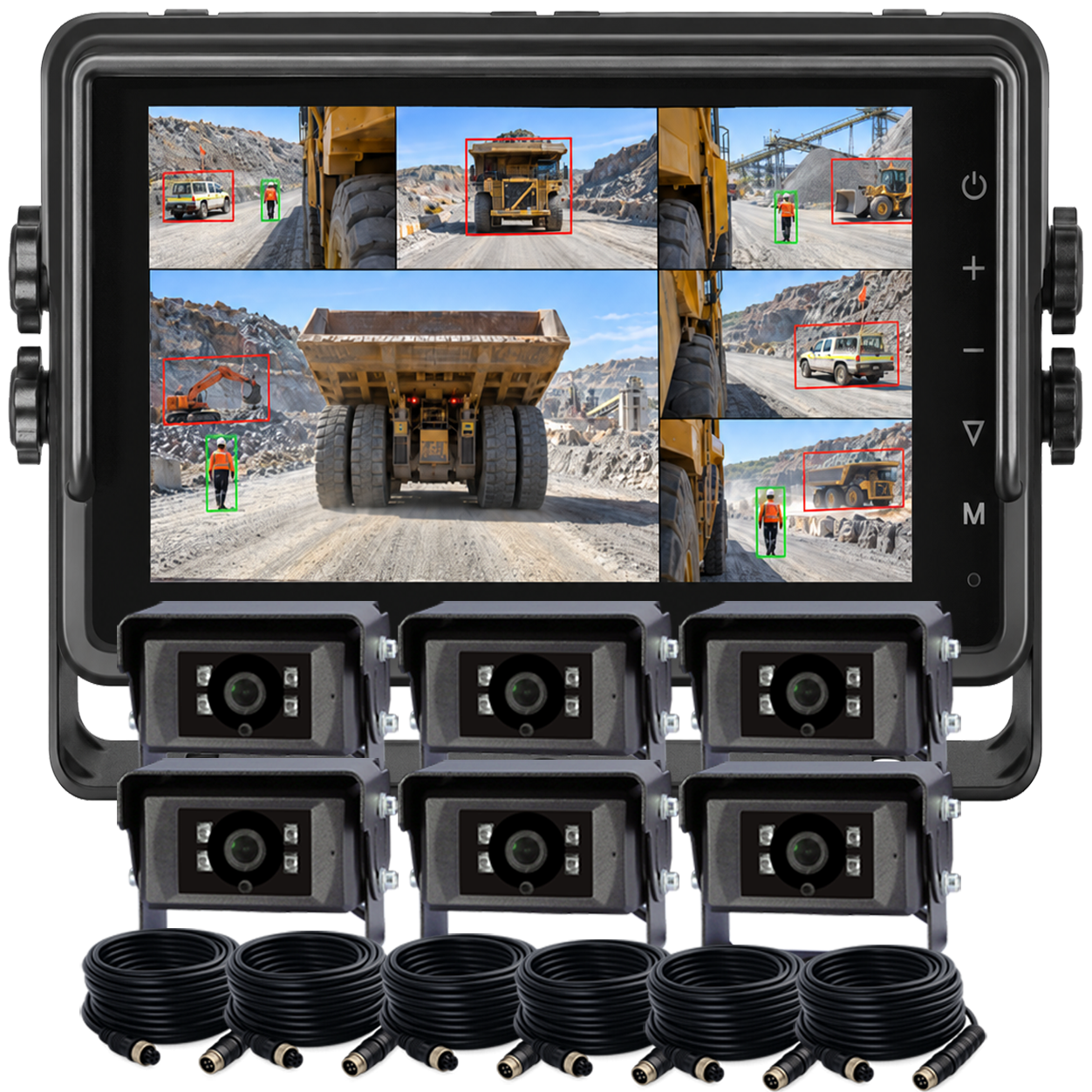

7 Inch Touch Screen AI 6 Camera Wired System – Trucks & Heavy Equipment

Our 7 inch AI wired camera system supports up to 6 cameras in any configuration, making it suitable for trucks, mining vehicles, heavy equipment and other commercial vehicles where multiple blind spots need to be monitored. The waterproof touchscreen monitor provides flexible multi-camera viewing and AI pedestrian and vehicle detection. When a pedestrian or vehicle is detected, the system highlights the detected object with a coloured rectangle and alerts the operator. The monitor can also be configured to automatically switch the relevant camera to full screen when AI detection is triggered. This function can be turned off if preferred, allowing the operator to continue viewing the selected multi-camera display while still receiving pedestrian and vehicle detection alerts.

With support for up to six cameras, the system can be configured to suit the vehicle and application, including front, rear, side and other high-risk areas where additional visibility is required.

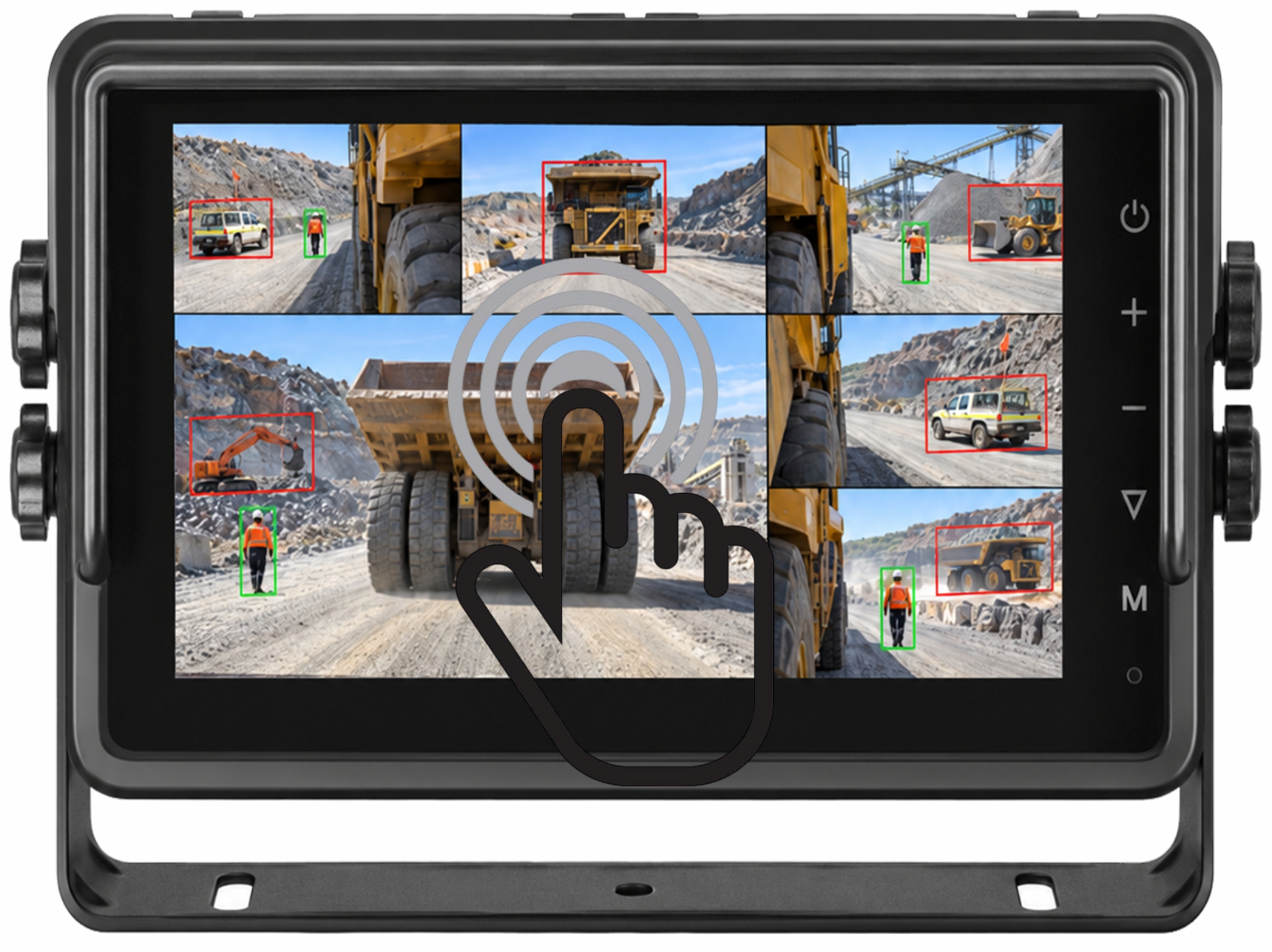

Touch Screen Reverse Monitor

IP66 Waterproof

Pedestrian & Vehicle Detection. AI Camera Can be Installed on the Left, Right, Rear or Front Position.

Monitor View Configurations

Monitor Recording Time

Mounting Options

The reverse monitor comes with a U-Shaped Bracket and a fan bracket.

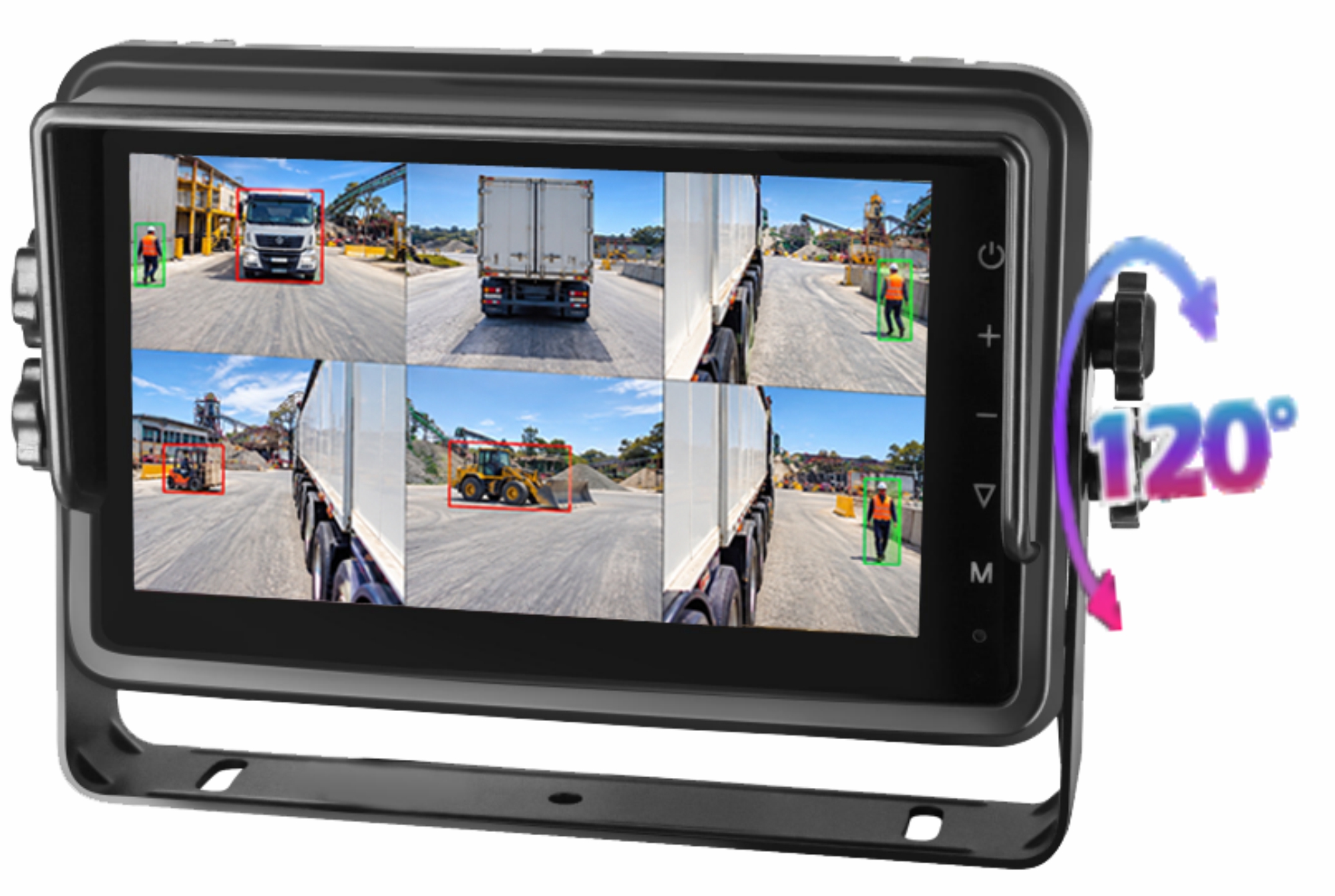

U-Shaped Mounting Bracket

Fan Bracket Mount

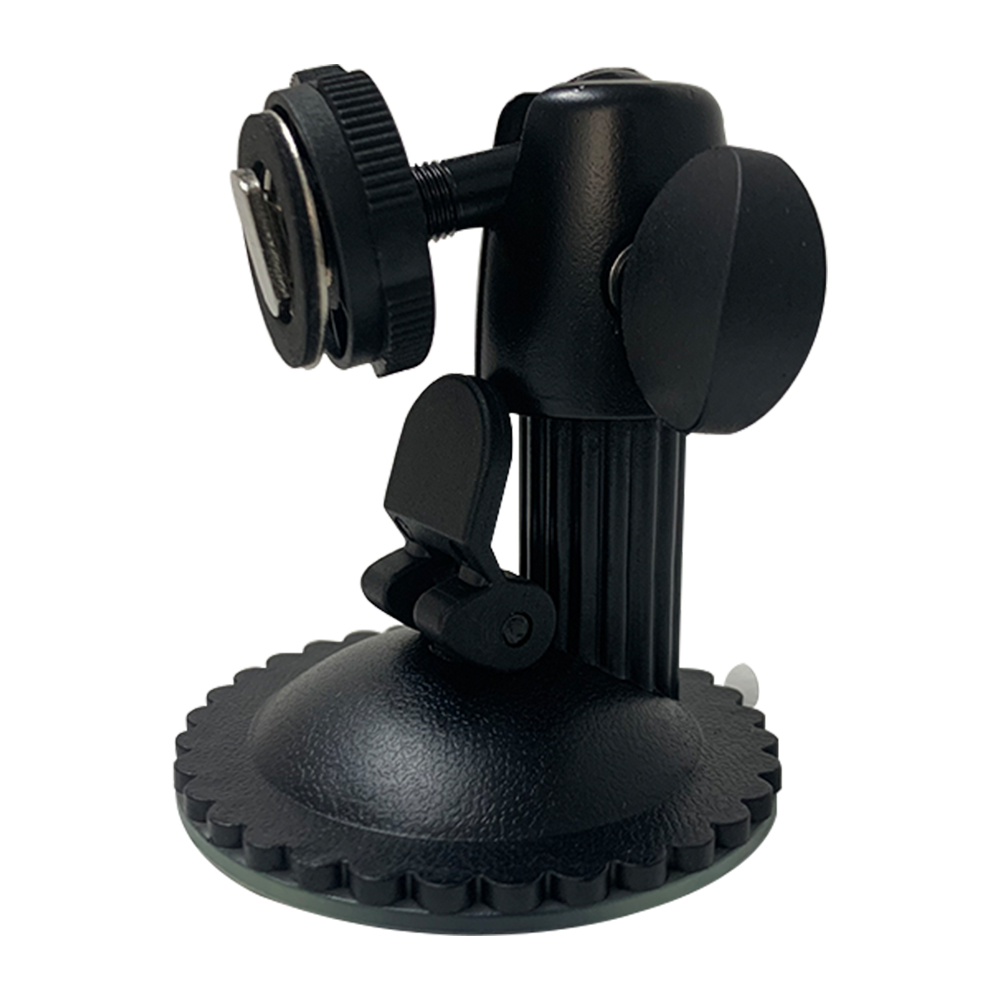

Suction Mounting Bracket Options

A suction bracket can be purchased as an optional extra by Clicking on the "Add Suction Bracket" Tab. The suction bracket mounting on the windscreen is another option of mounting the monitor.  Often used if the monitor bracket is not to be a permanent fixture in the vehicle.  On larger monitors the front edge of the monitor can rest on the dash with the suction bracket supporting it in.

Fan & Suction Bracket Slot.

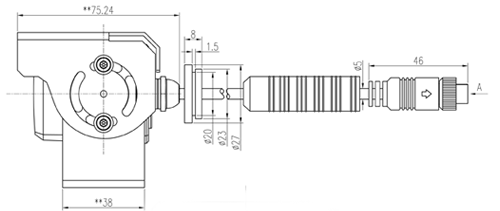

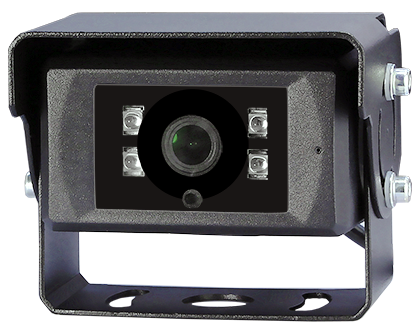

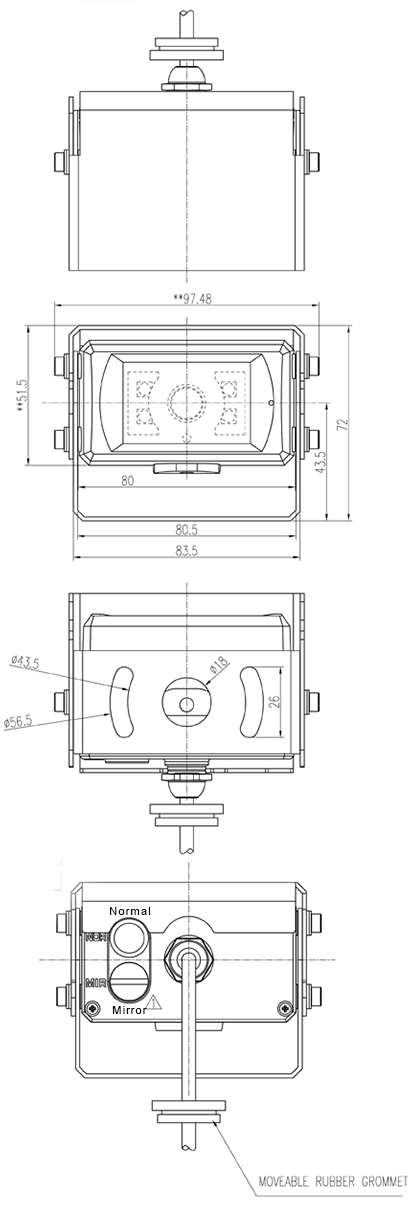

HD 1080P Reversing Camera

Wide viewing angle 130° IP69K waterproof

Heavy duty, suitable for Heavy Equipment, Trucks, Forklifts, Cranes, Farming Machinery, & Shipping.

Reversing Cameras Magnetic Base

For Ease of Fixing and Movability

To purchase as an optional extra click on the "Add Camera Magnet" Tab.

Secure Waterproof Cable Connections

The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS monitors have the 4-pin male ended connection and require the female ended extension cable.

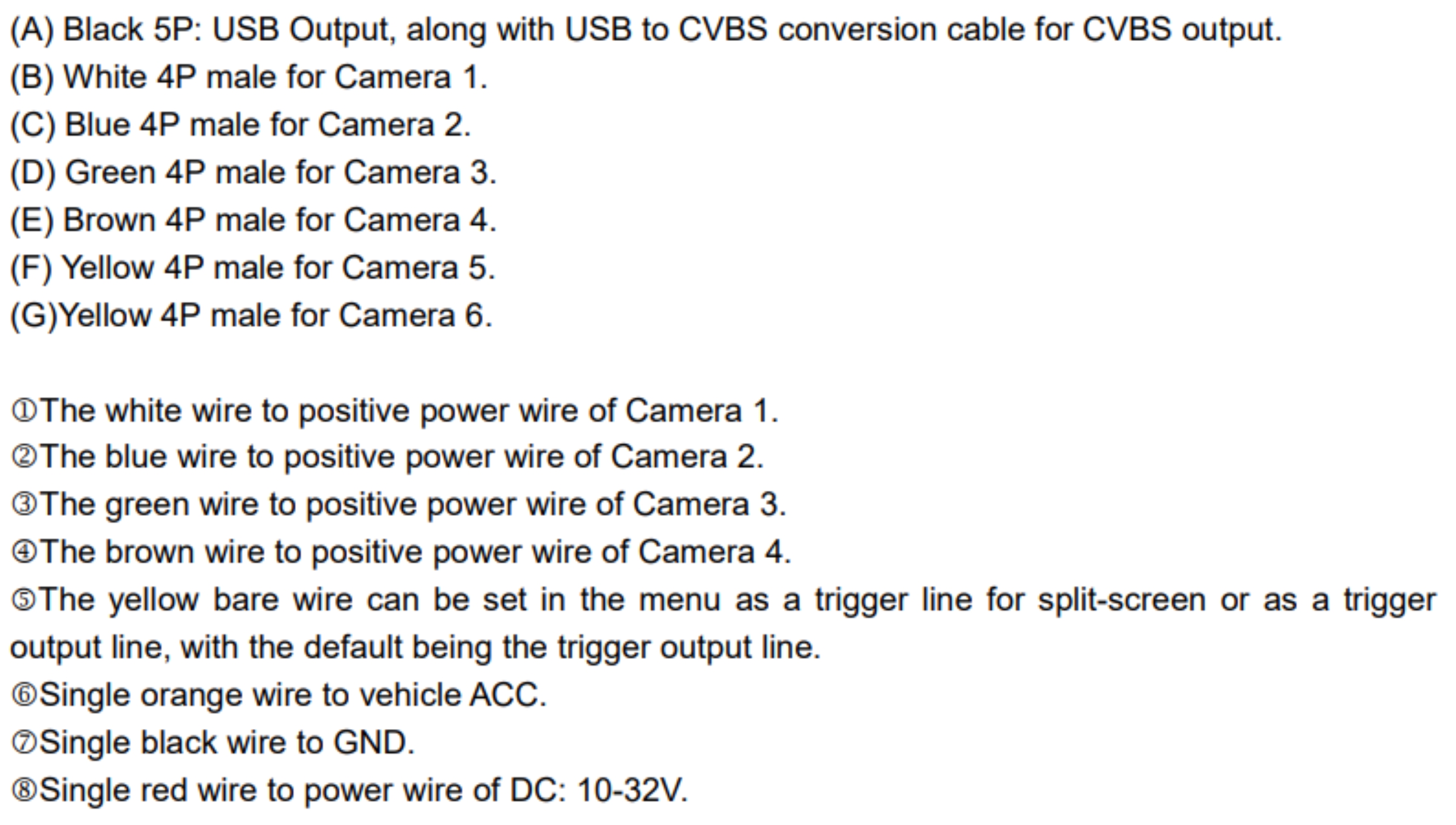

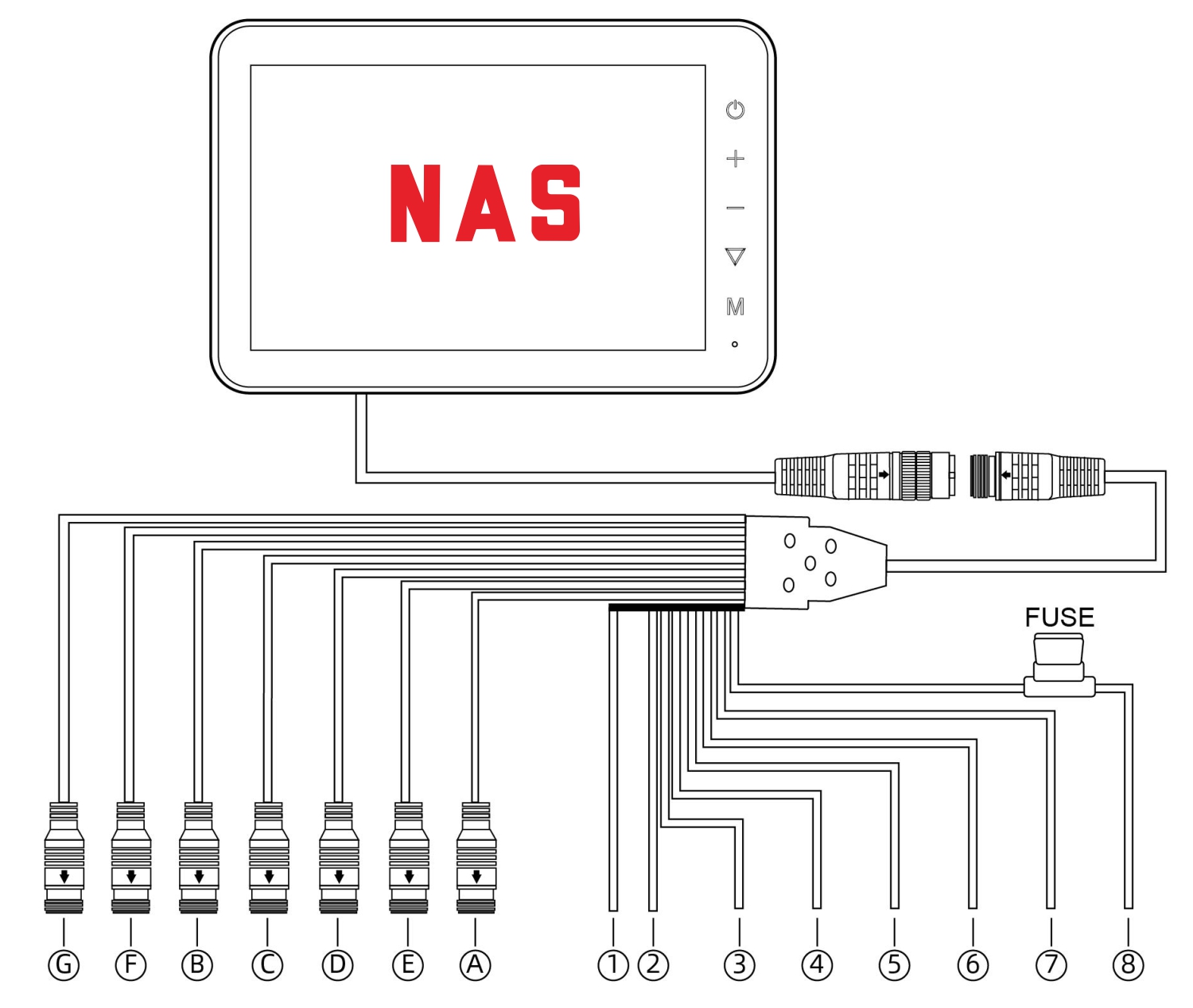

Connection

The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
