This 5 inch AI reversing camera kit is designed to improve safety when reversing by detecting pedestrians and vehicles behind the vehicle. It provides a clear rear view while highlighting potential hazards to help drivers react quickly. The system combines a compact 5 inch monitor with a high definition 1080P camera, making it ideal for cars, vans, and light commercial vehicles operating in busy environments. Built for everyday Australian driving conditions, this system is a practical safety upgrade for vehicles operating in tight spaces, urban areas, and locations with high pedestrian traffic.
Pedestrian & Vehicle Detection. AI Camera Can be Installed on the Left, Right, Rear or Front Position.
AHD 1080P Waterproof IP69K High Quality Reversing AI Camera. Blind Spot Audible And Visual Alarm Warning Driver.
Camera Angles - 100°
Reversing Camera Night Vision Distance
Starlight Night Vision Mode
External Buzzer.
The buzzer sounds an alarm when there is a person or a vehicle located behind the vehicle.
Monitor Viewing Configuration
The reverse monitor can take up to two cameras.

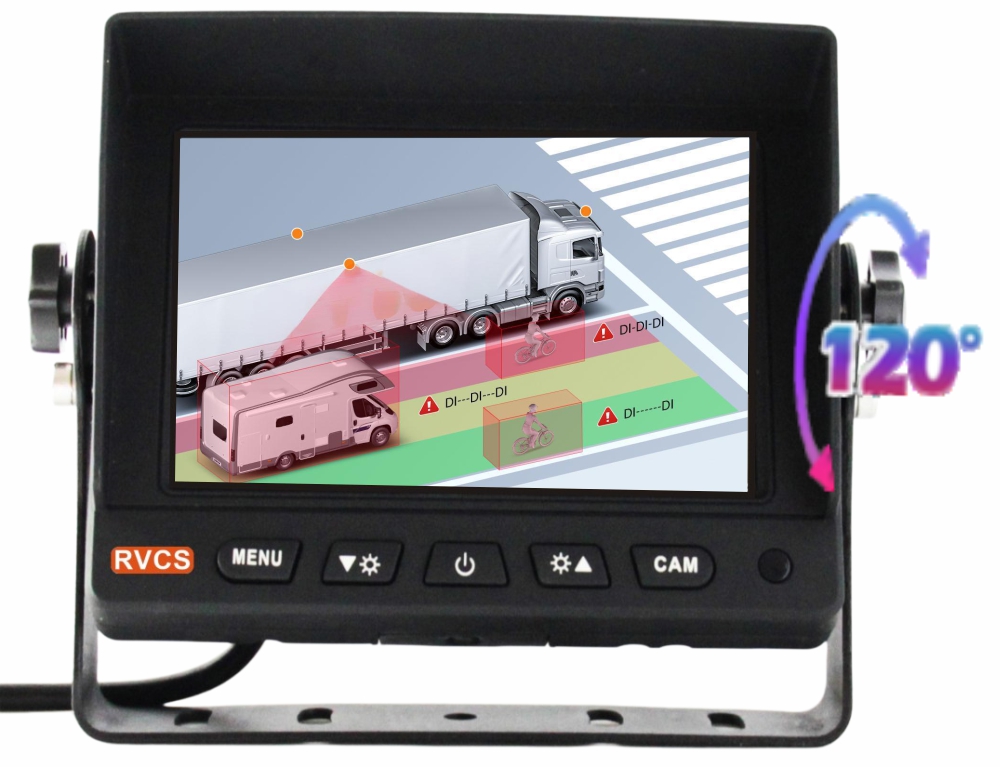

Mounting Bracket
The reverse monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by Clicking on the "Monitor Bracket" Tab.
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. RVCS cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable.

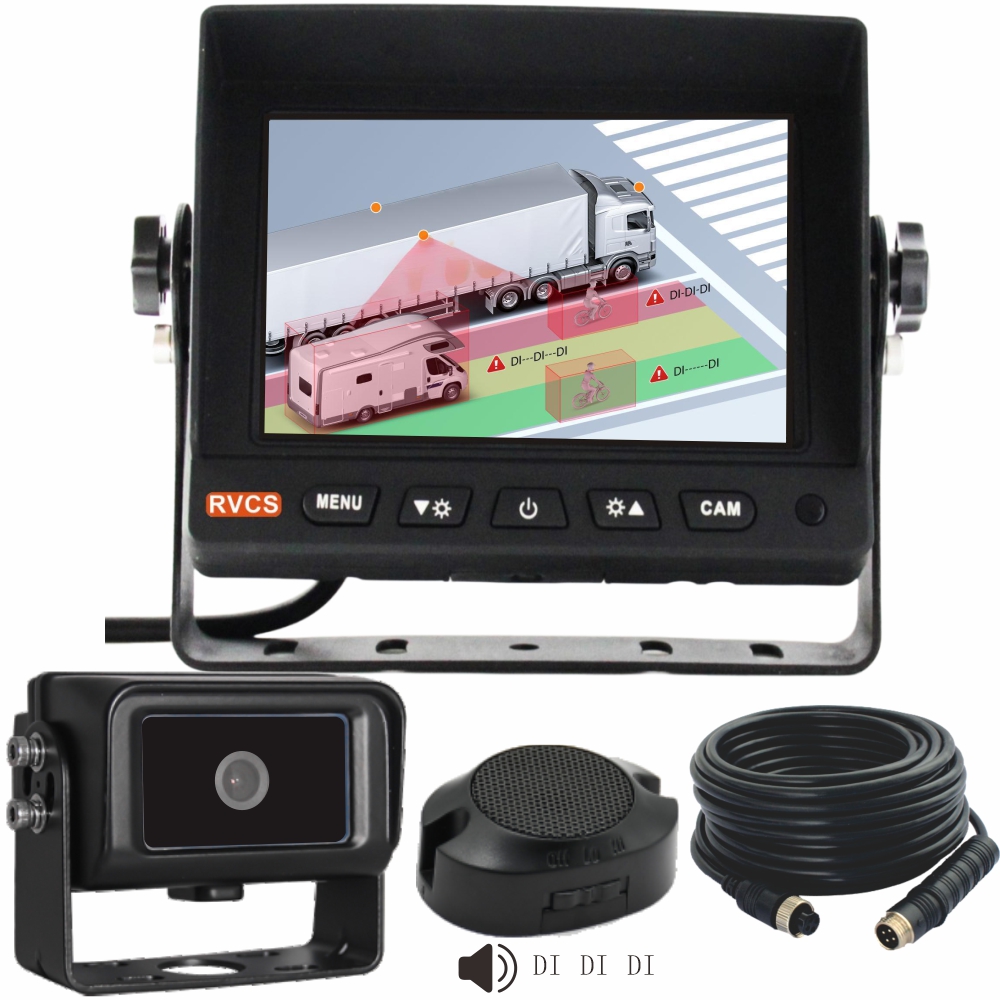

5" AHD Rear View Monitor AI Camera Kit (RV-HDMSD5CAIHD85-RVCS) |
| Kit Includes |
| • 1 x RV-HDMSD5 5inch HD IPS Display Reverse Monitor |
| • 1 x CAIHD85 100 Degree HD 1080P Waterproof AI Camera |
| • 1 x External Buzzer |
| • 1 x 8m Cable |
| • Electrical Connecting Cables |
| • Remote Control (Battery Not Included) |
| • User Guide |
| • Monitor Supports Two Reversing Cameras |
| • Other Mounting Options: A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by clicking on the " Add Monitor Bracket" TAB |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
7inch, 7", Car, Rear, View, rearview, backup, Camera, Kit
Camera Dimensions
Camera Bracket Dimensions
Camera have the 4 Pin Waterproof Female Plug GX12 Aviation Plug Connection
Cameras 4PIN Femal Definition
AI Vehicle and Pedestrian Detection Reversing Camera (CAIHD85) |
| • AI Artificial Intelligent Detection Camera Targeting Pedestrians/Vehicles |
| • External Detection Buzzer |
| • High-Definition 1080P |
| • Viewing angle: 100° |
| • AI Detection Range: 2m |
| • Waterproof: IP69K approved |
| • Mirror / Normal image switch |
| • Night Vision: Starlight Night Vision Mode |
| • Electronic Shutter - 1/50(1/60) - 1/10,0000(sec) |
| • Image Device: 1/2.9” CMOS |
| • Effective Pixels: 1920 (H) x 1080 (V) |
| • Scanning System: Automatic |
| • SNR - 46dB |
| • Synchronous Mode - Internal Synchronisation |
| • Operating Voltage: DC 12V±1.5V, Maximum Power:<2W |
| • Shell Material: Aluminum Alloy |
| • Connection: 4 PIN |
| • Shock Protection: 10 g |
| • Operating Temperature: –20℃ ~ 60℃ |
| • Storage Temperature: –40℃ ~ 80℃ |
| • One Year Warranty |
Camera Viewing Angle 130°
Camera Dimensions
Camera have the 4 Pin Waterproof Female Plug GX12 Aviation Plug Connection
Cameras 4PIN Femal Definition
AI Vehicle and Pedestrian Detection Reversing 1080P HD Camera (CAIHD130SV) |
| • AI Artificial Intelligent Detection Camera Targeting Pedestrians/Vehicles |
| • Alarm I/O : External Buzzer |
| • High-Definition 1080P |
| • Viewing angle: 130° (2.6mm lens) |
| • AI Detection Range: 2m |
| • Waterproof: IP69K approved |
| • Mirror / Normal image switch |
| • Night Vision: Starlight Night Vision Mode |
| • Electronic Shutter - 1/50(1/60) - 1/10,0000(sec) |
| • Image Device: 1/2.9” COLOUR CMOS |
| • Effective Pixels: 1920 (H) x 1080 (V) |
| • Scanning System: Automatic |
| • SNR - 46dB |
| • Synchronous Mode - Internal Synchronisation |
| • Operating Voltage: DC 12V±1.5V, Maximum Power:<2W |
| • Shell Material: Aluminum Alloy |
| • Connection: 4 PIN Screw |
| • Shock Protection: 10G |
| • Operating Temperature: –20℃ ~ 60℃ |
| • Storage Temperature: –40℃ ~ 80℃ |
| • Dimension: 74(W) X 64(H) X 56 (D) |
| • One Year Warranty |
This AI reversing camera has a looking down view. It is designed for mounting at a height of 2 meters or higher. If you're interested in this option, please contact us on 08 9754 3200 as there is a small additional cost.
