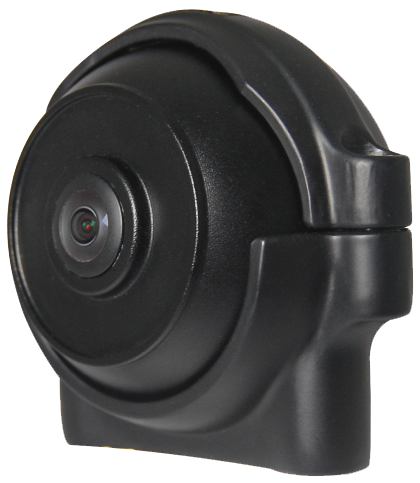

This AI reversing camera is designed for industrial applications, providing advanced pedestrian and vehicle detection to improve safety when reversing or manoeuvring. The system delivers visual and audible alerts to help operators react quickly to hazards behind the vehicle. The 1080P high definition camera features a wide 130 degree viewing angle, offering increased coverage of blind spot areas for trucks, machinery, and commercial vehicles. The adjustable eyeball design allows the lens to be positioned to focus on a specific area, making it ideal for rear view, side monitoring, or targeted observation zones. Built for demanding Australian conditions, this industrial grade camera features an IP69K waterproof rating and durable aluminium housing, making it suitable for trucks, buses, forklifts, agricultural machinery, and mining equipment where safety and reliability are critical.
Reversing Camera Viewing Angle 130°
Waterproof Rating - IP69K
Camera Dimensions
Reversing Camera have the 4 Pin Waterproof Female Plug GX12 Aviation Plug Connection
4PIN Female Definition
AI Vehicle and Pedestrian Detection Reversing 1080P HD Camera (CAIHD130SV-Concord) |
| • AI Artificial Intelligent Detection Camera Targeting Pedestrians/Vehicles |
| • Alarm I/O : External Buzzer |
| • High-Definition 1080P |
| • Viewing angle: 130° (2.6mm lens) |
| • AI Detection Range: 2m |
| • Waterproof: IP69K approved |
| • Mirror / Normal image switch |
| • Night Vision: Starlight Night Vision Mode |
| • Electronic Shutter - 1/50(1/60) - 1/10,0000(sec) |
| • Image Device: 1/2.9” COLOUR CMOS |
| • Effective Pixels: 1920 (H) x 1080 (V) |
| • Scanning System: Automatic |
| • SNR - 46dB |
| • Synchronous Mode - Internal Synchronisation |
| • Operating Voltage: DC 12V±1.5V, Maximum Power:<2W |
| • Shell Material: Aluminum Alloy |
| • Connection: 4 PIN Screw |
| • Shock Protection: 10G |
| • Operating Temperature: –20℃ ~ 60℃ |
| • Storage Temperature: –40℃ ~ 80℃ |
| • Dimension: 74(W) X 64(H) X 56 (D) |
| • One Year Warranty |
This AI reversing camera has a looking down view. It is designed for mounting at a height of 2 meters or higher. If you're interested in this option, please contact us on 08 9754 3200 as there is a small additional cost.
