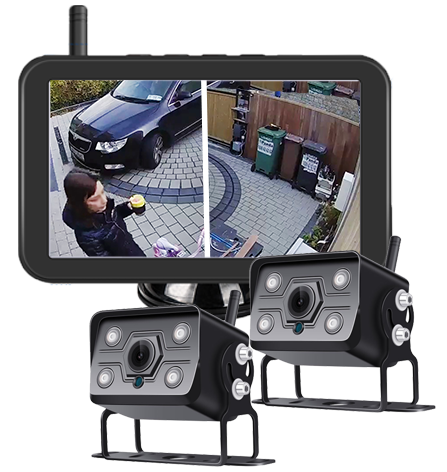

5 Inch Wireless Reversing Camera Kit 2 Camera DVR
Domestic Use Only – Designed for cars, caravans and light vehicles. Not suitable for trucks, heavy machinery or industrial use.
This 5 inch wireless reversing camera kit includes two cameras and a compact monitor with built-in DVR recording. Designed for cars, caravans and light vehicles, it provides clear visibility, improved safety and easy installation in Australian conditions.
Key Features:
- 5 inch compact monitor
- 2 x wireless reversing cameras
- Built-in DVR recording
- 110° wide viewing angles
- Stable digital wireless transmission
- Reduces blind spots and improves safety
- Easy installation with no long cable runs
- Ideal for caravans and domestic vehicles
No Interference - Wireless Distance 100m Clear Line of Sight
Obstacles in the way of the wireless signal will reduce the wireless distance slightly.
Monitor Viewing Configurations
The reversing cameras can be viewed in a single format or in a dual split configuration.
SD Card Slot
The SD Card requires speed equal to or greater than Class 10, Supports up to 128G. SD Card Not Included.
When an SD card is inserted, the monitor records exactly what is shown on the screen. For example, if the display shows a dual-screen view, both cameras are recorded; if it shows only Channel 1, then only that camera is recorded. The monitor supports loop recording, automatically overwriting the oldest footage when the card becomes full.
Reversing Guidance Lines
Can be Turned on or off.

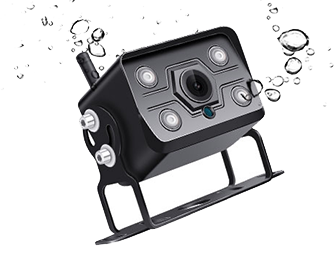

HD Waterproof Reversing Camera IP69K
Digital Wireless Extension Antenna 5dBi Signal Boost, 3-meter cable that screws onto a camera or monitor, offering the flexibility to extend the antenna (ADWC).
This antenna is typically not required when towing a caravan. It’s only necessary if there’s substantial metal blocking the signal or if you're extending the line of sight beyond 50 meters.
The antenna base is equipped with a magnetic base, although additional adhesive may be required for secure placement.
Secure Twist Lock Camera & Power Cable Connections
Connecting the Monitor to Power DC12V~24V
Wiring of the Camera DC12V~24V

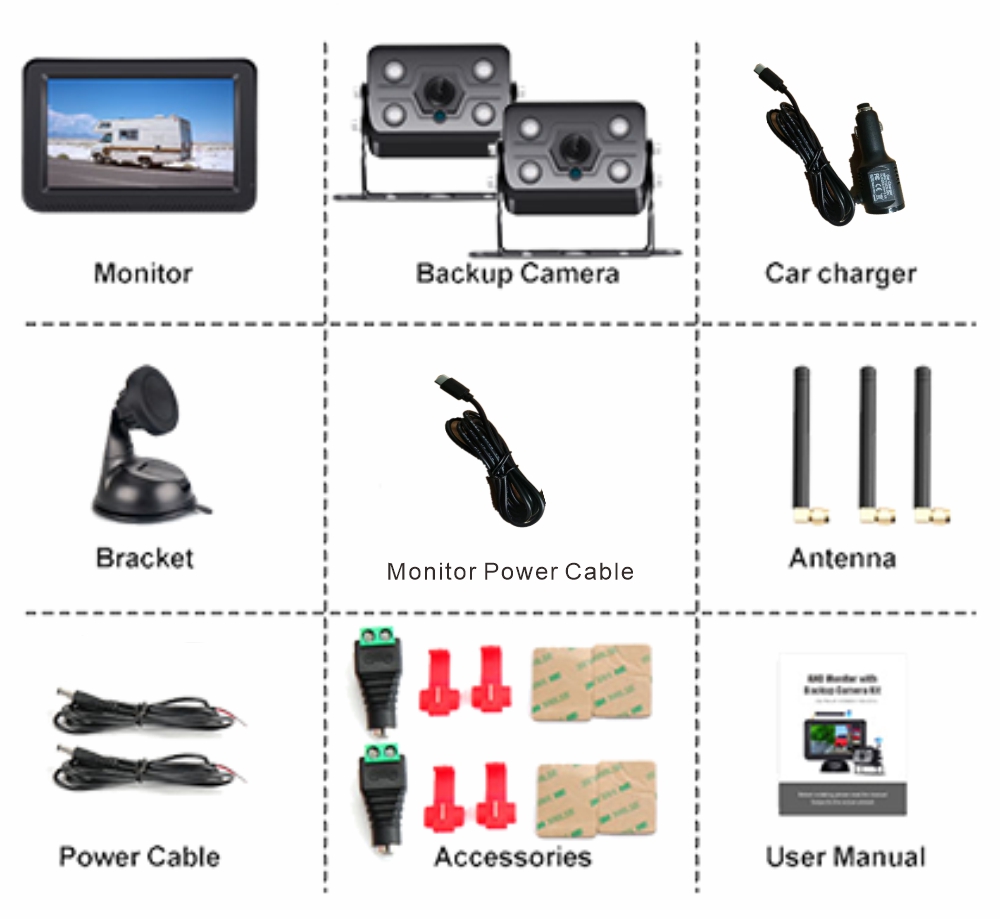

Kit Includes
| • 1 x TR-DWHM5VKRec Car 5inch AHD Digital Wireless Reversing Monitor |
| • 2 x TR-DWHCVK 1/3" CMOS Colour AHD Digital Wireless Reversing Camera 110° |
| • 3 x Antenna (1 for Monitor and 2 for cameras) |
| • Electrical Connecting Cables |
| • Suction Bracket |
| • User Guide |
| • Monitor Supports Two Reversing Cameras |
| • One Year Warranty |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
Monitor Dimensions
Monitor Controls
5" AHD Revering Digital Wireless Monitor Built-In DVR (TR-DWHM5VKRec） |
| • 5inch digital wireless Dual Screen (Built-in DVR) |
| • Operating Frequency:2400~2483.5MHZ |
| • Resolution: 800 x 480 |
| • SD Card: Max Support 128G (Card Speed Greater Than or Equal to Class 10) |
| • Transmitted Power: 23db |
| • Response Time: 25ms |
| • Dual Screen |
| • Contrast: 500:1 |
| • System: PAL/NTSC(Auto) |
| • Cameras Easy to Pair |
| • Three Modes in Adjusting Parking Line. |
| • Back Light Luminance: IPS Screen |
| • Power supply: DC 12~24V |
| • Working temperature: -20℃ ~ +70℃ |
| • Storage Temperature: -30℃~ + 80℃ |
| • Outer Dimension:132(W) X 108(H) X 86 (T) mm |
| • Suction Type Bracket |
| • One Year Warranty |
Camera Dimensions
720p AHD Digital Wireless Reverse Camera 110° (TR-DWHCVK) |
| • Image Sensor: 1/3" AHD Colour CMOS |
| • Viewing Angle: 110° |
| • Effective Pixels: 1280 x 720p |
| • Minimum Illumination: 0.5Lux |
| • Infrared LED Light: 4pcs |
| • Operating Frequency: 2400MHz ~ 2483.5MHz(Built in 2.4GHz Digital wireless transmitter) |
| • Shell material: Aluminum Alloy |
| • Waterproof range: IP69K |
| • Power Supply: DC 12 ~24V |
| • Working temperature: -20℃ ~ +70℃ |
| • Storage Temperature: -30℃~ + 80℃ |
| • One Year Warranty |
