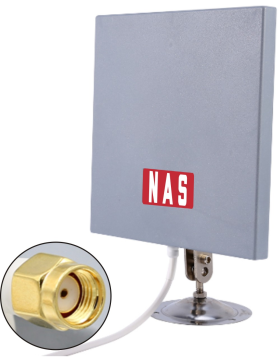

2.4GHz 14dBi Directional Antenna High Gain Long Range
This 2.4GHz 14dBi directional antenna is designed to boost signal strength and extend range for digital wireless camera systems. Ideal for trucks, farming equipment and industrial vehicles where interference or distance affects performance.
Key Features:
- 14dBi high gain directional antenna
- Improves wireless signal strength and range
- Designed for long distance transmission
- Ideal for trucks, farming and industrial use
- Helps overcome interference and signal loss
- Suitable for digital wireless camera systems
Antennas cable length - 5M
An Additional 5M cable is available to increase the length of the over all cable to 10m. Excess cable can be rolled up.
The connection on the lead does not have the pin. Suitable for digital wireless monitors or cameras, this replacement antenna is designed for devices equipped with a pin connection.
2.4GHz 14dBi Directional Antenna High Gain(R-A14dBi) |
| • Frequency：2400~2500MHz |
| • V.S.W.R (Voltage Standing Wave Ratio) ：<2.0 |
| • Antenna Gain：14dBi |
| • Radiation: Directional |
| • Polarisation：Linear |
| • Impedance：50Ω |
| • Max. Power：50w |
| • Antenna Lead：5m |
| • Beam Width：H 30; V 30 |
| • Signal Transmission Range：Horz. 180°; Vert. 38° |
| • Interface：Standard RP-SMA Internal thread |
| • Operation Temperature：-40℃ ~ +65℃ |
| • Storage Temperature：-40℃ ~ +80℃ |
| • Antenna Housing：Waterproof ABS Material. High Density & Durable. Can Be Used Indoor & Outdoor. |
| •Interface:：Stander RP-SMA Internal thread |
| 2.4GHz 14dBi Directional Antenna Applicable to NAS Wireless Products. Faster Transmission. Enhance And Improve The Wireless Signal. Easy To Assemble in Various Place. |
Directional Antenna Dimensions: mm
Universal Type Bracket
ABS Material
Screws
Front & Back Show
