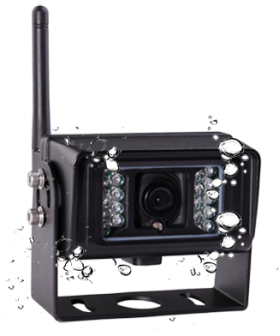

This HD 1080P wireless reversing camera delivers clear high definition vision with a 100 degree viewing angle and stable transmission up to 200 metres. Built with an IP69K waterproof rating, it is ideal for trucks, farming, construction and industrial applications in Australian conditions.
Key Features:
- HD 1080P wireless reversing camera
- 100 degree viewing angle
- Transmission range up to 200 metres
- IP69K waterproof and dustproof
- Designed for heavy duty environments
- Compatible with Concord wireless monitors
This camera will only work on the monitor with the codes of HDKDWQ7TRec, HDKDWQ94, HDKDWQ92, HDKDWQ74, and HDKDWQ72. It will not work on any other style or brand of monitor.
Camera Dimensions
Camera Cable Interface Definition
1080P HD Digital Wireless Reversing Camera (HDKDW04100) |
| • Free viewing angle: 100° (3.6mm lens) |
| • Waterproof: IP69K |
| • Image Type: 1/2.9 inch Colour CMOS |
| • Built in 2.4GHz Digital wireless transmitter |
| • Transmission Power: 18dBm |
| • Wireless Range: No Barriers ≤200m |
| • IR-function: Automatic switching |
| • Resolution: 1080P |
| • Effective pixels: PAL 1920(H)*1080(V) |
| • Usable Illumination: 0Lux (18pcs IR LED's for Night Vision) |
| • Infrared distance: ≤15m |
| • Shell material: Aluminum alloy |
| • Free Operating Voltage: DC12-32 Volts |
| • Shockproof: 5G (conforms to GB-T2423056-2006 standard) |
| • Dimensions: 107(W) x 75(H) x 70.5(D) mm (without mounting) |
| • Operating Temperature: -20°C ~ +60°C |
| • Storage Temperature: -30°C ~ +70°C |
| • Weight : 450g |
| • One Year Warranty |
