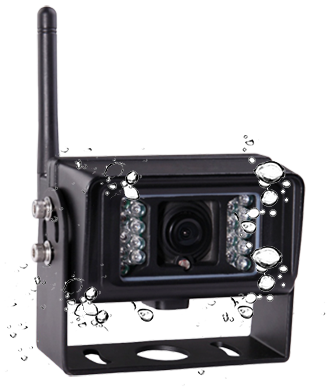

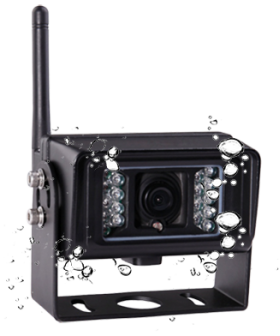

This HD 1080P wireless reversing camera features a 35 degree viewing angle designed to provide a more natural rear view perspective, making it ideal for caravans and trailers. It allows drivers to better judge distance to vehicles behind while towing. With up to 200 metre transmission and IP69K waterproof rating, it is built for reliable performance in Australian conditions.
Key Features:
- HD 1080P wireless reversing camera
- 35 degree viewing angle for accurate distance view
- Ideal for caravans and trailers while driving
- Transmission range up to 200 metres
- IP69K waterproof and dustproof
- Compatible with Concord wireless monitors
This camera will only work on the monitor with the codes of HDKDWQ7TRec, HDKDWQ94, HDKDWQ92, HDKDWQ91, HDKDWQ74, HDKDWQ72, HDKDWQ71, HDKDWQ7TRec, HDKDWWPQ74, HDKDWWPQ73, & HDKDWWPQ71. It will not work on any other style or brand of monitor.
Camera Dimensions
Camera Cable Interface Definition
1080P HD Digital Wireless Reversing Camera (HDKDW0435) |
| • Free viewing angle: 35°(12mm lens) |
| • Waterproof: IP69K |
| • Image Type: 1/2.9 inch Colour CMOS |
| • Built in 2.4GHz Digital wireless transmitter |
| • Transmission Power: 18dBm |
| • Wireless Range: No Barriers ≤200m |
| • IR-function: Automatic switching |
| • Resolution: 1080P |
| • Effective pixels: PAL 1920(H)*1080(V) |
| • Usable Illumination: 0Lux (18pcs IR LED's for Night Vision) |
| • Infrared distance: ≤15m |
| • Shell material: Aluminum alloy |
| • Free Operating Voltage: DC12-32 Volts |
| • Shockproof: 5G (conforms to GB-T2423056-2006 standard) |
| • Dimensions: 107(W) x 75(H) x 70.5(D) mm (without mounting) |
| • Operating Temperature: -20°C ~ +60°C |
| • Storage Temperature: -30°C ~ +70°C |
| • Weight : 450g |
| • One Year Warranty |
