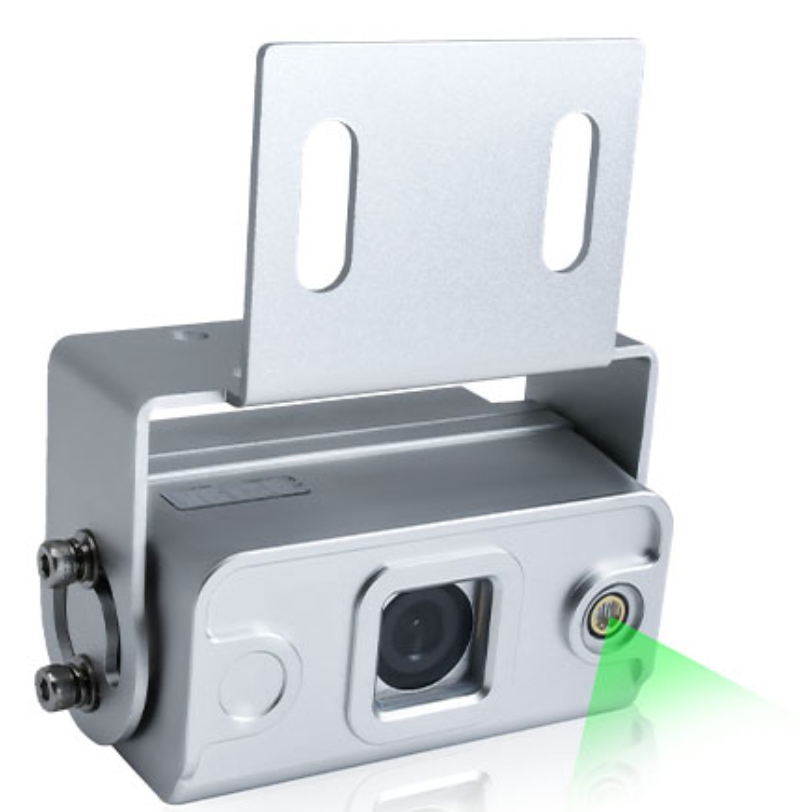

This wireless forklift safety camera with integrated laser guidance is designed for industrial environments across Australia, improving visibility and operational safety. The 1080P HD camera delivers clear, high-resolution images, helping operators reduce blind spots and work with greater confidence.
Built with a rugged aluminium alloy housing, this heavy-duty camera is designed to withstand harsh industrial conditions including dust, vibration, and demanding daily use. The internal antenna provides a stable digital wireless signal without the need for complex wiring.
The integrated laser guideline assists with accurate fork positioning, improving load handling and reducing the risk of product damage. This makes it ideal for warehouse and logistics operations where precision and safety are critical.
This industrial grade forklift camera is a reliable solution for improving safety, efficiency, and visibility in forklifts and material handling equipment.
This camera will only work on the monitor with the codes of HDKDWQ7TRec, HDKDWQ94, HDKDWQ92, HDKDWQ74, and HDKDWQ72. It will not work on any other style or brand of monitor.
Camera Dimensions
Camera Cable Interface Definition
1080P HD Digital Wireless Forklift Camera With Internal Antenn & Laser Function (CHDDWFLAS80-Concord) |
| • Free viewing angle: 80° |
| • Waterproof: IP69K (100% waterproof) |
| • Image Type: 1/2.9 inch Colour CMOS |
| • Built in 2.4GHz Digital wireless transmitter |
| • Transmission Power: 18dBm |
| • Wireless Range: No Barriers ≤100m |
| • TV System: PAL (25fps) |
| • Resolution: 1080P |
| • Effective Pixels: PAL 1920(H)*1080(V) |
| • Usable Illumination: 1Lux |
| • Laser Function: Green Laser Beam |
| • Shell material: Aluminum Alloy, anti-collision design |
| • Free Operating Voltage: DC12Volts |
| • Shockproof: 5G (conforms to GB-T2423056-2006 standard) |
| • Dimensions: 88.5(W) x 52.5(H) x 109(D) mm (without mounting) |
| • Operating Temperature: -30℃ To + 70℃ Rh95% Max |
| • Storage Temperature: -40℃ To + 70℃ Rh95% Max |
| • Weight : 500g |
| • One Year Warranty |
