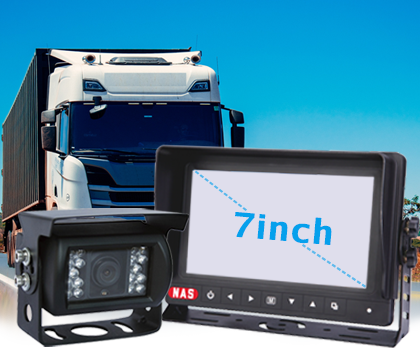

This 7 inch AHD reversing camera kit is designed to improve vehicle safety and visibility when reversing and manoeuvring. The HD monitor delivers a clear, easy-to-view display, allowing drivers to monitor multiple areas around the vehicle with confidence.
The system includes two high-definition 1080P waterproof cameras, each available with a choice of viewing angles including 100 degree, 60 degree, 45 degree, or 30 degree. Wider angles provide greater coverage behind the vehicle, while narrower angles allow for more accurate distance judgement when reversing or towing.
Each camera can be viewed individually on the monitor, making it ideal for monitoring rear and additional areas such as trailers, blind spots, or side views. The monitor is designed for clear visibility, including in bright sunlight conditions.
The wired connection ensures a stable, interference-free signal for consistent performance. Cable length options are available to suit different vehicle sizes and installation requirements.
Suitable for cars, vans, caravans, 4WD vehicles, and light commercial applications, this industrial grade system is a practical and flexible solution for improving reversing safety and overall vehicle awareness.
Waterproof IP69K High Quality Reversing Camera
Camera Angles - 100°, 60°, 45° & 30°Optional.
Reversing Camera Night Vision Distance
18pcs LEDs - Approx. 10m if there is no other light source.
Monitor Viewing Configuration
The monitor can take up to two reversing cameras.
Mounting Bracket
The reverse monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by Clicking on the "Monitor Bracket" Tab.
Suction or Fan Bracket Slides into Slot.
Camera Can Be Mounted on a Magnetic Base for Ease of Fixing and Movability
To purchased as an optional extra click on the "Add Camera Magnet" Tab .
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS monitors have the 4-pin male ended connection and require the female ended extension cable.
| Kit Includes |
| • 1 x HDM72C 7" IPS HD 720P Screen Reverse Monitor With Touch Buttons with Removable Sun Visor |
| • 2 x CHD402E HD 1080P Waterproof Reversing Camera |
| • 2 x 8m Cable |
| • Electrical Connecting Cables |
| • User Guide |
| • Monitor Supports Two Reversing Cameras |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
7inch HD Wired Reversing Monitor
Monitor Dimensions
Monitor Key
Monitor Harness
Monitor has two 4pin Male Aviation
Trigger Wires
The trigger cables, typically Yellow, Brown, Blue, and White, do not need to be connected. They only require connection if you desire automatic camera activation, such as when the vehicle is shifted into reverse. However, if you connect the trigger wires, continuous camera viewing while driving won't be possible. If you choose not to connect the trigger cables, ensure to wrap each one individually in insulation tape.
720P HD 7" Cabled Monitor (HDM72CNDH) |
| • 7" IPS HD Screen Monitor With Touch Buttons with Removable Sun Visor |
| • Touch Button Controls |
| • Vibration Resistance Level: 5G (Conforms To GB-T2423056-2006 Standard) |
| • View Monitor: Single Screen Switch |
| • Colour System: PAL/NTSC (Auto) |
| • Display Resolution: 1024(H) X 600(V) |
| • Surge and load dump protection: ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms） |
| • Time Delay (Ms):25ms |
| • Wide View Angle (LR/UD):(U/D): 80/85 (L/R): 80/85 |
| • Brightness: 600cd/m² |
| • Contrast Ratio: 800:1 |
| • Power Supply: DC11~32V |
| • Operating Temperature: -20℃ To +70℃ |
| • Storage Temperature: -30℃ To +80℃ |
| • External Dimensions :(L x W x T) 220 x 149 x 84mm |
| • Weight Approx: 1000g |
| • Two Year Warranty |
HD 1080P Reversing Camera IP69K, 100°, 60°,45°& 30° Optional.
Camera viewing angle plays an important role in how your reversing camera performs when towing. A narrow 30° camera is ideal for driving and distance viewing, giving you a clear, rear-vision style image so you can accurately judge how far vehicles are behind your caravan while travelling.
Mid-range angles such as 45° and 60° provide a balanced view, making them suitable for both reversing and general towing. They offer more coverage than a narrow lens while still allowing you to maintain a good sense of distance.
A wider 100° camera is best suited for reversing and manoeuvring, as it captures a broader area behind the caravan. This helps reduce blind spots and makes it easier to see obstacles when parking or navigating tight spaces.
Night Vision Distance
18pcs LEDs-Approx. 10m if there is no other light source
Camera Dimensions
Front View
Side View
4pin Gx12 Screw Female Definition
Measurements
HD 1080P Reversing Camera reversing safety |
| • Image - Rear-View, NAS Monitor Can Change Image to Forward Facing |
| • CHD402E 100° Viewing Angle |
| • CHD60E 60° Viewing Angle |
| • CHD45E 45° Viewing Angle |
| • CHD30E 30° Viewing Angle |
| • Waterproof: IP69K |
| • Image Type: 1/2.8 Inch Colour Sony |
| • Tv System: PAL (25fps) |
| • Sync System: Internal Synchronization |
| • IR-Function: CDS Auto Control, Under 10 Lux By CDS (≤10 Lux CDS On) |
| • Video Output: HD 1080P |
| • Usable Illumination: 0lux At Night (18pcs IR Led On) |
| • Night Vision Distance: Approx. 15m |
| • Automatic Adjusts with Day/Night Sensor |
| • S/N Ratio: ≥48db (AGC Off) |
| • Shockproof: 5G (Conforms To GB-T2423056-2006 Standard) |
| • Power Supply: DC12V |
| • Shell Material: Aluminum Alloy |
| • Dimensions: 107(W X 75(H) X 70.5(D)mm (With Mounting) |
| • Operating Temperature: -20℃ To + 60℃ Rh95% Max |
| • Storage Temperature: -20℃ To + 70℃ Rh95% Max |
| • Weight : 450g |
| • One Year Warranty |
