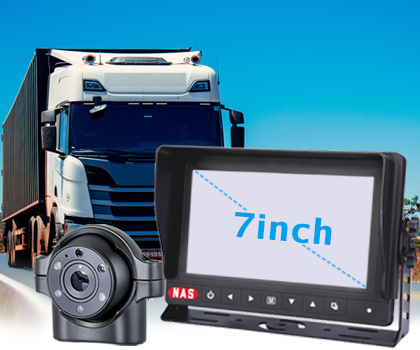

This 7 inch reversing camera kit is designed to improve vehicle visibility and safety when reversing and manoeuvring. The HD monitor delivers a clear, easy-to-view display, allowing drivers to monitor multiple areas around the vehicle with confidence. The system includes two ultra compact 1080P waterproof cameras, each with a wide 130 degree viewing angle. The adjustable eyeball design allows each camera to be positioned precisely, making it ideal for monitoring specific rear or side areas of the vehicle. The compact cameras can be used for both rear and side mounting, providing improved visibility for blind spots and tight manoeuvring situations. The wired connection ensures a stable, interference-free signal for consistent performance. The monitor supports dual camera viewing, allowing each camera to be viewed individually to improve driver awareness. Suitable for cars, vans, 4WD vehicles, and light commercial applications, this industrial grade system is a practical solution for improving safety and overall vehicle visibility.
Waterproof IP69K 1080P AHD Reversing Camera
Camera Angles - 130°
Heavy duty, suitable for Heavy Equipment, Trucks, Forklifts, Cranes, Farming Machinery, & Shipping.
Reversing Camera Night Vision Distance
5pcs LEDs - Approx. 5m if there is no other light source.
Monitor Viewing Configuration
The monitor can take up to two reversing cameras.
Mounting Bracket
The reverse monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by Clicking on the "Monitor Bracket" Tab.
Suction or Fan Bracket Slides into Slot.
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS monitors have the 4-pin male ended connection and require the female ended extension cable.
| Kit Includes |
| • 1 x HDM72C 7" IPS HD 720P Screen reverse Monitor With Touch Buttons with Removable Sun Visor |
| • 2 x CSHD067 HD 130 Degree 1080P IP69K Waterproof Reversing Cameras |
| • 2 x 8m Cable |
| • Electrical Connecting Cables |
| • User Guide |
| • Monitor Supports Two Reversing Cameras |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
7inch HD Wired Reversing Monitor
Monitor Dimensions
Monitor Key
Monitor Harness
Monitor has two 4pin Male Aviation
Trigger Wires
The trigger cables, typically Yellow, Brown, Blue, and White, do not need to be connected. They only require connection if you desire automatic camera activation, such as when the vehicle is shifted into reverse. However, if you connect the trigger wires, continuous camera viewing while driving won't be possible. If you choose not to connect the trigger cables, ensure to wrap each one individually in insulation tape.
720P HD 7" Cabled Monitor (HDM72CNDH) |
| • 7" IPS HD Screen Monitor With Touch Buttons with Removable Sun Visor |
| • Touch Button Controls |
| • Vibration Resistance Level: 5G (Conforms To GB-T2423056-2006 Standard) |
| • View Monitor: Single Screen Switch |
| • Colour System: PAL/NTSC (Auto) |
| • Display Resolution: 1024(H) X 600(V) |
| • Surge and load dump protection: ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms） |
| • Time Delay (Ms):25ms |
| • Wide View Angle (LR/UD):(U/D): 80/85 (L/R): 80/85 |
| • Brightness: 600cd/m² |
| • Contrast Ratio: 800:1 |
| • Power Supply: DC11~32V |
| • Operating Temperature: -20℃ To +70℃ |
| • Storage Temperature: -30℃ To +80℃ |
| • External Dimensions :(L x W x T) 220 x 149 x 84mm |
| • Weight Approx: 1000g |
| • Two Year Warranty |
Forward Facing or Rear View Side Mount Camera
The length of cable attached to the camera is approx. 900mm in length
Camera Mounting M6 Screws
Camera Dimensions
4-Pin GX12 Screw Female Definition
Measurements
HD 1080P Rear View Side Mount Moveable Eyeball Camera (CSHD067) |
| • Waterproof: IP69K approved |
| • Viewing angle: 130° |
| • Lens f=2.8mm |
| • Smart-IR |
| • Mirror / Normal image switch |
| • Night Vision distance: 5m (5 infrared lights) |
| • Day / Night sensor for automatic adjustment |
| • Image Device: 1/2.9” CMOS |
| • Frame Rate: 25fps/30fps |
| • Effective Pixels: 1920 x 1080 |
| • Pixel pitch 2.8 μm x 2.8 μm |
| • Scanning System: Progressive Scanning |
| • Sync. System: Internal |
| • Resolution: 1080p |
| • Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR) |
| • Microphone: Yes |
| • Video Output: 1.0Vp-p, 75Ohm |
| • Gamma Consumption: 0.45 |
| • Dynamic Range: 81dB |
| • White Balance: Auto |
| • Electronic Shutter: 1/30（1/25）～1/50,000 Seconds |
| • BLC: Auto |
| • Current Consumption: Max. 110mA |
| • Power Supply: DC 12 V |
| • Connection: 4 PIN |
| • Anti-vibration: 10 g |
| • Operating Temperature: –20℃ ~ 70℃, RH95%MAX. |
| • One Year Warranty |
