6 Camera 360 Surround View System Compact Cameras Articulated Trucks and Long Vehicles

This 6 camera 360 surround view system uses compact high definition cameras to deliver a real time bird’s eye view around long vehicles, helping eliminate blind spots and improve driver awareness.

Designed for articulated trucks, buses, and heavy machinery, the compact camera design reduces the risk of damage while maintaining full coverage along the length of the vehicle.

The system uses advanced image stitching and AI detection to monitor surrounding areas, helping identify obstacles and hazards during manoeuvring.

Built for demanding Australian conditions, this industrial grade system provides reliable panoramic monitoring for transport fleets, mining equipment, and heavy vehicles where safety and visibility are critical.

This 360 surround view system is designed for real working environments, not showroom conditions. The AI detection highlights people and moving vehicles around the machine, giving operators clear visual awareness in high risk situations.

Ideal for Buses, Vans, trucks, forklifts, mining equipment, and heavy machinery where blind spots are a serious safety concern.

Application

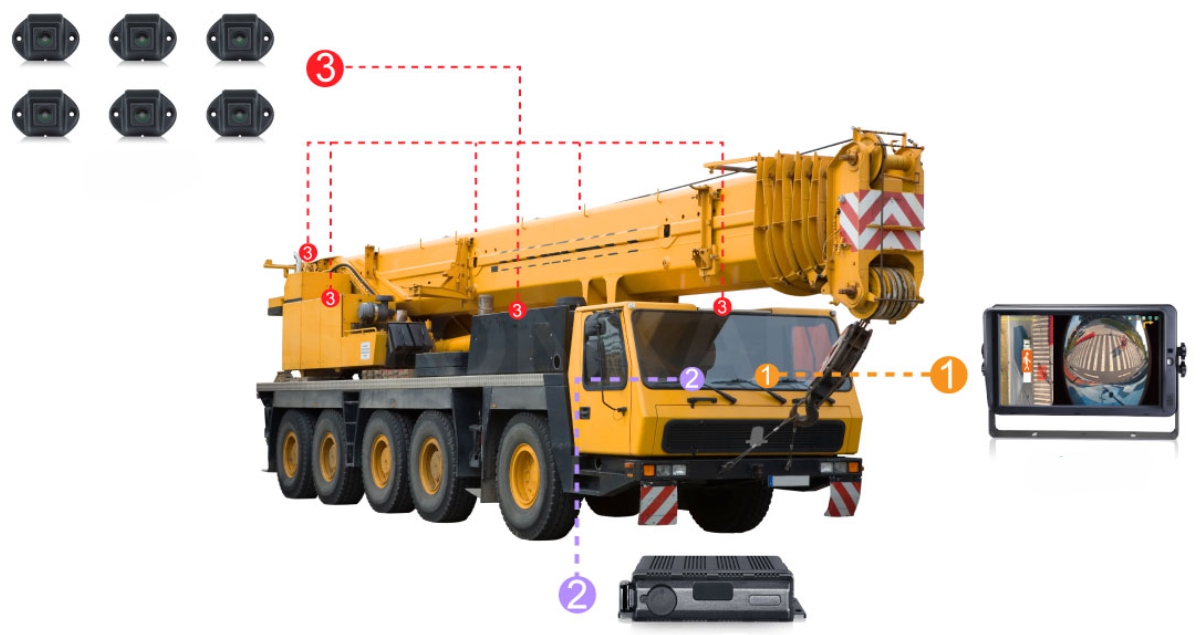

This 360° surround view camera system is widely suited to articulated trucks, long trailers, mining vehicles, cranes, buses and other super-long vehicle platforms. The system provides full-perimeter visibility around the vehicle body, assisting operators in identifying hazards and reducing blind spots in high-risk and controlled operating areas.

Designed for continuous operation in transport, industrial and off-road environments, the system supports safer vehicle operation where space constraints and visibility challenges are common.

Camera Specification

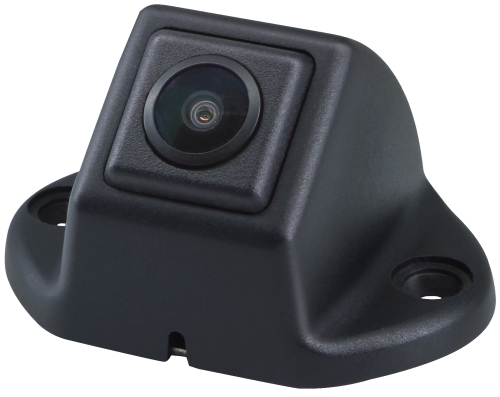

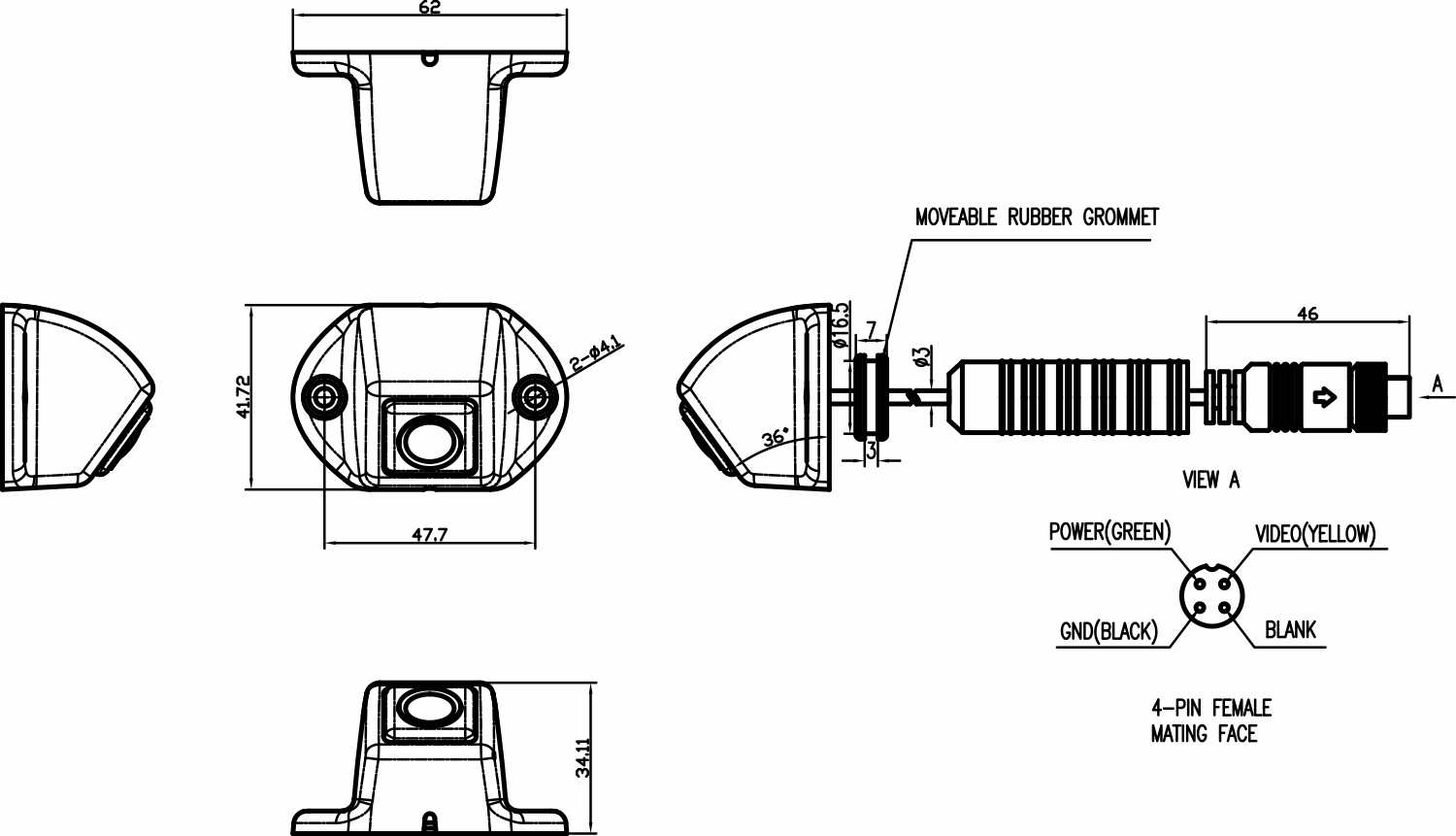

The system uses compact high-definition fisheye cameras with an IP69K waterproof rating, suitable for heavy-duty and industrial applications. For optimal image accuracy and surround view performance, each camera should be installed at a minimum mounting height of 1.5metres.

Six-Camera Surround View Image Stitching

Six camera inputs are processed simultaneously to create a true 360-degree panoramic bird’s-eye view around the vehicle. Advanced image fusion technology ensures smooth transitions between camera views, providing continuous surround monitoring with no visual gaps.

Panoramic Image Processing and Surround View Technology

The system processes video streams from six high-definition cameras using real-time geometric distortion correction and perspective calibration. The corrected images are seamlessly stitched together to form a continuous 360-degree surround view covering the full perimeter of the vehicle.

A synthesised three-dimensional top-down driving scene is generated to accurately represent the vehicle footprint and surrounding environment, supporting precise spatial awareness during manoeuvring and operation.

Camera Positioning

For accurate calibration and the best 360° surround-view image, all six cameras must be installed in the correct positions.

• The front and rear cameras should be mounted as close as possible to the centre line of the vehicle.
• The front and rear cameras do not need to be exactly the same height. A height difference of up to approximately 0.5 metres is acceptable.
• Each matching pair of left and right side cameras should be mounted at the same height.
• The cameras on opposite sides of the vehicle must be positioned and aimed at matching angles.
• Each left and right camera pair should have the same amount of upward or downward tilt and the same forward or rearward angle.

For example, a camera on the left side should not be tilted downward if the corresponding camera on the right side is tilted upward.

Correct and symmetrical positioning of all six cameras is important because it allows the system to accurately combine the camera images and produce a balanced 360° surround view.

Automatic Calibration and Setup

The system features automatic calibration technology designed to simplify installation and reduce setup time. Calibration is completed using the touchscreen monitor or remote control and requires six calibration mats positioned around the vehicle. Once placed, the system performs calibration automatically, delivering accurate surround view alignment without complex manual adjustment.

Vehicle Blind Spot Awareness

Blind spots are a common challenge for long vehicles, articulated trucks and heavy machinery, particularly during low-speed manoeuvring and operation in confined areas. This surround view camera system is designed to improve visibility around the entire vehicle, supporting safer operation for drivers and nearby personnel.

While areas A, B, and C are not typically classified as blind spots, the lower sections around high-clearance vehicles—such as trucks—can still create unexpected blind zones.

Areas A, B, C - Patial Blind Spots - Visibility in these zones varies depending on the size and height of the vehicle.  Larger vehicles increase the risk in these areas.

Area D - Full Blind Spot - Completely out of the drivers' line of sight and not visible in standard rear-view mirrors, making it a high-risk zone.

Area E - Full Blind Spot (Pillar Area) - The A-Pillar near the windshield obstructs the driver's view creating a significant blind spot that can conceal pedestrians or object.

360° Video Control Box Supports Up to 1 x 512GB SD card and 1 x 2TB SSD card, IP69K Waterproof Suitable for All Kinds of Harsh Working Environments.

Built-in AI Algorithm, Integrating LDW+FCW +BSD full area detection

LDW+FCW+both sides BSD 360° detection.

AI-based Pedestrian Detection, All-round Vehicle Surround Monitoring.

The 360° control box is equipped with built-in processing capabilities, delivering more precise pedestrian detection. Each camera channel can cover a detection range of over 10m, providing comprehensive coverage with no blind spots.

Recording Time

Key Features

1. One-Minute Automatic Calibration
• Quick setup via monitor or remote control — full system calibration in under 1 minute
• Uses only six calibration mats, with flexible positioning
• Automatically corrects for uneven or sloped terrain common on mining sites

2. Integrated 360°All-Around System
• Video recording — 1 x 512GB SD cards and 1 x 2TB SSD card , supporting ultra-capacitor to secure the video file
• Simplifies installation and reduces wiring, ideal for vehicles carrying hazardous loads
• Minimises cabin clutter and improves reliability in critical applications

3. High-Brightness IPS Touch Display
• IPS screen provides accurate colours and wide viewing angles — essential for safe operation under varying light conditions
• High-brightness screen remains clear in direct sunlight
• HD resolution improves object and personnel detection in high-risk zones

4. Switchable 3D/2D Viewing Modes
• 3D mode offers a realistic, perspective view around the vehicle
• 2D top-down view assists with precise reversing and manoeuvring
• Operators can switch between modes based on the driving scenario

5. Super Rear View Mirror Function
• Expanded 3D rear display shows full adjacent lanes — essential for safely merging or reversing heavy trucks
• Especially valuable when operating in controlled or restricted movement zones
• Enhances rearward visibility far beyond standard mirrors or single-view cameras

6. Built-in FCW (Front Collision Warning)
• No need for an additional camera — FCW is fully integrated
• Alerts the driver in real-time of potential collisions with vehicles and personnel.
• Improves reaction time and situational awareness without additional hardware

7. Additional Smart Features
• Able to work with radars, supporting the overlay of real-time video and audio, it could actively warn the driver to avoid obstacles and other potential hazards.
• GPS function  route playback (not live navigation) to review vehicle movement during critical operations
• AI function speed recognition can be configured to suit vehicle safety protocols and speed zones

Internal or External Warning Buzzers

The 360° system monitor includes a built-in audible warning. For applications where a louder in-cab warning is required, an optional internal warning buzzer can be added.  An optional external buzzer/siren is also available to provide an audible warning to pedestrians and other people working around the vehicle.  Both the internal buzzer and external buzzer/siren are optional extras.

AI Detection vs Object Detection

The 360° AI system detects and highlights pedestrians and vehicles only. It does not detect static objects such as walls, poles, machinery or other equipment.  For object detection and distance awareness, the system can be upgraded with an optional 77GHz millimetre-wave radar sensor.

Optional 77GHz Millimetre-Wave Sensor

When paired with the 360° camera system, the optional millimetre-wave radar sensor can display the detected distance of pedestrians, vehicles or objects directly on the monitor, giving the operator an additional indication of how close the hazard is to the vehicle.
