This 9 inch quad reversing camera kit is designed to improve visibility and safety around vehicles where monitoring multiple areas is essential. The large HD monitor provides a clear, easy-to-view display, allowing drivers to view several areas around the vehicle and reduce blind spots when reversing or manoeuvring. The system includes four waterproof HD cameras, each with a 90 degree viewing angle. This angle provides a balanced view behind the vehicle, offering clear visibility of obstacles while maintaining accurate distance judgement.The quad view monitor allows all cameras to be displayed, giving operators full awareness of surrounding areas. This makes the system ideal for trucks, commercial vehicles, and machinery where multiple viewing points are required. Cable length options allow the system to be tailored to suit different vehicle sizes and applications.
This system is a practical and reliable solution for improving safety, visibility, and operational control in light commercial and industrial applications.
AHD Monitor
Waterproof IP68 Reversing Camera HD 1080P
Camera Angle 90°
Option to Add Audio
Waterproof IP67 with Audio
Reversing cameras with audio are ideal for towing a caravan, allowing drivers to hear guiding instructions while viewing the area behind. This combination of visual and auditory feedback ensures safer, more precise reversing, especially in tight spaces.
Reversing Camera Night Vision
18pcs LEDs - 10M if there is not other light source.
Monitor Viewing Configuration
The monitor can take up to four reversing cameras.
Mounting Bracket
The reverse monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by Clicking on the "Monitor Bracket" Tab.
Suction or Fan Bracket Slides into Slot.
Reversing Cameras Can Be Mounted on a Magnetic Base for Ease of Fixing and Movability
To purchased as an optional extra click on the "Add Camera Magnet" Tab .
Secure GX12 Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS monitors have the 4-pin male ended connection and require the female ended extension cable.
| Kit Includes |
| • 1 x RV-HDMSD9Quad 9-inch QUAD AHD IPS Screen Reverse Monitor (With Removable Sun Visor) |
| • 4 x RV-HDCSD13 1/3" CMOS HD 1080P Reverse Cameras 90°Viewing Angle |
| • 4 x 8m Cable |
| • Electrical Connecting Cables |
| • Remote Control (Battery Not Included) |
| • User Guide |
| • Monitor Supports Four Reversing Cameras |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
9INCH AHD 720P Trucking farming Quad monitor
Monitor Supports Four HD Cameras
Monitor Viewing Configuration
Mounting Bracket
The monitor comes with the U-Shaped Bracket
Suction or Fan Bracket Slides into Slot.
Monitor Dimensions: mm
Monitor Harness
The trigger cables do not have to be connected, it only requires connection if you want a camera to come on automatically for example when the vehicle is put in reverse. If the trigger wire is connected, then you will not be able to view the camera at all times whilst driving. If not connecting the trigger wire wrap it individually in insulation tape.
Monitor has the 4pin GX12 Male Screw Plug Connection
Accessories

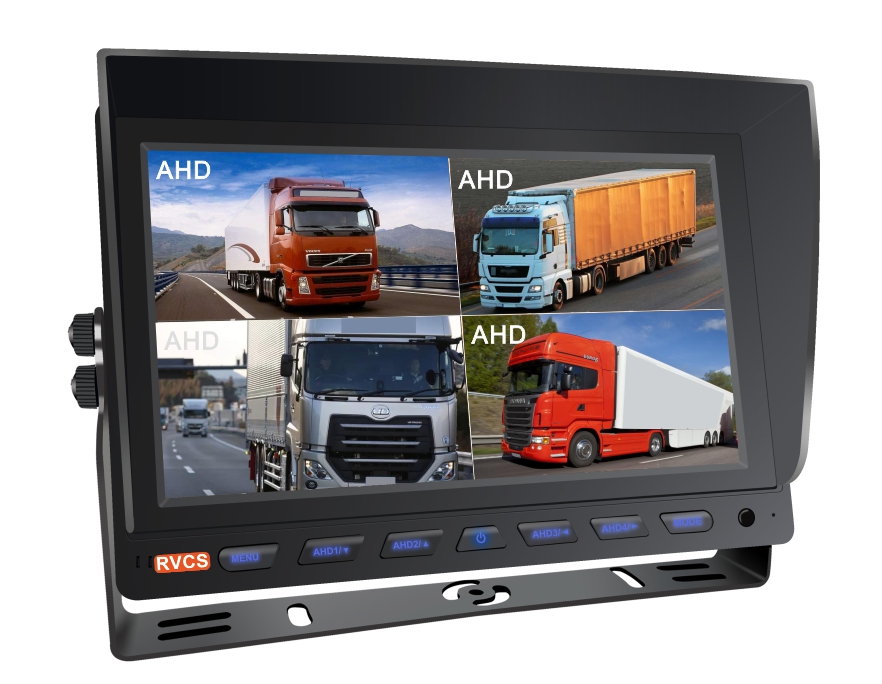

9" HD 720P Revering Quad Monitor (RV-HDMSD9Quad) |
| • 9-inch QUAD AHD IPS Screen (With Removable Sun Visor) |
| • Resolution: 1024 x 3(R.G.B) x 600 |
| • Viewing Angle: L/R: 85°, Up/Down: 85° |
| • Back Light: LED, 500cd/m² |
| • Image Reversion: Up/Down and Left/Right |
| • Light Sensor Automatic Adjustment |
| • 4 Video Input, 1 Audio Input For CH1 |
| • 4 Trigger Cables (Trigger Priority: CH2>CH1>CH3>CH4) |
| • Full image/2 splits/3 splits/4 splits(H and four quarters) adjustable |
| • Compatible System: NTCS & PAL Automatically |
| • 2 Channel AHD Video Input, single image display, support 720P@25/30, 960P@50/60, 1080P@25/30 (Video Compatibility: CVBS/AHD) |
| • 1 Channel AHD Audio Input : Channel 1 |
| • Four Trigger Cables - Does not need to be connected wrap in insulation tap. |
| • Power Requirement: DC12V-24V input, 12V output |
| • Accessories: Remote Control, Power Supply Harness, Sun Visor |
| • Remote Control (Battery Not Included) |
| • U Type Bracket (Fan and Suction Brackets Optional) |
| • Working temperature: -20℃ ~ +70℃ |
| • Storage Temperature: -30℃~ + 80℃ |
| • Outer Dimension:251(W) X 176(H) X 68.5 (T) mm |
| • One Year Warranty |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
90° Rear-View AHD 1080P Camera
The 90° viewing angle is a popular reversing camera and it will provide an adequate view of both lanes on a highway and has a sufficient angle for backing into tight places. This viewing angle is suitable for backing up to tow balls. The 90° viewing angle is not recommended for Utes that have closed in canopies with no rear vision because the angle is not wide enough. The camera can be tilted down or up to focus on a particular area. The downfall of a 90° camera is when towing a trailer or caravan for example a truck or car behind you will look like it is much further away however it is right up behind you.
Camera Dimensions
4-Pin GX12 Screw Female Definition
Measurements
1080P AHD Rear-View Camera 90° (RV-HDCSD13) |
| • Image Sensor: 1/3" CMOS |
| • Viewing Angle: 90° |
| • Effective Pixel: 1920(H) X 1080(V) |
| • Horizontal Resolution: 1080P |
| • Minimum Illumination: 0.5Lux |
| • Infrared LED Light: 18pcs |
| • System: PAL |
| • Shell material: Aluminium Alloy |
| • Waterproof rating: IP68 |
| • Power Supply: DC 12V |
| • Working temperature: -20℃ ~ +70℃ |
| • Storage Temperature: -30℃~ + 80℃ |
| • One Year Warranty |
