9 inch AHD reversing camera monitor
Provides a large, clear high definition display to improve rear visibility when reversing and manoeuvring. The monitor supports two cameras and allows easy switching between views, making it suitable for monitoring rear and additional areas such as front or side views. Designed for cars, caravans, trucks, and light commercial vehicles, this monitor delivers stable and interference free performance. Built for Australian conditions, it is ideal for drivers requiring improved visibility and safer vehicle operation.
Monitor Supports Two HD Cameras
Click on the "Add HD Cameras" Tab to add more cameras to this monitor. Extra cable length will be required and can be selected on the same page.
Monitor Viewing Configuration
Audio
The camera input 2 on the monitoring harness is equipped with audio capabilities.
Mounting Bracket

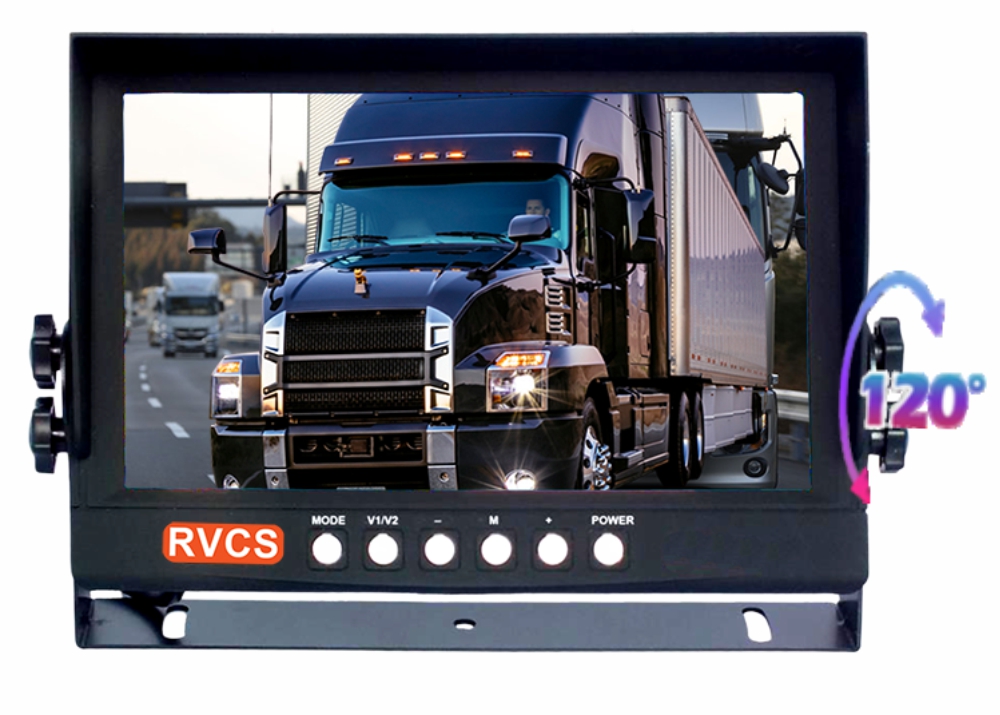

The monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by clicking on the "Add Monitor Bracket" Tab. A suction bracket would not be recommended unless it was used to hold the monitor in place resting on the dash.

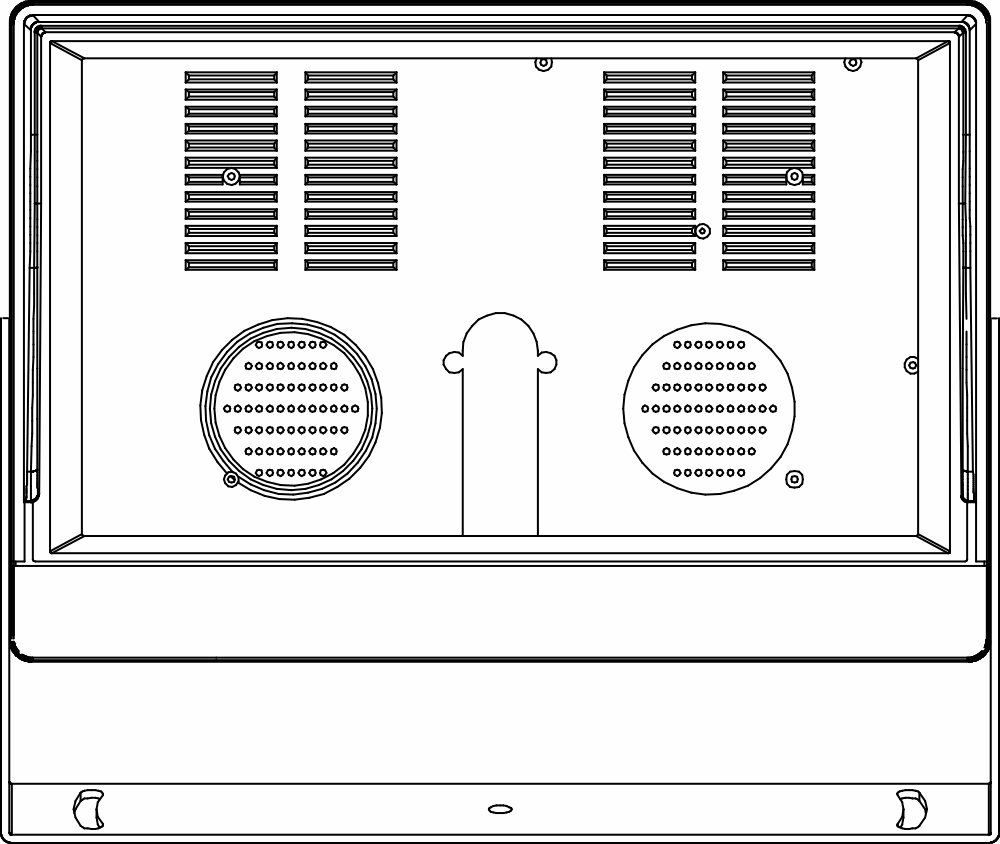

Suction, Butterfly or Fan Bracket Slides into Slot.
Monitor Dimensions:mm
Monitor Harness
The green trigger cables does not have to be connected, it only requires connection if you want a camera to come on automatically for example when the vehicle is put in reverse. If the trigger wire is connected, then you will not be able to view the camera at all times whilst driving. If not connecting the trigger wire wrap it individually in insulation tape.
Monitor has the 4pin GX12 Male Screw Plug Connection
Monitor U-bracket Installation
Accessories
9" Revering Camera Monitor (RV-HDMSD9) |
| • 9-inch AHD IPS Screen (With Removable Sun Visor) |
| • Resolution: 1024 x 3(R.G.B) x 600 |
| • Viewing Angle: L/R: 85°, Up/Down: 85° |
| • Back Light: LED, 500cd/m² |
| • Image Reversion: Up/Down and Left/Right |
| • Compatible System: NTCS & PAL Automatically |
| • 2 Channel AHD Video Input, single image display, support 720P@25/30, 960P@50/60, 1080P@25/30 (Video Compatibility: CVBS/AHD) |
| • 1 Channel AHD Audio Input : Channel 2 |
| • One Trigger Cable - Does not need to be connected wrap in insulation tap. |
| • Power Requirement: DC12V-24V input, 12V output |
| • Accessories: Remote Control, Power Supply Harness, Sun Visor |
| • Remote Control (Battery Not Included) |
| • U Type Bracket (Fan and Suction Brackets Optional) |
| • Working temperature: -20℃ ~ +70℃ |
| • Storage Temperature: -30℃~ + 80℃ |
| • Outer Dimension:251(W) X 176(H) X 68.5 (T) mm (With U Type Bracket and Sun Visor) |
| • One Year Warranty |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
