600TVL CCD Reversing Camera IP69K 90 or 60 Degree Industrial

This 600TVL CCD reversing camera is a proven industrial grade solution designed for reliable performance in harsh Australian conditions. Featuring a high quality CCD sensor, it delivers clear and stable image quality for safer reversing and vehicle operation. The camera is available in 90 or 60 degree viewing angles, allowing you to choose the right field of view depending on your application. The 60 degree option provides a more focused rear view for improved distance judgement, while the 90 degree option offers a wider field of vision for general reversing use. With an IP69K waterproof and anti fog rating, this camera is built to withstand dust, water, and demanding environments. Integrated infrared night vision ensures clear visibility in low light conditions.

Suitable for cars, trucks, caravans, farming machinery, and commercial vehicles, this camera provides dependable performance where durability and visibility are essential.

Waterproof & Anti-Fog IP69K High Quality Reversing Camera

Camera Angles - 90°,or 60°.

90° Rear-View Camera (C023.6)

The 90° viewing angle is a popular reversing camera and it will provide an adequate view of both lanes on a highway and has a sufficient angle for backing into tight places. This viewing angle is suitable for backing up to tow balls. The 90° viewing angle is not recommended for Utes that have closed in canopies with no rear vision because the angle is not wide enough. The camera can be tilted down or up to focus on a particular area. The downfall of a 90° camera is when towing a trailer or caravan for example a truck or car behind you will look like it is much further away however it is right up behind you.

60° Rear-View Camera (C026.0)

The 60° viewing angle provides a better gauge than the above camera angles of the distance a vehicle is behind you, however the 30°camera is the camera to buy if the sole purpose of the camera is to gauge the distance a vehicle is travelling behind.  It is not the camera angle that we would recommended for reversing into tight spots however it is suitable to use to backup to trailers or caravans. This angle lens is not recommended for farming machinery or mining machinery unless there is specific narrow area that requires focus.

Night Vision Distance

18pcs LEDs - Approx. 10m if there is no other light source.

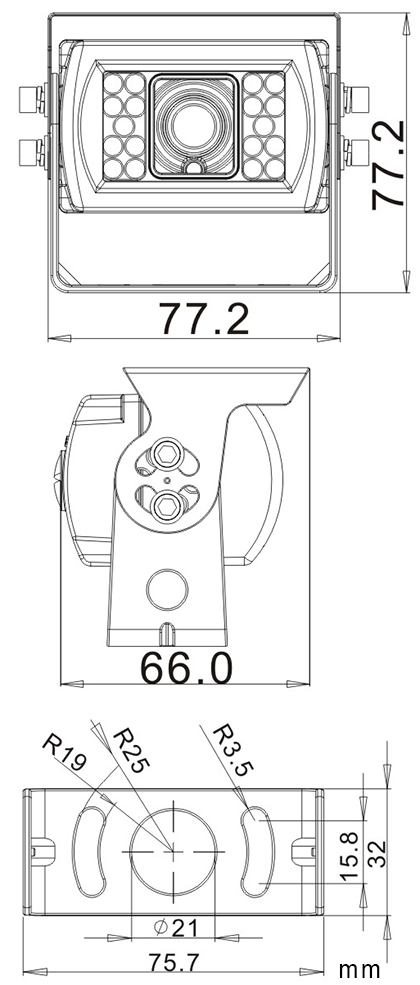

 Camera Dimensions

Secure Waterproof Cable Connections

The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS monitors have the 4-pin male ended connection and require the female ended extension cable.

Cameras have the 4 Pin Waterproof Female Plug GX12 Aviation Plug Connection

If your intention is to install one of NAS's Cameras on another brand of reversing camera monitor or Navigation/Stereo System then you may require a RCA cable. Please click here to view RCA Cables.
