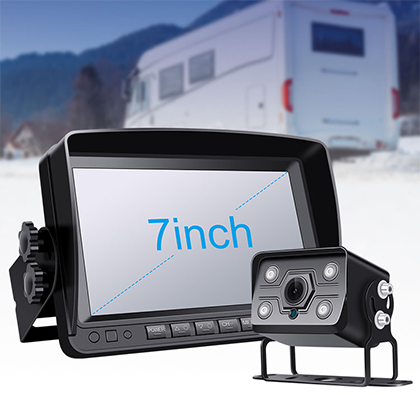

7 Inch AHD Reversing Camera Kit – 110° Camera with DVR Recording

This 7 inch AHD reversing camera kit is designed to improve rear visibility and safety while also providing built-in DVR recording for added security. The HD monitor delivers a clear, easy-to-view display, helping drivers reduce blind spots and operate with confidence.  The system includes a waterproof 110 degree HD camera, providing a wide field of view behind the vehicle. This makes it ideal for reversing and manoeuvring in cars, vans, caravans, camper vans, and light commercial vehicles.  The integrated DVR recording function allows footage to be captured and reviewed, providing valuable video evidence for incidents or added peace of mind when operating the vehicle.  The wired connection ensures a stable, interference-free signal for consistent performance. The monitor supports up to two cameras, allowing an additional camera to be added for expanded rear or side visibility if required.  This system is a practical solution for drivers who want both improved reversing safety and recording capability in one reliable setup.

AHD Waterproof Reversing Camera IP69K

Reversing Camera 4 CSD LED Lights for Night Vision

Monitor Viewing Configurations

The monitor can take up to two reversing cameras.

Two Mounting Options -Fan Bracket or U Shaped Bracket

Fan Bracket Monitor Mount

Fan bracket comes with an adhesive pad.

U-Shaped Monitor Bracket Mount

Suction Mounting Bracket Options

A suction bracket can be purchased as an optional extra by Clicking on the "Add Suction Bracket" Tab.

Guidelines Adjustable

Hold the SEL Button, when guidance lines flash press + or - to adjust

DVR Monitor

Supports up to 128G SD the SD Card requires speed equal to or greater than Class 10. SD Card Not Included.

When an SD card is inserted, the monitor records exactly what is shown on the screen. For example, if the display shows a dual-screen view, both cameras are recorded; if it shows only Channel 1, then only that camera is recorded. The monitor supports loop recording, automatically overwriting the oldest footage when the card becomes full.

Installing the Monitor and Camera DC12V~32V

The yellow wire requires wiring to positive power to turn the monitor on.

The green trigger wire does not have to be connected, it only requires connection if you want a camera to come on automatically for example when the vehicle is put in reverse. If the trigger wire is connected, you will not be able to view the camera at all times whilst driving. If not connecting the trigger wire wrap the end with insulation tape.

Camera Can Be Mounted on a Magnetic Base for Ease of Fixing and Movability

To purchased as an optional extra click on the "Add Camera Magnet" Tab.

Secure Waterproof Reversing Camera Cable Connections

The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS monitors have the 4-pin male ended connection and require the female ended extension cable.

Reversing Cameras have the 4 Pin Waterproof Female Plug GX12 Aviation Plug Connection

The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
