7 Inch AI Reversing Camera Kit Industrial Pedestrian Detection
This 7 inch AI reversing camera kit is designed for industrial applications, providing improved safety through intelligent pedestrian and vehicle detection. The system delivers visual and audible alerts to help operators react quickly when hazards are detected behind the vehicle.

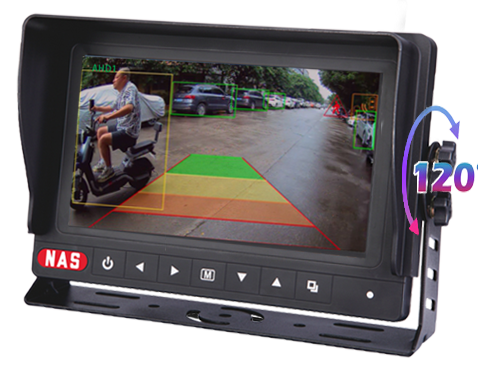

It features a high definition 7 inch monitor paired with an AI powered 1080P camera that analyses the image in real time to highlight people and vehicles within the detection area. The camera is available in 100 or 130 degree options, allowing you to choose between wider coverage or more focused rear visibility depending on your application.
The system supports two camera inputs, allowing an additional camera to be installed for expanded coverage of front or side blind spots. Built for demanding Australian conditions, this industrial grade system is ideal for trucks, buses, machinery, and commercial vehicles where safety and visibility are critical.
Pedestrian & Vehicle Detection. AI Camera Can be Installed on the Left, Right, Rear or Front Position.
1080P HD Waterproof IP69K High Quality Reversing Camera. Blind Spot Audible And Visual Alarm Warning Driver.
Camera Angles - 100°
Reversing Camera Night Vision Distance
Starlight Night Vision Mode
External Buzzer
The buzzer sounds an alarm when there is a person or a vehicle located behind the vehicle.
Monitor Viewing Configuration
The reverse monitor can take up to two cameras.
Mounting Bracket
The reverse monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by Clicking on the "Monitor Bracket" Tab.
Suction or Fan Bracket Slides into Slot.
Reversing Camera Can Be Mounted on a Magnetic Base for Ease of Fixing and Movability
To purchased as an optional extra click on the "Add Camera Magnet" Tab .
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS monitors have the 4-pin male ended connection and require the female ended extension cable.
| Kit Includes |
| • 1 x HDM72C 7" 720P HD IPS Screen Reverse Monitor With Touch Buttons & Removable Sun Visor |
| • 1 x CAIHD85 100 Degree 1080P HD Waterproof AI Camera |
| • 1 x External Buzzer |
| • 1 x 8m Cable |
| • Electrical Connecting Cables |
| • User Guide |
| • Monitor Supports Two Reversing Cameras |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image
7inch HD Wired Reversing Monitor
Monitor Dimensions
Monitor Key
Monitor Harness
Monitor has two 4pin Male Aviation
Trigger Wires
The trigger cables, typically Yellow, Brown, Blue, and White, do not need to be connected. They only require connection if you desire automatic camera activation, such as when the vehicle is shifted into reverse. However, if you connect the trigger wires, continuous camera viewing while driving won't be possible. If you choose not to connect the trigger cables, ensure to wrap each one individually in insulation tape.
720P HD 7" Cabled Monitor (HDM72CNDH) |
| • 7" IPS HD Screen Monitor With Touch Buttons with Removable Sun Visor |
| • Touch Button Controls |
| • Vibration Resistance Level: 5G (Conforms To GB-T2423056-2006 Standard) |
| • View Monitor: Single Screen Switch |
| • Colour System: PAL/NTSC (Auto) |
| • Display Resolution: 1024(H) X 600(V) |
| • Surge and load dump protection: ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms） |
| • Time Delay (Ms):25ms |
| • Wide View Angle (LR/UD):(U/D): 80/85 (L/R): 80/85 |
| • Brightness: 600cd/m² |
| • Contrast Ratio: 800:1 |
| • Power Supply: DC11~32V |
| • Operating Temperature: -20℃ To +70℃ |
| • Storage Temperature: -30℃ To +80℃ |
| • External Dimensions :(L x W x T) 220 x 149 x 84mm |
| • Weight Approx: 1000g |
| • Two Year Warranty |
Camera Dimensions
Camera Bracket Dimensions
Camera have the 4 Pin Waterproof Female Plug GX12 Aviation Plug Connection
Cameras 4PIN Femal Definition
AI Vehicle and Pedestrian Detection Reversing Camera (CAIHD85) |
| • AI Artificial Intelligent Detection Camera Targeting Pedestrians/Vehicles |
| • External Detection Buzzer |
| • High-Definition 1080P |
| • Viewing angle: 100° |
| • AI Detection Range: 2m |
| • Waterproof: IP69K approved |
| • Mirror / Normal image switch |
| • Night Vision: Starlight Night Vision Mode |
| • Electronic Shutter - 1/50(1/60) - 1/10,0000(sec) |
| • Image Device: 1/2.9” CMOS |
| • Effective Pixels: 1920 (H) x 1080 (V) |
| • Scanning System: Automatic |
| • SNR - 46dB |
| • Synchronous Mode - Internal Synchronisation |
| • Operating Voltage: DC 12V±1.5V, Maximum Power:<2W |
| • Shell Material: Aluminum Alloy |
| • Connection: 4 PIN |
| • Shock Protection: 10 g |
| • Operating Temperature: –20℃ ~ 60℃ |
| • Storage Temperature: –40℃ ~ 80℃ |
| • One Year Warranty |
Camera Viewing Angle 130°
Camera Dimensions
Camera have the 4 Pin Waterproof Female Plug GX12 Aviation Plug Connection
Cameras 4PIN Femal Definition
AI Vehicle and Pedestrian Detection Reversing 1080P HD Camera (CAIHD130SV) |
| • AI Artificial Intelligent Detection Camera Targeting Pedestrians/Vehicles |
| • Alarm I/O : External Buzzer |
| • High-Definition 1080P |
| • Viewing angle: 130° (2.6mm lens) |
| • AI Detection Range: 2m |
| • Waterproof: IP69K approved |
| • Mirror / Normal image switch |
| • Night Vision: Starlight Night Vision Mode |
| • Electronic Shutter - 1/50(1/60) - 1/10,0000(sec) |
| • Image Device: 1/2.9” COLOUR CMOS |
| • Effective Pixels: 1920 (H) x 1080 (V) |
| • Scanning System: Automatic |
| • SNR - 46dB |
| • Synchronous Mode - Internal Synchronisation |
| • Operating Voltage: DC 12V±1.5V, Maximum Power:<2W |
| • Shell Material: Aluminum Alloy |
| • Connection: 4 PIN Screw |
| • Shock Protection: 10G |
| • Operating Temperature: –20℃ ~ 60℃ |
| • Storage Temperature: –40℃ ~ 80℃ |
| • Dimension: 74(W) X 64(H) X 56 (D) |
| • One Year Warranty |
This AI reversing camera has a looking down view. It is designed for mounting at a height of 2 meters or higher. If you're interested in this option, please contact us on 08 9754 3200 as there is a small additional cost.
