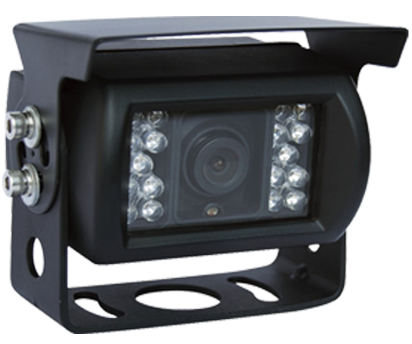

This 60 degree reversing camera provides a balanced rear view, offering improved depth perception while maintaining clear visibility behind the vehicle. It is ideal for applications where accurate distance judgement is important when reversing and manoeuvring. The 1080P high definition camera delivers clear image quality, while integrated infrared night vision with 18 LEDs ensures reliable performance in low light conditions. Built with an IP69K waterproof and anti fog housing, this heavy duty camera is designed to withstand harsh Australian environments including trucks, caravans, farming machinery, and construction equipment.
Suitable for cars, trucks, motorhomes, caravans, and industrial vehicles, this camera provides a dependable solution for both reversing and general observation applications.
Waterproof IP69K
Night Vision Distance
18pcs LEDs - Approx. 10m if there is no other light source.
Camera Dimensions
Front View
Side View
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS monitors have the 4-pin male ended connection and require the female ended extension cable.
Cameras have the 4 Pin Waterproof Female Plug GX12 Aviation Plug Connection
If your intention is to install one of NAS's Cameras on another brand of reversing camera monitor or Navigation/Stereo System then you may require a RCA Cable. Please click here to view RCA Cables.
HD 60 Degree 1080P Camera (CHD60E)reversing safety |
| • Image - Rear-View, NAS Monitor Can Change Image to Forward Facing |
| • Viewing Angle: 60°(100°, 45° & 30° optional) |
| • Waterproof: IP69K |
| • Image Type: 1/2.8 Inch Colour Sony |
| • TV System: PAL (25fps) / NTSC (30fps) |
| • Sync System: Internal Synchronization |
| • IR-Function: CDS Auto Control, Under 10 Lux By CDS (≤10 Lux CDS On) |
| • Video Output: HD 1080p |
| • Usable Illumination: 0lux At Night (18pcs IR Led On) |
| • Night Vision Distance: Approx. 15m |
| • Automatic Adjusts with Day/Night Sensor |
| • S/N Ratio: ≥48db (AGC Off) |
| • Shockproof: 5G (Conforms To GB-T2423056-2006 Standard) |
| • Power Supply: DC12v |
| • Shell Material: Aluminum Alloy |
| • Dimensions: 107(W X 75(H) X 70.5(D)mm (With Mounting) |
| • Operating Temperature: -20℃ To + 60℃ Rh95% Max |
| • Storage Temperature: -20℃ To + 70℃ Rh95% Max |
| • Weight : 450g |
| • One Year Warranty |
