10.1 Inch Waterproof Quad Reversing Camera Monitor DVR 4 Camera Industrial

Write a review
$798.00
HDMQ10.1Rec - Concord
In stock
+ −

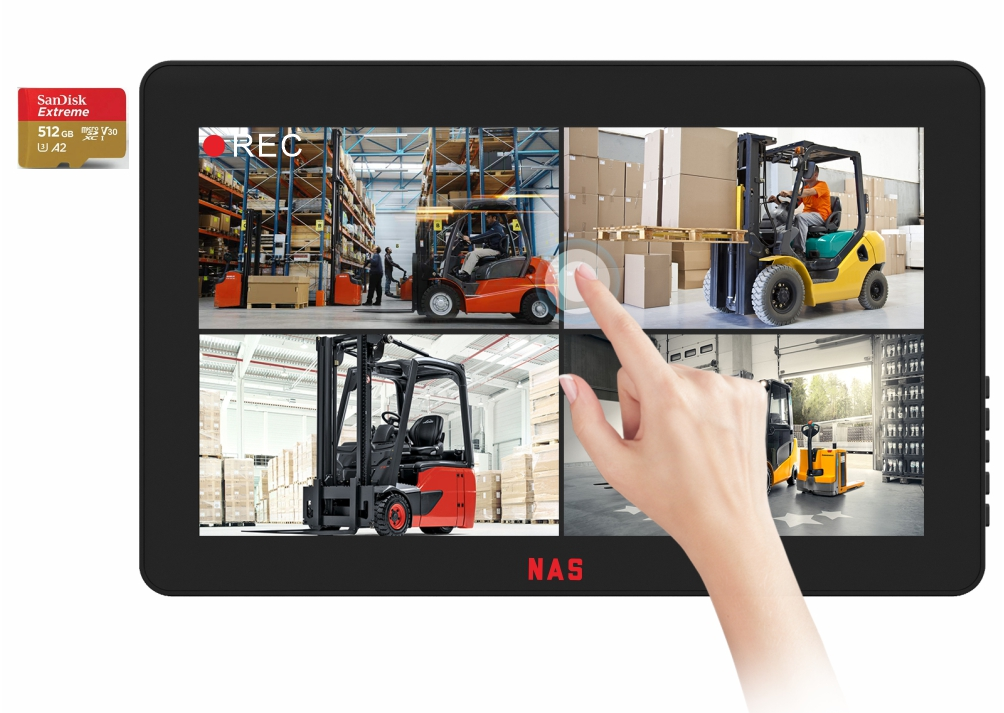

This 10.1 inch waterproof quad reversing camera monitor is designed for heavy duty applications, delivering clear high definition visibility for safer reversing and vehicle operation.  The monitor supports up to four cameras and offers multiple viewing modes, allowing operators to monitor rear, side, and blind spot areas around the vehicle. Built in DVR recording supports up to 512GB storage for capturing footage during operation.  Featuring a touch screen display with IP66 waterproof protection, this monitor is built to withstand harsh Australian conditions including dust, heat, and vibration. Adjustable guidelines, auto dimming, and a removable sunshield improve usability in all environments.  Designed for trucks, mining, agriculture, and commercial vehicles, this industrial grade monitor provides reliable performance where durability and visibility are essential.

10.1-inch AHD reversing monitor with responsive touch screen interface, displaying high-resolution visuals. Features SD card slot, sunshield, and robust mounting brackets — designed for easy operation in trucks, caravans, and farm vehicles across Australia.

Monitor Viewing Configuration:

Monitor Viewing Configuration

10.1-inch AHD reversing monitor with SD card slot supporting looped video recording up to 512GB (SD card not included). Ideal for continuous footage capture in trucks, caravans, and heavy-duty vehicles across Australia.

The monitor supports a micro-SD cards up to 512GB.  They require a speed equal to or greater than U3/V30.  SD card is not included.

Recording time & Data Size


Monitor Mounting Brackets

U-Shaped Support Bracket

This image shows one of the two mounting options included with the monitor — the sturdy U-shaped bracket for secure and adjustable installation.

360° Universal Bracket

This image displays the second mounting option included with the monitor — the 360° universal bracket, allowing flexible positioning to suit various vehicle setups.

360° Univeral Bracket Measurements
360° universal bracket dimensions

Monitor Dimensions

Monitor Dimensions

Monitor Buttons

Monitor Menu Buttons

Monitor has the 4-Pin GX12 Male Screw Plug Connection

Monitor has the 4-Pin GX12 Male Screw Plug Connection


Cable pinout

10.1inch AHD Touch Screen Quad Cabled Monitor Built-in DVR (R-HDMQ10.1Rec)
•  Colour Screen: 10.1" 720P HD IPS Quad Touch Screen with Removable Sun Visor
•  Outer Shell: High-temperature ABS +PC material
•  Display Resolution: 1024 x  3(RGB)  x 600
• Video Signal Input: 4 channels (CVBS / AHD 720P / 960P /1080P) of signal mixed input, can be used in the mixed way
• Video Input: 4 CH Video Input
• Monitor: Mechanical buttons & touch screen functional operation
• Display Modes: Single / Dual/ Three Splits / Quad / Picture-in-Picture
• Colour System:PAL/NTSC (AUTO)
•  OSD menu function: Support functions  single-channel picture flipping left and right, up and down, reverse scale, reverse trigger, reverse delay, reverse priority, power-off memory, etc. Menu language: Chinese / English (optional).
• Micro SD card (supports up to 512G-speed equal to or greater than  U3/V30) SD card not included
• Connector Socket: 18-core S terminal
• Contrast ratio: 800:1
• LED Brightness: 600cd/m²
• Waterproof: IP66
• Built-in reverse polarity
• Operating temperature: -20℃ to +70℃
• Storage temperature: -30℃ to +80℃
• Power Supply: DC11~32V
• Surge and load dump protection: DC24+174V(Td350mS) 5pulses
• Anti-vibration Rate: GB∕T 2423.56-2018 standard (random 5G vibration)
• External dimensions: (L x W x T) 265 x 168 x 37mm
• Weight Approx: 1200g
• Two Year Warranty
