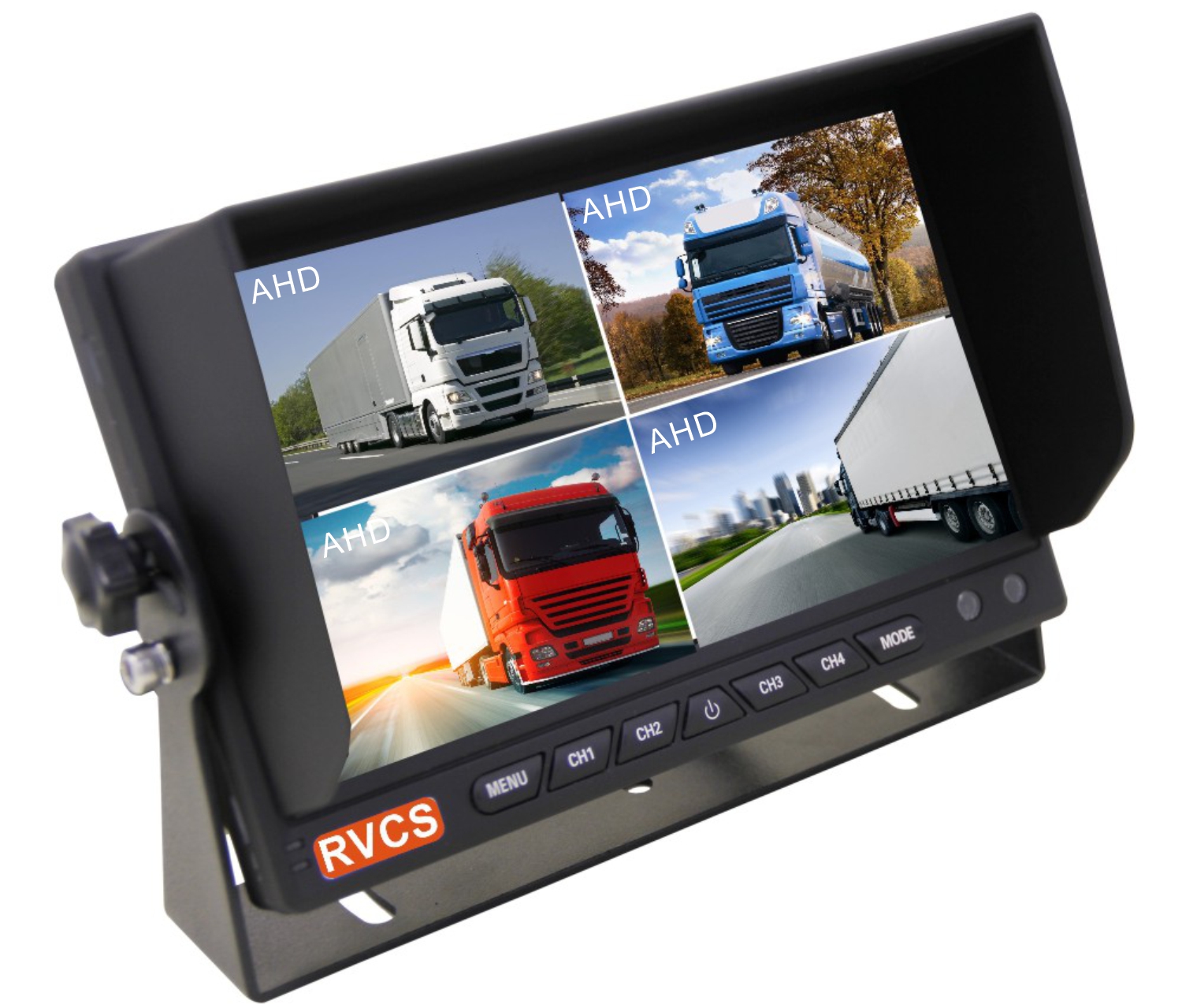

7-inch Quad Reversing Monitor
Allows up to four camera views to be displayed, providing improved visibility around the vehicle for safer reversing and manoeuvring. The monitor supports two, three, or four camera views and offers multiple display modes including quad split, making it ideal for monitoring rear, side, and front areas. Designed for cars, caravans, and light commercial vehicles, this monitor delivers clear high definition image quality and reliable performance. Built for Australian conditions, it is a practical solution for improved vehicle awareness and safety.
Monitor Supports Four HD Cameras
Click on the "Add HD Cameras" Tab to add more cameras to this monitor. Extra cable length will be required and can be selected on the same page.
Audio
The camera input 1 on the monitoring harness is equipped with audio capabilities.
Monitor Viewing Configuration
Mounting Bracket
The monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by clicking on the "Add Monitor Bracket" Tab. A suction bracket would not be recommended unless it was used to hold the monitor in place resting on the dash.
Suction or Fan Bracket Slides into Slot.
Monitor Dimension
Monitor Harness
The trigger cables do not have to be connected, it only requires connection if you want a camera to come on automatically for example when the vehicle is put in reverse. If the trigger wire is connected, then you will not be able to view the camera at all times whilst driving. If not connecting the trigger wire wrap it individually in insulation tape.
Monitor has the 4pin GX12 Male Screw Plug Connection
Accessories
Monitor U-bracket Installation
7" HD 720P Revering Quad Monitor (RV-HDMSD7Quad) |
| • 7-inch QUAD AHD IPS Screen (With Removable Sun Visor) |
| • Resolution: 1024 x 3(R.G.B) x 600 |
| • Viewing Angle: L/R: 85°, Up/Down: 85° |
| • Back Light: LED, 500cd/m² |
| • Image Reversion: Up/Down and Left/Right |
| • Light Sensor Automatic Adjustment |
| • 4 Video Input, 1 Audio Input For CH1 |
| • 4 Trigger Cables (Trigger Priority: CH2>CH1>CH3>CH4) |
| • Full image/2 splits/3 splits/4 splits(H and four quarters) adjustable |
| • Compatible System: NTCS & PAL Automatically |
| • 2 Channel AHD Video Input, single image display, support 720P@25/30, 960P@50/60, 1080P@25/30 (Video Compatibility: CVBS/AHD) |
| • 1 Channel AHD Audio Input : Channel 1 |
| • Four Trigger Cables - Does not need to be connected wrap in insulation tap. |
| • Power Requirement: DC12V-24V input, 12V output |
| • Accessories: Remote Control, Power Supply Harness, Sun Visor |
| • Remote Control (Battery Not Included) |
| • U Type Bracket (Fan and Suction Brackets Optional) |
| • Working temperature: -20℃ ~ +70℃ |
| • Storage Temperature: -30℃~ + 80℃ |
| • Outer Dimension: 211(W) X 134.5(H) X 76(T) mm |
| • One Year Warranty |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
