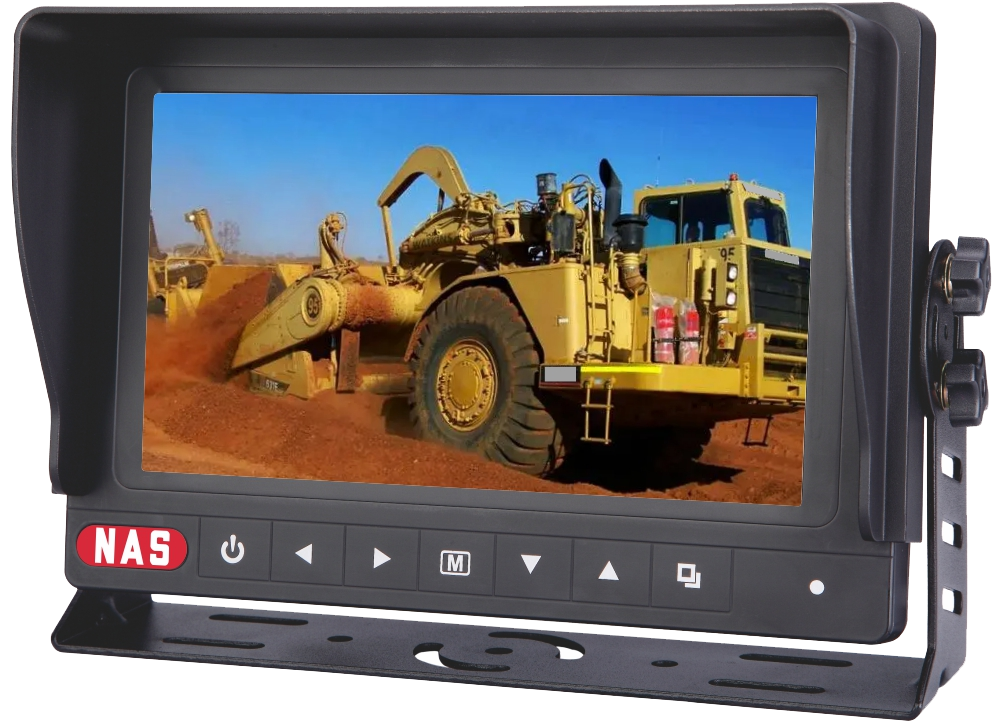

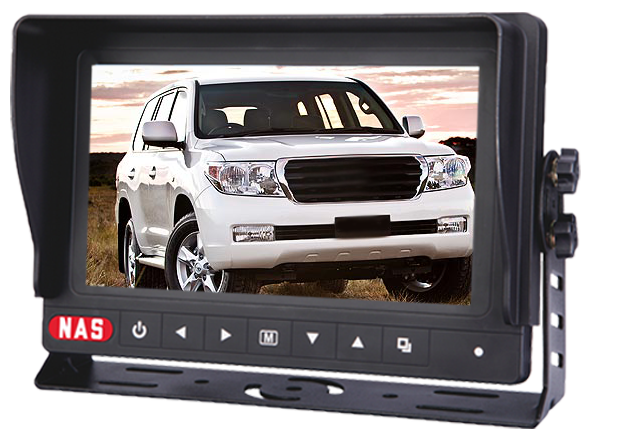

7-inch AHD Reversing Camera Monitor
Designed for industrial grade performance, delivering clear high definition image quality for safer reversing and vehicle operation. The monitor supports two cameras and provides a single view display, allowing focused monitoring of the selected camera input. Built for demanding Australian conditions, this durable monitor is ideal for trucks, caravans, and heavy duty vehicles where reliable performance and clear visibility are essential.
Monitor Viewing Configuration
The monitor can take up to two cameras.
Click on the "Add HD Cameras" Tab to add cameras to this kit. If cable lengths are required these can be selected on the same page.
Mounting Bracket
The reverse monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, fan bracket or a butterfly bracket can be purchased as an optional extra by clicking on the "Add Monitor Bracket" Tab.
Suction or Fan Bracket Slides into Slot.
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS monitors have the 4-pin male ended connection and require the female ended extension cable.
Monitor Dimensions
Monitor Key
Monitor Harness
Monitor has two 4pin Male Aviation
Trigger Wires
The trigger cables, typically Yellow, Brown, Blue, and White, do not need to be connected. They only require connection if you desire automatic camera activation, such as when the vehicle is shifted into reverse. However, if you connect the trigger wires, continuous camera viewing while driving won't be possible. If you choose not to connect the trigger cables, ensure to wrap each one individually in insulation tape.
720P HD 7" Cabled Monitor (HDM72CNDH-Concord) |
| • 7" IPS HD IPS Screen Monitor With Touch Buttons with Removable Sun Visor |
| • Touch Button Controls |
| • Vibration Resistance Level: 5G (Conforms To GB-T2423056-2006 Standard) |
| • View Monitor: Single Screen Switch |
| • Colour System: PAL/NTSC (Auto) |
| • Display Resolution: 1024(H) X 600(V) |
| • Surge and load dump protection: ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms） |
| • Time Delay (Ms):25ms |
| • Wide View Angle (LR/UD):(U/D): 80/85 (L/R): 80/85 |
| • Brightness: 600cd/m² |
| • Contrast Ratio: 800:1 |
| • Power Supply: DC12~32V |
| • Operating Temperature: -20℃ To +70℃ |
| • Storage Temperature: -30℃ To +80℃ |
| • External Dimensions :(L x W x T) 220 x 149 x 84mm |
| • Weight Approx: 1000g |
| • Two Year Warranty |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
