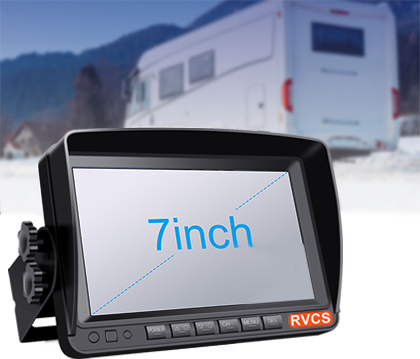

This 7 inch reversing camera monitor features a built in DVR recording function and split screen capability, providing clear visibility and added safety when reversing. The high definition display delivers sharp image quality, while the system supports up to two cameras with the option to view a single camera or dual split screen. Designed for cars and light commercial vehicles, this monitor offers flexible installation with fan bracket or U bracket mounting options. Built for Australian conditions, it provides reliable performance for everyday driving and reversing applications.
Monitor Menu Functions
Monitor Viewing Configurations
Monitor Dimensions
Two Mounting Options - Fan Bracket or U Shaped Bracket
Fan Bracket Monitor Mount
Fan bracket comes with an adhesive pad.
U-Shaped Monitor Bracket Mount
Suction Bracket Mount Optional
A suction bracket can be purchased as an optional extra by clicking on the "Add Suction Bracket" Tab.
Guidelines Adjustable
Hold the SEL Button, when guidance lines flash press + or - to adjust

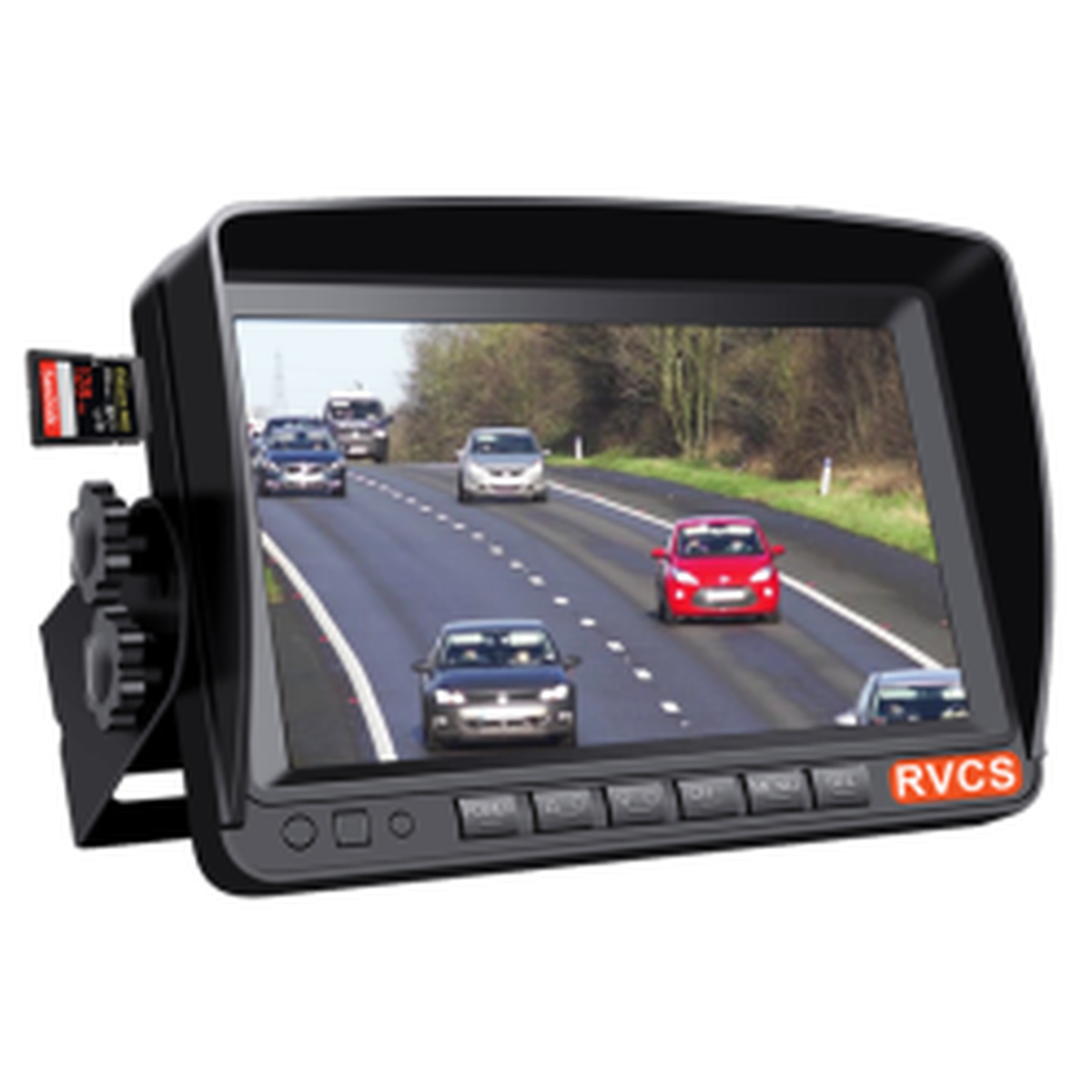

DVR Monitor
Supports up to 128G SD the SD Card requires speed equal to or greater than Class 10. SD Card Not Included.
Installing the Monitor and Camera DC12V~32V
The yellow wire requires wiring to positive power to turn the monitor on.
The green trigger wire does not have to be connected, it only requires connection if you want a camera to come on automatically for example when the vehicle is put in reverse. If the trigger wire is connected, you will not be able to view the camera at all times whilst driving. If not connecting the trigger wire wrap the end with insulation tape.
| Monitor Includes |
| • 1 x TR-DMH7Rec High Quality HD 7inch IPS Display Monitor |
| • Electrical Connecting Cables |
| • Remote Control (Battery Not Included) |
| • User Guide |
| • No Camera Included |
Specifications |
| • 7 inch digital AHD IPS Screen (With Removable Sun Visor) |
| • Aspect Ratio:16:9 |
| • Resolution: 1024(H)*600(V) |
| • OSD Control: Brightness, Contrast, Saturation, Language |
| • 2 Video Input, 2 Audio Input (Single Image Display) |
| • Image Reversion: UP/Down/ and Left/Right |
| • Number of Trigger And Display: 2 Triggers |
| • Contrast: 500:1 |
| • System: PAL/NTSC(Auto) |
| • Remote Control (Battery Not Included) |
| • Power Consumption: 5W (Without Camera) |
| • Back Light Luminance: IPS Screen |
| • Power supply: DC 12~32V |
| • Working temperature: -20℃ ~ +70℃ |
| • Storage Temperature: -30℃~ + 80℃ |
| • Outer Dimension:180(W) X 117(H) X 23 (T) mm |
| • U Type Bracket and Fan Bracket |
| • One Year Warranty |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
