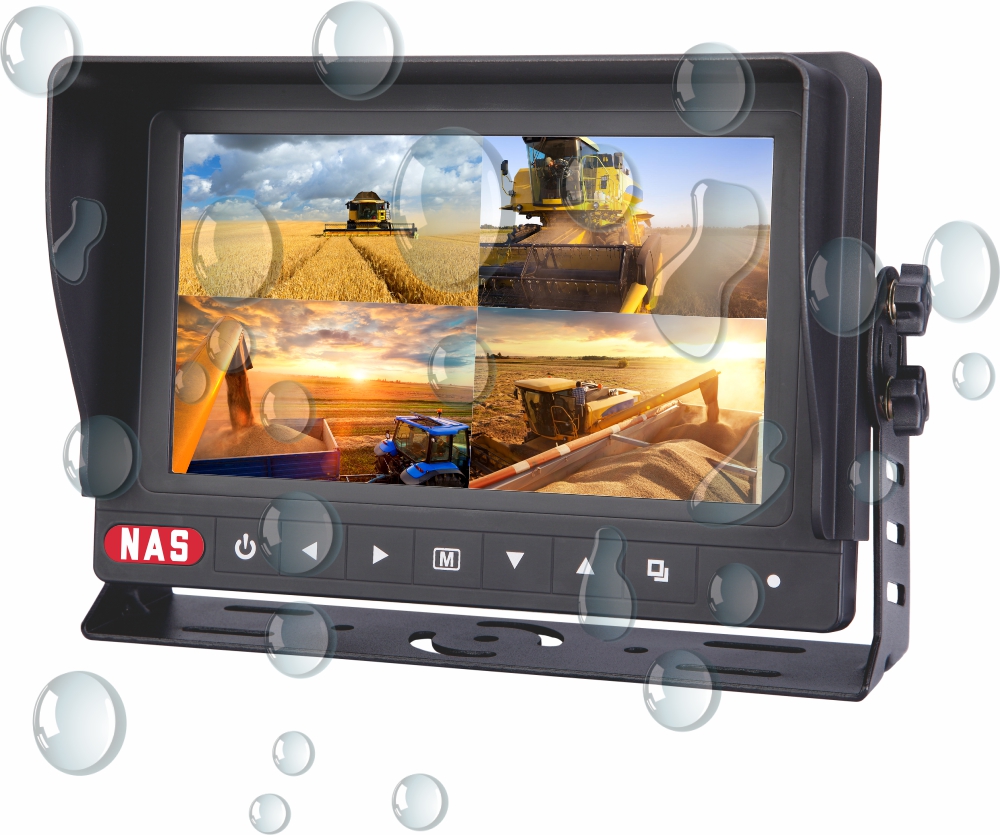

This 7 inch waterproof quad reversing camera monitor is designed for industrial and commercial applications, providing reliable multi camera visibility for safer vehicle operation. The monitor supports up to four cameras and offers multiple viewing modes including single, split, triple and quad screen views, allowing operators to monitor different areas around the vehicle. With an IP68 waterproof rating and durable construction, it is built to withstand harsh Australian conditions including dust, water, and heat. The sunlight readable display ensures clear visibility in bright environments, while backlit touch buttons provide easy operation day or night.
Ideal for trucks, machinery, caravans, and heavy duty vehicles, this monitor delivers dependable performance where visibility and reliability are essential.
Monitor Waterproof Rating IP68
Monitor Viewing Configuration
The monitor can take up to four cameras.
Click on the "Add HD Camera(s)" Tab to add cameras. Cables can be selected on the same page if required.
Mounting Bracket
The monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, fan bracket or a butterfly bracket can be purchased as an optional extra by clicking on the "Add Monitor Bracket" Tab
Suction or Fan Bracket Slides into Slot.

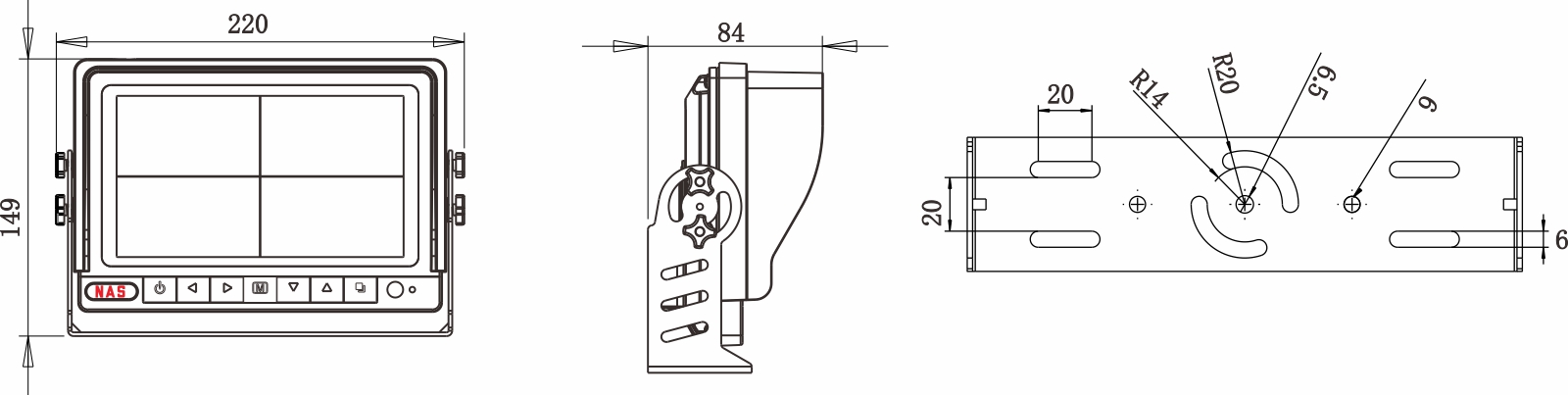

Monitor Dimensions ： mm
Monitor has the 4pin GX12 Male Screw Plug Connection
720P HD Waterproof Quad Reversing Monitor With Touch Buttons (HDMQW756) |
| • 7" IPS Screen Colour Monitor with Removable Sun Visor |
| • High-temperature ABS material (Front), Aluminum Alloy (Rear) |
| • Waterproof: IP68 |
| • Video Signal Input: CVBS / AHD 720P / 960P /1080P |
| • Video Input: 4CH Video Input |
| • Display Mode: Single /Two Splits / Triple / Quad |
| • Colour System: PAL/NTSC (AUTO) |
| • Display Resolution: 1024 x (RGB) x 600 |
| • OSD Menu: Supports Reverse Trigger Priority, Delay, Mirror Image |
| • Connector Socket: 1.5m Conjoined Cable |
| • Contrast ratio: 800:1 |
| • LED Brightness: 600cd/m² |
| • Built-in reverse polarity |
| • Operating temperature: -20℃ to +70℃ |
| • Storage temperature: -30℃ to +80℃ |
| • Power Supply: DC11~32V |
| • Surge and load dump protection: ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms） |
| • Seismic rating: GB∕T 2423.56-2018 standard (random 5G vibration) |
| • External dimensions: (L x W x T) 220 x 149 x 84mm |
| • Weight Approx: 1440g |
| • Two Year Warranty |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
