This 10.1 inch reversing camera kit is designed to improve visibility and safety for trucks, agricultural machinery, and light commercial vehicles. The large HD monitor provides a clear, easy-to-view display, allowing drivers to monitor multiple camera views around the vehicle. The system includes four 1080P waterproof cameras, each with a 90 degree viewing angle, delivering reliable rear and side visibility. This balanced angle helps reduce blind spots while still allowing accurate distance judgement when manoeuvring. The monitor supports multiple camera inputs, allowing several views to be displayed at once. This improves situational awareness when operating trucks, tractors, farm equipment, and commercial vehicles in busy environments. Built for reliability, this system is well suited to transport operators, farming applications, and commercial vehicle fleets.
This reversing camera kit is a practical and cost-effective solution for improving safety, visibility, and operational control.
AHD Monitor
HD 1080P Waterproof IP68 Reversing Camera
Reversing Camera Angle 90°
Option to Add Audio
Waterproof IP67 with Audio
Reversing cameras with audio are ideal for towing a caravan, allowing drivers to hear guiding instructions while viewing the area behind. This combination of visual and auditory feedback ensures safer, more precise reversing, especially in tight spaces.;
Reversing Camera Night Vision
18pcs LEDs - 10M if there is not other light source.
Monitor Viewing Configuration
The monitor can take up to four reversing cameras.
Mounting Bracket
The reverse monitor comes with the U-Shaped Bracket
Reversing Cameras Can Be Mounted on a Magnetic Base for Ease of Fixing and Movability
To purchased as an optional extra click on the "Add Camera Magnet" Tab .
Secure GX12 Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS monitors have the 4-pin male ended connection and require the female ended extension cable.

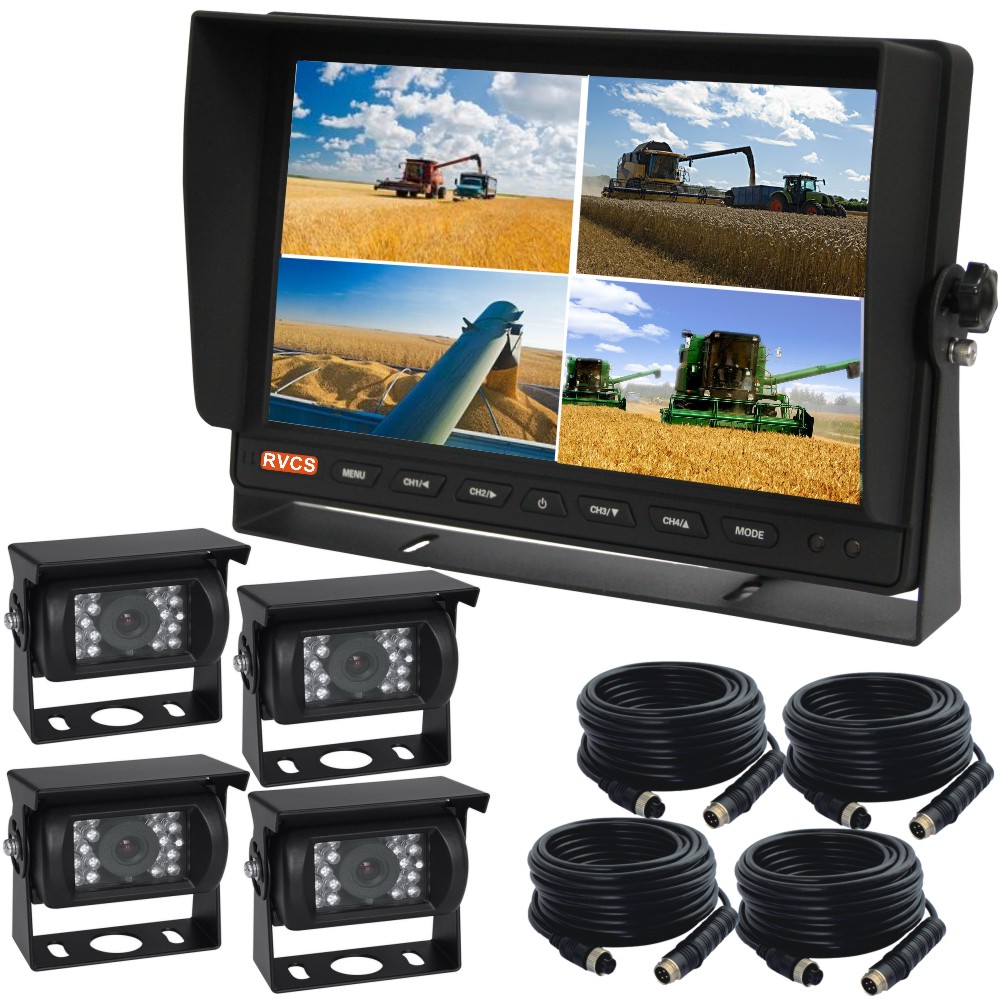

10.1" Farming Rear View Quad Monitor Camera Kit (RV-HDMSD10.1Quad4*CHD13 - RVCS) |
| Kit Includes |
| • 1 x RV-HDMSD10.1Quad 10.1inch Quad AHD IPS Screen Reverse Monitor (With Removable Sun Visor) |
| • 4 x RV-CHDSD13 1/3" CMOS HD 1080P Reversing 90° Cameras |
| • 4 x 8m Cable |
| • Electrical Connecting Cables |
| • Remote Control (Battery Not Included) |
| • User Guide |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
10.1INCH AHD 720P Trucking farming monitor
Monitor Supports Four HD Cameras
Monitor Viewing Configuration
Mounting Bracket
The monitor comes with the U-Shaped Bracket
Monitor Dimension
Monitor Harness
The trigger cables do not have to be connected, it only requires connection if you want a camera to come on automatically for example when the vehicle is put in reverse. If the trigger wire is connected, then you will not be able to view the camera at all times whilst driving. If not connecting the trigger wire wrap it individually in insulation tape.
Monitor has the 4pin GX12 Male Screw Plug Connection
Accessories
10.1" HD 720P Revering Quad Monitor (RV-HDMSD10.1Quad) |
| • 10-inch QUAD AHD IPS Screen (With Removable Sun Visor) |
| • Resolution: 1024 x 3(R.G.B) x 600 |
| • Viewing Angle: L/R: 85°, Up/Down: 85° |
| • Back Light: LED, 500cd/m² |
| • Image Reversion: Up/Down and Left/Right |
| • Light Sensor Automatic Adjustment |
| • 4 Video Input, 1 Audio Input For CH1 |
| • 4 Trigger Cables (Trigger Priority: CH2>CH1>CH3>CH4) |
| • Full image/2 splits/3 splits/4 splits(H and four quarters) adjustable |
| • Compatible System: NTCS & PAL Automatically |
| • 2 Channel AHD Video Input, single image display, support 720P@25/30, 960P@50/60, 1080P@25/30 (Video Compatibility: CVBS/AHD) |
| • 1 Channel AHD Audio Input : Channel 1 |
| • Four Trigger Cables - Does not need to be connected wrap in insulation tap. |
| • Power Requirement: DC12V-24V input, 12V output |
| • Accessories: Remote Control, Power Supply Harness, Sun Visor |
| • Remote Control (Battery Not Included) |
| • U Type Bracket (Fan and Suction Brackets Optional) |
| • Working temperature: -20℃ ~ +70℃ |
| • Storage Temperature: -30℃~ + 80℃ |
| • Outer Dimension:256.9(W) X 171(H) X 82.2 (T) mm |
| • One Year Warranty |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
90° Rear-View AHD 1080P Camera
The 90° viewing angle is a popular reversing camera and it will provide an adequate view of both lanes on a highway and has a sufficient angle for backing into tight places. This viewing angle is suitable for backing up to tow balls. The 90° viewing angle is not recommended for Utes that have closed in canopies with no rear vision because the angle is not wide enough. The camera can be tilted down or up to focus on a particular area. The downfall of a 90° camera is when towing a trailer or caravan for example a truck or car behind you will look like it is much further away however it is right up behind you.
Camera Dimensions
4-Pin GX12 Screw Female Definition
Measurements
1080P AHD Rear-View Camera 90° (RV-HDCSD13) |
| • Image Sensor: 1/3" CMOS |
| • Viewing Angle: 90° |
| • Effective Pixel: 1920(H) X 1080(V) |
| • Horizontal Resolution: 1080P |
| • Minimum Illumination: 0.5Lux |
| • Infrared LED Light: 18pcs |
| • System: PAL |
| • Shell material: Aluminium Alloy |
| • Waterproof rating: IP68 |
| • Power Supply: DC 12V |
| • Working temperature: -20℃ ~ +70℃ |
| • Storage Temperature: -30℃~ + 80℃ |
| • One Year Warranty |
