This 10.1 inch reversing camera kit is designed to deliver maximum visibility and safety for trucks, commercial vehicles, and industrial machinery. The large waterproof IP66 touch screen monitor provides a clear high definition display, allowing drivers to easily view and control multiple camera feeds from a single screen. The system includes four ultra compact 1080P waterproof cameras, each with a wide 130 degree viewing angle. This wider angle provides excellent coverage around the vehicle, helping reduce blind spots and improve awareness when reversing or manoeuvring in tight or high-risk environments. The monitor supports multiple camera views, allowing operators to display several angles at once for improved situational awareness. This makes it ideal for trucks, buses, agricultural machinery, and construction equipment. An integrated DVR recording function allows footage from the cameras to be recorded and stored, providing a useful tool for fleet management, driver training, and incident review. Built for durability, this industrial grade system is suited to transport fleets, farming machinery, construction equipment, and heavy vehicles operating across Australia.
This system is a reliable solution for improving safety, visibility, and operational control in demanding vehicle environments.
Quad Touch Screen DVR Monitor
Reverse Monitor Viewing Configuration:
The monitor supports a micro-SD cards up to 512GB. They require a speed equal to or greater than U3/V30. SD card is not included.
Monitor Recording Time
Reverse Monitor Mounting Brackets
U-Shaped Support Bracket
360° Universal Bracket
360° Univeral Bracket Measurements
HD 1080P Very Small Reversing Camera Waterproof IP69K
Heavy duty, suitable for Heavy Equipment, Trucks, Forklifts, Cranes, Farming Machinery, & Shipping.
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS monitors have the 4-pin male ended connection and require the female ended extension cable.

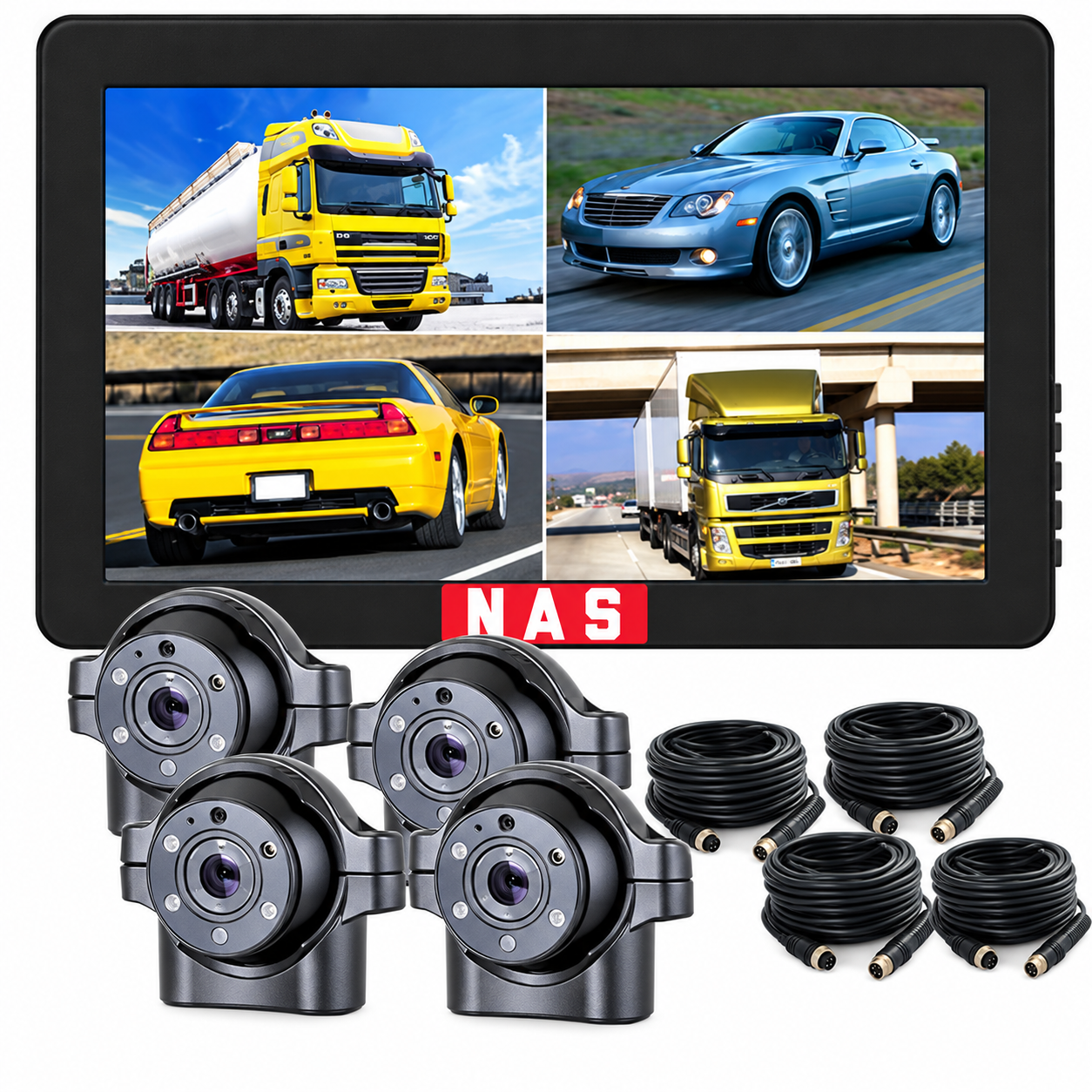

10.1" AHD Rear View Quad Reverse Monitor & HD1080P Reversing Camera Kit (HDMQ10.1Rec4*HD067-Concord) |
| Kit Includes |
| • 1 x HDMQ10.1Rec Superior Quality 10.1inch HD LCD Display Quad Reverse Monitor |
| • 4 x CSHD067 130° HD 1080P Reversing Cameras |
| • 4 x 8m Cable |
| • Electrical Connecting Cables |
| • User Guide |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
10.1-inch Touch Screen Reverse Quad Monitor.
Designed with high-end industrial-grade components. Paired with 1080P reversing cameras it delivers excellent image quality. The monitor supports up to a 512GB TF Card.
Waterproof - IP66
Key Features:
- 10.1" High Definition Display: Wide-screen AHD resolution for crystal-clear vision and enhanced rearview monitoring.
- Heavy-Duty Metal Bracket: Sturdy U-shape bracket & a 360° Universal Bracket included for secure mounting, suitable for commercial or industrial use.
- Suports upt to a 512GB SD card to record footage (SD card not included)
- Supports Up to 4 Cameras: Easily switch between four camera inputs for full vehicle coverage.
- Auto-Dimming: Automatically adjusts brightness based on light conditions.
- Adjustable Guidelines: On-screen parking guidelines can be enabled or disabled depending on your preference.
- 12V to 32V Wide Voltage Range: Compatible with a wide range of vehicles including caravans, 4WDs, trucks, buses, and agricultural equipment.
- Sunshield Included: Removable sun visor enhances screen visibility in direct sunlight – perfect for harsh Aussie outback glare.
- Remote Control + Touch Screen Control: Easily operate using the included remote or front panel controls.
- Durable Build for Australian Conditions: Built to handle heat, dust, and vibration – ideal for long-haul drivers and off-road operators.
Monitor Dimensions
Monitor Viewing Configuration:
Monitor Buttons
Monitor Recording Time
Monitor Rear View
Monitor Mounting Brackets
U-Shaped Support Aluminum Alloy Bracket
360° Universal Bracket: Aluminum Alloy +Rubber. Split It 360° Hold Up to 2KG One-Second Mounting
360° Universal Bracket Measurements
Monitor has the 4-Pin GX12 Male Screw Plug Connection
720P HD Touch Screen Quad Cabled Monitor Built-in DVR (R-HDMQ10.1Rec) |
| • Colour Screen: 10.1" 720P HD IPS Quad Touch Screen with Removable Sun Visor |
| • Waterproof Rating: IP66 |
| • Outer Shell: Aluminum Alloy |
| • Display Resolution: 1024 x 3(RGB) x 600 |
| • Video Signal Input: 4 channels (CVBS / AHD 720P /960P /1080P) of signal mixed input, can be used in the mixed way |
| • Video Input: 4 CH Video Input |
| • Monitor: Mechanical buttons & touch screen functional operation |
| • Display Modes: Single / Dual/ Three Splits / Quad / Picture-in-Picture |
| • Colour System:PAL/NTSC (AUTO) |
| • OSD menu function: Support functions single-channel picture flipping left and right, up and down, reverse scale, reverse trigger, reverse delay, reverse priority, power-off memory, etc. |
| • Menu language: 10 languages optional. |
| • Recording: TF card (supports up to 512G-speed equal to or greater than U3/V30) |
| • TF card not included. |
| • Connector Socket: 18-core S terminal |
| • Viewing Angle: L/R: 85/85, U/D: 85/85 |
| • Contrast ratio: 800:1 |
| • Waterproof: IP66 |
| • LED Brightness: 600cd/m² |
| • Response Time (ms): 25 |
| • Video Format: AVI |
| • Built-in reverse polarity |
| • Operating temperature: -20℃ to +70℃ |
| • Storage temperature: -30℃ to +80℃ |
| • Power Supply: DC11~32V |
| • Surge and load dump protection: DC24+174V(Td350mS) 5pulses |
| • Anti-vibration Rate: GB∕T 2423.56-2018 standard (random 5G vibration) |
| • External dimensions: (L x W x T) 265 x 168 x 37mm |
| • Weight Approx: 5KG |
| • Two Year Warranty |
Forward Facing or Rear View Side Mount Camera
The length of cable attached to the camera is approx. 900mm in length
Camera Mounting M6 Screws
Camera Dimensions
4-Pin GX12 Screw Female Definition
Measurements
HD 1080P Rear View Side Mount Moveable Eyeball Camera (CSHD067) |
| • Waterproof: IP69K approved |
| • Viewing angle: 130° |
| • Lens f=2.8mm |
| • Smart-IR |
| • Mirror / Normal image switch |
| • Night Vision distance: 5m (5 infrared lights) |
| • Day / Night sensor for automatic adjustment |
| • Image Device: 1/2.9” CMOS |
| • Frame Rate: 25fps/30fps |
| • Effective Pixels: 1920 x 1080 |
| • Pixel pitch 2.8 μm x 2.8 μm |
| • Scanning System: Progressive Scanning |
| • Sync. System: Internal |
| • Resolution: 1080p |
| • Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR) |
| • Microphone: Yes |
| • Video Output: 1.0Vp-p, 75Ohm |
| • Gamma Consumption: 0.45 |
| • Dynamic Range: 81dB |
| • White Balance: Auto |
| • Electronic Shutter: 1/30（1/25）～1/50,000 Seconds |
| • BLC: Auto |
| • Current Consumption: Max. 110mA |
| • Power Supply: DC 12 V |
| • Connection: 4 PIN |
| • Anti-vibration: 10 g |
| • Operating Temperature: –20℃ ~ 70℃, RH95%MAX. |
| • One Year Warranty |
