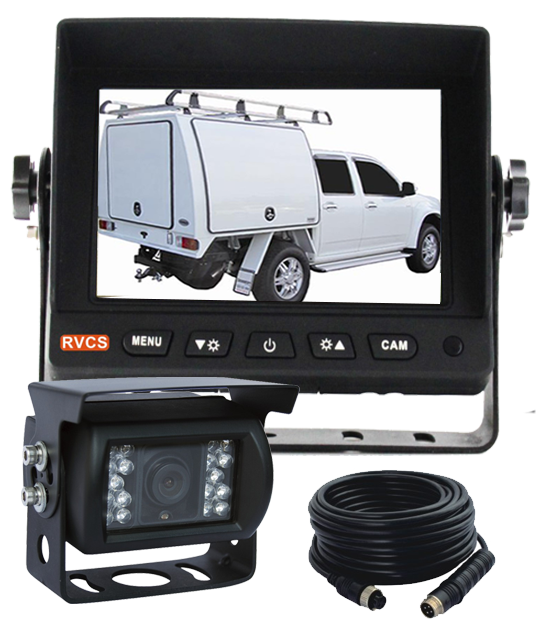

This 5 inch reversing camera kit is designed to improve rear visibility and provide greater control when reversing and manoeuvring. The compact monitor delivers a clear image, helping drivers reduce blind spots and operate with confidence. The system includes a choice of camera viewing angles, allowing you to select 30 degree, 45 degree, 60 degree, or 100 degree depending on your application. Narrow angle cameras are ideal for accurate distance judgement, while wider angles provide greater coverage behind the vehicle.
Suitable for cars, vans, and light commercial vehicles, this system provides reliable rear vision for everyday use. The camera is built to an industrial grade standard, offering durability and consistent performance. The wired connection ensures a stable, interference-free signal. The monitor supports up to two cameras, allowing an additional camera to be added for expanded rear or side visibility if required. This kit is a practical and flexible solution for drivers who need the right camera angle to suit their vehicle and reversing needs.
Monitor Supports Two Reverse Cameras
Monitor Viewing Configuration
1080P AHD Waterproof IP69K High Quality Reversing Camera
Camera Angles - 100°,60°, 45° & 30° Optional
Reversing Camera Night Vision Distance
18pcs LEDs - Approx. 10m if there is no other light source.
Mounting Bracket
The monitor comes with the U-Shaped Bracket
The reverse monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by Clicking on the "Monitor Bracket" Tab.
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS Electronics cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS Electronics monitors have the 4-pin male ended connection and require the female ended extension cable.
| Kit Includes |
| • 1 x HDMSD5 5-inch AHD Screen (With Removable Sun Visor) |
| • 1 x CHD402E HD 100 Degree 1080P Reversing Camera |
| • 1 x 8m Cable |
| • Electrical Connecting Cables |
| • Remote Control (Battery Not Included) |
| • User Guide |
| • Monitor Supports Two Cameras, Additional Camera can be Added in the Future |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
5-inch AHD Reversing Cabled Monitor
Monitor Dimensions
Monitor Harness
The green trigger cables does not have to be connected, it only requires connection if you want a camera to come on automatically for example when the vehicle is put in reverse. If the trigger wire is connected, then you will not be able to view the camera at all times whilst driving. If not connecting the trigger wire wrap it individually in insulation tape.
Monitor has the 4-Pin GX12 Male Screw Plug Connection
Monitor U-bracket Installation
Accessories
5" Revering Camera Monitor (RV-HDMSD5) |
| • 5-inch AHD digital IPS Screen (With Removable Sun Visor) |
| • Resolution: 800 x 3(R.G.B) x 480 |
| • View Angle: Hor.L/ (70) R (70) Ver.UP (50) Down(70) |
| • Back Light: LED, 500cd/m² |
| • Image Reversion: Up/Down and Left/Right |
| • Compatible System: NTCS & PAL Automatically |
| • 2 Channel AHD Video Input, single image display, support 720P@25/30, 960P@50/60, 1080P@25/30 (Video Compatibility: CVBS/AHD) |
| • 1 Channel AHD Audio Input : Channel 2 |
| • One Trigger Cable - Does not need to be connected wrap in insulation tap. |
| • Power Requirement: DC12V-24V input, 12V output |
| • Accessories: Remote Control, Power Supply Harness, Sun Visor |
| • Remote Control (Battery Not Included) |
| • U Type Bracket (Fan and Suction Brackets Optional) |
| • Working temperature: -20℃ ~ +70℃ |
| • Storage Temperature: -30℃~ + 80℃ |
| • Outer Dimension:140(W) X 102(H) X 26(56) (T) mm |
| • One Year Warranty |
HD 1080P Reversing Camera IP69K, 100°, 60°,45°& 30° Optional.
Camera viewing angle plays an important role in how your reversing camera performs when towing. A narrow 30° camera is ideal for driving and distance viewing, giving you a clear, rear-vision style image so you can accurately judge how far vehicles are behind your caravan while travelling.
Mid-range angles such as 45° and 60° provide a balanced view, making them suitable for both reversing and general towing. They offer more coverage than a narrow lens while still allowing you to maintain a good sense of distance.
A wider 100° camera is best suited for reversing and manoeuvring, as it captures a broader area behind the caravan. This helps reduce blind spots and makes it easier to see obstacles when parking or navigating tight spaces.
Night Vision Distance
18pcs LEDs-Approx. 10m if there is no other light source
Camera Dimensions
Front View
Side View
4pin Gx12 Screw Female Definition
Measurements
HD 1080P Reversing Camera reversing safety |
| • Image - Rear-View, NAS Monitor Can Change Image to Forward Facing |
| • CHD402E 100° Viewing Angle |
| • CHD60E 60° Viewing Angle |
| • CHD45E 45° Viewing Angle |
| • CHD30E 30° Viewing Angle |
| • Waterproof: IP69K |
| • Image Type: 1/2.8 Inch Colour Sony |
| • Tv System: PAL (25fps) |
| • Sync System: Internal Synchronization |
| • IR-Function: CDS Auto Control, Under 10 Lux By CDS (≤10 Lux CDS On) |
| • Video Output: HD 1080P |
| • Usable Illumination: 0lux At Night (18pcs IR Led On) |
| • Night Vision Distance: Approx. 15m |
| • Automatic Adjusts with Day/Night Sensor |
| • S/N Ratio: ≥48db (AGC Off) |
| • Shockproof: 5G (Conforms To GB-T2423056-2006 Standard) |
| • Power Supply: DC12V |
| • Shell Material: Aluminum Alloy |
| • Dimensions: 107(W X 75(H) X 70.5(D)mm (With Mounting) |
| • Operating Temperature: -20℃ To + 60℃ Rh95% Max |
| • Storage Temperature: -20℃ To + 70℃ Rh95% Max |
| • Weight : 450g |
| • One Year Warranty |
