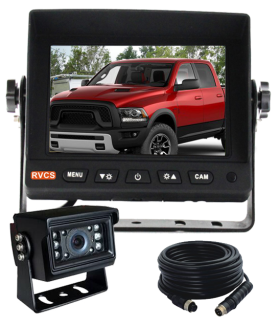

This 5 inch reversing camera kit is designed to improve rear visibility and safety when reversing and manoeuvring. The compact HD monitor delivers a clear image, helping drivers reduce blind spots and operate with confidence.

The system includes a mini 120 degree HD camera with infrared night vision, providing a wide viewing angle and reliable performance in low light conditions. Its compact size makes it ideal for discreet installation on cars, vans, and light commercial vehicles.

The wired connection ensures a stable, interference-free signal for consistent performance. The monitor supports a second camera, allowing additional rear or side coverage if required.

Built for everyday use, this system is a simple and effective solution for improving reversing safety and visibility.

Monitor Supports Two Reversing Cameras

Monitor Viewing Configuration

Mounting Bracket

The monitor comes with the U-Shaped Bracket

The monitor comes with the U-Shaped Bracket

Other Mounting Bracket Options

A suction bracket，a fan bracket or a butterfly bracket can be purchased as an optional extra by Clicking on the "Monitor Bracket" Tab.

1080P AHD Waterproof IP68 Reversing MINI Camera

Option to Add Audio

Waterproof IP67 with Audio

Reversing cameras with audio are ideal for towing a caravan, allowing drivers to hear guiding instructions while viewing the area behind. This combination of visual and auditory feedback ensures safer, more precise reversing, especially in tight spaces.

120° Rear-View Camera

The standard and most sold reversing camera has a 120°viewing angle. Camera Angles above 120° will show distortion in the width viewing image. The 120° viewing angle will provide a view of both lanes on a highway, excellent when towing a caravan or trailer or driving a truck on the freeway when you want to change lanes.  This angled camera is also popular on farming and mining machinery and is recommended for Utes that have closed in canopies with no rear vision from the vehicle's rear-vision mirror.  The camera can be tilted down or up to focus on a particular area. The downfall of a 120° camera is when towing a trailer or caravan for example a truck or car behind you will look like it is much further away however it is right up behind you.

Reversing Camera Night Vision Distance

6pcs LEDs -Approx. 4m if there is no other light source.

Secure Waterproof Cable Connections

The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS Electronics cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS Electronics monitors have the 4-pin male ended connection and require the female ended extension cable.

The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image
