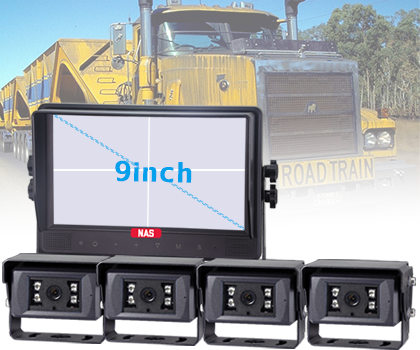

This 9 inch quad reversing camera kit is designed to provide full vehicle visibility and improve safety in demanding environments. The large HD monitor delivers a clear, easy-to-view display, allowing drivers to monitor multiple areas around the vehicle and reduce blind spots when reversing or manoeuvring. The system includes four 1080P waterproof cameras with a choice of 100 degree or 69 degree viewing angles. The wider 100 degree option provides greater coverage behind the vehicle, while the 69 degree camera offers a more focused view for improved distance judgement. The quad view monitor allows all camera feeds to be displayed, giving operators full awareness of surrounding areas. This makes the system ideal for trucks, machinery, and commercial vehicles operating in tight or high-risk environments. Built for durability, this industrial grade system is suited to heavy vehicles, agricultural machinery, and mining applications.
This system is a reliable solution for improving safety, visibility, and operational control across a wide range of vehicle and machinery applications.
AHD Reverse Monitor
Waterproof IP69K Industrial Grade Cameras HD 1080P
Reversing Camera Angle 110° or 69°
Reversing Camera Night Vision
4pcs High Quality SMD LEDs - 10M if there is not other light source.
Monitor Viewing Configuration
The monitor can take up to four reversing cameras.
Mounting Options
The reverse monitor comes with a U-Shaped Bracket and a fan bracket.
U-Shaped Mounting Bracket
Fan Bracket Mount
Suction Mounting Bracket Options
A suction bracket can be purchased as an optional extra by Clicking on the "Add Suction Bracket" Tab. The suction bracket mounting on the windscreen is another option of mounting the monitor. Often used if the monitor bracket is not to be a permanent fixture in the vehicle. On larger monitors the front edge of the monitor can rest on the dash with the suction bracket supporting it in.
Fan & Suction Bracket Slot.
Reversing Cameras Can Be Mounted on a Magnetic Base for Ease of Fixing and Movability
To purchased as an optional extra click on the "Add Camera Magnet" Tab .
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS Electronics cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS Electronics monitors have the 4-pin male ended connection and require the female ended extension cable.
| Kit Includes |
| • 1 x HDMSQ936 High Quality 720P 9inch IPS Screen Reverse Monitor |
| • 4 x CSHD102B HD 110 Degree 1080P IP69K Waterproof Reversing Camera |
| • 4 x 8m Cable |
| • Electrical Connecting Cables |
| • Remote Control (Battery Not Included) |
| • User Guide |
| • Monitor Supports Four Reversing Cameras |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
9inch, 9", Car, Rear, View, rearview, backup, Camera, Kit
9" HD Quad Digital IPS Screen Monitor
Monitor Dimensions
Monitor Harness
Monitor harnesses have trigger cables that are typically White, Brown, Green, and/or Blue. These don't need to be connected unless you want a camera to activate automatically, like when the vehicle shifts into reverse. Connecting the trigger wires means you won't be able to view the camera constantly while driving. If you choose not to connect them, wrap each trigger cable individually in insulation tape.
Monitor has the 4-Pin GX12 Male Screw Plug Connection
Reversing safety
HD 9" Cabled Monitor (HDMSQ936) |
| •Touch screen control |
| •Support 4 HD channels with AHD1080P25 or 1080P30 cameras inputs |
| •Resolution:1024 x 3(RGB) x 600 |
| •9 languages available (English, Chinese, German, French, Japanese, Spanish , Italian, Russian, & Dutch ) |
| •Image can be adjusted for Horizontal, Vertical, Mirror and Normal Viewing |
| •Reverse cursor with on-off mode switch available |
| •Support AUTO DIM |
| •Support AUTO SCAN, with the scan time selectable between 1-60s |
| •Support 5-channel display of auto trigger, with the trigger delay time selectable between 1-60s |
| •Multiple video formats available: PAL / NTSC / HD (720P/1080P). |
| •Dot pitch: 0.192(W) • 0.19025 (H)mm |
| •Contrast: 800:1 |
| •Brightness: 650 cd/m |
| •Viewing angle: U: 85° / D: 85°, R/L: 85° / 85° |
| •Loudspeaker: one 24*15*4.5mm loudspeaker |
| • Audio output: 1W |
| •Operating temperature: -20~+70ºC, RH 90% |
| •Storage temperature: -30~+80ºC, RH 90% |
| •Power consumption: Appr. 8W |
| •Video inputs: 4 Camera Video inputs, 1 HDMI |
| •Audio inputs: 4 Camera Audio inputs |
| •Video outputs: 0 |
| •Audio outputs: 1W |
| •Trigger signal: 5 trigger wires (5PIN) |
| •Anti-vibration: 3 g (Center mount bracket) / 7 g |
| •Outer dimension: 234mm (W) × 158mm (H) × 39.75mm (T). |
| •Power Supply: 10~32V |
| •Weight: 2.0kg. |
| •Two Year Warranty |
| •Product Accessories |
| •U- Support Bracket, Base Support Bracket, Angle Adjustment Screw, Removable Sun Visor, Electrical Connecting Cable, IR Remote (Battery Not Included) |
IP69K 1080P HD Reversing Camera
Forward Facing or Rear View Camera
The length of cable attached to the camera is approx. 350mm in length
Camera Dimensions
4-Pin GX12 Screw Female Definition
Measurements
Full HD 1080P Camera with Smart IR Light For Night Vision |
| • Waterproof: IP69K approved |
| • Viewing angle: 110°(CSHD102B) or 69° (CSHD1069B) |
| • Smart-IR |
| • Mirror / Normal image switch |
| • Night Vision distance: 10m (4 infrared lights) |
| • Day / Night sensor for automatic adjustment |
| • Image Device: 1/2.9” CMOS |
| • Frame Rate: 25fps/30fps |
| • Effective Pixels: 1920 x 1080 |
| • Resolution: 1080P |
| • Pixel pitch 2.9 μm x 2.9 μm |
| • Scanning System: Progressive Scanning |
| • Sync. System: Internal |
| • Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR) |
| • Microphone: Yes |
| • Video Output: 1.0Vp-p, 75Ohm |
| • Gamma Consumption: 0.45 |
| • Dynamic Range: 81dB |
| • White Balance: Auto |
| • Electronic Shutter: 1/30（1/25）～1/50,000 Seconds |
| • BLC: Auto |
| • Current Consumption: Max. 250mA |
| • Power Supply: DC 12 V |
| • Connection: 4 PIN |
| • Anti-vibration: 10 g |
| • Operating Temperature: –20℃ ~ 70℃, RH95%MAX. |
| • One Year Warranty |
1080P HD Waterproof IP69K Reversing Camera
Forward Facing or Rear View Camera
The length of cable attached to the camera is approx. 350mm in length
Camera Dimensions
4-Pin GX12 Screw Female Definition
Measurements
Full HD 1080P Camera with Smart IR Light For Night Vision (R-CSHD1069B) |
| • Waterproof: IP69K approved |
| • Viewing angle: 69° |
| • Smart-IR |
| • Mirror / Normal image switch |
| • Night Vision distance: 15mm (4 infrared lights) |
| • Day / Night sensor for automatic adjustment |
| • Image Device: 1/2.9” CMOS |
| • Frame Rate: 25fps/30fps |
| • Effective Pixels: 1920 x 1080 |
| • Resolution: 1080P |
| • Pixel pitch 2.9 μm x 2.9 μm |
| • Scanning System: Progressive Scanning |
| • Sync. System: Internal |
| • Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR) |
| • Microphone: Yes |
| • Video Output: 1.0Vp-p, 75Ohm |
| • Gamma Consumption: 0.45 |
| • Dynamic Range: 81dB |
| • White Balance: Auto |
| • Electronic Shutter: 1/30（1/25）～1/50,000 Seconds |
| • BLC: Auto |
| • Current Consumption: Max. 250mA |
| • Power Supply: DC 12 V |
| • Connection: 4 PIN |
| • Anti-vibration: 10 g |
| • Operating Temperature: –20℃ ~ 70℃, RH95%MAX. |
| • One Year Warranty |
