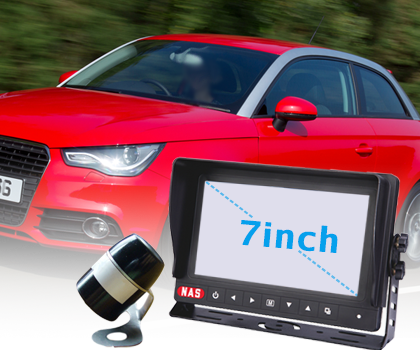

Superior Quality 7" reverse Monitor and 150° Reversing Camera Car Kit Image Quality is Excellent.
The high quality 7" monitor screen is viewable under sunlight conditions. It features white lasered engraved buttons that are backlit for clear day and night vision. The monitor shell is made from tough PC/ABS to withstand high temperatures in the cab. The In-Plane Switching (IPS) is a liquid crystal display with wide viewing angle, high colour accuracy and brightness.
Car 150° Wing Mounted Reversing Camera Waterproof Rating IP67
Reversing Camera Night Vision
No LED Lights No Night Vision if there is no other light source.
Monitor Viewing Configuration
The reverse monitor can take up to two cameras.
Mounting Bracket
The reverse monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by Clicking on the "Monitor Bracket" Tab.
Suction or Fan Bracket Slides into Slot.
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS Electronics cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS Electronics monitors have the 4-pin male ended connection and require the female ended extension cable.
Reversing Cameras have the 4 Pin Waterproof Female Plug GX12 Aviation Plug Connection

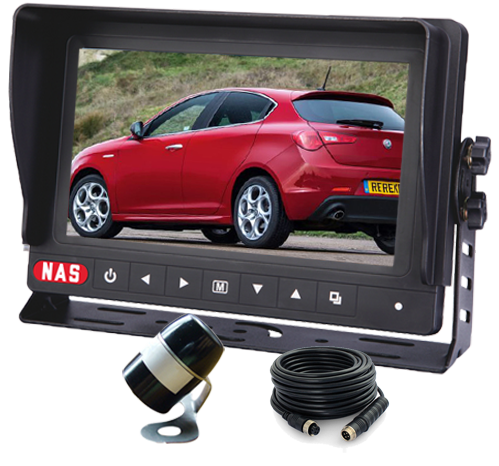

7" Car Rear View Monitor Camera Kit (HDM72CCC150 - Concord) |
| Kit Includes |
| • 1 x HDM72C 7" IPS HD IPS Screen Reverse Monitor With Touch Buttons & Removable Sun Visor |
| • 1 x CC150 1/4" CMOS Colour 150° Wide Viewing Angle Reversing Camera |
| • 1 x 8m Cable |
| • Electrical Connecting Cables |
| • Remote Control (Battery Not Included) |
| • User Guide |
| • Monitor Supports Two Reversing Cameras |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
7inch HD Wired Reversing Monitor
Monitor Dimensions
Monitor Key
Monitor Harness
Monitor has two 4pin Male Aviation
Trigger Wires
The trigger cables, typically Yellow, Brown, Blue, and White, do not need to be connected. They only require connection if you desire automatic camera activation, such as when the vehicle is shifted into reverse. However, if you connect the trigger wires, continuous camera viewing while driving won't be possible. If you choose not to connect the trigger cables, ensure to wrap each one individually in insulation tape.
720P HD 7" Cabled Monitor (HDM72CNDH) |
| • 7" IPS HD Screen Monitor With Touch Buttons with Removable Sun Visor |
| • Touch Button Controls |
| • Vibration Resistance Level: 5G (Conforms To GB-T2423056-2006 Standard) |
| • View Monitor: Single Screen Switch |
| • Colour System: PAL/NTSC (Auto) |
| • Display Resolution: 1024(H) X 600(V) |
| • Surge and load dump protection: ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms） |
| • Time Delay (Ms):25ms |
| • Wide View Angle (LR/UD):(U/D): 80/85 (L/R): 80/85 |
| • Brightness: 600cd/m² |
| • Contrast Ratio: 800:1 |
| • Power Supply: DC11~32V |
| • Operating Temperature: -20℃ To +70℃ |
| • Storage Temperature: -30℃ To +80℃ |
| • External Dimensions :(L x W x T) 220 x 149 x 84mm |
| • Weight Approx: 1000g |
| • Two Year Warranty |
Car 150° Wing Mounted Backup Camera Waterproof Rating IP67
150° Rear-View Camera (CC150)
A 150° viewing angle will provide a horizontal wide angle-view from one rear corner to the other and is wide enough to show three lanes on a highway. This angle is classed as a fisheye field of view backup camera. Its purpose is to provide a wide-angle view to enhance vehicle reversing safety. The angle will show objects close and will have a distorted field of view on objects further away.
Night Vision Distance
This camera does not have any IR LEDs for night vision however if there is light from another source then there will be an image on the monitor.
Camera Dimensions
Front & Back Show
Cameras have the 4-Pin Female Screw
Measurements
4-Pin GX12 Screw Female Definition
CMOS High Resolution Reversing Camera (R-CC150) |
| • Image Pick-up Device: 1/4" CMOS COLOUR |
| • Sensing Area: 4.008mm x 3.024mm |
| • Effective Pixels: 648 x 488 |
| • Horizontal Resolution: 420 TV Lines |
| • Super Wide Angle: 150° |
| • Colour System: PAL |
| • Illumination: 0.8Lux |
| • Video Output: 1.0vp-p.75 Omega |
| • Power Consumption: <1W |
| • AGC: Auto |
| • S/N Ratio: Better Than 48dB |
| • White Balance: Auto |
| • Electronic Shutter: Auto: 1/60~1 / 100000 Second |
| • Waterproof: IP67 |
| • Housing: Aluminium and Stainless Steel Bracket |
| • Operation Temperature: -20℃～+75℃ RH95% Max |
| • Storage Temperature: -30℃～+85℃ RH95% Max |
| • Power Supply: DC12V |
| • Optional Function: Parking Line Switcher |
| • One Year Warranty |
