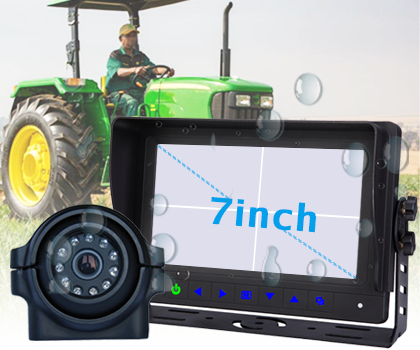

IP68 Waterproof 7" Monitor Side Mount or Forward Facing Camera. Monitor and Cameras can withstand dust, and wash down procedures.
The high quality waterproof 7" monitor screen is viewable under sunlight conditions. The monitor front casing is made from tough PC/ABS to withstand high temperatures in the cab and the back casing is made of Stainless Steel. It features buttons that are backlit for clear day and night vision. The Thin Film Transistor (TFT) is a liquid crystal display allowing for a clear picture at high speeds.
Monitor Waterproof Rating IP68
Waterproof IP69K 90°High Quality Backup Camera
90° Rear-View Camera
The 90° viewing angle is a popular reversing camera and it will provide an adequate view of both lanes on a highway and has a sufficient angle for backing into tight places. The 90° viewing angle is not recommended for Utes that have closed in canopies with no rear vision because the angle is not quite wide enough however this camera is often mounted on the side of a canopy or on a roof rack for side vision. The camera eyeball lens can be tilted down, sideways or up to focus on a particular area.
Night Vision Distance
10 Infrared Lights- Approx. Project Distance 7m if there is no other light source.
Monitor Viewing Configuration
The monitor can take up to four cameras.
Mounting Bracket
The monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, fan bracket or a butterfly bracket can be purchased as an optional extra by clicking on the "Add Monitor Bracket" Tab.
Suction, Fan or Butterfly Bracket Slides into Slot.
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS monitors have the 4-pin male ended connection and require the female ended extension cable.
Cameras have the 4 Pin Waterproof Female Plug GX12 Aviation Plug Connection

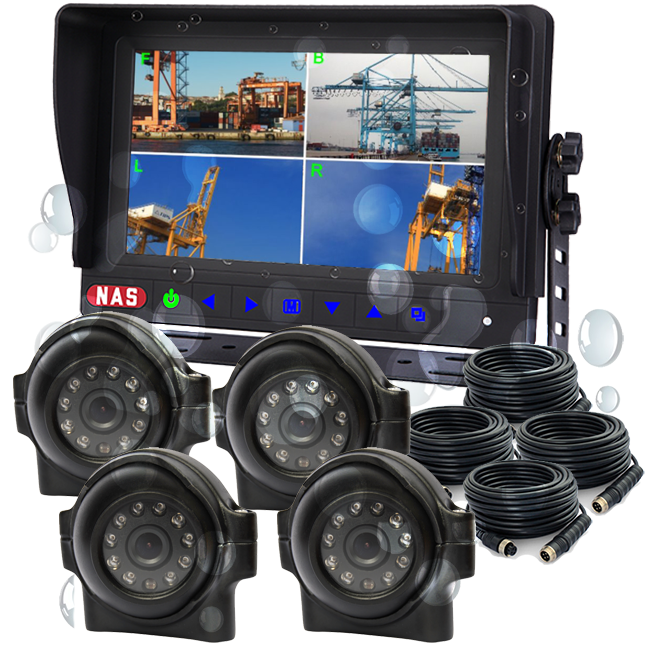

| Kit Includes |
| • 1 x MQW756N Waterproof High Quality 7inch TFT LCD Display Monitor |
| • 4 x C18052 1/3" SHARP CCD 90° Eyeball Camera |
| • 4 x 8m Cable |
| • Electrical Connecting Cables |
| • Remote Control (Battery Not Included) |
| • User Guide |
| • Monitor Supports Four Cameras |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
7inch, 7", Car, Rear, View, rearview, backup, Camera, Kit
Monitor Dimensions
Monitor Menu
4pin Male Monitor Harness Pinout

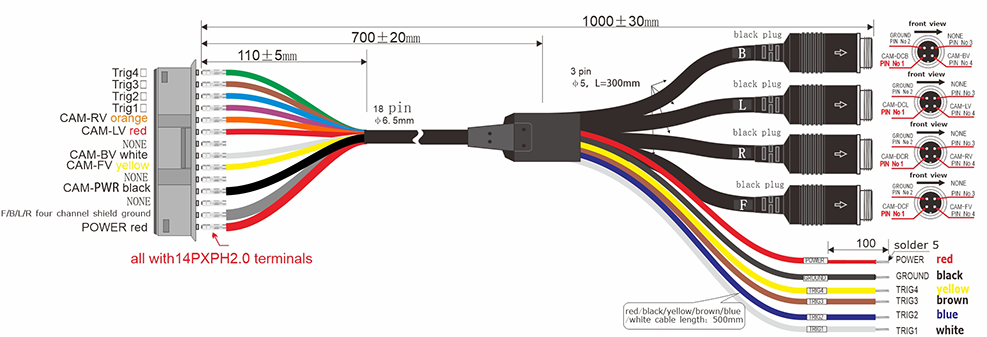

Monitor Harness
The trigger cables Yellow, Brown, Blue, White, & Blue do not have to be connected, they only require connection if you want a camera to come on automatically for example when the vehicle is put in reverse. If the trigger wires are connected, then you will not be able to view the cameras at all times whilst driving. If not connecting the trigger cables wrap individually in insulation tape.
Monitor has the 4-Pin GX12 Male Screw Plug Connection
Waterproof Colour Monitor(MQW756N) |
| • 7"Digital Screen Quad TFT LCD Colour Monitor with Removable Sun Visor |
| • Waterproof: IP68 |
| • Single View/Split View/Three View/Quad image View Selectable |
| • OSD MENU Separately Set Each Camera Reversing Image Delay Time 0-30" |
| • OSD MENU Separately Set Each Camera Mirror/Normal image |
| • OSD MENU Separately Set Each Camera Trigger Priority |
| • Application USA Techwell Automotive Digital Video Processor |
| • Colour System: PAL/NTSC (AUTO) |
| • Display Resolution: 800 (RGB) x 480 |
| • Support Four-channel Camera Video Inputs:1.0Vp-p75Ω |
| • Wide view angle(CR:10):(up/ down): 45/65 (left/right): 65/65 |
| • Contrast ratio: 500:1 |
| • Back-light : Single LED 450cd/㎡ Brightness |
| • Operating temperature: -20℃ to +70℃ |
| • Storage temperature: -30℃ to +80℃ |
| • Power Supply: DC12~32V |
| • Power Supply: DC12-450mA |
| • Surge and load dump protection: ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms |
| • External dimensions: (L x W x T) 220 x 149 x 84mm |
| • Weight Approx.: 1440g |
| • Two Year Warranty |
Waterproof IP69K 90°High Quality Backup Camera
The 90° viewing angle is a popular reversing camera and it will provide an adequate view of both lanes on a highway and has a sufficient angle for backing into tight places. The 90° viewing angle is not recommended for Utes that have closed in canopies with no rear vision because the angle is not quite wide enough however this camera is often mounted on the side of a canopy or on a roof rack for side vision. The camera eyeball lens can be tilted down, sideways or up to focus on a particular area.
Night Vision Distance
10 Infrared Lights- Approx. Project Distance 7m if there is no other light source.
Camera Mounting
Camera Mounting
Camera Dimensions

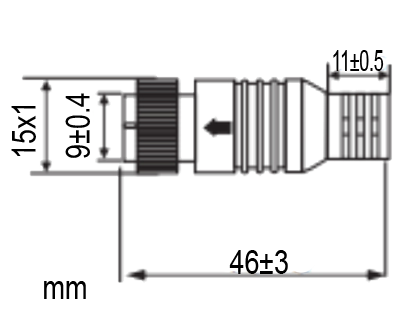

4-Pin GX12 Screw Female Definition
Measurements
| Sharp Eyeball Camera (R-C18052) |
| • Image device: 1/3" SHARP COLOR CCD |
| • Effective Pixels: PAL: 752 x 582 |
| • Scanning System: PAL: 625 Lines 50 Field/sec |
| • Sync. System: Internal Synchronization |
| • Resolution: 600 TV Lines |
| • Gamma Characteristic: 0.45 |
| • S/N Ratio: ≥48dB(AGC Off) |
| • Electronic Shutter Time: On: PAL 1/50~1/100,000Sec; Off: PAL 1/50 Sec |
| • Usable Illumination: 0 lux with built-in IR LED |
| • IR project distance: 10 meters(10 Unit Infrared LED) |
| • IR Status: Under 10 Lux by CDS |
| • IR Power On: CDS Auto Control |
| • Lens: Board Lens 2.9mm/F2.0 Free Viewing Angle: 90° |
| • Video Output: 1.0Vp-p 75 ohm |
| • Gain Control(AGC): Auto |
| • Water resistance: IP69K |
| • Operation Temperature: -20℃～+50℃ RH95% Max |
| • Storage Temperature: -40℃～80 ℃, RH 95% MAX |
| • Power Supply: DC12V±10% 400mA |
| • Dimension: 55(L) x 63(W) x 74(H)mm |
| • Weight: 250g |
| • One Year Warranty |
