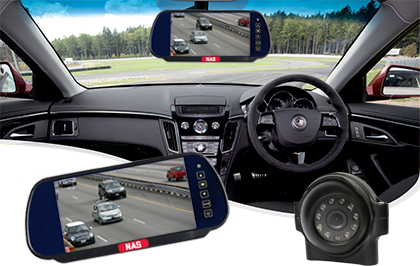

7" AHD Mirror monitor clips securely over existing car mirror, the small eyeball camera has a lens that can be moved to focus on a certain area.
Waterproof IP69K 90°High Quality Reversing Camera
Reversing Camera Night Vision Distance
10 Infrared Lights- Approx. Project Distance 7m if there is no other light source.
90° Rear-View Camera
The 90° viewing angle is a popular reversing camera and it will provide an adequate view of both lanes on a highway and has a sufficient angle for backing into tight places. The 90° viewing angle is not recommended for Utes that have closed in canopies with no rear vision because the angle is not quite wide enough however this camera is often mounted on the side of a canopy or on a roof rack for side vision. The camera eyeball lens can be tilted down, sideways or up to focus on a particular area.
Monitor Viewing Configuration
The reverse monitor can take up to two cameras
Mounting Bracket Clips Securely Over Rear Vision Mirror
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS monitors have the 4-pin male ended connection and require the female ended extension cable.
Reversing Cameras have the 4 Pin Waterproof Female Plug GX12 Aviation Plug Connection

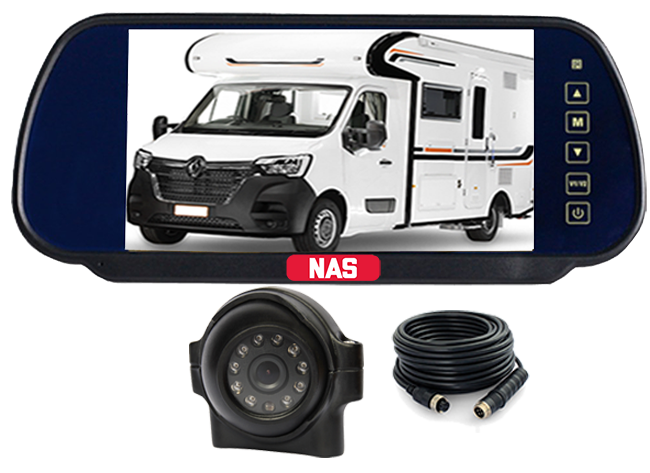

7" Car HD Rear View Mirror Monitor Camera Kit (RV-HDMSD8752-RVCS) |
| Kit Includes |
| • 1 x HDMSD87 7inch Rear Vision Mirror HD IPS Display Monitor With Touch Buttons |
| • 1 x C18052 1/3" SHARP CCD 90° Eyeball Camera |
| • 1 x 8m Cable |
| • Electrical Connecting Cables |
| • Remote Control (Battery Not Included) |
| • User Guide |
| • Monitor Supports Two Reversing Cameras, Additional Camera can be Added in the Future |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
HD Rear-Vision Mirror Monitor
Reversing Guide Lines
The Grid lines can be tuned on or off. The grid can be enlarged or made smaller in the monitor menu.
Audio
The camera input 1/2 on the monitoring harness are equipped with audio capabilities.
Monitor Dimensions
Monitor Harness
The trigger cable gray does not have to be connected, it only requires connection if you want a camera to come on automatically for example when the vehicle is put in reverse. If the trigger wire is connected, then you will not be able to view the camera at all times whilst driving. If not connecting the trigger cable wrap it individually in insulation tape.
Monitor has the 4-Pin GX12 Male Screw Plug Connection
7" Car Rear View Mirror HD Monitor(R-HDMSD87) |
| • Screen size: 7" Digital IPS Screen MIRROR monitor |
| • Type: 16:9 wide screen |
| • Resolution: 1024(H) X 600(V) |
| • Colour system: PAL/ NTSC (AUTO) |
| • Video inputs: 2-CH inputs |
| • Audio: Yes |
| • Power requirement: 12V~24V DC |
| • Remote Control (Battery Not Included) |
| • MIRROR/NORMAL Switch: Yes |
| • Operating temperature: -10℃ to +65℃ |
| • Storage temperature: -30℃ to +80℃ |
| • Reverse trigger Automatic if wire is connected. |
| • Outer dimension: 253(L)x 108(W)x 23.5(H)mm |
| • Monitor Harness |
| • User Guide |
| • Monitor Takes Up to Two Cameras |
| • Monitor One Year Warranty |
Waterproof IP69K 90°High Quality Backup Camera
The 90° viewing angle is a popular reversing camera and it will provide an adequate view of both lanes on a highway and has a sufficient angle for backing into tight places. The 90° viewing angle is not recommended for Utes that have closed in canopies with no rear vision because the angle is not quite wide enough however this camera is often mounted on the side of a canopy or on a roof rack for side vision. The camera eyeball lens can be tilted down, sideways or up to focus on a particular area.
Night Vision Distance
10 Infrared Lights- Approx. Project Distance 7m if there is no other light source.
Camera Mounting
Camera Mounting
Camera Dimensions

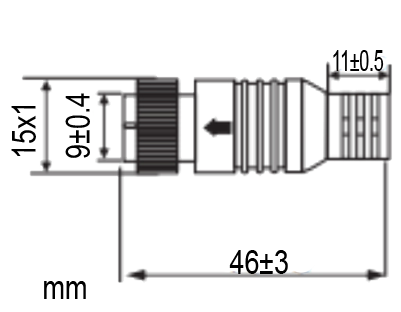

4-Pin GX12 Screw Female Definition
Measurements
| Sharp Eyeball Camera (R-C18052) |
| • Image device: 1/3" SHARP COLOR CCD |
| • Effective Pixels: PAL: 752 x 582 |
| • Scanning System: PAL: 625 Lines 50 Field/sec |
| • Sync. System: Internal Synchronization |
| • Resolution: 600 TV Lines |
| • Gamma Characteristic: 0.45 |
| • S/N Ratio: ≥48dB(AGC Off) |
| • Electronic Shutter Time: On: PAL 1/50~1/100,000Sec; Off: PAL 1/50 Sec |
| • Usable Illumination: 0 lux with built-in IR LED |
| • IR project distance: 10 meters(10 Unit Infrared LED) |
| • IR Status: Under 10 Lux by CDS |
| • IR Power On: CDS Auto Control |
| • Lens: Board Lens 2.9mm/F2.0 Free Viewing Angle: 90° |
| • Video Output: 1.0Vp-p 75 ohm |
| • Gain Control(AGC): Auto |
| • Water resistance: IP69K |
| • Operation Temperature: -20℃～+50℃ RH95% Max |
| • Storage Temperature: -40℃～80 ℃, RH 95% MAX |
| • Power Supply: DC12V±10% 400mA |
| • Dimension: 55(L) x 63(W) x 74(H)mm |
| • Weight: 250g |
| • One Year Warranty |
