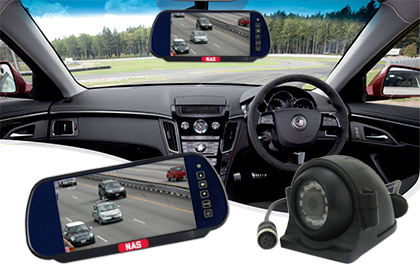

This 7 inch mirror reversing camera kit features an adjustable 120 degree eyeball camera, allowing you to focus on a specific area behind your vehicle. It is ideal for applications where precise positioning and targeted viewing are important. The mirror monitor clips over your existing rear vision mirror and functions as a normal mirror when not in use, maintaining a clean and practical setup. When activated, it provides a clear HD display for reversing. The system supports two cameras, giving you the option to expand your setup for additional coverage if required. Built for Australian conditions, this kit suits cars, caravans, and light commercial vehicles where flexibility and reliable rear visibility are essential.
Monitor Viewing Configuration
Monitor Supports Two Reversing Cameras
Mounting Bracket Clips Securely Over Rear Vision Mirror
Reverse Guide Lines
The Grid lines can be tuned on or off. The grid can be enlarged or made smaller in the monitor menu.
1080P AHD Waterproof IP68 Reversing Camera 120° Viewing Angle
The length of cable attached to the camera is approx. 350mm in length
Reversing Camera Night Vision Distance
12pcs LEDs -Approx. 7m if there is no other light source.
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS Electronics cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS Electronics monitors have the 4-pin male ended connection and require the female ended extension cable.

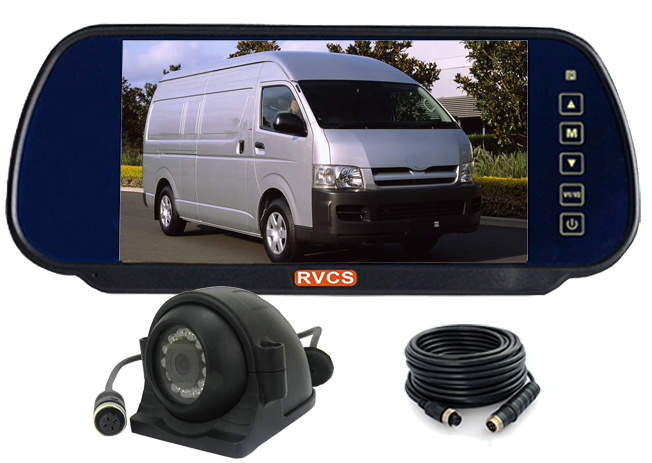

7" Car Rear View Mirror Monitor Camera Kit (RV-HDMSD87CHD14-RVCS) |
| Kit Includes |
| • 1 x HDMSD87 Caravan 7inch Rear Vision Mirror 720P HD IPS Display Monitor |
| • 1 x RV-HDCSD14 1/3" HD CMOS 1080P HD Side View 120° Camera |
| • 1 x 8m Cable |
| • Electrical Connecting Cables |
| • Remote Control (Battery Not Included) |
| • User Guide |
| • Monitor Supports Two Cameras, Additional Camera can be Added in the Future |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
HD Rear-Vision Mirror Monitor
Reversing Guide Lines
The Grid lines can be tuned on or off. The grid can be enlarged or made smaller in the monitor menu.
Audio
The camera input 1/2 on the monitoring harness are equipped with audio capabilities.
Monitor Dimensions
Monitor Harness
The trigger cable gray does not have to be connected, it only requires connection if you want a camera to come on automatically for example when the vehicle is put in reverse. If the trigger wire is connected, then you will not be able to view the camera at all times whilst driving. If not connecting the trigger cable wrap it individually in insulation tape.
Monitor has the 4-Pin GX12 Male Screw Plug Connection
7" Car Rear View Mirror HD Monitor(R-HDMSD87) |
| • Screen size: 7" Digital IPS Screen MIRROR monitor |
| • Type: 16:9 wide screen |
| • Resolution: 1024(H) X 600(V) |
| • Colour system: PAL/ NTSC (AUTO) |
| • Video inputs: 2-CH inputs |
| • Audio: Yes |
| • Power requirement: 12V~24V DC |
| • Remote Control (Battery Not Included) |
| • MIRROR/NORMAL Switch: Yes |
| • Operating temperature: -10℃ to +65℃ |
| • Storage temperature: -30℃ to +80℃ |
| • Reverse trigger Automatic if wire is connected. |
| • Outer dimension: 253(L)x 108(W)x 23.5(H)mm |
| • Monitor Harness |
| • User Guide |
| • Monitor Takes Up to Two Cameras |
| • Monitor One Year Warranty |

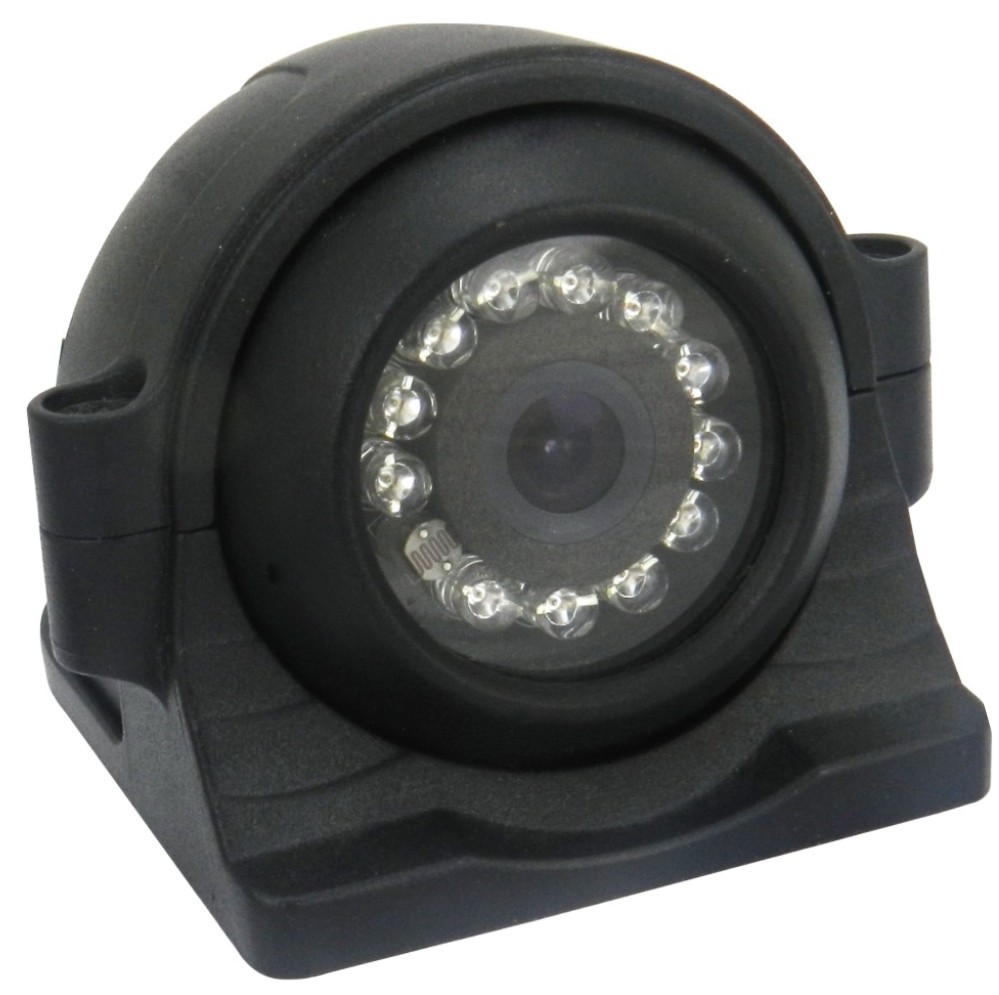

1080P HD Side View Camera 120°
The standard and most sold reversing camera has a 120°viewing angle. Camera Angles above 120° will show distortion in the width viewing image. The 120° viewing angle will provide a view of both lanes on a highway, excellent when towing a caravan or trailer or driving a truck on the freeway when you want to change lanes. This angled camera is also popular on farming and mining machinery and is recommended for Utes that have closed in canopies with no rear vision from the vehicle's rear-vision mirror. The camera can be tilted down or up to focus on a particular area. The downfall of a 120° camera is when towing a trailer or caravan for example a truck or car behind you will look like it is much further away however it is right up behind you.

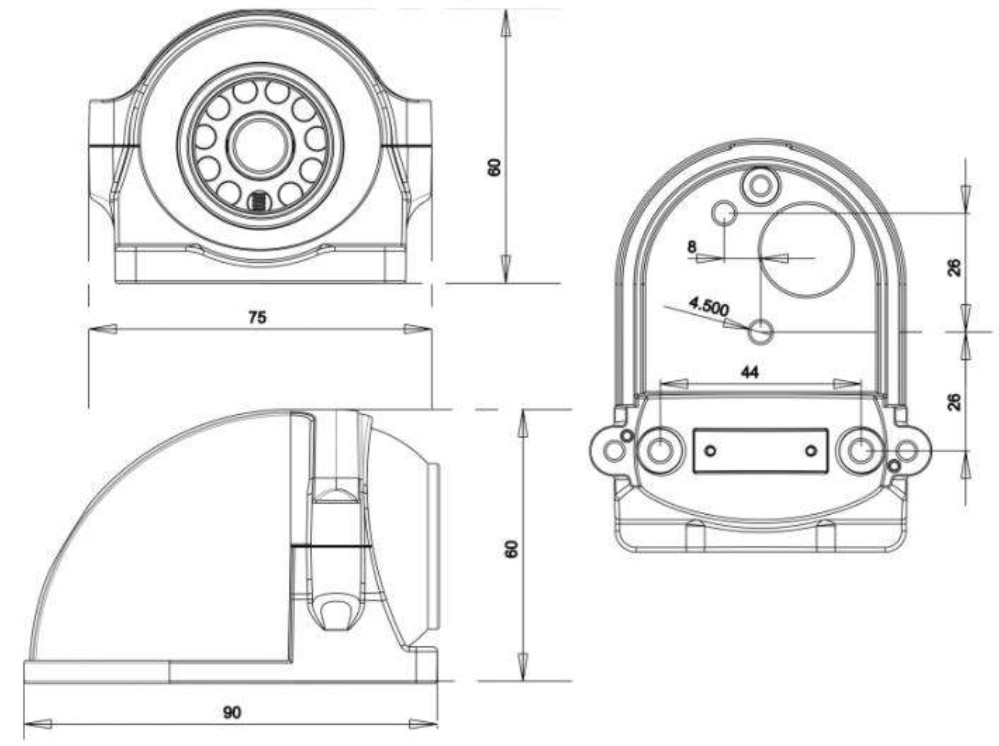

Camera Dimension: mm
4-Pin GX12 Screw Female Definition
Measurements
1080P HD Side View Camera 120° (RV-HDCSD14) |
| • Image Sensor: 1/3" HD CMOS |
| • Viewing Angle: 120° |
| • Effective Pixel: 1920(H) X 1080(V) |
| • Horizontal Resolution: 1080P |
| • Minimum Illumination: 0.5Lux |
| • Infrared LED Light: 12pcs |
| • System: PAL |
| • Waterproof Range: IP68 |
| • Shell material: Aluminium Alloy |
| • Power Supply: DC 12V |
| • Working temperature: -20℃ ~ +70℃ |
| • Storage Temperature: -30℃~ + 80℃ |
| • One Year Warranty |
