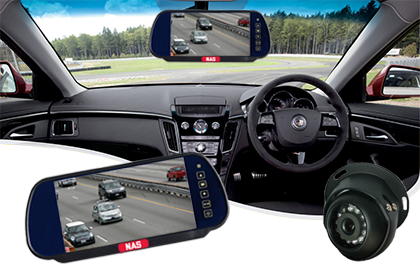

This 7 inch mirror reversing camera kit is designed for vans and small trucks that require clear rear vision where rear windows are limited or obstructed. The dome camera provides a reliable view directly out the back of the vehicle, improving safety when reversing and manoeuvring. The mirror monitor clips over your existing rear vision mirror and functions as a normal mirror when not in use, maintaining a clean and practical installation. When activated, it delivers a clear HD image for reversing. With support for two cameras, this system can be expanded for additional viewing angles if required. Built for Australian conditions, it is ideal for commercial vehicles where dependable rear visibility is essential.
Monitor Viewing Configuration
Monitor Supports Two Reversing Cameras
Mounting Bracket Clips Securely Over Rear Vision Mirror
Reverse Guide Lines
The Grid lines can be tuned on or off. The grid can be enlarged or made smaller in the monitor menu.
1080P AHD Waterproof IP68 Reversing Dome Camera
Option to Add Audio
Waterproof IP67 with Audio
Reversing cameras with audio are ideal for towing a caravan, allowing drivers to hear guiding instructions while viewing the area behind. This combination of visual and auditory feedback ensures safer, more precise reversing, especially in tight spaces.
Camera Angle- 120°
The length of cable attached to the camera is approx. 350mm in length
Reversing Camera Night Vision Distance
12pcs LEDs -Approx. 7m if there is no other light source.
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS Electronics cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS Electronics monitors have the 4-pin male ended connection and require the female ended extension cable.

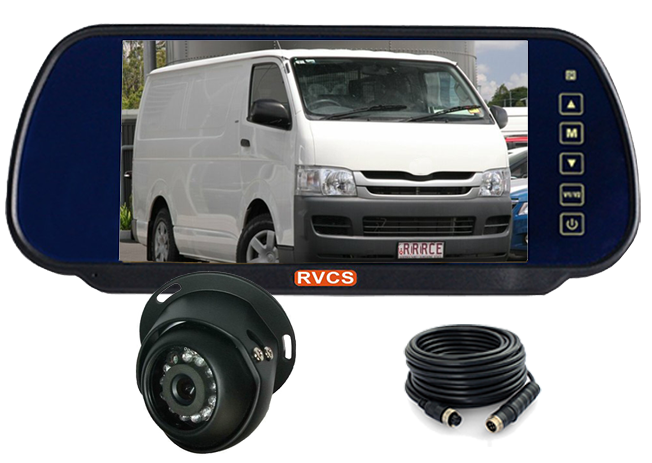

7" Car Rear View Mirror Monitor Camera Kit (RV-HDMSD87CHD16-RVCS) |
| Kit Includes |
| • 1 x HDMSD87 Caravan 7inch Rear Vision Mirror 720 HD Display Monitor |
| • 1 x RV-HDCSD16 1/3" HD CMOS 1080P Colour Reversing 120° Camera |
| • 1 x 8m Cable |
| • Electrical Connecting Cables |
| • Remote Control (Battery Not Included) |
| • User Guide |
| • Monitor Supports Two Cameras, Additional Camera can be Added in the Future |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
HD Rear-Vision Mirror Monitor
Reversing Guide Lines
The Grid lines can be tuned on or off. The grid can be enlarged or made smaller in the monitor menu.
Audio
The camera input 1/2 on the monitoring harness are equipped with audio capabilities.
Monitor Dimensions
Monitor Harness
The trigger cable gray does not have to be connected, it only requires connection if you want a camera to come on automatically for example when the vehicle is put in reverse. If the trigger wire is connected, then you will not be able to view the camera at all times whilst driving. If not connecting the trigger cable wrap it individually in insulation tape.
Monitor has the 4-Pin GX12 Male Screw Plug Connection
7" Car Rear View Mirror HD Monitor(R-HDMSD87) |
| • Screen size: 7" Digital IPS Screen MIRROR monitor |
| • Type: 16:9 wide screen |
| • Resolution: 1024(H) X 600(V) |
| • Colour system: PAL/ NTSC (AUTO) |
| • Video inputs: 2-CH inputs |
| • Audio: Yes |
| • Power requirement: 12V~24V DC |
| • Remote Control (Battery Not Included) |
| • MIRROR/NORMAL Switch: Yes |
| • Operating temperature: -10℃ to +65℃ |
| • Storage temperature: -30℃ to +80℃ |
| • Reverse trigger Automatic if wire is connected. |
| • Outer dimension: 253(L)x 108(W)x 23.5(H)mm |
| • Monitor Harness |
| • User Guide |
| • Monitor Takes Up to Two Cameras |
| • Monitor One Year Warranty |
1080P HD 120° Dome Camera
Camera Dimension
4-Pin GX12 Screw Female Definition
The length of cable attached to the camera is approx. 350mm.
Measurements
1080P HD Rear-View Dome Camera 120° (RV-HDCSD16) |
| • Image Sensor: 1/3" HD CMOS |
| • View Angle: 120° |
| • Effective Pixel: 1920(H) X 1080(V) |
| • Horizontal Resolution: 1080P |
| • Minimum Illumination: 0.5Lux |
| • Infrared LED Light: 12pcs |
| • System: PAL |
| • Waterproof Range: IP68 |
| • Shell material: Aluminium Alloy |
| • Power Supply: DC 12V |
| • Working temperature: -20℃ ~ +70℃ |
| • Storage Temperature: -30℃~ + 80℃ |
| • One Year Warranty |
