This 7 inch quad reversing camera kit allows up to four cameras to be connected, giving you clear visibility around your vehicle to reduce blind spots and improve safety when driving and reversing. It is ideal for cars, vans, camper vans, and four wheel drives where full awareness of the surroundings is important. The quad view monitor enables multiple camera feeds to be displayed at once using split screen modes, providing a complete view of different areas around the vehicle. Built for Australian conditions, this wired system delivers reliable performance for domestic and light commercial applications where safer manoeuvring and improved observation are essential.
Monitor Supports Four HD Cameras
Click on the "Add HD Cameras" Tab to add more cameras to this monitor. Extra cable length will be required and can be selected on the same page.
Monitor Viewing Configuration
Mounting Bracket
The monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by Clicking on the "Monitor Bracket" Tab. A suction bracket would not be recommended unless it was used to hold the monitor in place resting on the dash.
Suction or Fan Bracket Slides into Slot.
1080P AHD Waterproof IP68 Reversing Camera
Camera Angle- 120°
The length of cable attached to the camera is approx. 350mm in length
Reversing Camera Night Vision Distance
12pcs LEDs -Approx. 7m if there is no other light source.
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. RVCS cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable.

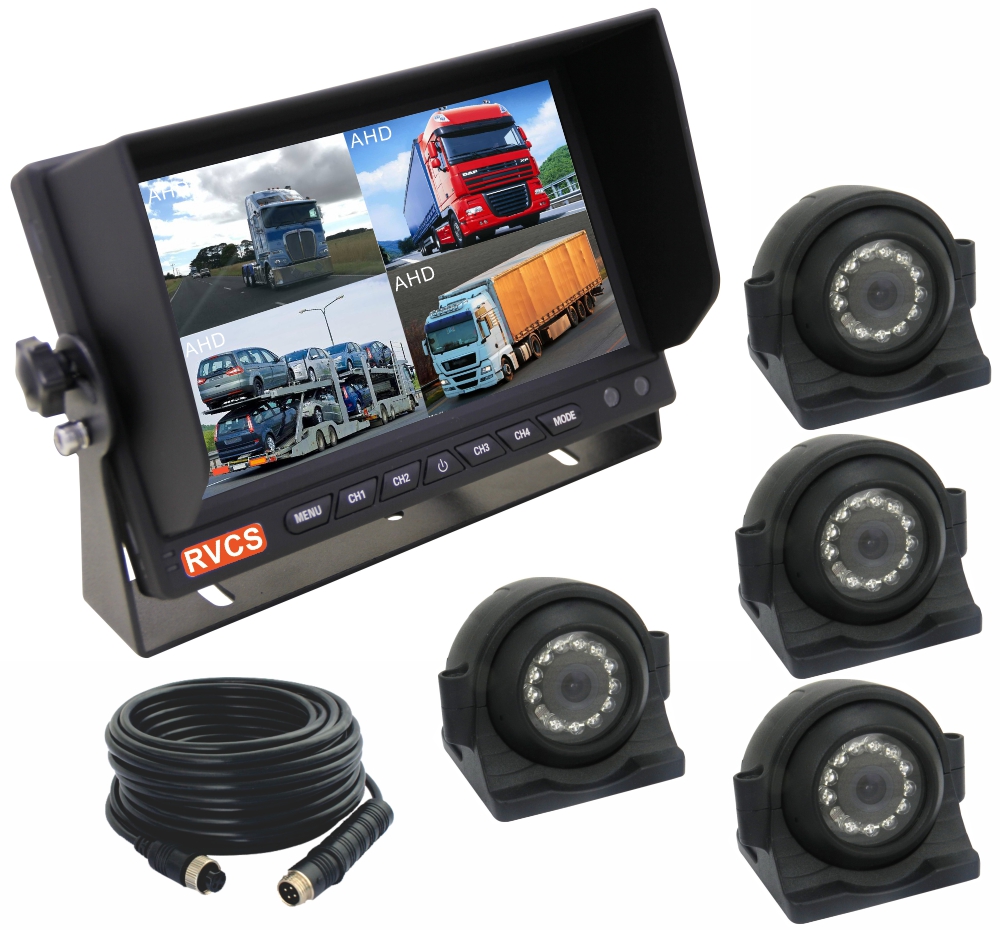

7" Truck Rear View Monitor Camera Kit (RV-HDMSD7Quad 4*CHD14-RVCS) |
| Kit Includes |
| • 1 x RV-HDMSD7Quad Truck 7inch Quad IPS AHD Display Reverse Monitor |
| • 4 x RV-HDCSD14 1/3" HD 1080P CMOS 120° Reverse Side View Camera |
| • 4 x 8m Cable |
| • Electrical Connecting Cables |
| • Remote Control (Battery Not Included) |
| • Monitor Supports Four Cameras |
| • Other Mounting Options: A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by clicking on the " Add Monitor Bracket" TAB |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
7inch, 7", Car, Rear, View, vision, rearview, backup, Camera, Kit
7INCH AHD 720P Trucking Farming Monitor
Monitor Supports Four HD Cameras
Monitor Viewing Configuration
Mounting Bracket
The monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by clicking on the "Add Monitor Bracket" Tab. A suction bracket would not be recommended unless it was used to hold the monitor in place resting on the dash.
Suction or Fan Bracket Slides into Slot.
Monitor Dimension
Monitor Harness
The trigger cables do not have to be connected, it only requires connection if you want a camera to come on automatically for example when the vehicle is put in reverse. If the trigger wire is connected, then you will not be able to view the camera at all times whilst driving. If not connecting the trigger wire wrap it individually in insulation tape.
Monitor has the 4pin GX12 Male Screw Plug Connection
Accessories
Monitor U-bracket Installation
7" HD 720P Revering Quad Monitor (RV-HDMSD7Quad) |
| • 7-inch QUAD AHD IPS Screen (With Removable Sun Visor) |
| • Resolution: 1024 x 3(R.G.B) x 600 |
| • Viewing Angle: L/R: 85°, Up/Down: 85° |
| • Back Light: LED, 500cd/m² |
| • Image Reversion: Up/Down and Left/Right |
| • Light Sensor Automatic Adjustment |
| • 4 Video Input, 1 Audio Input For CH1 |
| • 4 Trigger Cables (Trigger Priority: CH2>CH1>CH3>CH4) |
| • Full image/2 splits/3 splits/4 splits(H and four quarters) adjustable |
| • Compatible System: NTCS & PAL Automatically |
| • 2 Channel AHD Video Input, single image display, support 720P@25/30, 960P@50/60, 1080P@25/30 (Video Compatibility: CVBS/AHD) |
| • 1 Channel AHD Audio Input : Channel 1 |
| • Four Trigger Cables - Does not need to be connected wrap in insulation tap. |
| • Power Requirement: DC12V-24V input, 12V output |
| • Accessories: Remote Control, Power Supply Harness, Sun Visor |
| • Remote Control (Battery Not Included) |
| • U Type Bracket (Fan and Suction Brackets Optional) |
| • Working temperature: -20℃ ~ +70℃ |
| • Storage Temperature: -30℃~ + 80℃ |
| • Outer Dimension: 211(W) X 134.5(H) X 76 (T) mm |
| • One Year Warranty |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
1080P HD Side View Camera 120°
The standard and most sold reversing camera has a 120°viewing angle. Camera Angles above 120° will show distortion in the width viewing image. The 120° viewing angle will provide a view of both lanes on a highway, excellent when towing a caravan or trailer or driving a truck on the freeway when you want to change lanes. This angled camera is also popular on farming and mining machinery and is recommended for Utes that have closed in canopies with no rear vision from the vehicle's rear-vision mirror. The camera can be tilted down or up to focus on a particular area. The downfall of a 120° camera is when towing a trailer or caravan for example a truck or car behind you will look like it is much further away however it is right up behind you.
Camera Dimension: mm
4-Pin GX12 Screw Female Definition
Measurements
1080P HD Side View Camera 120° (RV-HDCSD14) |
| • Image Sensor: 1/3" HD CMOS |
| • Viewing Angle: 120° |
| • Effective Pixel: 1920(H) X 1080(V) |
| • Horizontal Resolution: 1080P |
| • Minimum Illumination: 0.5Lux |
| • Infrared LED Light: 12pcs |
| • System: PAL |
| • Waterproof Range: IP68 |
| • Shell material: Aluminium Alloy |
| • Power Supply: DC 12V |
| • Working temperature: -20℃ ~ +70℃ |
| • Storage Temperature: -30℃~ + 80℃ |
| • One Year Warranty |
