7 Inch Quad Touch Screen Reversing Camera Kit 4 Camera 30 or 45 or 60 or 100 Degree with DVR -Industrial Grade
This 7 inch quad touch screen reversing camera kit includes four cameras and is available with 30, 45, 60, or 100 degree camera options to suit different applications. It is ideal for trucks, caravans, machinery, and commercial vehicles where the correct viewing angle is important for safety and visibility.
The touch screen monitor allows you to easily switch between camera views or display multiple angles at once, while the built in DVR records footage for added safety and monitoring.
Designed for demanding environments, this industrial grade system features a reliable wired connection and durable waterproof cameras, making it suitable for mining, agriculture, transport, and construction applications across Australia.
Supports Looped Recording
The monitor supports a micro-SD cards up to 512GB. They require a speed equal to or greater than U3/V30. SD card is not included.
Recording time & Data Size
Monitor Viewing Configuration:
Waterproof IP69K HD 1080P Reversing Camera
Camera Angles - 100°, 60°, 45°& 30° Optional.
Reversing Camera Night Vision Distance
18pcs LEDs - Approx. 10m if there is no other light source.
Heavy duty, suitable for Heavy Equipment, Trucks, Forklifts, Cranes, Farming Machinery, & Shipping.
Mounting Bracket
The reverse monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by Clicking on the "Monitor Bracket" Tab.
Suction or Fan Bracket Slides into Slot.
Cameras Can Be Mounted on a Magnetic Base for Ease of Fixing and Movability
To purchase as an optional extra click on the "Add Camera Magnet" Tab.
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS monitors have the 4-pin male ended connection and require the female ended extension cable.
Monitor has the 4-Pin GX12 Male Screw Plug Connection for Camera Connection.

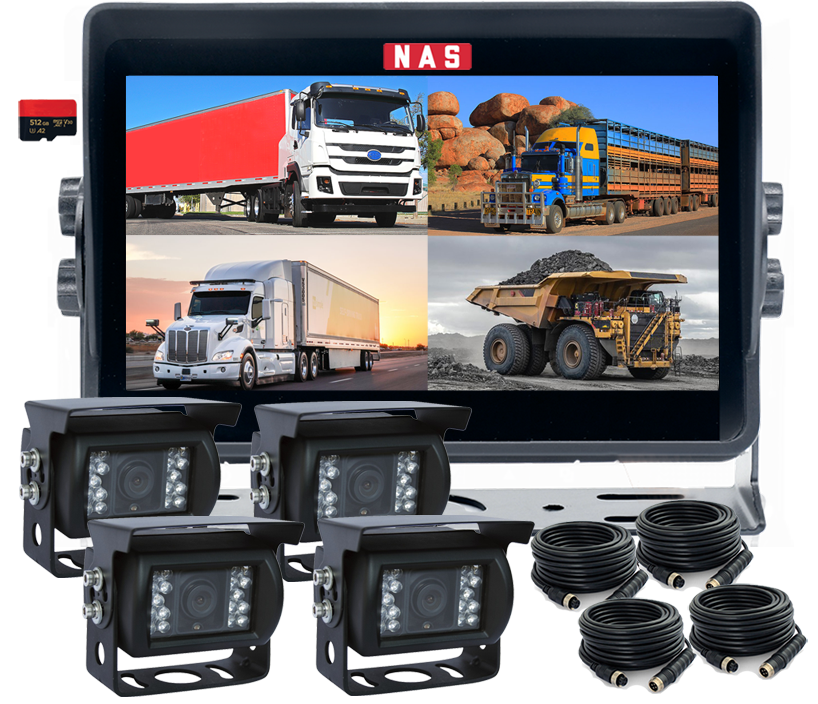

7" AHD Quad Rear View DVR Monitor & HD1080P Camera Kit |
| Kit Includes |
| • 1 x HDMQ7Rec Superior Quality 7inch HD IPS Display Quad Monitor Built-in DVR With Touch Screen & Removable Sun Visor |
| • 4 x CHD402E HD 1080P Reversing Cameras |
| • 4 x 8m Cables |
| • Electrical Connecting Cables |
| • User Guide |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
7inch Quad reverse monitor
Paired with HD 1080P reversing cameras provides a superior quality image. The 7-inch monitor has a touch screen with intuitive controls, making it easy to switch between cameras quickly and effortlessly.
TF Card Not Included.
Monitor Viewing Configuration:
Monitor Dimensions
Recording time & Data Size
Monitor has the 4-Pin GX12 Male Screw Plug Connection
720P HD Touch Screen Quad Cabled Monitor Built-in DVR (R-HDMQ7Rec) |
| • Colour Screen: 7" 720P HD IPS Quad Touch Screen with Removable Sun Visor |
| • Outer Shell: High-temperature ABS +PC material |
| • Display Resolution: 1024 x 3(RGB) x 600 |
| • Video Signal Input: 4 channels (CVBS / AHD 720P / 960P /1080P) of signal mixed input, can be used in the mixed way |
| • Video Input: 4 CH Video Input |
| • Display Modes: Single / Dual/ Three Splits / Quad / Picture-in-Picture |
| • Colour System:PAL/NTSC (AUTO) |
| • OSD menu function: Support functions single-channel picture flipping left and right, up and down, reverse scale, reverse trigger, reverse delay, reverse priority, power-off memory, etc. |
| • Menu language: 10 languages optional. |
| • Storage card: TF card (supports up to 512G-speed equal to or greater than U3/V30) |
| • SD Card Not Included |
| • Connector Socket: 18-core S terminal |
| • Contrast ratio: 800:1 |
| • LED Brightness: 600cd/m² |
| • Video Format: AVI |
| • Built-in reverse polarity |
| • Operating temperature: -20℃ to +70℃ |
| • Storage temperature: -30℃ to +80℃ |
| • Power Supply: DC11~32V |
| • Surge and load dump protection: DC24+174V(Td350mS) 5pulses |
| • Anti-vibration Rate: GB∕T 2423.56-2018 standard (random 5G vibration) |
| • External dimensions: (L x W x T) 220 x 149 x 84mm |
| • Weight Approx: 1140g |
| • Two Year Warranty |
HD 1080P Reversing Camera IP69K, 100°, 60°,45°& 30° Optional.
Camera viewing angle plays an important role in how your reversing camera performs when towing. A narrow 30° camera is ideal for driving and distance viewing, giving you a clear, rear-vision style image so you can accurately judge how far vehicles are behind your caravan while travelling.
Mid-range angles such as 45° and 60° provide a balanced view, making them suitable for both reversing and general towing. They offer more coverage than a narrow lens while still allowing you to maintain a good sense of distance.
A wider 100° camera is best suited for reversing and manoeuvring, as it captures a broader area behind the caravan. This helps reduce blind spots and makes it easier to see obstacles when parking or navigating tight spaces.
Night Vision Distance
18pcs LEDs-Approx. 10m if there is no other light source
Camera Dimensions
Front View
Side View
4pin Gx12 Screw Female Definition
Measurements
HD 1080P Reversing Camera reversing safety |
| • Image - Rear-View, NAS Monitor Can Change Image to Forward Facing |
| • CHD402E 100° Viewing Angle |
| • CHD60E 60° Viewing Angle |
| • CHD45E 45° Viewing Angle |
| • CHD30E 30° Viewing Angle |
| • Waterproof: IP69K |
| • Image Type: 1/2.8 Inch Colour Sony |
| • Tv System: PAL (25fps) |
| • Sync System: Internal Synchronization |
| • IR-Function: CDS Auto Control, Under 10 Lux By CDS (≤10 Lux CDS On) |
| • Video Output: HD 1080P |
| • Usable Illumination: 0lux At Night (18pcs IR Led On) |
| • Night Vision Distance: Approx. 15m |
| • Automatic Adjusts with Day/Night Sensor |
| • S/N Ratio: ≥48db (AGC Off) |
| • Shockproof: 5G (Conforms To GB-T2423056-2006 Standard) |
| • Power Supply: DC12V |
| • Shell Material: Aluminum Alloy |
| • Dimensions: 107(W X 75(H) X 70.5(D)mm (With Mounting) |
| • Operating Temperature: -20℃ To + 60℃ Rh95% Max |
| • Storage Temperature: -20℃ To + 70℃ Rh95% Max |
| • Weight : 450g |
| • One Year Warranty |
