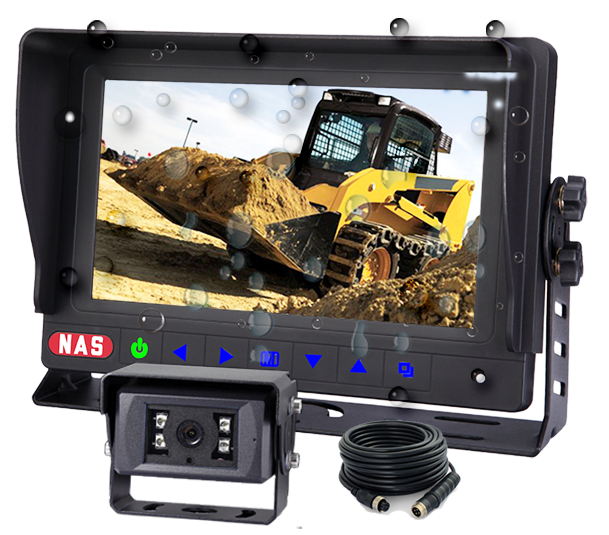

This 7 inch waterproof reversing camera kit is designed for reliable rear visibility in demanding environments. Built for trucks, caravans, machinery, and commercial vehicles, it delivers clear and consistent performance in all conditions.
The system supports two cameras, allowing you to add a second camera for additional coverage if required. The included waterproof 1080P camera is available in either a 110 degree wide view for greater coverage or a 69 degree narrow view for more precise distance and detail behind the vehicle.
A wired connection ensures stable video transmission, making this system ideal for industrial and commercial applications where dependable performance and clear rear vision are essential.
AHD Reverse Monitor Waterproof Rating IP68
Waterproof IP69K Commercial Grade HD 1080P Reversing Camera
Available in Black or White Housing
Reversing Camera Night Vision
4pcs High Quality SMD LEDs - 10M if there is no other light source.
Monitor Viewing Configuration
The monitor can take up to two reversing cameras.
Mounting Bracket
The reverse monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by Clicking on the "Monitor Bracket" Tab.
Suction or Fan Bracket Slides into Slot.
Cameras Can Be Mounted on a Magnetic Base for Ease of Fixing and Movability
To purchased as an optional extra click on the "Add Camera Magnet" Tab .
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS Electronics cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS Electronics monitors have the 4-pin male ended connection and require the female ended extension cable.
| Kit Includes |
| • 1 x HDMW755 Waterproof High Quality 7inch 720P HD IPS Display Reverse Monitor With Touch Buttons |
| • 1 x 1/2.9” CMOS HD 1080P Reversing Camera (Choose Camera Angle 110° or 69°) |
| • 1 x 8m Cable |
| • Electrical Connecting Cables |
| • Remote Control (Battery Not Included) |
| • User Guide |
| • Monitor Supports Two Cameras, Additional Camera can be Added in the Future |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.

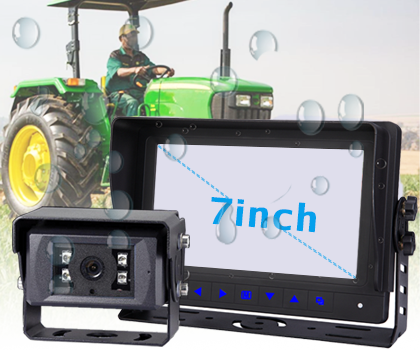

7inch HD IP68 Waterproof Reversing Monitor
Monitor Viewing Configurations
Monitor Dimensions
Monitor Key
Monitor Harness
The trigger cables White, & Blue do not have to be connected, they only require connection if you want a camera to come on automatically for example when the vehicle is put in reverse. If the trigger wires are connected, then you will not be able to view the camera at all times whilst driving. If not connecting the trigger cables wrap individually in insulation tape.
Monitor has the 4-Pin GX12 Male Screw Plug Connection
720P HD Waterproof Colour Cabled Monitor(R-HDMW755) |
| • 7" IPS Screen Colour Monitor with Removable Sun Visor |
| • High-temperature ABS material |
| • Waterproof: IP68 |
| • Video Signal Input: CVBS / AHD 720P / 960P /1080P |
| • Video Input: 2 CH Video Input |
| • Display Mode: Single Screen/Two Splits Screen |
| • Colour System:PAL/NTSC (AUTO) |
| • Display Resolution: 1024 x (RGB) x 600 |
| • OSD menu can independently set up AHD1/AHD2 |
| • Connector Socket: 2m Conjoined Cable |
| • Contrast ratio: 800:1 |
| • LED Brightness: 600cd/m² |
| • Built-in reverse polarity |
| • Operating temperature: -20℃ to +70℃ |
| • Storage temperature: -30℃ to +80℃ |
| • Power Supply: DC11~32V |
| • Surge and load dump protection: ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms） |
| • Seismic rating: GB∕T 2423.56-2018 standard (random 5G vibration) |
| • External dimensions: (L x W x T) 220 x 149 x 84mm |
| • Weight Approx: 1440g |
| • Two Year Warranty |
IP69K 1080P HD Reversing Camera
Forward Facing or Rear View Camera
The length of cable attached to the camera is approx. 350mm in length
Camera Dimensions
4-Pin GX12 Screw Female Definition
Measurements
Full HD 1080P Camera with Smart IR Light For Night Vision |
| • Waterproof: IP69K approved |
| • Viewing angle: 110°(CSHD102B) or 69° (CSHD1069B) |
| • Smart-IR |
| • Mirror / Normal image switch |
| • Night Vision distance: 10m (4 infrared lights) |
| • Day / Night sensor for automatic adjustment |
| • Image Device: 1/2.9” CMOS |
| • Frame Rate: 25fps/30fps |
| • Effective Pixels: 1920 x 1080 |
| • Resolution: 1080P |
| • Pixel pitch 2.9 μm x 2.9 μm |
| • Scanning System: Progressive Scanning |
| • Sync. System: Internal |
| • Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR) |
| • Microphone: Yes |
| • Video Output: 1.0Vp-p, 75Ohm |
| • Gamma Consumption: 0.45 |
| • Dynamic Range: 81dB |
| • White Balance: Auto |
| • Electronic Shutter: 1/30（1/25）～1/50,000 Seconds |
| • BLC: Auto |
| • Current Consumption: Max. 250mA |
| • Power Supply: DC 12 V |
| • Connection: 4 PIN |
| • Anti-vibration: 10 g |
| • Operating Temperature: –20℃ ~ 70℃, RH95%MAX. |
| • One Year Warranty |
1080P HD Waterproof IP69K Reversing Camera
Forward Facing or Rear View Camera
The length of cable attached to the camera is approx. 350mm in length
Camera Dimensions
4-Pin GX12 Screw Female Definition
Measurements
Full HD 1080P Camera with Smart IR Light For Night Vision (R-CSHD1069B) |
| • Waterproof: IP69K approved |
| • Viewing angle: 69° |
| • Smart-IR |
| • Mirror / Normal image switch |
| • Night Vision distance: 15mm (4 infrared lights) |
| • Day / Night sensor for automatic adjustment |
| • Image Device: 1/2.9” CMOS |
| • Frame Rate: 25fps/30fps |
| • Effective Pixels: 1920 x 1080 |
| • Resolution: 1080P |
| • Pixel pitch 2.9 μm x 2.9 μm |
| • Scanning System: Progressive Scanning |
| • Sync. System: Internal |
| • Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR) |
| • Microphone: Yes |
| • Video Output: 1.0Vp-p, 75Ohm |
| • Gamma Consumption: 0.45 |
| • Dynamic Range: 81dB |
| • White Balance: Auto |
| • Electronic Shutter: 1/30（1/25）～1/50,000 Seconds |
| • BLC: Auto |
| • Current Consumption: Max. 250mA |
| • Power Supply: DC 12 V |
| • Connection: 4 PIN |
| • Anti-vibration: 10 g |
| • Operating Temperature: –20℃ ~ 70℃, RH95%MAX. |
| • One Year Warranty |
