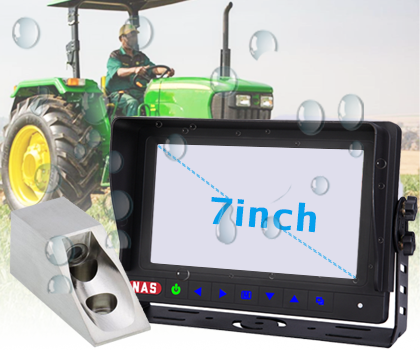

This 7 inch waterproof forklift camera kit is purpose built for precision and safety in forklift operations. It features a specialised 52 degree stainless steel camera designed to be mounted near the forks, giving operators a clear view when handling pallets and loads.
The durable stainless steel camera housing is built for harsh industrial environments, making it ideal for warehouses, logistics operations, and manufacturing facilities where reliability is critical.
The monitor supports two cameras, allowing an additional camera to be added for improved visibility around the vehicle if required. Built for demanding Australian conditions, this system delivers clear HD images to improve accuracy, safety, and control during forklift operation.
AHD reverse Monitor Waterproof Rating IP68
Waterproof IP69K High Quality HD1080P Reversing Camera Magnetic Base
Camera Angles - 52°.
Starlight Light
The reversing camera boasts a Starlight Light delivering a clear and vibrant color image. However, in pitch black conditions with there not being any other light source, night vision capability is unavailable.
Monitor Viewing Configuration
The monitor can take up to two reversing cameras.
Click on the "Add HD Camera" Tab to add more camera to this kit. Extra cable length will be required and can be selected on the same page.
Mounting Bracket
The reverse monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by Clicking on the "Monitor Bracket" Tab.
Suction or Fan Bracket Slides into Slot.
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS monitors have the 4-pin male ended connection and require the female ended extension cable.
| Kit Includes |
| • 1 x HDMW755 High Quality IP68 Waterproof 7inch 720P HD IPS Display Reverse Monitor With Touch Buttons |
| • 1 x CHDFL52 1/2.8 inch Sony 52° Viewing Angle 1080P HD Reversing Camera |
| • 1 x 8m Cable |
| • Electrical Connecting Cables |
| • Remote Control (Battery Not Included) |
| • User Guide |
| • Monitor Supports Two Cameras, Additional Camera can be Added in the Future |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
7inch HD IP68 Waterproof Reversing Monitor
Monitor Viewing Configurations
Monitor Dimensions
Monitor Key
Monitor Harness
The trigger cables White, & Blue do not have to be connected, they only require connection if you want a camera to come on automatically for example when the vehicle is put in reverse. If the trigger wires are connected, then you will not be able to view the camera at all times whilst driving. If not connecting the trigger cables wrap individually in insulation tape.
Monitor has the 4-Pin GX12 Male Screw Plug Connection
720P HD Waterproof Colour Cabled Monitor(R-HDMW755) |
| • 7" IPS Screen Colour Monitor with Removable Sun Visor |
| • High-temperature ABS material |
| • Waterproof: IP68 |
| • Video Signal Input: CVBS / AHD 720P / 960P /1080P |
| • Video Input: 2 CH Video Input |
| • Display Mode: Single Screen/Two Splits Screen |
| • Colour System:PAL/NTSC (AUTO) |
| • Display Resolution: 1024 x (RGB) x 600 |
| • OSD menu can independently set up AHD1/AHD2 |
| • Connector Socket: 2m Conjoined Cable |
| • Contrast ratio: 800:1 |
| • LED Brightness: 600cd/m² |
| • Built-in reverse polarity |
| • Operating temperature: -20℃ to +70℃ |
| • Storage temperature: -30℃ to +80℃ |
| • Power Supply: DC11~32V |
| • Surge and load dump protection: ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms） |
| • Seismic rating: GB∕T 2423.56-2018 standard (random 5G vibration) |
| • External dimensions: (L x W x T) 220 x 149 x 84mm |
| • Weight Approx: 1440g |
| • Two Year Warranty |

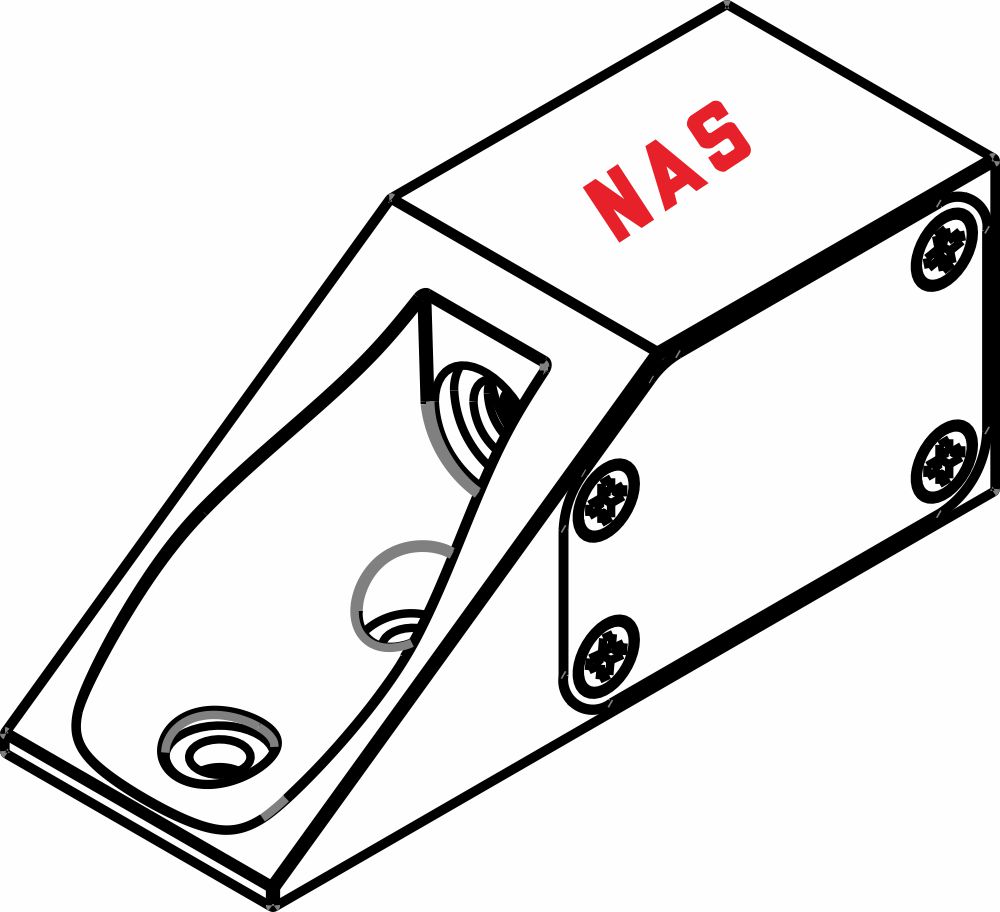

1080P HD Cabled Forklift Camera
Camera Dimemsions
4pin Gx12 Screw Female Definition
HD 1080P Forklift Cabled Camera With 52°Viewing Angle and Starlight (CHDFL52)reversing safety |
| • Image - Rear-View, NAS Monitor Can Change Image to Forward Facing |
| • Free Viewing Angle: 52° |
| • Waterproof: IP69K (100% waterproof) |
| • Image Type: 1/2.8 Inch Colour CMOS |
| • TV System: PAL (25fps) |
| • Sync System: Internal Synchronization |
| • Number Of Pixels: 1920 (H) x 1080 (V) |
| • Resolution: HD 1080P |
| • Usable Illumination: 0.001lux |
| • Night Vision Mode: Colour Night Vision (Starlight Level) |
| • Lens Mount : 6mm |
| • S/N Ratio: 52dB (AGC Off) |
| • Shockproof: 5G (Conforms To GB∕T 2423.56-2018 Standard) |
| • Power Supply: DC12V |
| • Shell Material: Stainless Steel, anti-collision design |
| • Dimensions: 30(W) X 28(H) X 81(W)mm |
| • Operating Temperature: -30℃ To + 70℃ Rh95% Max |
| • Storage Temperature: -40℃ To + 70℃ Rh95% Max |
| • Weight : 700g |
| • One Year Warranty |
