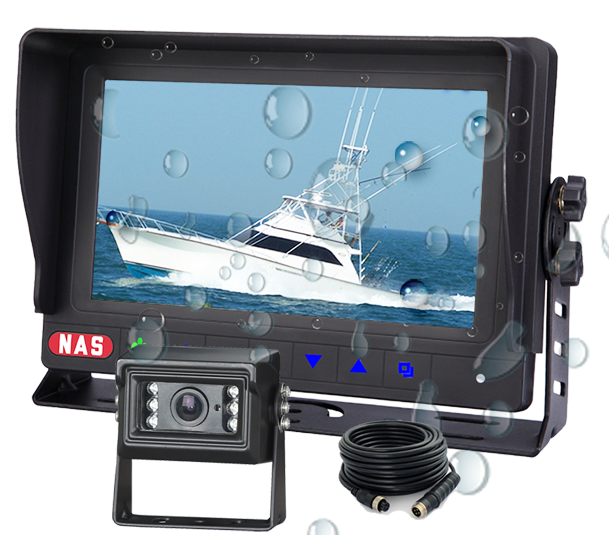

This 7 inch waterproof reversing camera kit is designed for reliable rear visibility in demanding environments, including trucks, caravans, and marine applications such as boats. It delivers clear performance where durability and consistency are essential.
The system includes a compact 92 degree camera, providing a balanced rear view that allows you to see directly behind the vehicle while maintaining good distance judgement. It is well suited for general reversing and rear observation.
The monitor supports two cameras, giving you the option to add an additional camera for side or rear coverage if required. A wired connection ensures stable video transmission, making this system ideal for commercial, industrial, and marine use across Australia.
AHD Reverse Monitor Waterproof Rating IP68
92° Small Robust High Definition 1080P Reversing Camera Waterproof IP69K
Reversing Camera Night Vision
6pcs High Quality SMD LEDs - 5M if there is not other light source.
Monitor Viewing Configuration
The monitor can take up to two reversing cameras.
Mounting Bracket
The reverse monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by Clicking on the "Monitor Bracket" Tab.
Suction or Fan Bracket Slides into Slot.
Camera Can Be Mounted on a Magnetic Base for Ease of Fixing and Movability
To purchased as an optional extra click on the "Add Camera Magnet" Tab .
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS Electronics cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS Electronics monitors have the 4-pin male ended connection and require the female ended extension cable.
| Kit Includes |
| • 1 x HDMW755 High Qualit IP68 Waterproof 7inch 720P IPS Display Reverse Monitor With Touch Buttons |
| • 1 x CSHD8087 1/2.9" CMOS 92° Viewing Angle 1080P HD Reversing Camera |
| • 1 x 8m Cable |
| • Electrical Connecting Cables |
| • Remote Control (Battery Not Included) |
| • User Guide |
| • Monitor Supports Two Cameras, Additional Camera can be Added in the Future |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.

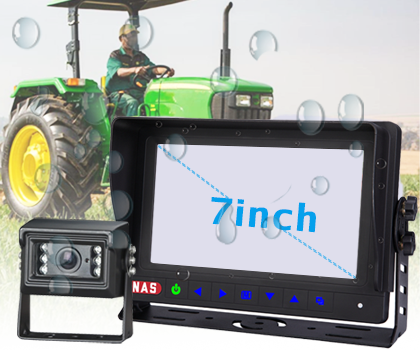

7inch HD IP68 Waterproof Reversing Monitor
Monitor Viewing Configurations
Monitor Dimensions
Monitor Key
Monitor Harness
The trigger cables White, & Blue do not have to be connected, they only require connection if you want a camera to come on automatically for example when the vehicle is put in reverse. If the trigger wires are connected, then you will not be able to view the camera at all times whilst driving. If not connecting the trigger cables wrap individually in insulation tape.
Monitor has the 4-Pin GX12 Male Screw Plug Connection
720P HD Waterproof Colour Cabled Monitor(R-HDMW755) |
| • 7" IPS Screen Colour Monitor with Removable Sun Visor |
| • High-temperature ABS material |
| • Waterproof: IP68 |
| • Video Signal Input: CVBS / AHD 720P / 960P /1080P |
| • Video Input: 2 CH Video Input |
| • Display Mode: Single Screen/Two Splits Screen |
| • Colour System:PAL/NTSC (AUTO) |
| • Display Resolution: 1024 x (RGB) x 600 |
| • OSD menu can independently set up AHD1/AHD2 |
| • Connector Socket: 2m Conjoined Cable |
| • Contrast ratio: 800:1 |
| • LED Brightness: 600cd/m² |
| • Built-in reverse polarity |
| • Operating temperature: -20℃ to +70℃ |
| • Storage temperature: -30℃ to +80℃ |
| • Power Supply: DC11~32V |
| • Surge and load dump protection: ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms） |
| • Seismic rating: GB∕T 2423.56-2018 standard (random 5G vibration) |
| • External dimensions: (L x W x T) 220 x 149 x 84mm |
| • Weight Approx: 1440g |
| • Two Year Warranty |
Small Robust HD Reversing Camera
Waterproof IP69K
92° Rear-View Camera
The 92° viewing angle is a popular reversing camera and it will provide an adequate view of both lanes on a highway and has a sufficient angle for backing into tight places. This viewing angle is suitable for backing up to tow balls. The 90° viewing angle is not recommended for Utes that have closed in canopies with no rear vision because the angle is not wide enough. The camera can be tilted down or up to focus on a particular area.
Night Vision Distance
6pcs High Quality SMD LEDs - Approx. 5m if there is no other light source.
Camera Dimensions
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS monitors have the 4-pin male ended connection and require the female ended extension cable.
4pin Male Screw Definition
4pin Female Screw Definition
Cameras have the 4 Pin Waterproof Female Plug GX12 Aviation Plug Connection
If your intention is to install one of NAS's Cameras on another brand of reversing camera monitor or Navigation/Stereo System then you may require a RCA cable. Please click here to view RCA Cables.
Model: HDCS8087 |
| • Lens Angle: 92° |
| • Image device: 1/2.9" CMOS |
| • Effective Pixels: PAL: 1920(H)×1080(V) |
| • Pixel Pitch: 2.9μm×2.9μm |
| • Scanning System: Progressive Scanning |
| • Sync. System: Internal |
| • Waterproof: IP69K |
| • Resolution: 1080P |
| • 6pcs Infrared Lights - Approx. 5m if there is no other light source. |
| • Frame Rate: 25fps/30fps |
| • Microphone: Yes |
| • Minimum Illumination: 0.1 Lux(day) 0 Lux(Infrared lamps on) |
| • Video Output: 1.0Vp-p, 75Ohm |
| • Gamma Consumption: 0.45 |
| • AGC: Auto |
| • Dynamic Range: 81dB |
| • White balance: Auto |
| • Electronic Shutter: 1/30（1/25）～1/50,000 Seconds |
| • Backlight Compensation: Auto |
| • Power Supply: DC12V |
| • Power Consumption: Max. 220mA |
| • Operating Temperature: -30℃～70℃ , RH 95% MAX |
| • Storage Temperature: -40℃～80 ℃, RH 95% MAX |
| • One Year Warranty |
