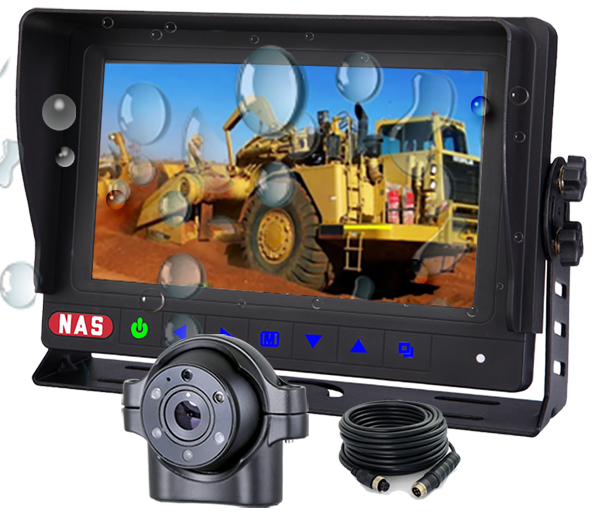

This 7 inch waterproof reversing camera kit includes a compact 130 degree mini camera, providing a wider rear view while maintaining a discreet and low profile installation. It is ideal for applications where both coverage and compact design are important. The camera features a manually adjustable lens, allowing you to target a specific area behind the vehicle for improved safety and precision when reversing. The monitor supports two cameras, giving you the option to add an additional camera for greater visibility if required. Built for demanding Australian conditions, this industrial grade system is suited to trucks, machinery, and commercial vehicles where reliable performance and clear rear vision are essential.
AHD Reverse Monitor Waterproof Rating IP68
HD 1080P Very Small Reversing Camera Waterproof IP69K
The lens of the camera can be manually adjusted to target a particular area.
Camera Angles - 130°.
Reversing Camera Night Vision Distance
Builtin 6 SMD Ultra Bright IR LED's
Monitor Viewing Configuration
The reverse monitor can take up to two reversing cameras.
Mounting Bracket
The reverse monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by Clicking on the "Monitor Bracket" Tab.
Suction or Fan Bracket Slides into Slot.
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS monitors have the 4-pin male ended connection and require the female ended extension cable.
| Kit Includes |
| • 1 x HDMW755 High Quality IP68 Waterproof 7inch IPS Display Reverse Monitor With Touch Buttons |
| • 1 x CSHD067 1/2.9” CMOS 130° Viewing Angle 1080P HD Reversing Camera |
| • 1 x 8m Cable |
| • Electrical Connecting Cables |
| • Remote Control (Battery Not Included) |
| • User Guide |
| • Monitor Supports Two Cameras, Additional Camera can be Added in the Future |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
7inch HD IP68 Waterproof Reversing Monitor
Monitor Viewing Configurations
Monitor Dimensions
Monitor Key
Monitor Harness
The trigger cables White, & Blue do not have to be connected, they only require connection if you want a camera to come on automatically for example when the vehicle is put in reverse. If the trigger wires are connected, then you will not be able to view the camera at all times whilst driving. If not connecting the trigger cables wrap individually in insulation tape.
Monitor has the 4-Pin GX12 Male Screw Plug Connection
720P HD Waterproof Colour Cabled Monitor(R-HDMW755) |
| • 7" IPS Screen Colour Monitor with Removable Sun Visor |
| • High-temperature ABS material |
| • Waterproof: IP68 |
| • Video Signal Input: CVBS / AHD 720P / 960P /1080P |
| • Video Input: 2 CH Video Input |
| • Display Mode: Single Screen/Two Splits Screen |
| • Colour System:PAL/NTSC (AUTO) |
| • Display Resolution: 1024 x (RGB) x 600 |
| • OSD menu can independently set up AHD1/AHD2 |
| • Connector Socket: 2m Conjoined Cable |
| • Contrast ratio: 800:1 |
| • LED Brightness: 600cd/m² |
| • Built-in reverse polarity |
| • Operating temperature: -20℃ to +70℃ |
| • Storage temperature: -30℃ to +80℃ |
| • Power Supply: DC11~32V |
| • Surge and load dump protection: ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms） |
| • Seismic rating: GB∕T 2423.56-2018 standard (random 5G vibration) |
| • External dimensions: (L x W x T) 220 x 149 x 84mm |
| • Weight Approx: 1440g |
| • Two Year Warranty |
Forward Facing or Rear View Side Mount Camera
The length of cable attached to the camera is approx. 900mm in length

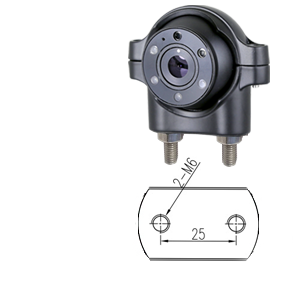

Camera Mounting M6 Screws

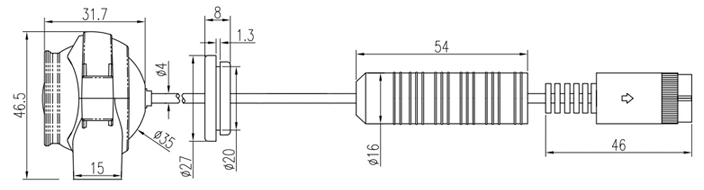

Camera Dimensions
4-Pin GX12 Screw Female Definition
Measurements
HD 1080P Rear View Side Mount Moveable Eyeball Camera (CSHD067) |
| • Waterproof: IP69K approved |
| • Viewing angle: 130° |
| • Lens f=2.8mm |
| • Smart-IR |
| • Mirror / Normal image switch |
| • Night Vision distance: 5m (5 infrared lights) |
| • Day / Night sensor for automatic adjustment |
| • Image Device: 1/2.9” CMOS |
| • Frame Rate: 25fps/30fps |
| • Effective Pixels: 1920 x 1080 |
| • Pixel pitch 2.8 μm x 2.8 μm |
| • Scanning System: Progressive Scanning |
| • Sync. System: Internal |
| • Resolution: 1080p |
| • Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR) |
| • Microphone: Yes |
| • Video Output: 1.0Vp-p, 75Ohm |
| • Gamma Consumption: 0.45 |
| • Dynamic Range: 81dB |
| • White Balance: Auto |
| • Electronic Shutter: 1/30（1/25）～1/50,000 Seconds |
| • BLC: Auto |
| • Current Consumption: Max. 110mA |
| • Power Supply: DC 12 V |
| • Connection: 4 PIN |
| • Anti-vibration: 10 g |
| • Operating Temperature: –20℃ ~ 70℃, RH95%MAX. |
| • One Year Warranty |
