Light Commercial & Domestic Use – Suitable for cars, caravans and light commercial vehicles. Not suitable for heavy machinery or industrial use.

Wired Caravan Reversing Camera Kit – Reliable Rear Vision for Safe Towing

This 5 inch AHD caravan reversing camera kit features a 120° dome camera, providing a wide and practical view behind the caravan for safer reversing and manoeuvring. A 120° angle offers excellent visibility across lanes and surrounding areas when towing.

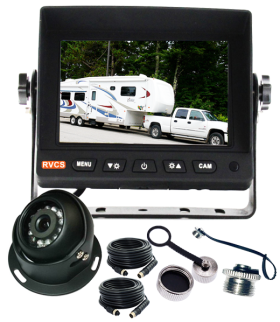

The kit includes a monitor, dome camera, cables and a dust cover to protect connections when not in use. Designed for easy installation and consistent, interference-free performance on Australian roads.

Monitor Supports Two Reversing Cameras

Click on the "Add HD Camera" Tab to add another camera to this kit.  Extra cable length will be required and can be selected on the same page. The extra camera can be installed on the back of the vehicle and used for backing up to the hitch of the caravan and to drive with on all the time when the caravan is not being towed.

Monitor Viewing Configuration

1080P HD Waterproof IP68 Reversing Dome Camera

Option to Add Audio

Waterproof IP67 with Audio

Reversing cameras with audio are ideal for towing a caravan, allowing drivers to hear guiding instructions while viewing the area behind. This combination of visual and auditory feedback ensures safer, more precise reversing, especially in tight spaces.

Choose Camera Angle- 120°

The length of cable attached to the camera is approx. 350mm in length

Reversing Camera Night Vision Distance

12pcs LEDs -Approx. 7m if there is no other light source.

Metal Cable Dust Covers

Protect your cable ends when the caravan is  unhooked with our custom-designed dust covers. Screw the dust covers onto both the car and caravan cable ends for durable, weather-resistant defense against dust, dirt, and moisture. The snug fit ensures optimal cable condition, extending your camera system's lifespan.

Mounting Bracket

The reverse monitor comes with the U-Shaped Bracket

Other Mounting Bracket Options

A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by clicking on the "Add Monitor Bracket" Tab.

Suction or Fan Bracket Slides into Slot.

Secure Waterproof Cable Connections

The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. RVCS cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable.

The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
