Wired Caravan Reversing Camera Kit – Reliable Rear Vision for Safe Towing
This 5 inch AHD caravan reversing camera kit features a 140° number plate camera, providing a practical wide-angle view directly behind the caravan. Number plate cameras are compact and easy to mount, making them ideal for clean, discreet installations.
The kit includes a monitor, number plate camera, cables and a dust cover to protect connections when the caravan is not in use. Designed for easy installation and consistent, interference-free performance on Australian roads.
Monitor Supports Two Reversing Cameras
Click on the "Add HD Camera" Tab to add another camera to this kit. Extra cable length will be required and can be selected on the same page. The extra camera can be installed on the back of the vehicle and used for backing up to the hitch of the caravan and to drive with on all the time when the caravan is not being towed.
Monitor Viewing Configuration
Metal Cable Dust Covers
Protect your cable ends when the caravan is unhooked with our custom-designed dust covers. Screw the dust covers onto both the car and caravan cable ends for durable, weather-resistant defense against dust, dirt, and moisture. The snug fit ensures optimal cable condition, extending your camera system's lifespan.
Mounting Bracket
The monitor comes with the U-Shaped Bracket
The reverse monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by clicking on the "Add Monitor Bracket" Tab.
HD 140° Number Plate Reversing Camera Waterproof IP68 with Audio
Reversing cameras with audio are ideal for towing a caravan, allowing drivers to hear guiding instructions while viewing the area behind. This combination of visual and auditory feedback ensures safer, more precise reversing, especially in tight spaces.
Reversing Camera Night Vision Distance
6 Infrared Lights Approx. 5m if there is no other light source.
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. RVCS cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable.

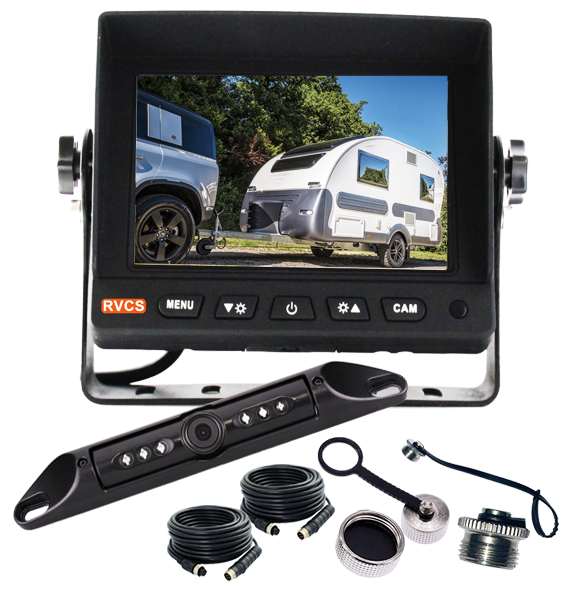

5" Caravan Rear View Monitor Camera Kit |
| Kit Includes |
| • 1 x RV-HDMSD5 Caravan 5inch HD IPS Monitor |
| • 1 x RV-CHDMFV140 1080P HD Number Plate Reversing Camera 140° Viewing Angle |
| • 2 x 8m Cable (One cable from the monitor to the back of the car, another from the car to the back of caravan.) |
| • 1 x Male Metal Dust Cover (MDustCover) |
| • 1 x Female Metal Dust Cover (FDustCover) |
| • Electrical Connecting Cables |
| • Remote Control (Battery Not Included) |
| • User Guide |
| • Monitor Supports Two Reversing Cameras, Additional Camera can be Added in the Future |
| • Other Mounting Options: A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by clicking on the " Add Monitor Bracket" TAB |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
5-inch AHD Reversing Cabled Monitor
Monitor Dimensions
Monitor Harness
The green trigger cables does not have to be connected, it only requires connection if you want a camera to come on automatically for example when the vehicle is put in reverse. If the trigger wire is connected, then you will not be able to view the camera at all times whilst driving. If not connecting the trigger wire wrap it individually in insulation tape.
Monitor has the 4-Pin GX12 Male Screw Plug Connection
Monitor U-bracket Installation
Accessories
5" Revering Camera Monitor (RV-HDMSD5) |
| • 5-inch AHD digital IPS Screen (With Removable Sun Visor) |
| • Resolution: 800 x 3(R.G.B) x 480 |
| • View Angle: Hor.L/ (70) R (70) Ver.UP (50) Down(70) |
| • Back Light: LED, 500cd/m² |
| • Image Reversion: Up/Down and Left/Right |
| • Compatible System: NTCS & PAL Automatically |
| • 2 Channel AHD Video Input, single image display, support 720P@25/30, 960P@50/60, 1080P@25/30 (Video Compatibility: CVBS/AHD) |
| • 1 Channel AHD Audio Input : Channel 2 |
| • One Trigger Cable - Does not need to be connected wrap in insulation tap. |
| • Power Requirement: DC12V-24V input, 12V output |
| • Accessories: Remote Control, Power Supply Harness, Sun Visor |
| • Remote Control (Battery Not Included) |
| • U Type Bracket (Fan and Suction Brackets Optional) |
| • Working temperature: -20℃ ~ +70℃ |
| • Storage Temperature: -30℃~ + 80℃ |
| • Outer Dimension:140(W) X 102(H) X 26(56) (T) mm |
| • One Year Warranty |
