Wired Caravan Reversing Camera Kit – Reliable Rear Vision for Safe Towing
This 5 inch HD caravan reversing camera kit features a 150° wing mounted camera, providing a wide field of view behind the caravan for improved visibility when reversing and towing.

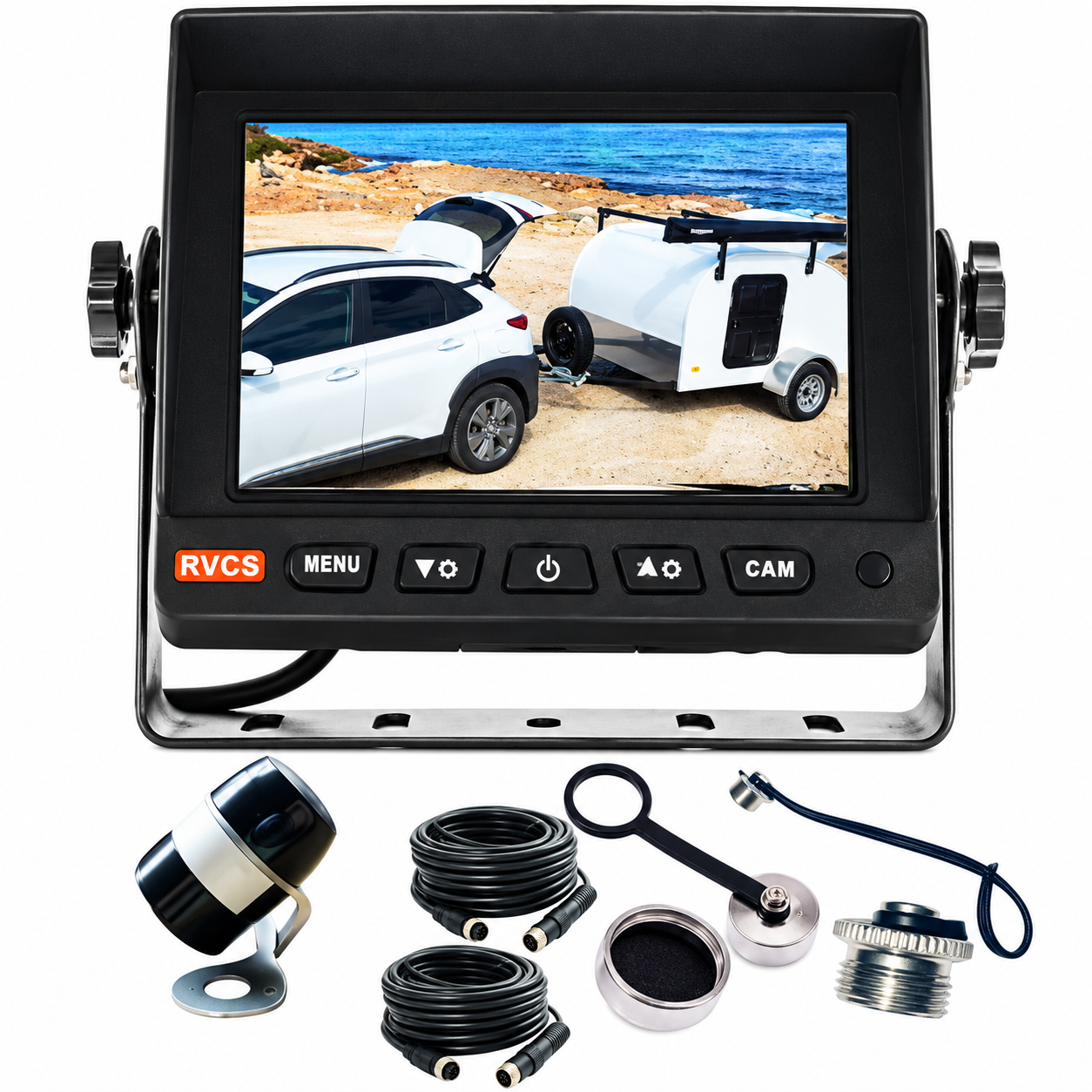

The kit includes a monitor, wing mounted camera, cables and a dust cover to protect cable connections when the caravan is not in use. Designed for easy installation and consistent, interference-free performance on Australian roads.
Dust covers for cable ends are protective caps that you can screw onto the cable connectors when the caravan is not in use. These covers help prevent dust, dirt, moisture, and other contaminants from entering and potentially damaging the cable connectors.
Monitor Supports Two Reversing Cameras
Click on the "Add Extra Cameras" Tab to add another camera to this kit. Extra cable length will be required and can be selected on the same page. The extra camera can be installed on the back of the vehicle and used for backing up to the hitch of the caravan and to drive with on all the time when the caravan is not being towed.
Monitor Viewing Configuration
Metal Cable Dust Covers
Protect your cable ends when the caravan is unhooked with our custom-designed dust covers. Screw the dust covers onto both the car and caravan cable ends for durable, weather-resistant defense against dust, dirt, and moisture. The snug fit ensures optimal cable condition, extending your camera system's lifespan.
Mounting Bracket
The monitor comes with the U-Shaped Bracket
The monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by clicking on the "Add Monitor Bracket" Tab.
Car 150° Wing Mounted Reversing Camera Waterproof Rating IP67
The length of cable attached to the camera is approx. 350mm in length
Reversing Night Vision Distance
This camera does not have any IR LEDs for night vision however if there is light from another source then there will be an image on the monitor.
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. RVCS cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable.
5" Caravan Rear View Kit (RV-HDMSD5T1CC50MFDustCover - RVCS) |
| Kit Includes |
| • 1 x RV-HDMSD5 Caravan 5inch HD IPS Display Reverse Monitor |
| • 1 x RV-CC150 1/4" CMOS Colour Wing Mounted Small 150° Reversing Camera |
| • 2 x 8m Cable (One cable from the monitor to the back of the car, another from the car to the back of caravan.) |
| • 1 x Male Metal Dust Cover (MDustCover) |
| • 1 x Female Metal Dust Cover (FDustCover) |
| • Electrical Connecting Cables |
| • Remote Control (Battery Not Included) |
| • User Guide |
| • Monitor Supports Two Reverse Cameras, Additional Camera can be Added in the Future |
| • Other Mounting Options: A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by clicking on the " Add Monitor Bracket" TAB |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
5-inch AHD Reversing Cabled Monitor
Monitor Dimensions
Monitor Harness
The green trigger cables does not have to be connected, it only requires connection if you want a camera to come on automatically for example when the vehicle is put in reverse. If the trigger wire is connected, then you will not be able to view the camera at all times whilst driving. If not connecting the trigger wire wrap it individually in insulation tape.
Monitor has the 4-Pin GX12 Male Screw Plug Connection
Monitor U-bracket Installation
Accessories
5" Revering Camera Monitor (RV-HDMSD5) |
| • 5-inch AHD digital IPS Screen (With Removable Sun Visor) |
| • Resolution: 800 x 3(R.G.B) x 480 |
| • View Angle: Hor.L/ (70) R (70) Ver.UP (50) Down(70) |
| • Back Light: LED, 500cd/m² |
| • Image Reversion: Up/Down and Left/Right |
| • Compatible System: NTCS & PAL Automatically |
| • 2 Channel AHD Video Input, single image display, support 720P@25/30, 960P@50/60, 1080P@25/30 (Video Compatibility: CVBS/AHD) |
| • 1 Channel AHD Audio Input : Channel 2 |
| • One Trigger Cable - Does not need to be connected wrap in insulation tap. |
| • Power Requirement: DC12V-24V input, 12V output |
| • Accessories: Remote Control, Power Supply Harness, Sun Visor |
| • Remote Control (Battery Not Included) |
| • U Type Bracket (Fan and Suction Brackets Optional) |
| • Working temperature: -20℃ ~ +70℃ |
| • Storage Temperature: -30℃~ + 80℃ |
| • Outer Dimension:140(W) X 102(H) X 26(56) (T) mm |
| • One Year Warranty |
Car 150° Wing Mounted Backup Camera Waterproof Rating IP67
150° Rear-View Camera (CC150)
A 150° viewing angle will provide a horizontal wide angle-view from one rear corner to the other and is wide enough to show three lanes on a highway. This angle is classed as a fisheye field of view backup camera. Its purpose is to provide a wide-angle view to enhance vehicle reversing safety. The angle will show objects close and will have a distorted field of view on objects further away.
Night Vision Distance
This camera does not have any IR LEDs for night vision however if there is light from another source then there will be an image on the monitor.
Camera Dimensions
Front & Back Show
Cameras have the 4-Pin Female Screw
Measurements
4-Pin GX12 Screw Female Definition
CMOS High Resolution Reversing Camera (R-CC150) |
| • Image Pick-up Device: 1/4" CMOS COLOUR |
| • Sensing Area: 4.008mm x 3.024mm |
| • Effective Pixels: 648 x 488 |
| • Horizontal Resolution: 420 TV Lines |
| • Super Wide Angle: 150° |
| • Colour System: PAL |
| • Illumination: 0.8Lux |
| • Video Output: 1.0vp-p.75 Omega |
| • Power Consumption: <1W |
| • AGC: Auto |
| • S/N Ratio: Better Than 48dB |
| • White Balance: Auto |
| • Electronic Shutter: Auto: 1/60~1 / 100000 Second |
| • Waterproof: IP67 |
| • Housing: Aluminium and Stainless Steel Bracket |
| • Operation Temperature: -20℃～+75℃ RH95% Max |
| • Storage Temperature: -30℃～+85℃ RH95% Max |
| • Power Supply: DC12V |
| • Optional Function: Parking Line Switcher |
| • One Year Warranty |
