Wired Caravan Reversing Camera Kit – Reliable Rear Vision for Safe Towing
This 5 inch caravan reversing camera kit provides clear and stable rear vision when reversing and towing. Choose from 30°, 45°, 60° or 120° camera angles to suit your visibility and driving needs.
The kit includes a monitor, camera, cables and a dust cover to protect connections when the caravan is not in use. Designed for easy installation and consistent performance on Australian roads.
A narrow 30° camera is ideal for distance viewing, allowing you to clearly see how far vehicles are behind you while driving. Wider angles such as 100 or 120° provide better coverage when reversing and manoeuvring.
Monitor Supports Two Reversing Cameras
Click on the "Add Extra Camera" Tab to add another camera to this kit. Extra cable length will be required and can be selected on the same page. The extra camera can be installed on the back of the vehicle and used for backing up to the hitch of the caravan and to drive with on all the time when the caravan is not being towed.
Monitor Viewing Configuration
Metal Cable Dust Covers
Protect your cable ends when the caravan is unhooked with our custom-designed dust covers. Screw the dust covers onto both the car and caravan cable ends for durable, weather-resistant defense against dust, dirt, and moisture. The snug fit ensures optimal cable condition, extending your camera system's lifespan.
Mounting Bracket
The monitor comes with the U-Shaped Bracket
The monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by clicking on the "Add Monitor Bracket" Tab.
HD 1080P Waterproof IP69K High Quality Reversing Camera
Camera Angles - 100°,60°,45°or 30°.
Reversing Camera Night Vision Distance
18pcs LEDs - Approx. 10m if there is no other light source.
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. RVCS cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable.

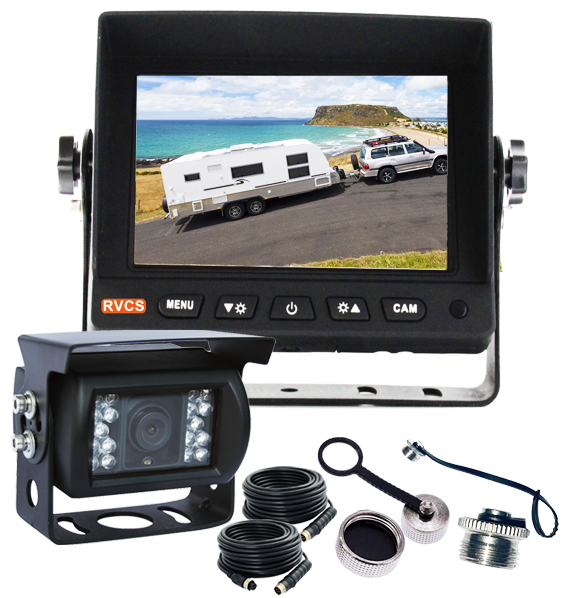

5" Caravan Rear View Kit (RV-HDMSD5C02MFDustCover-RVCS) |
| Kit Includes |
| • 1 x RV-HDMSD5 Caravan 5inch HD IPS Display Reverse Monitor |
| • 1 x CHD402E Reversing Camera Choose Camera Angle 30°, 45°, 60° or 100° |
| • 2 x 8m Cable (One cable from the monitor to the back of the car, another from the car to the back of caravan.) |
| • 1 x Male Metal Dust Cover (MDustCover) |
| • 1 x Female Metal Dust Cover (FDustCover) |
| • Electrical Connecting Cables |
| • Remote Control (Battery Not Included) |
| • User Guide |
| • Monitor Supports Two Reversing Cameras, Additional Camera can be Added in the Future |
| • Other Mounting Options: A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by clicking on the " Add Monitor Bracket" TAB |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
5-inch AHD Reversing Cabled Monitor
Monitor Dimensions
Monitor Harness
The green trigger cables does not have to be connected, it only requires connection if you want a camera to come on automatically for example when the vehicle is put in reverse. If the trigger wire is connected, then you will not be able to view the camera at all times whilst driving. If not connecting the trigger wire wrap it individually in insulation tape.
Monitor has the 4-Pin GX12 Male Screw Plug Connection
Monitor U-bracket Installation
Accessories
5" Revering Camera Monitor (RV-HDMSD5) |
| • 5-inch AHD digital IPS Screen (With Removable Sun Visor) |
| • Resolution: 800 x 3(R.G.B) x 480 |
| • View Angle: Hor.L/ (70) R (70) Ver.UP (50) Down(70) |
| • Back Light: LED, 500cd/m² |
| • Image Reversion: Up/Down and Left/Right |
| • Compatible System: NTCS & PAL Automatically |
| • 2 Channel AHD Video Input, single image display, support 720P@25/30, 960P@50/60, 1080P@25/30 (Video Compatibility: CVBS/AHD) |
| • 1 Channel AHD Audio Input : Channel 2 |
| • One Trigger Cable - Does not need to be connected wrap in insulation tap. |
| • Power Requirement: DC12V-24V input, 12V output |
| • Accessories: Remote Control, Power Supply Harness, Sun Visor |
| • Remote Control (Battery Not Included) |
| • U Type Bracket (Fan and Suction Brackets Optional) |
| • Working temperature: -20℃ ~ +70℃ |
| • Storage Temperature: -30℃~ + 80℃ |
| • Outer Dimension:140(W) X 102(H) X 26(56) (T) mm |
| • One Year Warranty |
HD 1080P Reversing Camera IP69K, 100°, 60°,45°& 30° Optional.
Camera viewing angle plays an important role in how your reversing camera performs when towing. A narrow 30° camera is ideal for driving and distance viewing, giving you a clear, rear-vision style image so you can accurately judge how far vehicles are behind your caravan while travelling.
Mid-range angles such as 45° and 60° provide a balanced view, making them suitable for both reversing and general towing. They offer more coverage than a narrow lens while still allowing you to maintain a good sense of distance.
A wider 100° camera is best suited for reversing and manoeuvring, as it captures a broader area behind the caravan. This helps reduce blind spots and makes it easier to see obstacles when parking or navigating tight spaces.
Night Vision Distance
18pcs LEDs-Approx. 10m if there is no other light source
Camera Dimensions
Front View
Side View
4pin Gx12 Screw Female Definition
Measurements
HD 1080P Reversing Camera reversing safety |
| • Image - Rear-View, NAS Monitor Can Change Image to Forward Facing |
| • CHD402E 100° Viewing Angle |
| • CHD60E 60° Viewing Angle |
| • CHD45E 45° Viewing Angle |
| • CHD30E 30° Viewing Angle |
| • Waterproof: IP69K |
| • Image Type: 1/2.8 Inch Colour Sony |
| • Tv System: PAL (25fps) |
| • Sync System: Internal Synchronization |
| • IR-Function: CDS Auto Control, Under 10 Lux By CDS (≤10 Lux CDS On) |
| • Video Output: HD 1080P |
| • Usable Illumination: 0lux At Night (18pcs IR Led On) |
| • Night Vision Distance: Approx. 15m |
| • Automatic Adjusts with Day/Night Sensor |
| • S/N Ratio: ≥48db (AGC Off) |
| • Shockproof: 5G (Conforms To GB-T2423056-2006 Standard) |
| • Power Supply: DC12V |
| • Shell Material: Aluminum Alloy |
| • Dimensions: 107(W X 75(H) X 70.5(D)mm (With Mounting) |
| • Operating Temperature: -20℃ To + 60℃ Rh95% Max |
| • Storage Temperature: -20℃ To + 70℃ Rh95% Max |
| • Weight : 450g |
| • One Year Warranty |
