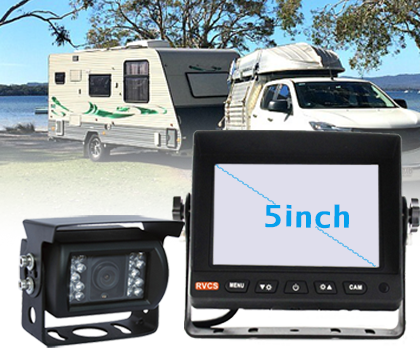

Wired Caravan Reversing Camera Kit – Flexible Viewing for Safe Towing
This 5 inch caravan reversing camera kit with woza cable delivers clear and stable rear vision, making it ideal for reversing and towing. The system allows you to choose between 100°, 60°, 45° or 30° camera angles to suit your driving needs and visibility requirements. The 30° camera offers a view similar to a rear vision mirror, helping you accurately judge the distance of vehicles behind you while travelling.
The kit includes a monitor, camera and cables, providing a complete and easy to install solution. The woza cable connection ensures a secure and consistent link between the vehicle and caravan with no signal dropouts.
The monitor supports two cameras, giving you the option to add an additional camera for improved visibility when driving or hitching up.
Designed for caravans and towing applications, this system is built to perform reliably on Australian roads.
Monitor Supports Two Reversing Cameras
Click on the "Add Extra Cameras" Tab to add another camera to this kit. Extra cable length will be required and can be selected on the same page. The extra camera can be installed on the back of the vehicle and used for backing up to the hitch of the caravan and to drive with on all the time when the caravan is not being towed.
Monitor Viewing Configuration
HD Waterproof IP69K High Quality Reversing Camera
Camera Angles - 100°,60°,45°or 30°.
Reversing Camera Night Vision Distance
18pcs LEDs - Approx. 10m if there is no other light source.
Choose Woza Style
T4SpSML1C T4Sp1C.8m
Standard 10m & 15m Woza "Woza Cables" Select from the drop down box the cable lengths required.
Mounting Bracket
The reverse monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by clicking on the "Add Monitor Bracket" Tab.
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. NAS cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS monitors have the 4-pin male ended connection and require the female ended extension cable.
| Kit Includes |
| • 1 x RV-HDMSD5 Quality 5inch HD IPS Display Reverse Monitor |
| • 1 x CHD402E Reversing Camera Choose Camera Angle 30°, 45°, 60° or 100° |
| • 1 x (T4SpSML1C) 4m Curly/Spring Cable, 1 x 10m Cable from the Curly/Spring Connection from the back of the vehicle to the Monitor, 1 x 15m Cable from the curly/spring connection to the camera on the back of the caravan. |
| • OR 1 x (T4Sp1C.8m) 4m Spring Curly Cable with 2 x 0.8m Cables Connecting to the Curly Spring and select two cable lengths and the price will adjust. |
| • Electrical Connecting Cables |
| • Remote Control (Battery Not Included) |
| • User Guide |
| • U-Support Bracket |
| • Monitor Supports Two Reversing Cameras, Additional Camera can be Added in the Future |
| • Other Mounting Options: A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by clicking on the " Add Monitor Bracket" TAB |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
5-inch AHD Reversing Cabled Monitor
Monitor Dimensions
Monitor Harness
The green trigger cables does not have to be connected, it only requires connection if you want a camera to come on automatically for example when the vehicle is put in reverse. If the trigger wire is connected, then you will not be able to view the camera at all times whilst driving. If not connecting the trigger wire wrap it individually in insulation tape.
Monitor has the 4-Pin GX12 Male Screw Plug Connection
Monitor U-bracket Installation
Accessories
5" Revering Camera Monitor (RV-HDMSD5) |
| • 5-inch AHD digital IPS Screen (With Removable Sun Visor) |
| • Resolution: 800 x 3(R.G.B) x 480 |
| • View Angle: Hor.L/ (70) R (70) Ver.UP (50) Down(70) |
| • Back Light: LED, 500cd/m² |
| • Image Reversion: Up/Down and Left/Right |
| • Compatible System: NTCS & PAL Automatically |
| • 2 Channel AHD Video Input, single image display, support 720P@25/30, 960P@50/60, 1080P@25/30 (Video Compatibility: CVBS/AHD) |
| • 1 Channel AHD Audio Input : Channel 2 |
| • One Trigger Cable - Does not need to be connected wrap in insulation tap. |
| • Power Requirement: DC12V-24V input, 12V output |
| • Accessories: Remote Control, Power Supply Harness, Sun Visor |
| • Remote Control (Battery Not Included) |
| • U Type Bracket (Fan and Suction Brackets Optional) |
| • Working temperature: -20℃ ~ +70℃ |
| • Storage Temperature: -30℃~ + 80℃ |
| • Outer Dimension:140(W) X 102(H) X 26(56) (T) mm |
| • One Year Warranty |
HD 1080P Reversing Camera IP69K, 100°, 60°,45°& 30° Optional.
Camera viewing angle plays an important role in how your reversing camera performs when towing. A narrow 30° camera is ideal for driving and distance viewing, giving you a clear, rear-vision style image so you can accurately judge how far vehicles are behind your caravan while travelling.
Mid-range angles such as 45° and 60° provide a balanced view, making them suitable for both reversing and general towing. They offer more coverage than a narrow lens while still allowing you to maintain a good sense of distance.
A wider 100° camera is best suited for reversing and manoeuvring, as it captures a broader area behind the caravan. This helps reduce blind spots and makes it easier to see obstacles when parking or navigating tight spaces.
Night Vision Distance
18pcs LEDs-Approx. 10m if there is no other light source
Camera Dimensions
Front View
Side View
4pin Gx12 Screw Female Definition
Measurements
HD 1080P Reversing Camera reversing safety |
| • Image - Rear-View, NAS Monitor Can Change Image to Forward Facing |
| • CHD402E 100° Viewing Angle |
| • CHD60E 60° Viewing Angle |
| • CHD45E 45° Viewing Angle |
| • CHD30E 30° Viewing Angle |
| • Waterproof: IP69K |
| • Image Type: 1/2.8 Inch Colour Sony |
| • Tv System: PAL (25fps) |
| • Sync System: Internal Synchronization |
| • IR-Function: CDS Auto Control, Under 10 Lux By CDS (≤10 Lux CDS On) |
| • Video Output: HD 1080P |
| • Usable Illumination: 0lux At Night (18pcs IR Led On) |
| • Night Vision Distance: Approx. 15m |
| • Automatic Adjusts with Day/Night Sensor |
| • S/N Ratio: ≥48db (AGC Off) |
| • Shockproof: 5G (Conforms To GB-T2423056-2006 Standard) |
| • Power Supply: DC12V |
| • Shell Material: Aluminum Alloy |
| • Dimensions: 107(W X 75(H) X 70.5(D)mm (With Mounting) |
| • Operating Temperature: -20℃ To + 60℃ Rh95% Max |
| • Storage Temperature: -20℃ To + 70℃ Rh95% Max |
| • Weight : 450g |
| • One Year Warranty |
The curly cable provides a secure connection between the car and caravan and is easy to remove when no longer towing the caravan (T4MSpSML1C).
The 10M extension cable runs from the monitor to the car hitch and the 15M extension cable from the hitch to the back of the caravan or trailer. The curly spring cable is securely connected between the two extension cables.
Woza Cable Includes the Following Parts
4M Curly Spring Cable
10M Extension Cable Connects to the Monitor
15M Extension Cable Connects to a Camera
Brackets to Secure the Woza on the Car and Hitch
5 Pin Ends that Connect the Spring Cable to the Extension Cables
5 Pin Dimensions
The picture above shows a Woza installed however the model shown is an older model to the T4MSpSML1C.
Customise Woza cable for one camera to suit your caravan and car requirements. Cable lengths can be selected in the drop down " Woza Cables".
4M Curly Spring Cable
0.8m Female Cable Connects to the monitor
0.8m Male Cable Connects to the Camera
Brackets to Secure the Woza on the Car and Hitch
5 Pin Ends that Connect the Spring Cable to the Extension Cables
5 Pin Dimensions
The picture above shows a Woza installed however the model shown is an older model.
