Wired Caravan Reversing Camera Kit – Wide View for Safe Reversing

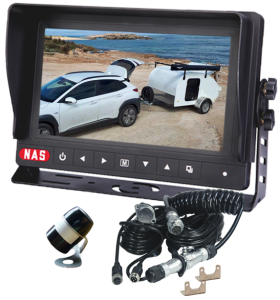

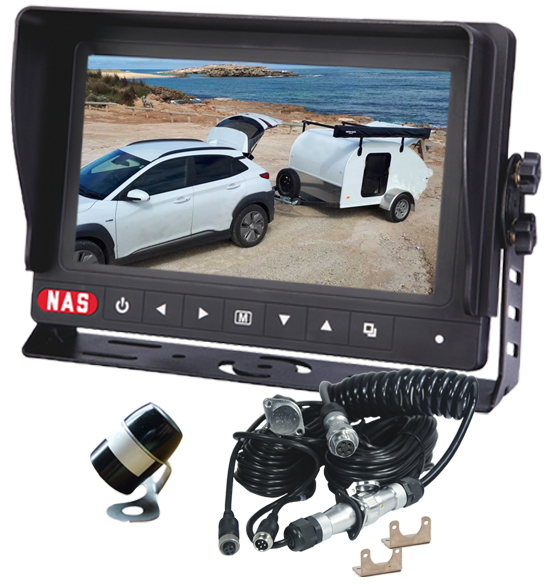

This 7 inch caravan reversing camera kit with woza cable provides clear and reliable rear vision when towing. The system features a Concord monitor paired with a compact RVCS 150° camera, delivering a strong and practical solution for everyday caravan use.

The 150° camera offers a wide viewing angle, helping to reduce blind spots and improve visibility when reversing and manoeuvring. Its compact design allows for a neat and low-profile installation on the rear of the caravan.

The woza cable connection ensures a quick and secure link at the hitch, providing a stable signal between the vehicle and caravan with no interference.

The monitor supports two cameras, giving you the option to add an additional camera for improved visibility when driving or hitching up.

Designed for caravans and towing applications, this system delivers dependable performance on Australian roads.

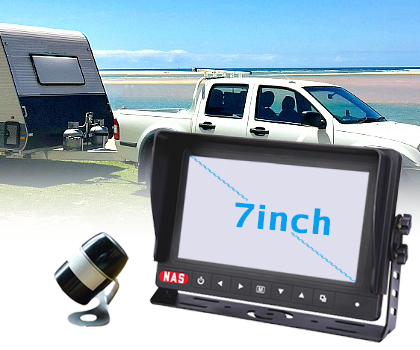

The high quality 7" monitor screen is viewable under sunlight conditions. It features white lasered engraved buttons that are backlit for clear day and night vision. The monitor shell is made from tough PC/ABS to withstand high temperatures in the cab. The In-Plane Switching(IPS) is a liquid crystal display with wide viewing angle, high colour accuracy and brightness.

Monitor Supports Two Reversing Cameras

Click on the "Add Extra Cameras" Tab to add another camera to this kit.  Extra cable length will be required and can be selected on the same page. The extra camera can be installed on the back of the vehicle and used for backing up to the hitch of the caravan and to drive with on all the time when the caravan is not being towed.

Monitor Viewing Configuration

The reverse monitor can take up to two cameras.

Click on the "Add Camera" Tab to add cameras.  Cable can be selected on the same page if required.

Car 150° Wing Mounted Reversing Camera Waterproof Rating IP67

The length of cable attached to the camera is approx. 350mm in length

Standard Definition Reverse Camera

Reversing Camera Night Vision Distance

This camera does not have any IR LEDs for night vision however if there is light from another source then there will be an image on the monitor.

Choose Woza Style

T4SpSML1C                                                 T4Sp1C.8m

Standard 10m & 15m Woza                        "Woza Cables"  Select from the drop down box the cable lengths required.

Mounting Bracket

The reverse monitor comes with the U-Shaped Bracket

Other Mounting Bracket Options

A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by Clicking on the "Add Monitor Bracket Tab".

Secure Waterproof Cable Connections

The connections on the reversing / rearview camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. Cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable. NAS monitors have the 4-pin male ended connection and require the female ended extension cable.

The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
