Wired Caravan Reversing Camera Kit – Industrial Grade Performance for Safe Towing
This 7 inch caravan reversing camera kit with woza cable provides clear and reliable rear vision when towing. The system features a Concord industrial grade monitor paired with a Unity camera, delivering strong performance and durability.
Choose between 69°or 110° camera angles to suit your driving and visibility needs. Narrower angles provide better distance viewing, while wider angles offer improved coverage when reversing and manoeuvring.
The woza cable connection allows for a quick and secure connection at the hitch, ensuring a stable signal between the vehicle and caravan with no interference.
The monitor supports two cameras, giving you the option to add an additional camera for improved visibility when driving or hitching up.
Designed for caravans, work vehicles and demanding conditions, this system delivers dependable performance and improved safety on Australian roads.
Monitor Supports Two Reversing Cameras
Click on the "Add Extra Cameras" Tab to add another camera to this kit. Extra cable length will be required and can be selected on the same page. The extra camera can be installed on the back of the vehicle and used for backing up to the hitch of the caravan and to drive with on all the time when the caravan is not being towed.
Monitor Viewing Configuration
The reverse monitor can take up to two cameras.
Click on the "Add Camera(s)" Tab to add cameras. Cable can be selected on the same page if required.
Waterproof IP69K Industrial Grade Reversing Camera
Available in Black or White Housing
The length of cable attached to the camera is approx. 300mm in length
Reversing Camera Angles
110° Camera (CSHD102B), 69° Camera (CSHD1069B)
Reversing Camera Night Vision Distance
4pcs High Quality SMD LEDs - Approx. 10m if there is no other light source.
Choose Woza Style
T4SpSML1C T4Sp1C.8m
Standard 10m & 15m Woza "Woza Cables" Select from the drop down box the cable lengths required.
Mounting Bracket
The reverse monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by by Clicking on the "Add Monitor Bracket Tab".
Suction or Fan Bracket Slides into Slot.
Secure Waterproof Cable Connections
The connections on the reversing / rear-view camera cables push in and then screw up creating a secure connection. They come with rubber O-rings creating a waterproof join. The extension cable is airline aviation cable and has a 4-pin female end and a 4-pin male end. Cameras come with a 4-pin female ended connection and require the 4 pin male ended extension cable.

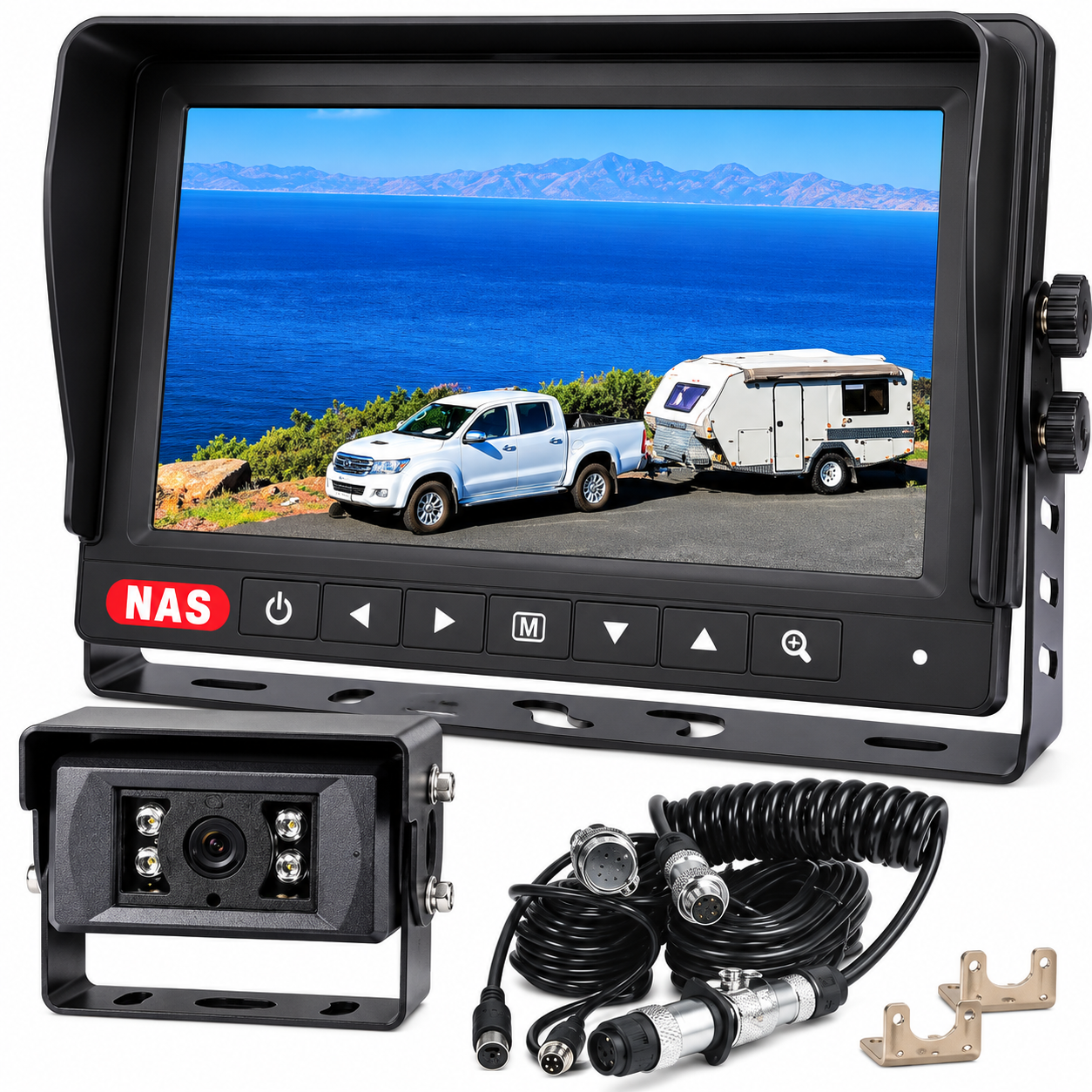

7" Caravan Rear View Monitor Camera Kit |
| Kit Includes |
| •1 x HDM72C High Quality 7inch HD IPS Display Reverse Monitor |
| •1 x CSHD102B 110° or CSHD1069B 69° HD 1080P Reversing Camera |
| •1 x (T4SpSML1C) 4m Curly/Spring Cable, 1 x 10m Cable from the Curly/Spring Connection from the back of the vehicle to the Monitor, 1 x 15m Cable from the curly/spring connection to the camera on the back of the caravan. |
| •OR 1 x (T4Sp1C.8m) 4m Spring Curly Cable with 2 x 0.8m Cables Connecting to the Curly Spring and select two cable lengths and the price will adjust. |
| •Electrical Connecting Cables |
| •Remote Control (Battery Not Included) |
| •User Guide |
| •U-Support Bracket |
| •Monitor Supports Two Reversing Cameras, Additional Camera can be Added in the Future |
| •Other Mounting Options: A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by clicking on the " Add Monitor Bracket" TAB |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
7inch HD Wired Reversing Monitor
Monitor Dimensions
Monitor Key
Monitor Harness
Monitor has two 4pin Male Aviation
Trigger Wires
The trigger cables, typically Yellow, Brown, Blue, and White, do not need to be connected. They only require connection if you desire automatic camera activation, such as when the vehicle is shifted into reverse. However, if you connect the trigger wires, continuous camera viewing while driving won't be possible. If you choose not to connect the trigger cables, ensure to wrap each one individually in insulation tape.
720P HD 7" Cabled Monitor (HDM72CNDH) |
| • 7" IPS HD Screen Monitor With Touch Buttons with Removable Sun Visor |
| • Touch Button Controls |
| • Vibration Resistance Level: 5G (Conforms To GB-T2423056-2006 Standard) |
| • View Monitor: Single Screen Switch |
| • Colour System: PAL/NTSC (Auto) |
| • Display Resolution: 1024(H) X 600(V) |
| • Surge and load dump protection: ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms） |
| • Time Delay (Ms):25ms |
| • Wide View Angle (LR/UD):(U/D): 80/85 (L/R): 80/85 |
| • Brightness: 600cd/m² |
| • Contrast Ratio: 800:1 |
| • Power Supply: DC11~32V |
| • Operating Temperature: -20℃ To +70℃ |
| • Storage Temperature: -30℃ To +80℃ |
| • External Dimensions :(L x W x T) 220 x 149 x 84mm |
| • Weight Approx: 1000g |
| • Two Year Warranty |
IP69K 1080P HD Reversing Camera
Forward Facing or Rear View Camera
The length of cable attached to the camera is approx. 350mm in length
Camera Dimensions
4-Pin GX12 Screw Female Definition
Measurements
Full HD 1080P Camera with Smart IR Light For Night Vision |
| • Waterproof: IP69K approved |
| • Viewing angle: 110°(CSHD102B) or 69° (CSHD1069B) |
| • Smart-IR |
| • Mirror / Normal image switch |
| • Night Vision distance: 10m (4 infrared lights) |
| • Day / Night sensor for automatic adjustment |
| • Image Device: 1/2.9” CMOS |
| • Frame Rate: 25fps/30fps |
| • Effective Pixels: 1920 x 1080 |
| • Resolution: 1080P |
| • Pixel pitch 2.9 μm x 2.9 μm |
| • Scanning System: Progressive Scanning |
| • Sync. System: Internal |
| • Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR) |
| • Microphone: Yes |
| • Video Output: 1.0Vp-p, 75Ohm |
| • Gamma Consumption: 0.45 |
| • Dynamic Range: 81dB |
| • White Balance: Auto |
| • Electronic Shutter: 1/30（1/25）～1/50,000 Seconds |
| • BLC: Auto |
| • Current Consumption: Max. 250mA |
| • Power Supply: DC 12 V |
| • Connection: 4 PIN |
| • Anti-vibration: 10 g |
| • Operating Temperature: –20℃ ~ 70℃, RH95%MAX. |
| • One Year Warranty |
The curly cable provides a secure connection between the car and caravan and is easy to remove when no longer towing the caravan (T4MSpSML1C).
The 10M extension cable runs from the monitor to the car hitch and the 15M extension cable from the hitch to the back of the caravan or trailer. The curly spring cable is securely connected between the two extension cables.
Woza Cable Includes the Following Parts
4M Curly Spring Cable
10M Extension Cable Connects to the Monitor
15M Extension Cable Connects to a Camera
Brackets to Secure the Woza on the Car and Hitch
5 Pin Ends that Connect the Spring Cable to the Extension Cables
5 Pin Dimensions
The picture above shows a Woza installed however the model shown is an older model to the T4MSpSML1C.
Customise Woza cable for one camera to suit your caravan and car requirements. Cable lengths can be selected in the drop down " Woza Cables".
4M Curly Spring Cable
0.8m Female Cable Connects to the monitor
0.8m Male Cable Connects to the Camera
Brackets to Secure the Woza on the Car and Hitch
5 Pin Ends that Connect the Spring Cable to the Extension Cables
5 Pin Dimensions
The picture above shows a Woza installed however the model shown is an older model.
