This 10 inch waterproof wireless forklift camera kit includes a 10.1 inch touchscreen DVR monitor, one 1080P camera and a rechargeable magnetic battery pack. Adjustable crosshair guide lines provide a useful visual reference for positioning, while the battery-powered camera avoids the need for permanent camera wiring.
Key features
- 10.1 inch IP66 waterproof touchscreen monitor
- Built-in DVR recording and playback
- One 1080P digital wireless camera
- IP69K waterproof camera housing
- Adjustable crosshair guide lines
- Crosshair movement, zoom-in and zoom-out adjustment
- Standard reversing guide lines
- Rechargeable 12V camera battery pack
- Strong magnetic battery mounting
- Supports up to four cameras
- Single, split, three-camera and quad display modes
- Wireless range up to 200 metres in clear line-of-sight conditions
- Camera viewing angles available in 35°, 60° and 100°
- Suitable for 12V and 24V forklifts and machinery
- Micro-SD card support up to 512GB
This 10 inch waterproof digital wireless forklift camera kit is designed for demanding industrial and material-handling environments where clear visibility, recording and accurate positioning are required.
The system includes a large 10.1 inch touchscreen DVR monitor, one 1080P digital wireless camera and a rechargeable 12V battery pack. The monitor has an IP66 waterproof housing, while the camera is rated IP69K for use in harsh operating conditions.
The rechargeable battery pack powers the camera without requiring a permanent electrical connection. Its strong magnetic base allows it to be positioned on a suitable metal surface, making the system practical for forklifts where running power cables to the camera may be difficult. The battery provides approximately 14 hours of operation without infrared lighting or approximately seven hours when the infrared lights operate continuously.
Adjustable crosshair guide lines can be moved, zoomed in and zoomed out to provide a visual reference for positioning tasks. Standard reversing guide lines are also available, allowing the system to be used for general rear visibility when required.
The monitor supports up to four digital wireless cameras and can display single, split, three-camera or quad views. Additional cameras can therefore be added for rear, side or other forklift blind spots.

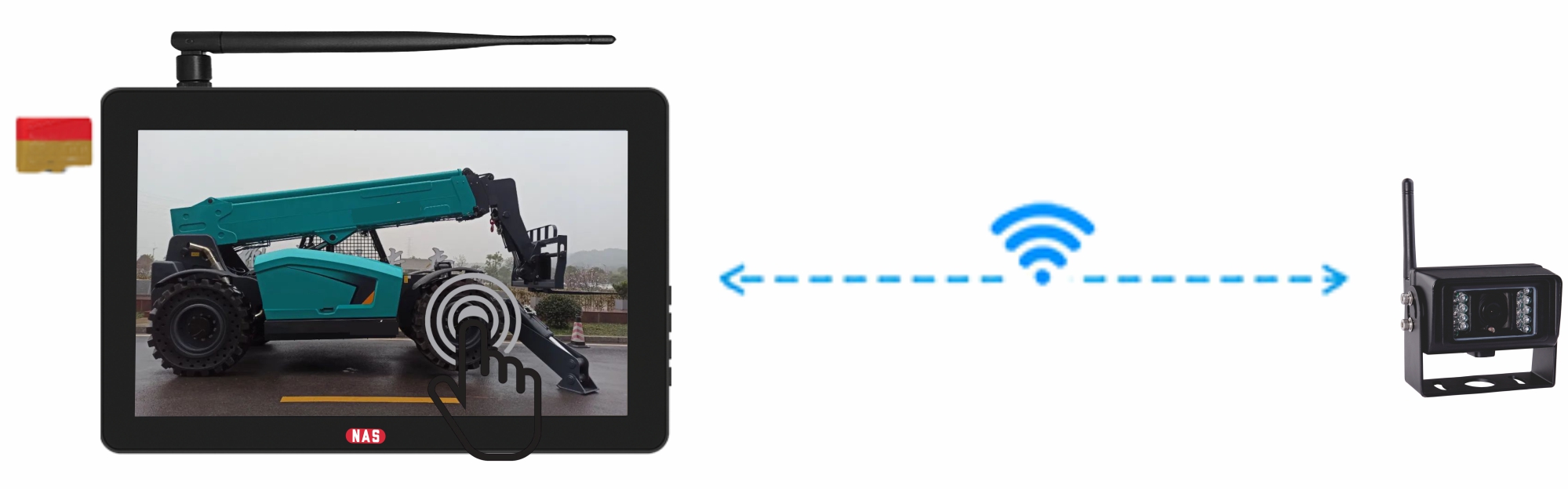

Wireless Range Up to 200 Metres
The digital wireless system provides a stable, interference-resistant signal at distances of up to 200 metres in clear line-of-sight conditions. Obstacles in the way of the wireless signal will reduce the wireless distance slightly.
Monitor Viewing Configurations
Touch Screen Monitor
The monitor supports a micro-SD cards up to 512GB. They require a speed equal to or greater than U3/V30. SD card is not included.
Monitor Recording Time
Monitor Mounting Brackets
U-Shaped Support Bracket
360° Universal Bracket
Waterproof HD reversing camera with IP69K rating.
Camera Angles - 100°，60° and 35° optional
DC12V Mobile Battery Pack
This 12V portable battery pack powers wireless reversing cameras without wiring. Featuring an IP67 waterproof aluminum housing and a strong magnetic base, it ensures secure, flexible camera placement for trucks, caravans, and industrial use.
KDW12VPP26 Approx.14 Hours No IR Usage
A 12V mobile battery pack can be purchased as an optional extra by clicking on the drop down box labelled "Battery - Is a Battery Pack Required" .
Digital Wireless Extension Antenna (ADWC).
5dBi Signal Boost, 3-meter cable that screws onto a camera or monitor, offering the flexibility to extend the antenna.
The antenna base is equipped with a magnetic base, although additional adhesive may be required for secure placement.
3m Extension Cable
Connects to the Above Extension Antennas ADWC.
Extension cable can be connected to the Digital Wireless Cabled Extension Antenna – 5dBi (R-ADWC) giving an overall length of 6m.
14dBi Wireless Directional Panel Antenna (A14dBi）
High Gain Long Range
Antennas cable length - 5M
Boost the reach of your digital wireless kits using this high-grain, long-range antenna. If your monitor suffers from reception loss, this antenna markedly reinforces the signal. Farmers trust it to counter signal loss caused by grain dust, and it's equally valuable on road trains for increased signal strength. Optimal placement is on the back of the truck cab, making it versatile for various applications experiencing signal loss.
5m Extension Cable (EXT5mA14dBi)
For 14dBi Panel Antenna
5m Extension Cable that Connects to the Above 14dBi Panel Antenna providing an overall length of 10m. Excess cable can be rolled up.
Camera Magnetic Base
Can Be Mounted on a Magnetic Base for Ease of Fixing and Movability. The Magnet has a Very Strong Magnetic Hold.
A magnetic base can be purchased as an optional extra by clicking on the "Add Accessories" Tab
Lock Camera & Power Cable Connections
Ensure that the twist lock connection is fitted with the rubber cover and positioned securely over the junction. Additionally, it is advisable, if these connections are expected to be exposed to the elements, to wrap them with insulation tape to prevent water ingress.

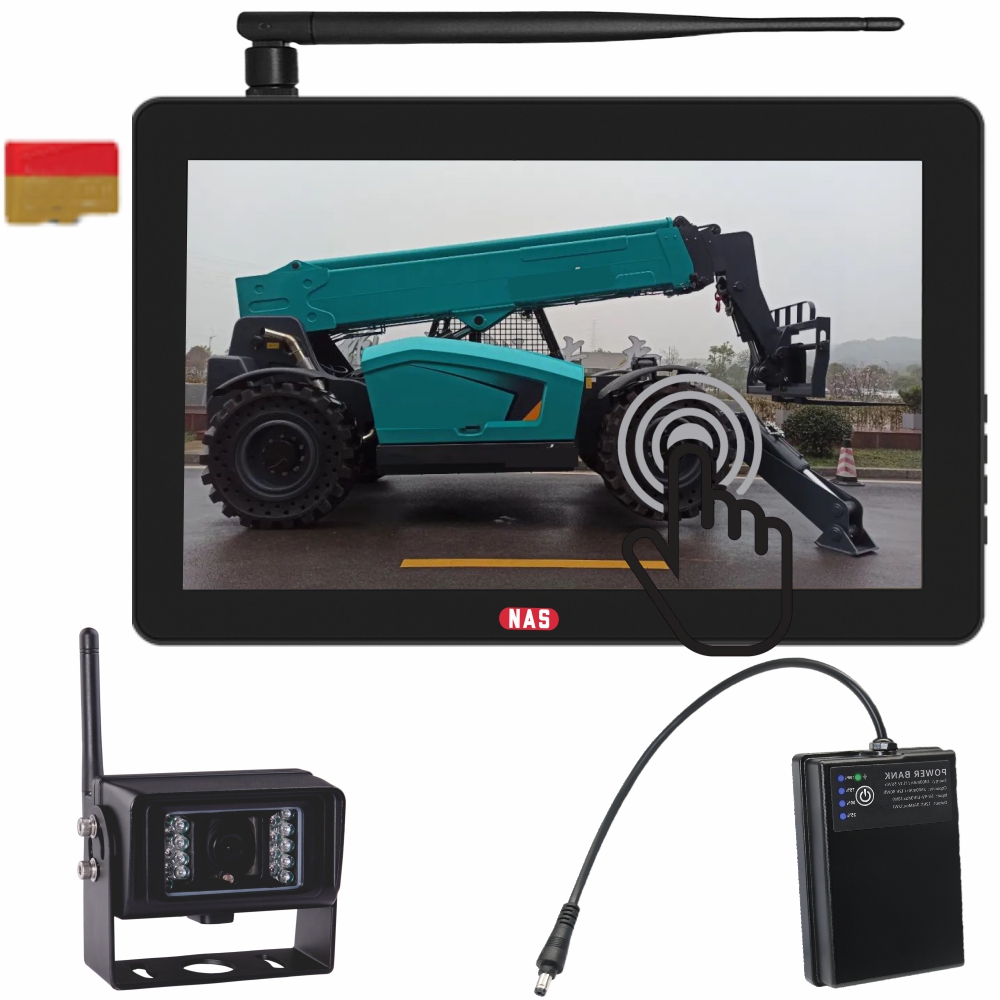

10.1" Digital Wireless Monitor Camera Kit (HDKDWWPQ101TRecPP- Concord) |
| • Wireless Range up to 200m Clear Line of Sight |
| • The monitor can be viewed in Single, Split, three camera split or quad display mode. |
| • Wireless eliminates running cables through machinery. |
| • Power ~ Monitor and Cameras DC12-32V |
| • Suitable for 12V and 24V Trucks and Farming Machinery |
| • The equipment is tough and is made specifically for farming, industrial and mining machinery. |
| Kit Includes |
| • 1 x HDKDWWPQ10.1TRec High Quality 10.1" IPS Touch Screen Digital Wireless IP66 Waterproof DVR Monitor |
| • 1 x HDKDW04 Wireless 1/3inch CMOS High Resolution 1080P IR CUT Reversing Cameras |
| • 1 x KDW12VPP26 rechargeable 12V magnetic battery pack |
| • 2 x Antennas (1 for Monitor & 1 for Cameras) |
| • Electrical Connecting Cables |
| • U-Support Bracket (other bracket styles are suitable too) |
| • Manual |
| • Monitor Two Year Warranty, Cameras One Year Warranty |
Images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
HD 10.1" Quad Digital Wireless Monitor With Adjustable Crosshair Guide Lines & Fully Laminated Touch Screen (HDKDWWPQ10TRec)
Waterproof - IP66
Key Features:
- 10.1" High Definition Display: Wide-screen AHD resolution for crystal-clear vision and enhanced rearview monitoring.
- Heavy-Duty Metal Bracket: Sturdy U-shape bracket & a 360° Universal Bracket included for secure mounting, suitable for commercial or industrial use.
- Suports upt to a 512GB SD card to record footage (SD card not included)
- Supports Up to 4 Cameras: Easily switch between four camera inputs for full vehicle coverage.
- Auto-Dimming: Automatically adjusts brightness based on light conditions.
- Adjustable Guidelines: On-screen parking guidelines can be enabled or disabled depending on your preference.
- 12V to 32V Wide Voltage Range: Compatible with a wide range of vehicles including caravans, 4WDs, trucks, buses, and agricultural equipment.
- Sunshield Included: Removable sun visor enhances screen visibility in direct sunlight – perfect for harsh Aussie outback glare.
- Remote Control + Touch Screen Control: Easily operate using the included remote or front panel controls.
- Durable Build for Australian Conditions: Built to handle heat, dust, and vibration – ideal for long-haul drivers and off-road operators.
Monitor Dimensions
Monitor Viewing Configuration:
Monitor Buttons
Monitor Recording Time
Monitor Rear View
Monitor Mounting Brackets
U-Shaped Support Aluminum Alloy Bracket
360° Universal Bracket: Aluminum Alloy +Rubber. Split It 360° Hold Up to 2KG One-Second Mounting
360° Universal Bracket Measurements
| • 10.1" IPS Full Laminate HD Touch Screen Monitor with Removable Sun Visor |
| • Built-in 2.4G digital wireless receiver |
| • View Monitor Screen: Quad / Three Way Split / Single screen / Split Dual Screen Display |
| • Operation Frequency Range: 2400 ~ 2483.5MHz |
| • Receiving Sensitivity: ≤-86dBm (1MHZ QPSK MD300RE)1024 |
| • Colour System: PAL/NTSC (Auto) |
| • Display Resolution: 1024(H) x 600(V) |
| • Surge and load dump protection: ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms） |
| • Response Time: 25ms |
| • Transmission Distance: 200m (No Barriers) |
| • Cross Hairs: Yes |
| • Wide View Angle (LR/UD) : (U/D) : 85/85 (L/R) : 85/85 |
| • Brightness (cd/m²): 600 |
| • Monitor Current: DC9V: 530mA (± 30mA) ; DC32V: 150mA (± 30mA) |
| • Contrast ratio: 800:1 |
| • Video Recording Function: Real-time Recording (2GB per Channel per hour) |
| • Video File Format: AVI |
| • Video Recording Capacity: Supports 16~512GB TF Cards |
| • Load Dump: DC 24 +174V / 350ms |
| • Connector Socket: 18-Pin Waterproof Interface |
| • Vibration Resistance: GB/T 2423.56-2023 Standard (Random 5G Vibration) |
| • External Power Supply Polarity Reversal Protection |
| • Operating temperature: -20℃ to +70℃ |
| • Storage temperature: -30℃ to +80℃ |
| • Power Supply: DC10~32V |
| • External dimensions :(L x W x T) (265 x 168 x 67mm)(Without Sun Visor and U-bracket ) |
| • Weight Approx: 4000g |
| • Two Year Warranty |
HD 1080P Digital Wireless Camera
Camera Angles - 100°，60° and 35° optional. Default: 100°
Camera Dimensions
1080P HD Digital Wireless Camera (HDKDW04) |
| • Free viewing angle: 100°,60 and 35° optional |
| • Waterproof: IP69K |
| • Image Type: 1/2.9 inch Colour CMOS |
| • Built in 2.4GHz Digital wireless transmitter |
| • Transmission Power: 18dBm |
| • Wireless Range: No Barriers ≤200m |
| • IR-function: Automatic switching |
| • Resolution: 1080P |
| • Effective pixels: PAL 1920(H)*1080(V) |
| • Usable Illumination: 0Lux (18pcs IR LED's for Night Vision) |
| • Infrared distance: ≤15m |
| • Shell material: Aluminum alloy |
| • Free Operating Voltage: DC12-32 Volts |
| • Shockproof: 5G (conforms to GB-T2423056-2006 standard) |
| • Dimensions: 107(W) x 75(H) x 70.5(D) mm (without mounting) |
| • Weight : 450g |
| • One Year Warranty |
DC12V Mobile Power With Aluminium Alloy Housing IP67 Waterproof Stronger Magnetic Base Mount
3.5 hours Fully Charged Approx. 14 hours of power to operate one digital wireless camera if there is not any Camera IR light Usage. Approx. 7 Hours if the Camera is running on full IR Lights because there is no external light source.
Fast charge, input/output overvoltage protection, overcharge/discharge protection, input overcurrent protection, short circuit protection, reset protection, temperature protection, Light load protection, battery PTC(Positive Temperature Coefficient) protection.Supports QC fast charging from 5V to 12V. Over 500 Cycle Lifespan.
18650 Li-ion Cells DC12V Mobile Power (R-KDW12VPP26) |
| • Type Battery ：Li-ion battery (Panasonic 18650 Lithium-ion cell original import) |
| • Cell Capacity ：3300mAh / 11.1V 36Wh |
| • Cell Energy : 36.6Wh |
| • Rated Capacity ：2500mAh/ 12V 30Wh |
| • Type-C Input (support fast charge)：5(V)3A -9V/(2A) -12V(1.5A) |
| • Fast Charge Mode ：QC 2.0/3.0 Agreement 9V/2A, 12V/1.5A (USB adapter needs to carry own QC agreement) |
| • DC Iuput (DC5.5 *2.1) ：12V / 1A (12W Typ.) |
| • Charging Method ：Constant Current (CC) 2A (0.2C) to 4.2V cut-off charge ; Constant Voltage (CV) 4.2V 100mA to charge off; 5A (0.5C) Charging |
| • Maximum Input Power : 18V |
| • Input Current: 1.5A ± 10% |
| • Maximum Input Current : ≤2A |
| • Output Voltage: 12V ± 5% （Actual Output Range: 11.4~12.6V ± 5%) |
| • Output Current: 1.0A ±10%(Output Current Range: 0.06~1A) |
| • Conversion Efficiency: ≥85% |
| • Power Stability Accuracy: ≤10% |
| • Noise Level: ≤50dB |
| • Charging Overvoltage Protection (Cell): 12.6V |
| • Charging Overcurrent Protection (SW): 1.5A |
| • Discharging Undervoltage Protection (Cell): 8.4V |
| • Discharging Undervoltage Protection (SW): 9.3V |
| • Output Overcurrent Protection: ≥1.5A |
| • Charging times: > 500 cycles |
| • Charge Interface:Type-C |
| • Discharge Interface: DC 2.1 * 5.5 male |
| • Seismic Level: 5G |
| • Waterproof Level: IP67 |
| • Installation: With Strong Magnetic |
| • Charging Working Temperature: 0 ℃ to + 45℃ |
| • Discharge Working Temperature: -10℃ to + 50 ℃ |
| • Storage Temperature: -30 ℃ to + 60 ℃ |
| • Dimensions (mm): 108mm x 75mm x 29.5mm (without tails) |
| • Housing: Aluminium Alloy |
| • Installation: Magnetic Mounting (Built-in N52-D15H4 Strong Magnet) Front Pulling Force >25KG, Side Pulling Force >12KG |
| • Input Interface: Type-C |
| • Output Interface: DC5.5/2.1 Male |
| • Weight: 700g |
| • One Year Warranty |
Battery Dimensions: mm
| 4 High-Brightness Blue LED Indicators, Activated by Button Press |
| BATTERY CHARGING And DISCHARGING STATE |
| • 1 LED flashing, the battery power: 0~25% |
| • 2 LED On, 1 LED flashing, the battery power: 25~50% |
| • 3 LED On, 1 LED flashing, the battery power: 50~75% |
| • 4 LDE on, 1 LDE flashing, the battery power is 75~99% |
| • 4 LDE on, the battery power is 100% |
| • The battery charging time is approx.2~4 Hours |
| • Using a DC12V/2A USB charger will take approx. 2 Hours |
| • One Illuminated Green LED : Working Condition |
| • First Blue LED Flashing : Low Voltage Warning ( when voltage drops below 9.5V) |
| • Heat Dissipation Method: Natural Air Cooling |
| • Relative Humidity: 10%~90% |
Strong magnetic camera / monitor base that attaches to the camera or monitor bracket that can be mounted onto magnetic surfaces.
Camera Magnet Bracket |
| • Products Compatible：NAS Cameras With U-Support Brackets |
| • Testing Standard：The 4.12.4 Term Of ISO16750-3 For Vibration Test- Able To Keep Still For 8 Hours When The Value Of Root Mean Square is 27.8m/s² |
| • Installation Instruction：Fix The Magnetic Base To The U-Support Bracket of Camera And Attach the Camera To The Vehicle |
| • Accessories：Washer d5 x 1, spring washer d5 x 1, hex-head screw M5 x 8 |
Front View:
Back View:
Dimensions: mm
Accessories
Application: Fix The Magnetic Base To The U-Support Bracket of Camera And Attach the Camera To The Vehicle
