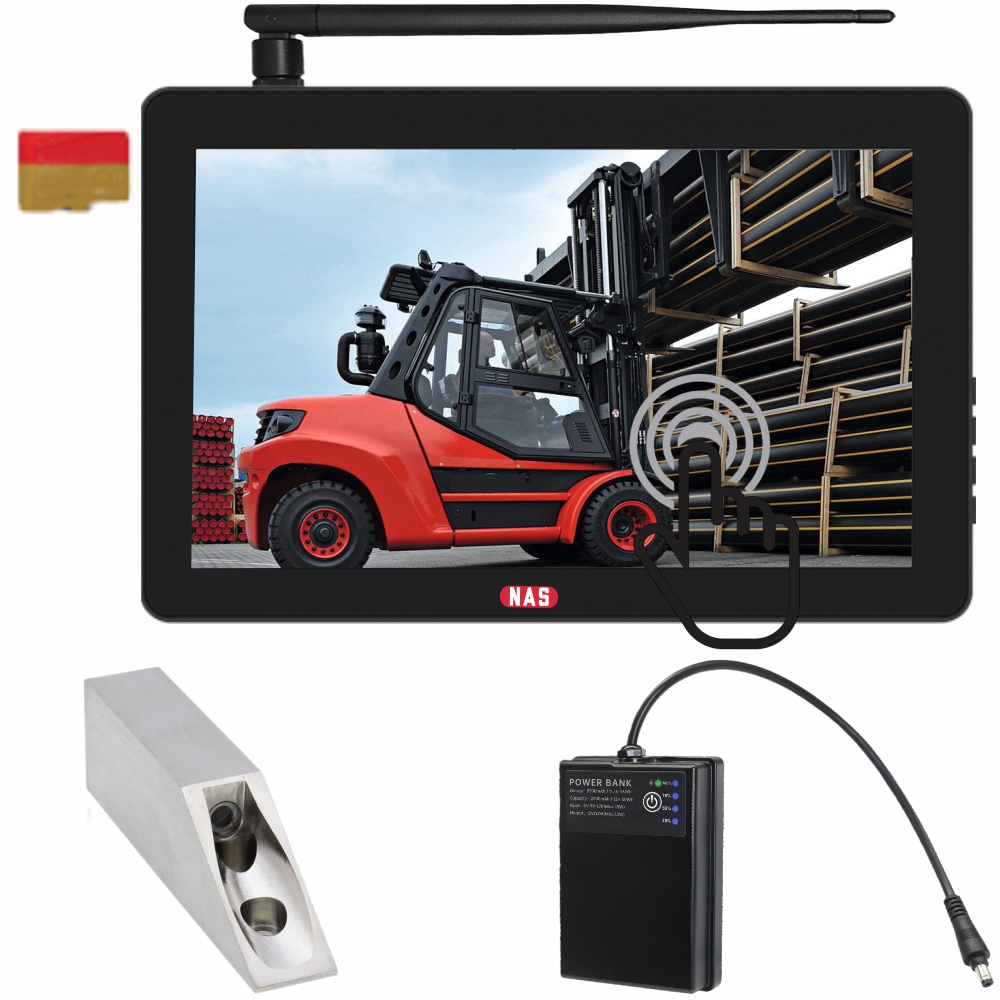

This 10 inch waterproof wireless forklift camera system includes a 10.1 inch touchscreen DVR monitor, 1080P stainless-steel forklift camera with a focused 52° viewing angle and a rechargeable magnetic battery pack. Designed to improve fork visibility, pallet alignment and load handling in demanding industrial environments.
Key features
- 10.1 inch waterproof touchscreen monitor
- IP66 waterproof monitor housing
- Built-in DVR recording and playback
- Adjustable crosshair guide lines
- 1080P digital wireless forklift camera
- Focused 52° camera viewing angle
- IP69K waterproof camera
- 304 stainless-steel camera housing
- Internal camera antenna
- Rechargeable 12V magnetic battery pack
- Approximately 14 hours of camera operation without infrared use
- Approximately seven hours with continuous infrared use
- Monitor supports up to four cameras
- Micro-SD card support up to 512GB
- Camera wireless range up to 100 metres clear line of sight
- Suitable for forklifts and material-handling equipment
This 10 inch waterproof wireless forklift camera system is designed for industrial environments where clear fork visibility, accurate load positioning and reliable equipment are required.
The system includes a 10.1 inch IP66 waterproof touchscreen DVR monitor, a 1080P stainless-steel forklift camera with a focused 52 degree viewing angle and a rechargeable magnetic battery pack.
The narrow 52 degree camera angle provides a more concentrated view of the forks and load area than a standard wide-angle reversing camera. This assists operators with fork positioning, pallet alignment and load handling in warehouses, logistics facilities and industrial worksites.
The rechargeable battery powers the camera without requiring a permanent electrical connection. This reduces installation wiring and allows the camera and battery to be positioned on the forklift where they provide the most useful view. The monitor is connected to the forklift’s 12V or 24V electrical supply.
The waterproof touchscreen monitor includes DVR recording and adjustable crosshair guide lines. The crosshair can be moved, zoomed in or zoomed out to provide an additional visual reference for fork and load alignment. The monitor supports up to four wireless cameras, allowing additional rear or side cameras to be added later.
The forklift camera is manufactured from 304 stainless steel, has an IP69K waterproof rating and an internal wireless antenna. Its wireless range is up to 100 metres in clear line-of-sight conditions.
10.1-Inch HD Digital Wireless Monitor
The 10.1-inch touch screen monitor has 1024 x 600 resolution, built-in DVR and supports up to four digital wireless reversing cameras.
A Live Image of a Forklift Camera Showing the Clarity

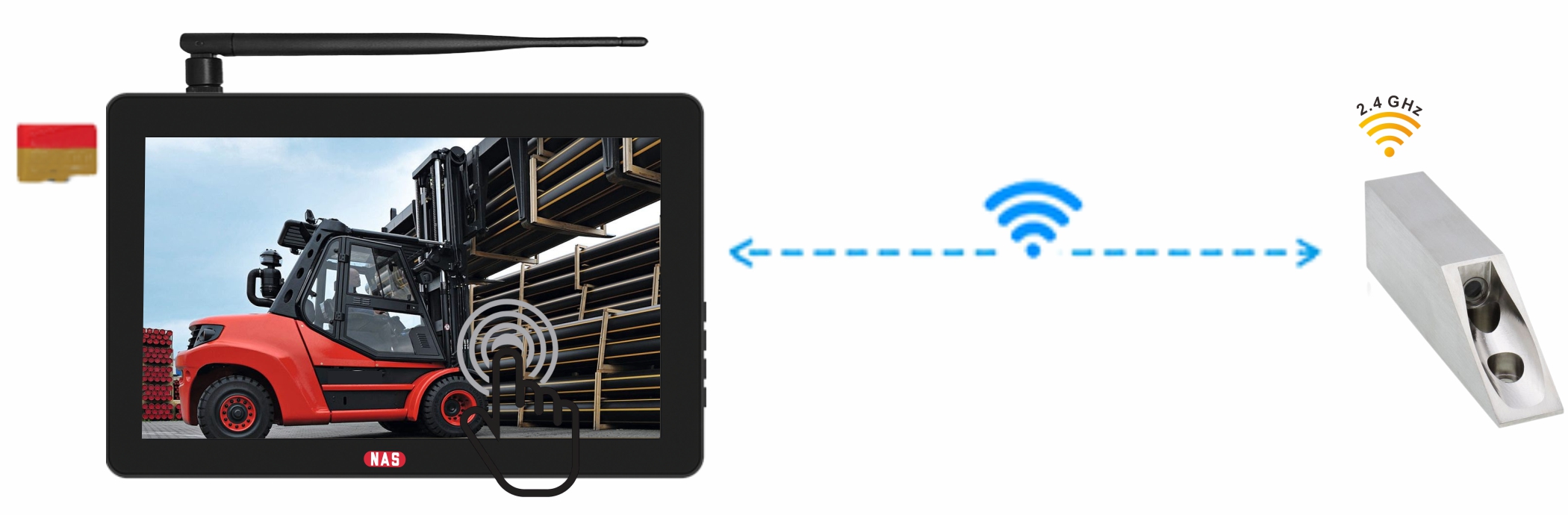

Wireless Range Up to 100 Metres
The digital wireless system provides a stable, interference-resistant signal at distances of up to 100 metres in clear line-of-sight conditions. Obstacles in the way of the wireless signal will reduce the wireless distance slightly.
Monitor Viewing Configurations
Touch Screen Monitor
The monitor supports a micro-SD cards up to 512GB. They require a speed equal to or greater than U3/V30. SD card is not included.
Monitor Recording Time
Monitor Mounting Brackets
U-Shaped Support Bracket
360° Universal Bracket
Stainless Steel Forklift Camera
IP69K waterproof 52° viewing angle, internal antenna 18dBm
Secure with screws.
Power Supply Options
The forklift camera can be powered by a battery pack or wired into a constant DC12V power supply.
DC12V Mobile Battery Pack
This 12V portable battery pack powers wireless reversing cameras without wiring. Featuring an IP67 waterproof aluminum housing and a strong magnetic base, it ensures secure, flexible camera placement for trucks, caravans, and industrial use.
KDW12VPP26 Approx.14 Hours No IR Usage
A 12V mobile battery pack can be purchased as an optional extra by clicking on the drop down box labelled "Battery - Is a Battery Pack Required" .
Digital Wireless Extension Antenna (ADWC).
5dBi Signal Boost, 3-meter cable that screws onto a camera or monitor, offering the flexibility to extend the antenna.
The antenna base is equipped with a magnetic base, although additional adhesive may be required for secure placement.
Lock Camera & Power Cable Connections
Ensure that the twist lock connection is fitted with the rubber cover and positioned securely over the junction. Additionally, it is advisable, if these connections are expected to be exposed to the elements, to wrap them with insulation tape to prevent water ingress.
10.1" Digital Wireless Quad Monitor Camera Kit (HDKDWWPQ10TCFL52PP – Concord) |
| • Wireless Range up to 100m Clear Line of Sight with the Forklift Camera |
| • The monitor can be viewed in Single, Split, three camera split or quad display mode. |
| • Wireless eliminates running cables through machinery. |
| • Power ~ Monitor DC11-32V, Camera DC12V |
| • Suitable for 12V and 24V Trucks, Heavy Equipment Mining and Farming Machinery |
| • The equipment is tough and is made specifically for farming, industrial and mining machinery. |
| Kit Includes |
| • 1 x HDKDWWPQ10.1TRec High Quality 10.1" IPS Touch Screen Digital Wireless IP66 Waterproof DVR Monitor |
| • 1 x CHDDWFL52 HD1080P Wireless 1/2.9 inch Colour CMOS |
| • 1 x KDW12VPP26 rechargeable 12V magnetic battery pack |
| • 1 x Antenna (1 for Monitor) |
| • Camera Emissive Power 18dBm |
| • Electrical Connecting Cables |
| • U-Support Bracket (other bracket styles are suitable too) |
| • Manual |
| • Monitor Two Year Warranty, Camera One Year Warranty |
Images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image pro
HD 10.1" Quad Digital Wireless Monitor With Adjustable Crosshair Guide Lines & Fully Laminated Touch Screen (HDKDWWPQ10TRec)
Waterproof - IP66
Key Features:
- 10.1" High Definition Display: Wide-screen AHD resolution for crystal-clear vision and enhanced rearview monitoring.
- Heavy-Duty Metal Bracket: Sturdy U-shape bracket & a 360° Universal Bracket included for secure mounting, suitable for commercial or industrial use.
- Suports upt to a 512GB SD card to record footage (SD card not included)
- Supports Up to 4 Cameras: Easily switch between four camera inputs for full vehicle coverage.
- Auto-Dimming: Automatically adjusts brightness based on light conditions.
- Adjustable Guidelines: On-screen parking guidelines can be enabled or disabled depending on your preference.
- 12V to 32V Wide Voltage Range: Compatible with a wide range of vehicles including caravans, 4WDs, trucks, buses, and agricultural equipment.
- Sunshield Included: Removable sun visor enhances screen visibility in direct sunlight – perfect for harsh Aussie outback glare.
- Remote Control + Touch Screen Control: Easily operate using the included remote or front panel controls.
- Durable Build for Australian Conditions: Built to handle heat, dust, and vibration – ideal for long-haul drivers and off-road operators.
Monitor Dimensions
Monitor Viewing Configuration:
Monitor Buttons
Monitor Recording Time
Monitor Rear View
Monitor Mounting Brackets
U-Shaped Support Aluminum Alloy Bracket
360° Universal Bracket: Aluminum Alloy +Rubber. Split It 360° Hold Up to 2KG One-Second Mounting
360° Universal Bracket Measurements
| • 10.1" IPS Full Laminate HD Touch Screen Monitor with Removable Sun Visor |
| • Built-in 2.4G digital wireless receiver |
| • View Monitor Screen: Quad / Three Way Split / Single screen / Split Dual Screen Display |
| • Operation Frequency Range: 2400 ~ 2483.5MHz |
| • Receiving Sensitivity: ≤-86dBm (1MHZ QPSK MD300RE)1024 |
| • Colour System: PAL/NTSC (Auto) |
| • Display Resolution: 1024(H) x 600(V) |
| • Surge and load dump protection: ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms） |
| • Response Time: 25ms |
| • Transmission Distance: 200m (No Barriers) |
| • Cross Hairs: Yes |
| • Wide View Angle (LR/UD) : (U/D) : 85/85 (L/R) : 85/85 |
| • Brightness (cd/m²): 600 |
| • Monitor Current: DC9V: 530mA (± 30mA) ; DC32V: 150mA (± 30mA) |
| • Contrast ratio: 800:1 |
| • Video Recording Function: Real-time Recording (2GB per Channel per hour) |
| • Video File Format: AVI |
| • Video Recording Capacity: Supports 16~512GB TF Cards |
| • Load Dump: DC 24 +174V / 350ms |
| • Connector Socket: 18-Pin Waterproof Interface |
| • Vibration Resistance: GB/T 2423.56-2023 Standard (Random 5G Vibration) |
| • External Power Supply Polarity Reversal Protection |
| • Operating temperature: -20℃ to +70℃ |
| • Storage temperature: -30℃ to +80℃ |
| • Power Supply: DC10~32V |
| • External dimensions :(L x W x T) (265 x 168 x 67mm)(Without Sun Visor and U-bracket ) |
| • Weight Approx: 4000g |
| • Two Year Warranty |
2.4G Digital Wireless 1080P HD Forklift Camera
Stainless Steel and Secure with the screws.
Built-in Internal Antenna
Camera Dimensions
Camera Cable Interface Definition
1080P HD Digital Wireless Forklift Camera (CHDDWFL52) |
| • Free viewing angle: 52° |
| • Waterproof: IP69K (100% waterproof) |
| • Image Type: 1/2.9 inch Colour CMOS |
| • Built in 2.4GHz Digital wireless transmitter |
| • Transmission Power: 18dBm |
| • Wireless Range: No Barriers ≤100m |
| • TV System: PAL (25fps) |
| • Resolution: 1080P |
| • Effective pixels: PAL 1920(H)*1080(V) |
| • Usable Illumination: 0.1Lux |
| • Night Vision Mode: IR-CUT Automatic Switching |
| • Shell material: 304 Stainless Steel, anti-collision design |
| • Free Operating Voltage: DC12Volts |
| • Shockproof: 5G (conforms to GB-T2423056-2006 standard) |
| • Dimensions: 127(W) x 37(H) x 24.5(D) mm (without mounting) |
| • Operating Temperature: -30 To + 70℃ Rh95% Max |
| • Storage Temperature: -40℃ To + 70℃ Rh95% Max |
| • Weight : 700g |
| • One Year Warranty |
DC12V Mobile Power With Aluminium Alloy Housing IP67 Waterproof Stronger Magnetic Base Mount
3.5 hours Fully Charged Approx. 14 hours of power to operate one digital wireless camera if there is not any Camera IR light Usage. Approx. 7 Hours if the Camera is running on full IR Lights because there is no external light source.
Fast charge, input/output overvoltage protection, overcharge/discharge protection, input overcurrent protection, short circuit protection, reset protection, temperature protection, Light load protection, battery PTC(Positive Temperature Coefficient) protection.Supports QC fast charging from 5V to 12V. Over 500 Cycle Lifespan.
18650 Li-ion Cells DC12V Mobile Power (R-KDW12VPP26) |
| • Type Battery ：Li-ion battery (Panasonic 18650 Lithium-ion cell original import) |
| • Cell Capacity ：3300mAh / 11.1V 36Wh |
| • Cell Energy : 36.6Wh |
| • Rated Capacity ：2500mAh/ 12V 30Wh |
| • Type-C Input (support fast charge)：5(V)3A -9V/(2A) -12V(1.5A) |
| • Fast Charge Mode ：QC 2.0/3.0 Agreement 9V/2A, 12V/1.5A (USB adapter needs to carry own QC agreement) |
| • DC Iuput (DC5.5 *2.1) ：12V / 1A (12W Typ.) |
| • Charging Method ：Constant Current (CC) 2A (0.2C) to 4.2V cut-off charge ; Constant Voltage (CV) 4.2V 100mA to charge off; 5A (0.5C) Charging |
| • Maximum Input Power : 18V |
| • Input Current: 1.5A ± 10% |
| • Maximum Input Current : ≤2A |
| • Output Voltage: 12V ± 5% （Actual Output Range: 11.4~12.6V ± 5%) |
| • Output Current: 1.0A ±10%(Output Current Range: 0.06~1A) |
| • Conversion Efficiency: ≥85% |
| • Power Stability Accuracy: ≤10% |
| • Noise Level: ≤50dB |
| • Charging Overvoltage Protection (Cell): 12.6V |
| • Charging Overcurrent Protection (SW): 1.5A |
| • Discharging Undervoltage Protection (Cell): 8.4V |
| • Discharging Undervoltage Protection (SW): 9.3V |
| • Output Overcurrent Protection: ≥1.5A |
| • Charging times: > 500 cycles |
| • Charge Interface:Type-C |
| • Discharge Interface: DC 2.1 * 5.5 male |
| • Seismic Level: 5G |
| • Waterproof Level: IP67 |
| • Installation: With Strong Magnetic |
| • Charging Working Temperature: 0 ℃ to + 45℃ |
| • Discharge Working Temperature: -10℃ to + 50 ℃ |
| • Storage Temperature: -30 ℃ to + 60 ℃ |
| • Dimensions (mm): 108mm x 75mm x 29.5mm (without tails) |
| • Housing: Aluminium Alloy |
| • Installation: Magnetic Mounting (Built-in N52-D15H4 Strong Magnet) Front Pulling Force >25KG, Side Pulling Force >12KG |
| • Input Interface: Type-C |
| • Output Interface: DC5.5/2.1 Male |
| • Weight: 700g |
| • One Year Warranty |
Battery Dimensions: mm
| 4 High-Brightness Blue LED Indicators, Activated by Button Press |
| BATTERY CHARGING And DISCHARGING STATE |
| • 1 LED flashing, the battery power: 0~25% |
| • 2 LED On, 1 LED flashing, the battery power: 25~50% |
| • 3 LED On, 1 LED flashing, the battery power: 50~75% |
| • 4 LDE on, 1 LDE flashing, the battery power is 75~99% |
| • 4 LDE on, the battery power is 100% |
| • The battery charging time is approx.2~4 Hours |
| • Using a DC12V/2A USB charger will take approx. 2 Hours |
| • One Illuminated Green LED : Working Condition |
| • First Blue LED Flashing : Low Voltage Warning ( when voltage drops below 9.5V) |
| • Heat Dissipation Method: Natural Air Cooling |
| • Relative Humidity: 10%~90% |
