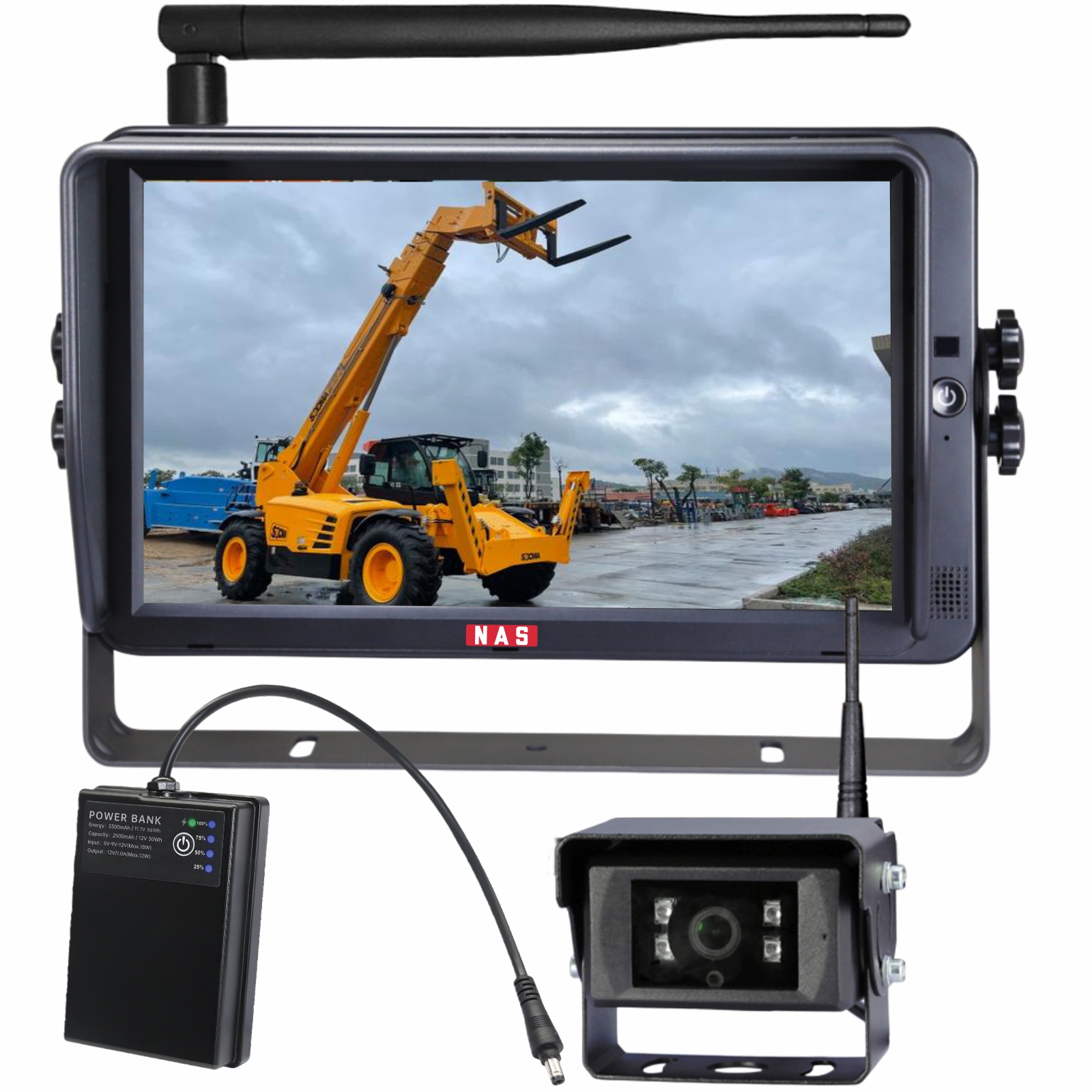

This 10 inch wireless forklift camera kit includes a 10.1 inch touchscreen DVR monitor, one 1080P digital wireless camera and a rechargeable 12V battery pack. Designed for rear, side and general observation on forklifts and material-handling equipment, it provides clear visibility without requiring a power cable to be run to the camera.
Key Features
- 10.1 inch HD touchscreen monitor
- Built-in DVR recording and playback
- One 1080P digital wireless camera
- Wide 130° camera viewing angle
- Rechargeable 12V camera battery pack
- Approximately 14 hours of battery operation without infrared use
- Approximately 7 hours when the camera infrared lights operate continuously
- Digital wireless range up to 300 metres in clear line-of-sight conditions
- Monitor supports up to four cameras
- Single, split-screen and quad viewing options
- Camera has an IP69K waterproof rating
- Supports a Micro SD card up to 128GB
- Suitable for industrial and material-handling applications
10.1-inch HD Digital Wireless Quad Monitor
This 10 inch digital wireless forklift camera kit is designed to improve rear, side and general visibility on forklifts and material-handling equipment. The system includes a 10.1 inch HD touchscreen monitor with recording, one 1080P digital wireless camera and a rechargeable 12V battery pack for powering the camera. It is a practical option for forklifts where connecting the camera directly to the vehicle’s electrical system or running additional power wiring may be difficult.The camera provides a wide 130° viewing angle for broad coverage around the forklift. Its IP69K-rated housing is designed for demanding industrial environments where dust, moisture and regular equipment use may be present. The touchscreen monitor supports up to four digital wireless cameras. Additional cameras can therefore be added later to provide visibility around other rear, side or load-area blind spots. The monitor requires a separate 12–32V connection inside the forklift. The included rechargeable battery pack powers the camera and has a strong magnetic base for secure placement on a suitable metal surface.

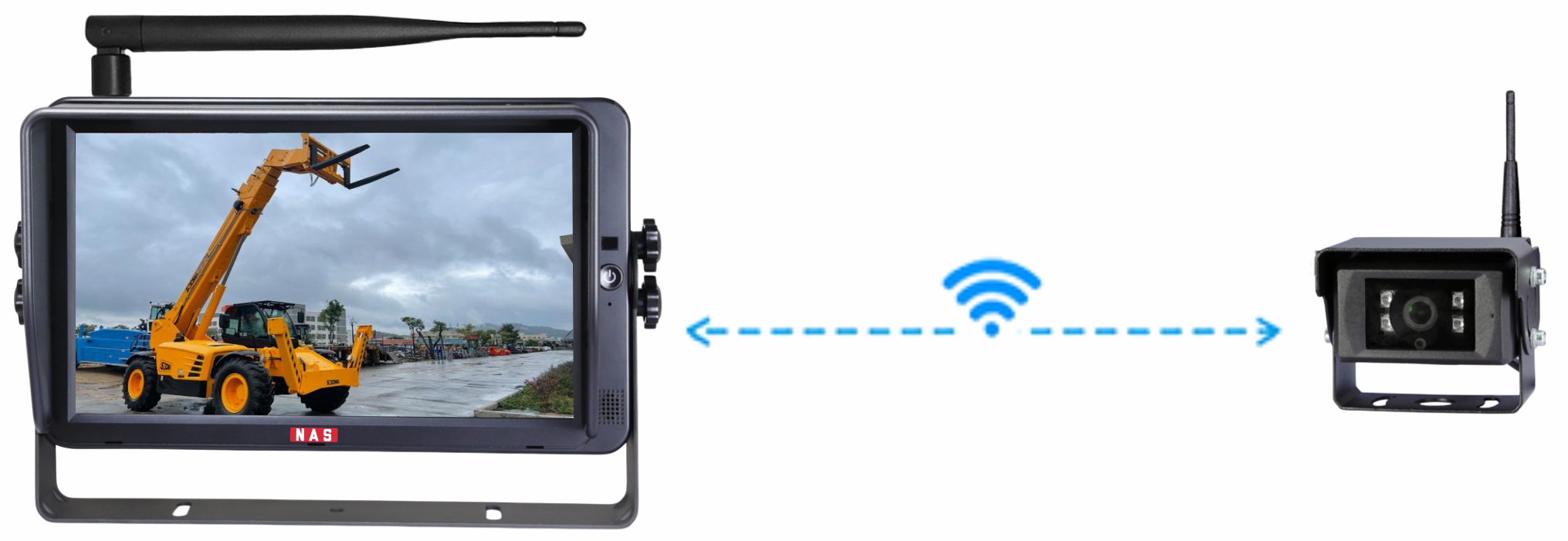

Wireless Range Up to 300 Metres
The digital wireless system provides a stable, interference-resistant signal at distances of up to 300 metres in clear line-of-sight conditions. Obstacles in the way of the wireless signal will reduce the wireless distance slightly.
Micro SD Card speed needs to be equal to or greater than class 10. Approximately 19 hours of recording before overwriting occurs. Supports up to a 128G. SD Card is Not Included
Two Mounting Options U-Shaped Mount
Fan Bracket Monitor Mount
Monitor Viewing Configurations
HD 1080P IP69K Waterproof Reversing Camera
Power
To power the monitors and cameras effectively, a power supply within the range of 12 to 32 volts is required, with an absolute minimum of 12 volts (12V) as a constant. A reliable guideline to keep in mind is that a blue screen on the monitor indicates insufficient constant power, while a black screen signals a lack of constant power to the cameras. While it's common practice to draw power for the cameras from the vehicle's tail lights, it's important to note that some modern European trucks and other European vehicles often provide less than 12 volts through the taillights. This voltage level is insufficient to ensure proper camera operation. For those involved in constructing new trailers or retrofitting vehicles, it is strongly recommended to install a dedicated power wire for the camera systems. This separate power source guarantees a steady and ample supply of 12V, ensuring the cameras operate consistently and reliably.
DC12V Mobile Battery Pack
This 12V portable battery pack powers wireless reversing cameras without wiring. Featuring an IP67 waterproof aluminum housing and a strong magnetic base, it ensures secure, flexible camera placement for trucks, caravans, and industrial use.
KDW12VPP26 Approx.14 Hours No IR Usage
A 12V mobile battery pack can be purchased as an optional extra by clicking on the drop down box labelled "Battery - Is a Battery Pack Required" .
Digital Wireless Extension Antenna (ADWC).
5dBi Signal Boost, 3-meter cable that screws onto a camera or monitor, offering the flexibility to extend the antenna.
The antenna base is equipped with a magnetic base, although additional adhesive may be required for secure placement.
3m Extension Cable
Connects to the Above Extension Antennas ADWC.
Extension cable can be connected to the Digital Wireless Cabled Extension Antenna – 5dBi (R-ADWC) giving an overall length of 6m.
14dBi Wireless Directional Panel Antenna (A14dBi）
High Gain Long Range
Antennas cable length - 5M
Boost the reach of your digital wireless kits using this high-grain, long-range antenna. If your monitor suffers from reception loss, this antenna markedly reinforces the signal. Farmers trust it to counter signal loss caused by grain dust, and it's equally valuable on road trains for increased signal strength. Optimal placement is on the back of the truck cab, making it versatile for various applications experiencing signal loss.
5m Extension Cable (EXT5mA14dBi)
For 14dBi Panel Antenna
5m Extension Cable that Connects to the Above 14dBi Panel Antenna providing an overall length of 10m. Excess cable can be rolled up.
Camera Magnetic Base
Can Be Mounted on a Magnetic Base for Ease of Fixing and Movability. The Magnet has a Very Strong Magnetic Hold.
A magnetic base can be purchased as an optional extra by clicking on the "Add Accessories" Tab
Secure Twist Lock Camera and Power cable Connections
Ensure that the twist lock connection is fitted with the rubber cover and positioned securely over the junction. Additionally, it is advisable, if these connections are expected to be exposed to the elements, to wrap them with insulation tape to prevent water ingress.
Kit Includes
| • 1 x HDKDWSQ101RecV 10.1inch Quad Digital Wireless IPS Reversing Monitor |
| • 1 x HDKDWS08V 1/2.9" CMOS Colour 1080P Digital Wireless Reversing Cameras 130° |
| • 1 x KDW12VPP26 rechargeable 12V magnetic battery pack |
| • 2 x Antenna (1 for Monitor and 1 for Camera) |
| • Electrical Connecting Cables |
| • U-Shaped Mount and Fan Mounting Bracket |
| • User Guide |
| • Monitor Supports Four Cameras |
| • Monitor 2 Year Warranty, Cameras 1 Year Warranty |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
Monitor Dimensions
Monitor Harness
Monitor harnesses have trigger cables that are typically White, Brown, Yellow, Green, and/or Blue. These don't need to be connected unless you want a camera to activate automatically, like when the vehicle shifts into reverse. Connecting the trigger wires means you won't be able to view the camera constantly while driving. If you choose not to connect them, wrap each trigger cable individually in insulation tape.
HD 10.1" Digital Wireless Touch Screen Monitor (HDKDWS10.1RecV) |
| Product Features |
| • Support 4CH 1080P wireless camera input |
| • Display modes quad-view mode, split-view mode, single view mode |
| • Support 4CH real-time recording with 128GB Micro SD card and video playback |
| • Supports both manual and automatic pairing |
| • Supports 5 trigger input-wires, including 4 channel single view trigger display and 1 channel split view trigger display, supports trigger priority |
| • Auto-dim lighting control |
| • Auto scan function |
| • Rear view parking lines available |
| • Safeguarded by super-capacitor against power overcurrent |
| • Rear view parking lines available |
| • LCD size: 10.1 inch |
| • Resolution: 1024x 3 (RGB) x600 |
| • Contrast: 600:1 |
| • Brightness: 600 cd/m² |
| • Viewing Angle: U: 85 / D: 85, R/L: 85 |
| • Aspect Ratio: 16:9 |
| • Channel: 4 channels |
| • Operating Frequency: 2400 -2483.5MHz (ISM band) |
| • Transmission Power FCC： ≤26dBm CE： ≤20dBm MIC： ≤10dBm |
| • Transmission Distance FCC： ≤300m CE： ≤200m MIC： ≤60m |
| • Receiving Sensitivity: -78 dBm |
| • Decompression Format: H.264 |
| • Modulation: FHSS |
| • Micro-SD Card: Max. 128G (SD Card Not Included) |
| • Time Delay: 130ms |
| • System Format: PAL / NTSC |
| • Power Supply DC 10-32V |
| • Power Consumption: Max. 10W |
| • Loudspeaker: 1.5W/8Ω |
| • Monitor Current: DC9V: 442mA ; DC32V : 133mA |
| • Operating Temperature: -20~+70ºC, RH 90% |
| • Storage Temperature: -30~+80℃, RH 90% |
Camera Dimensions
HD Digital Wireless Camera (HDKDWS08V) |
| Product Features |
| • Lens Viewing Angle: 130° |
| • IP69K waterproof housing |
| • Night vision distance: approx. 8~10 m (4 infrared lights) |
| • DC12V-32V |
| • Smart IR function |
| • Anti-vibration: ISO 16750-3 (Max. 17.3G) |
| Key Specifications |
| • Image Device: 1/2.9" CMOS |
| • TV System: PAL / NTSC |
| • Effective Pixels: 1920 (H) x 1080 (V) |
| • Scanning System: Progressive Scanning |
| • Sync. System: Internal |
| • Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR) |
| • Microphone: Yes |
| • Video Output: 8 bits YUV |
| • S/N Ratio: S/N(a-weighted) 38dB |
| • White Balance: Auto |
| • BLC: Auto |
| • Operation Frequency: 2403MHz-2478MHz |
| • Receiving Sensitivity: -78dBm |
| • Video Code: H.264 |
| • Modulation: FHSS |
| • Decompression Format: H.264 |
| • Camera Current: DC12V: 120mA ~224mA (day)/ 270mA~411mA (with IR); DC32V: 68mA ~110mA (day) / 119mA ~157mA (with IR) |
| • Transmission Power FCC： ≤26dBm CE： ≤20dBm MIC： ≤10dBm |
| • Transmission Distance FCC： ≤300m CE： ≤200m MIC： ≤60m |
| • Delay: 170ms |
| • RF Bit Rate: 12Mbps |
| • Power Consumption Day： 1.8W-2.5W / Night： 3.6W-4.3W |
| • Loudspeaker: 1W/8Ω |
| • Operating Temperature: -20~+70ºC, RH 90% MAX. |
| • Storage Temperature: -30~+80℃, RH 90% MAX. |
DC12V Mobile Power With Aluminium Alloy Housing IP67 Waterproof Stronger Magnetic Base Mount
3.5 hours Fully Charged Approx. 14 hours of power to operate one digital wireless camera if there is not any Camera IR light Usage. Approx. 7 Hours if the Camera is running on full IR Lights because there is no external light source.
Fast charge, input/output overvoltage protection, overcharge/discharge protection, input overcurrent protection, short circuit protection, reset protection, temperature protection, Light load protection, battery PTC(Positive Temperature Coefficient) protection.Supports QC fast charging from 5V to 12V. Over 500 Cycle Lifespan.
18650 Li-ion Cells DC12V Mobile Power (R-KDW12VPP26) |
| • Type Battery ：Li-ion battery (Panasonic 18650 Lithium-ion cell original import) |
| • Cell Capacity ：3300mAh / 11.1V 36Wh |
| • Cell Energy : 36.6Wh |
| • Rated Capacity ：2500mAh/ 12V 30Wh |
| • Type-C Input (support fast charge)：5(V)3A -9V/(2A) -12V(1.5A) |
| • Fast Charge Mode ：QC 2.0/3.0 Agreement 9V/2A, 12V/1.5A (USB adapter needs to carry own QC agreement) |
| • DC Iuput (DC5.5 *2.1) ：12V / 1A (12W Typ.) |
| • Charging Method ：Constant Current (CC) 2A (0.2C) to 4.2V cut-off charge ; Constant Voltage (CV) 4.2V 100mA to charge off; 5A (0.5C) Charging |
| • Maximum Input Power : 18V |
| • Input Current: 1.5A ± 10% |
| • Maximum Input Current : ≤2A |
| • Output Voltage: 12V ± 5% （Actual Output Range: 11.4~12.6V ± 5%) |
| • Output Current: 1.0A ±10%(Output Current Range: 0.06~1A) |
| • Conversion Efficiency: ≥85% |
| • Power Stability Accuracy: ≤10% |
| • Noise Level: ≤50dB |
| • Charging Overvoltage Protection (Cell): 12.6V |
| • Charging Overcurrent Protection (SW): 1.5A |
| • Discharging Undervoltage Protection (Cell): 8.4V |
| • Discharging Undervoltage Protection (SW): 9.3V |
| • Output Overcurrent Protection: ≥1.5A |
| • Charging times: > 500 cycles |
| • Charge Interface:Type-C |
| • Discharge Interface: DC 2.1 * 5.5 male |
| • Seismic Level: 5G |
| • Waterproof Level: IP67 |
| • Installation: With Strong Magnetic |
| • Charging Working Temperature: 0 ℃ to + 45℃ |
| • Discharge Working Temperature: -10℃ to + 50 ℃ |
| • Storage Temperature: -30 ℃ to + 60 ℃ |
| • Dimensions (mm): 108mm x 75mm x 29.5mm (without tails) |
| • Housing: Aluminium Alloy |
| • Installation: Magnetic Mounting (Built-in N52-D15H4 Strong Magnet) Front Pulling Force >25KG, Side Pulling Force >12KG |
| • Input Interface: Type-C |
| • Output Interface: DC5.5/2.1 Male |
| • Weight: 700g |
| • One Year Warranty |
Battery Dimensions: mm
| 4 High-Brightness Blue LED Indicators, Activated by Button Press |
| BATTERY CHARGING And DISCHARGING STATE |
| • 1 LED flashing, the battery power: 0~25% |
| • 2 LED On, 1 LED flashing, the battery power: 25~50% |
| • 3 LED On, 1 LED flashing, the battery power: 50~75% |
| • 4 LDE on, 1 LDE flashing, the battery power is 75~99% |
| • 4 LDE on, the battery power is 100% |
| • The battery charging time is approx.2~4 Hours |
| • Using a DC12V/2A USB charger will take approx. 2 Hours |
| • One Illuminated Green LED : Working Condition |
| • First Blue LED Flashing : Low Voltage Warning ( when voltage drops below 9.5V) |
| • Heat Dissipation Method: Natural Air Cooling |
| • Relative Humidity: 10%~90% |
Strong magnetic camera / monitor base that attaches to the camera or monitor bracket that can be mounted onto magnetic surfaces.
Camera Magnet Bracket |
| • Products Compatible：NAS Cameras With U-Support Brackets |
| • Testing Standard：The 4.12.4 Term Of ISO16750-3 For Vibration Test- Able To Keep Still For 8 Hours When The Value Of Root Mean Square is 27.8m/s² |
| • Installation Instruction：Fix The Magnetic Base To The U-Support Bracket of Camera And Attach the Camera To The Vehicle |
| • Accessories：Washer d5 x 1, spring washer d5 x 1, hex-head screw M5 x 8 |
Front View:
Back View:
Dimensions: mm
Accessories
Application: Fix The Magnetic Base To The U-Support Bracket of Camera And Attach the Camera To The Vehicle
