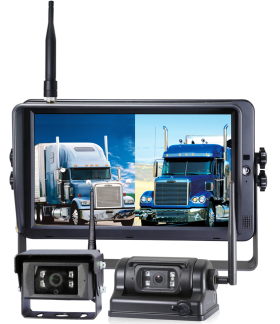

This 10 inch wireless reversing camera kit includes two HD 1080P cameras, with one battery powered magnetic camera for flexible mounting. Featuring a quad touchscreen monitor with recording, it is ideal for trucks, farming, forklifts and industrial vehicles needing reliable visibility in Australian conditions.
Key Features:
- 10 inch HD quad touchscreen monitor with recording
- 2 x 1080P wireless cameras
- 1 x battery powered magnetic camera
- Long range wireless signal up to 300 metres
- Portable camera ideal for trailers and temporary mounting
- Supports up to 4 cameras
- Built for industrial and heavy duty use
10.1-inch AHD Digital Wireless Quad Monitor 1024*600 Resolution
Strong Wireless Signal No Interference Up to 300m Clear Line of Sight
Our advanced wireless monitors and cameras deliver a robust wireless signal with an impressive transmission range of up to 300 meters in clear line of sight. The battery-operated camera has a maximum range of up to 100 meters in clear line of sight, from the monitor offering the flexibility and portability for various applications. Designed to enhance safety and visibility, this system is perfect for truck driving, machinery operation, and farming tasks such as seeding and grain loading, ensuring efficiency and protection for you and your team.
Please note, obstacles may slightly reduce the wireless signal range
Micro SD Card speed needs to be equal to or greater than class 10. Approximately 19 hours of recording before overwriting occurs. Supports up to a 128G. SD Card is Not Included. The monitor only records what is actively being viewed on the monitor.
Two Mounting Options U-Shaped Mount
Fan Bracket Monitor Mount
Monitor Viewing Configurations
HD 1080P Waterproof IP69K Reversing Camera
LEDs for Night Vision
Power
To power the monitors and cameras effectively, a power supply within the range of 12 to 32 volts is required, with an absolute minimum of 12 volts (12V) as a constant. A reliable guideline to keep in mind is that a blue screen on the monitor indicates insufficient constant power, while a black screen signals a lack of constant power to the cameras.
While it's common practice to draw power for the cameras from the vehicle's tail lights, it's important to note that some modern European trucks and other European vehicles often provide less than 12 volts through the taillights. This voltage level is insufficient to ensure proper camera operation. For those involved in constructing new trailers or retrofitting vehicles, it is strongly recommended to install a dedicated power wire for the camera systems. This separate power source guarantees a steady and ample supply of 12V, ensuring the cameras operate consistently and reliably.
HD 1080P Waterproof IP69K Battery Operated Reversing Camera with a Strong Magnetic Base.
Power Button
Power Button: press once to turn on and double click to enter it into standby mode. When the monitor enters a standby mode for 20s, or switch's to another camera on the monitor, the battery camera will enter a standby low power mode automatically; when viewing the battery camera again it will wakeup and commence normal operation.
Battery Life Indicators
Installing the Cable Antenna
1. Unscrew existing antenna
2. Unscrew Washer Bolt
3. Feed the cabled antenna end through the hole in the washer bolt and screw the cabled antenna onto the the fitting inside the camera.
4. Screw the Washer Bolt back on.
Battery Charging
A 5V~12V power supply can be use to charge the battery in the cameras.
DO NOT use a power supply above 12V.
Camera comes with a USB lead for charging.
Digital Wireless Extension Antenna 5dBi Signal Boost, 3-meter cable that screws onto a camera or monitor, offering the flexibility to extend the antenna (ADWC).
The antenna base is equipped with a magnetic base, although additional adhesive may be required for secure placement.
3m Extension Cable that Connects to the Above Extension Antennas ADWC.
Extension cable can be connected to the Digital Wireless Cabled Extension Antenna – 5dBi (R-ADWC) giving an overall length of 6m.
14dBi Wireless Directional Panel Antenna High Gain Long Range - (A14dBi）
Antennas cable length - 5M
Boost the reach of your digital wireless kits using this high-grain, long-range antenna. If your monitor suffers from reception loss, this antenna markedly reinforces the signal. Farmers trust it to counter signal loss caused by grain dust, and it's equally valuable on road trains for increased signal strength. Optimal placement is on the back of the truck cab, making it versatile for various applications experiencing signal loss.
5m Extension Cable for 14dBi Panel Antenna (EXT5mA14dBi)
5m Extension Cable that Connects to the Above 14dBi Panel Antenna providing an overall length of 10m. Excess cable can be rolled up.
Secure Twist Lock Camera and Power cable Connections
Ensure that the twist lock connection is fitted with the rubber cover and positioned securely over the junction. Additionally, it is advisable, if these connections are expected to be exposed to the elements, to wrap them with insulation tape to prevent water ingress.
Kit Includes
| • 1 x HDKDWS101RecV 10.1inch Quad Digital Wireless IPS Screen Reversing Monitor |
| • 1 x HDKDWS08V 1/2.9" CMOS Colour 1080P Digital Wireless Reversing Cameras 130° |
| • 1 x HDKDWS08Bat 1/2.9" CMOS Colour 1080P Digital Wireless Reversing Camera Built-in 12 Hour Battery & Magnetic Base 130° |
| • 3 x Antenna (1 for Monitor and 2 for Cameras) |
| • Electrical Connecting Cables |
| • U-Shaped Mount and Fan Mounting Bracket |
| • User Guide |
| • Monitor Supports Four Reversing Cameras |
| • Monitor Two Year Warranty Cameras One Year Warranty |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
Monitor Dimensions
Monitor Harness
Monitor harnesses have trigger cables that are typically White, Brown, Yellow, Green, and/or Blue. These don't need to be connected unless you want a camera to activate automatically, like when the vehicle shifts into reverse. Connecting the trigger wires means you won't be able to view the camera constantly while driving. If you choose not to connect them, wrap each trigger cable individually in insulation tape.
HD 10.1" Digital Wireless Touch Screen Monitor (HDKDWS10.1RecV) |
| Product Features |
| • Support 4CH 1080P wireless camera input |
| • Display modes quad-view mode, split-view mode, single view mode |
| • Support 4CH real-time recording with 128GB Micro SD card and video playback |
| • Supports both manual and automatic pairing |
| • Supports 5 trigger input-wires, including 4 channel single view trigger display and 1 channel split view trigger display, supports trigger priority |
| • Auto-dim lighting control |
| • Auto scan function |
| • Rear view parking lines available |
| • Safeguarded by super-capacitor against power overcurrent |
| • Rear view parking lines available |
| • LCD size: 10.1 inch |
| • Resolution: 1024x 3 (RGB) x600 |
| • Contrast: 600:1 |
| • Brightness: 600 cd/m² |
| • Viewing Angle: U: 85 / D: 85, R/L: 85 |
| • Aspect Ratio: 16:9 |
| • Channel: 4 channels |
| • Operating Frequency: 2400 -2483.5MHz (ISM band) |
| • Transmission Power FCC： ≤26dBm CE： ≤20dBm MIC： ≤10dBm |
| • Transmission Distance FCC： ≤300m CE： ≤200m MIC： ≤60m |
| • Receiving Sensitivity: -78 dBm |
| • Decompression Format: H.264 |
| • Modulation: FHSS |
| • Micro-SD Card: Max. 128G (SD Card Not Included) |
| • Time Delay: 130ms |
| • System Format: PAL / NTSC |
| • Power Supply DC 10-32V |
| • Power Consumption: Max. 10W |
| • Loudspeaker: 1.5W/8Ω |
| • Monitor Current: DC9V: 442mA ; DC32V : 133mA |
| • Operating Temperature: -20~+70ºC, RH 90% |
| • Storage Temperature: -30~+80℃, RH 90% |
Digital Wireless HD 1080P Camera Incorporates a 12 Hour Battery and a Super Strong Magnetic Base 130° Viewing Angle.
Camera only works with the HDKDW10.1RecV and HDKDW9RecV monitors and will not work with any other model or brand of wireless monitor.
Strong Wireless Signal No Interference Up to 300m Clear Line of Sight
Obstacles in the way of the wireless signal will reduce the wireless distance slightly.
HD 1080P Waterproof Camera IP69K
Power Button
Power Button: press once to turn on and double click to enter it into standby mode. When the monitor enters a standby mode for 20s, or switch's to another camera on the monitor, the battery camera will enter a standby low power mode automatically; when viewing the battery camera again it will wakeup and commence normal operation.
Battery Life Indicators
Battery Charging
A 5V~12V power supply can be use to charge the battery in the cameras.
DO NOT use a power supply above 12V.
Camera comes with a USB lead for charging.
HD 1080P Digital Wireless Camera Built-In 12 Hour Battery & Magnetic Base (HDKWS08Bat) |
| Product Features |
| • 1080P High Resolution |
| • Waterproof: IP69K approved |
| • Shock Rate: 17.3g |
| • Battery Camera Antenna: 4.5dB |
| • Lens: IR-Cut Solves Colour Deviations Under Sun Light |
| • Working status switch button, switch between work/sleep mode |
| • Battery capacity indicator |
| • Overcharging/Over discharging protection |
| • Short-circuit protection |
| • Overheat and low temperature protection |
| • Strong magnetic base |
| • When the monitor enters standby mode for 20s, or switch's to another camera on the monitor, the battery camera will enter a standby low power mode; when viewing the battery camera again it will wakeup and commence normal operation. |
| • Low power consumption :less than 1.5mW at sleep mode; less than 10mW at standby mode. |
| • Strong magnetic base |
| • Battery Capacity: 3.6V/6400mAh |
| • Charging Voltage: DC 5~12V |
| • Charging Time: 5V/8H,12V/3H |
| • Charging Current: 5V/1.5A(MAX),12V/1.5A(MAX) |
| • Discharging Time: 9H (Daytime) 5H(Nighttime) |
| • Charging Temperature: -10 ~ 45℃ |
| • Discharging Temperature: -20 ~ 60℃ |
| • Storage Temperature: -20 ~ 60℃ |
| • Dimension: 116*80*66 (mm) |
| • Weight: 670g |
| • Image Device: 1/2.9" CMOS |
| • Effective Pixels: 1920 (H) x 1080 (V) |
| • Pixel Size: 4.2um×4.2um |
| • Scanning System: Progressive Scanning |
| • Sync. System: Internal |
| • AGC: Auto |
| • S/N Ratio: 38dB |
| • White Balance: Auto |
| • Operation Frequency: 2403MHz-2478MHz |
| • Receiving Sensitivity: -78dBm |
| • Video Codec: H.264 |
| • Frame Rate: 25/30fps |
| • Transmission Power: FCC： ≤26dBm CE： ≤20dBm MIC： ≤10dBm |
| • Transmission Distance: FCC： ≤300m CE： ≤200m MIC： ≤60m |
| • Spread SPECTRUM: FHSS |
| • Delay: 170ms |
| • RF Bit Rate: 12Mbps |
| • Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR) |
| • Camera Current: DC12V: 120mA ~224mA (day)/ 270mA~411mA (with IR); DC32V: 68mA ~110mA (day) / 119mA ~157mA (with IR) |
| • Power Supply: DC 10~32V |
| • Night Vision Distance: 8~10m |
| • Waterproof Rating: IP69K |
| • Viewing Angle: 130° |
| • Battery Storage: Charge Battery to 75% capacity before storing, and charge it again to 75% within 150 days. |
| • Battery Storage: If stored for a long time, the initial charging current will be slow, but it will become normal. The AC Adapter (Charger) is recommended for charging. |
Camera Dimensions
HD Digital Wireless Camera (HDKDWS08V) |
| Product Features |
| • Lens Viewing Angle: 130° |
| • IP69K waterproof housing |
| • Night vision distance: approx. 8~10 m (4 infrared lights) |
| • DC12V-32V |
| • Smart IR function |
| • Anti-vibration: ISO 16750-3 (Max. 17.3G) |
| Key Specifications |
| • Image Device: 1/2.9" CMOS |
| • TV System: PAL / NTSC |
| • Effective Pixels: 1920 (H) x 1080 (V) |
| • Scanning System: Progressive Scanning |
| • Sync. System: Internal |
| • Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR) |
| • Microphone: Yes |
| • Video Output: 8 bits YUV |
| • S/N Ratio: S/N(a-weighted) 38dB |
| • White Balance: Auto |
| • BLC: Auto |
| • Operation Frequency: 2403MHz-2478MHz |
| • Receiving Sensitivity: -78dBm |
| • Video Code: H.264 |
| • Modulation: FHSS |
| • Decompression Format: H.264 |
| • Camera Current: DC12V: 120mA ~224mA (day)/ 270mA~411mA (with IR); DC32V: 68mA ~110mA (day) / 119mA ~157mA (with IR) |
| • Transmission Power FCC： ≤26dBm CE： ≤20dBm MIC： ≤10dBm |
| • Transmission Distance FCC： ≤300m CE： ≤200m MIC： ≤60m |
| • Delay: 170ms |
| • RF Bit Rate: 12Mbps |
| • Power Consumption Day： 1.8W-2.5W / Night： 3.6W-4.3W |
| • Loudspeaker: 1W/8Ω |
| • Operating Temperature: -20~+70ºC, RH 90% MAX. |
| • Storage Temperature: -30~+80℃, RH 90% MAX. |
