This 7 inch wireless forklift camera system includes a fully laminated touchscreen DVR monitor, 1080P stainless-steel forklift camera with a focused 52° viewing angle and a rechargeable magnetic battery. Designed to improve fork visibility, pallet alignment and load handling in industrial environments.
Key features
- 7 inch fully laminated HD touchscreen monitor
- Built-in DVR recording and playback
- 1080P digital wireless forklift camera
- Focused 52° camera viewing angle
- 304 stainless-steel anti-collision camera housing
- IP69K waterproof camera
- Internal camera antenna
- Camera wireless range up to 100 metres in clear line-of-sight conditions
- Rechargeable 12V magnetic battery pack
- Approximately 14 hours of camera operation
- Supports up to four wireless cameras
- Single, dual, three-camera and quad view
- Supports micro-SD cards from 16GB to 512GB
- Monitor operates from 11–32V
- Two-year monitor warranty and one-year camera warranty
This 7 inch digital wireless forklift camera system is designed to improve fork visibility, pallet positioning and operational control in warehouses, logistics facilities and industrial environments.

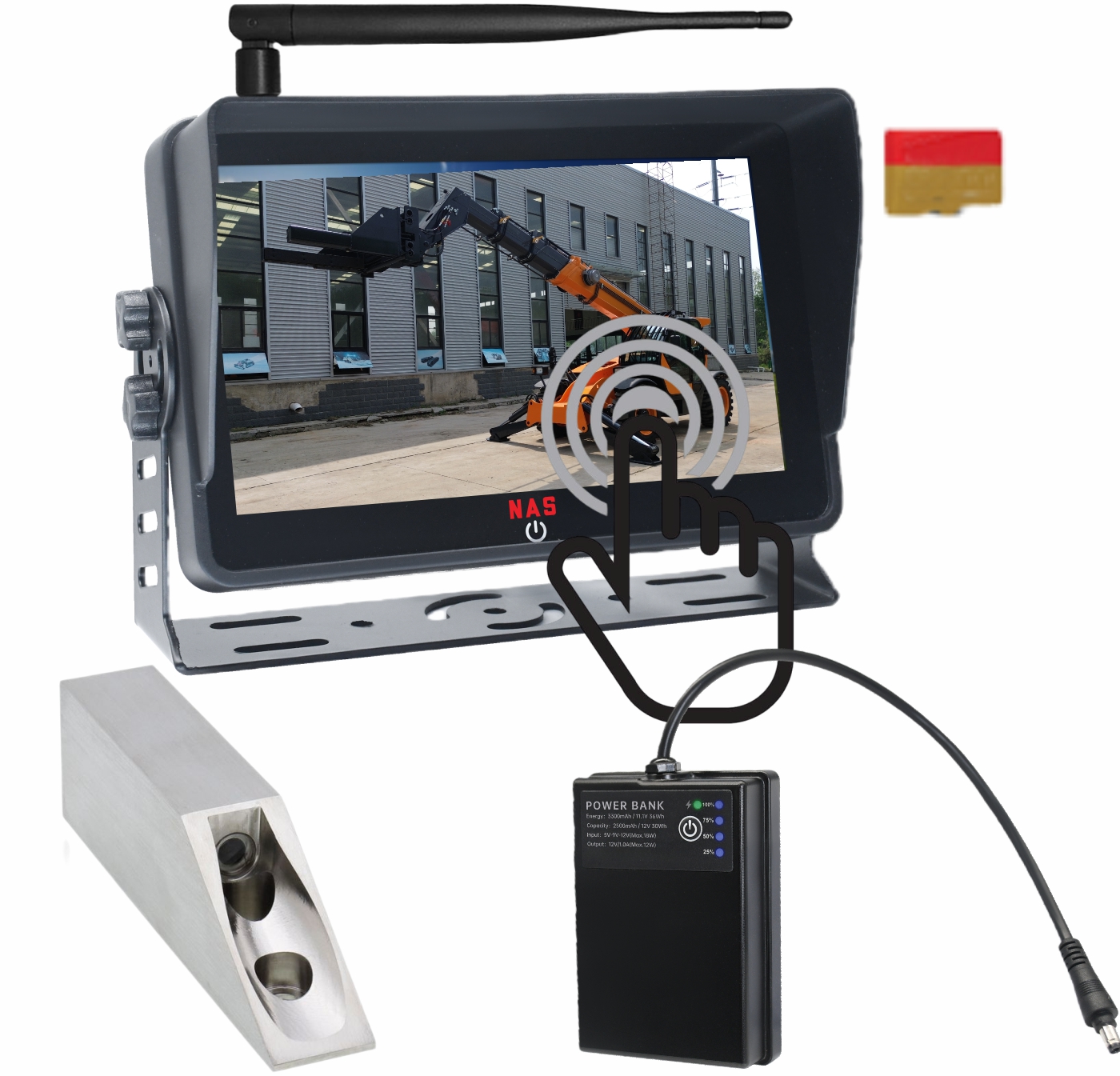

The system includes a 7 inch fully laminated touchscreen DVR monitor, a purpose-built 1080P stainless-steel forklift camera and a rechargeable 12V magnetic battery pack.

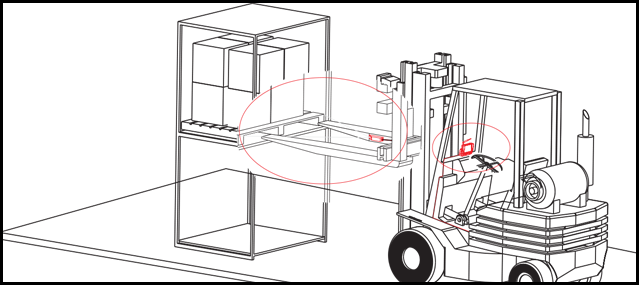

The forklift camera has a focused 52° viewing angle, providing a concentrated view of the forks and load area. This makes it more suitable for fork positioning and pallet alignment than a standard wide-angle reversing camera. Its compact 304 stainless-steel housing has an anti-collision design and an IP69K waterproof rating for demanding industrial applications.
The rechargeable battery powers the camera without requiring a permanent power connection at the camera location. Its strong magnetic base allows it to be secured to a suitable metal surface, reducing the need to run power wiring along the forklift mast. The battery provides approximately 14 hours of camera operation, depending on operating conditions.
The fully laminated touchscreen monitor includes built-in DVR recording and supports up to four digital wireless cameras. Additional cameras can be added for reversing, side visibility or other forklift blind spots. The screen supports single, dual, three-camera, quad and picture-in-picture viewing modes.
The monitor must be connected to the forklift’s electrical supply, while the included battery powers the forklift camera.
A Live Image of a Forklift Camera Showing the Clarity

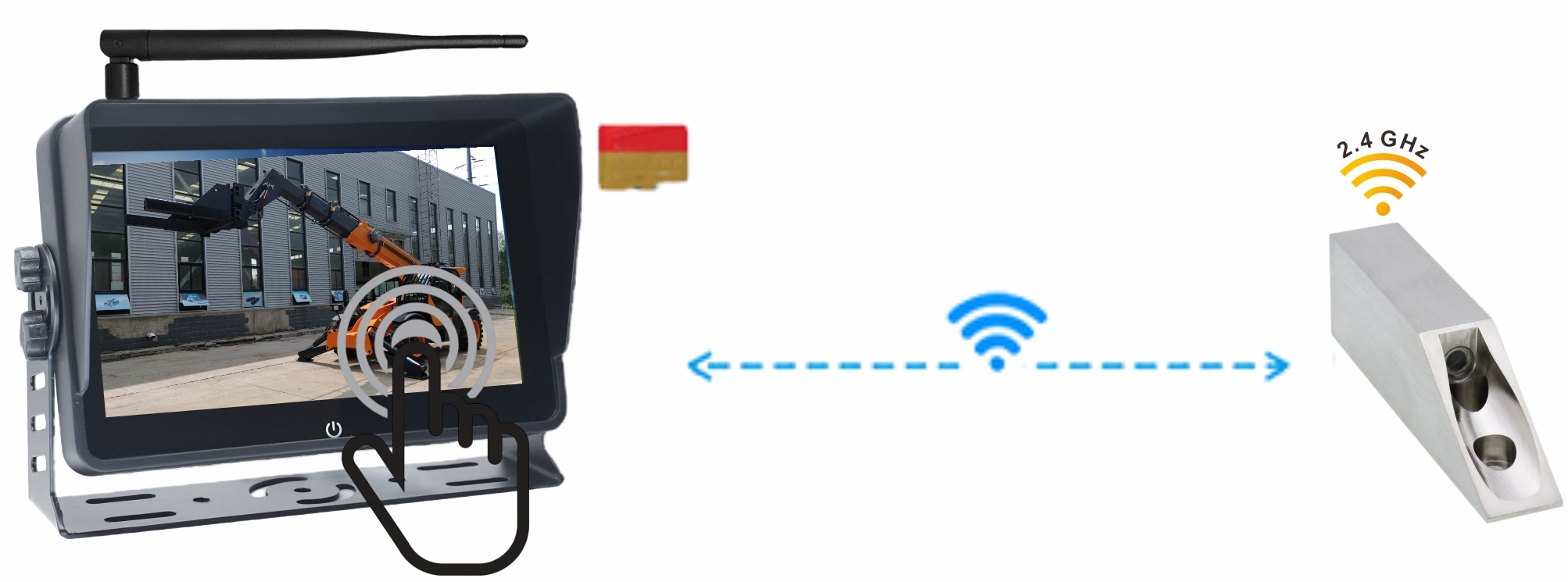

Wireless Range Up to 100 Metres
The digital wireless system provides a stable, interference-resistant signal at distances of up to 100 metres in clear line-of-sight conditions. Obstacles in the way of the wireless signal will reduce the wireless distance slightly.

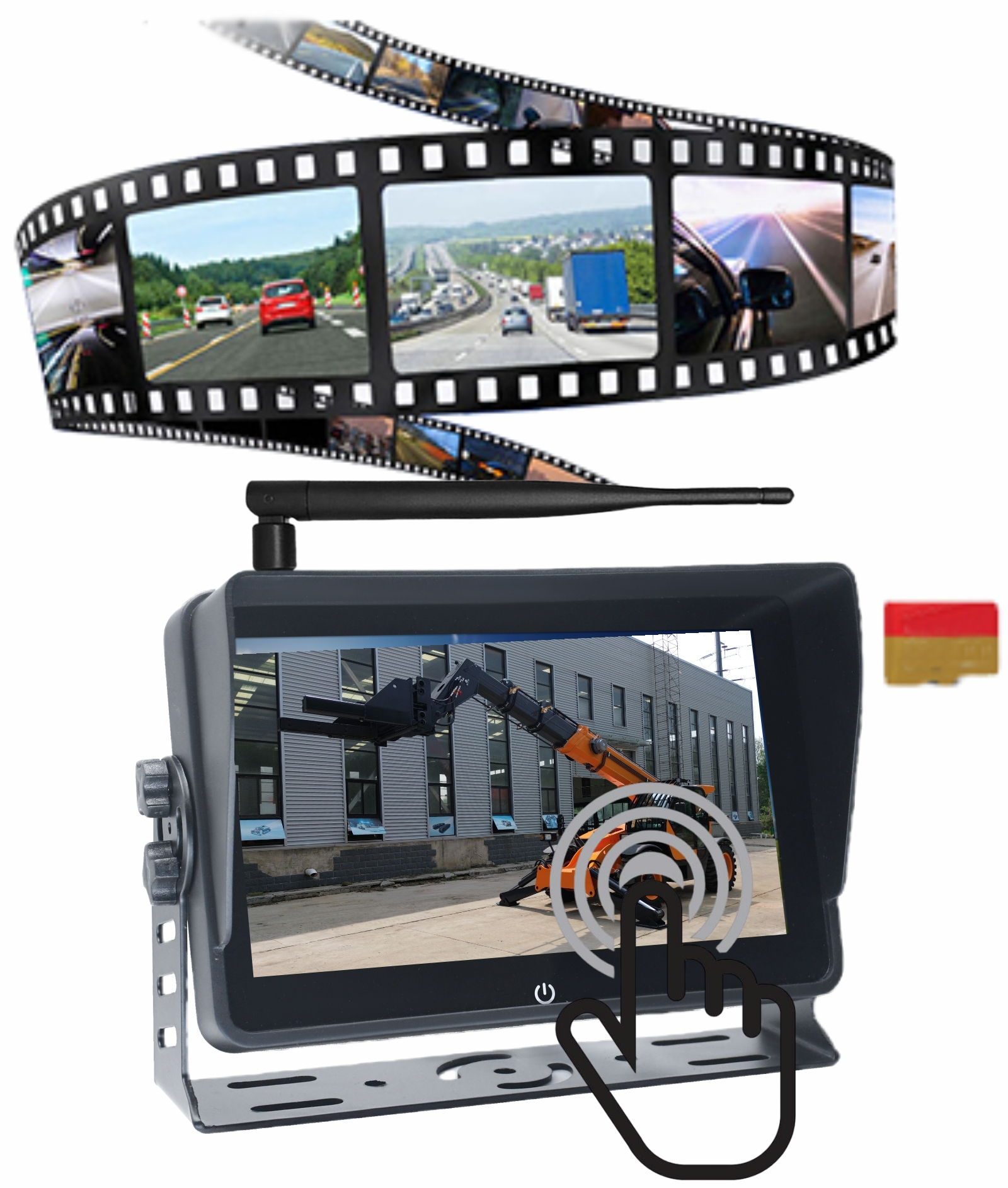

Supports Looped Recording
The monitor supports a micro-SD cards up to 512GB. They require a speed equal to or greater than U3/V30. SD card is not included.

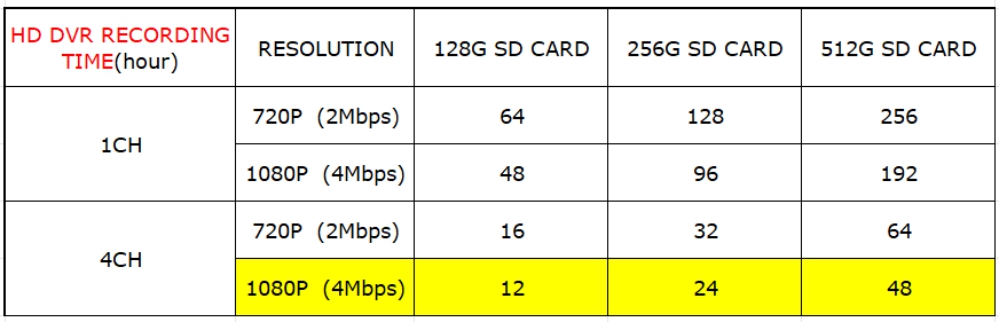

Recording time & Data Size
Monitor Viewing Configuration:
Mounting Bracket
The monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket，a fan bracket or a fan bracket can be purchased as an optional extra by Clicking on the "Monitor Bracket" Tab.
Suction or Fan Bracket Slides into Slot.

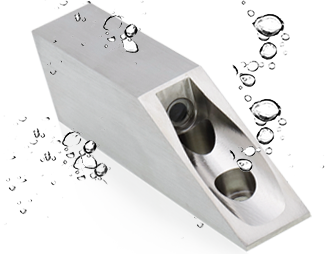

Stainless Steel Forklift Camera
IP69K waterproof 52° viewing angle, internal antenna 18dBm
Secure with screws.

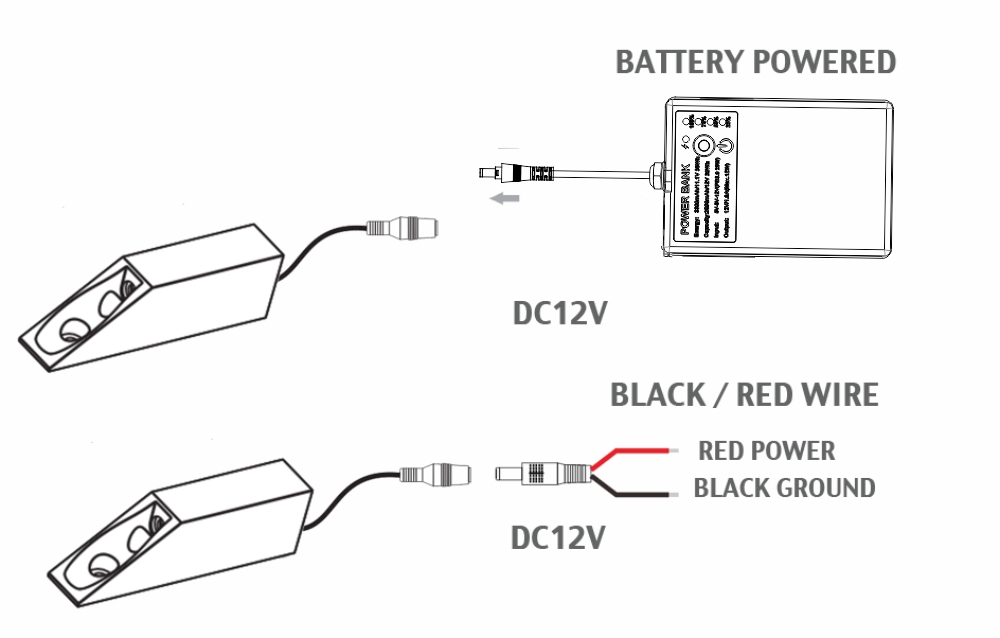

Power Supply Options
The forklift camera can be powered by a battery pack or wired into a constant DC12V power supply.

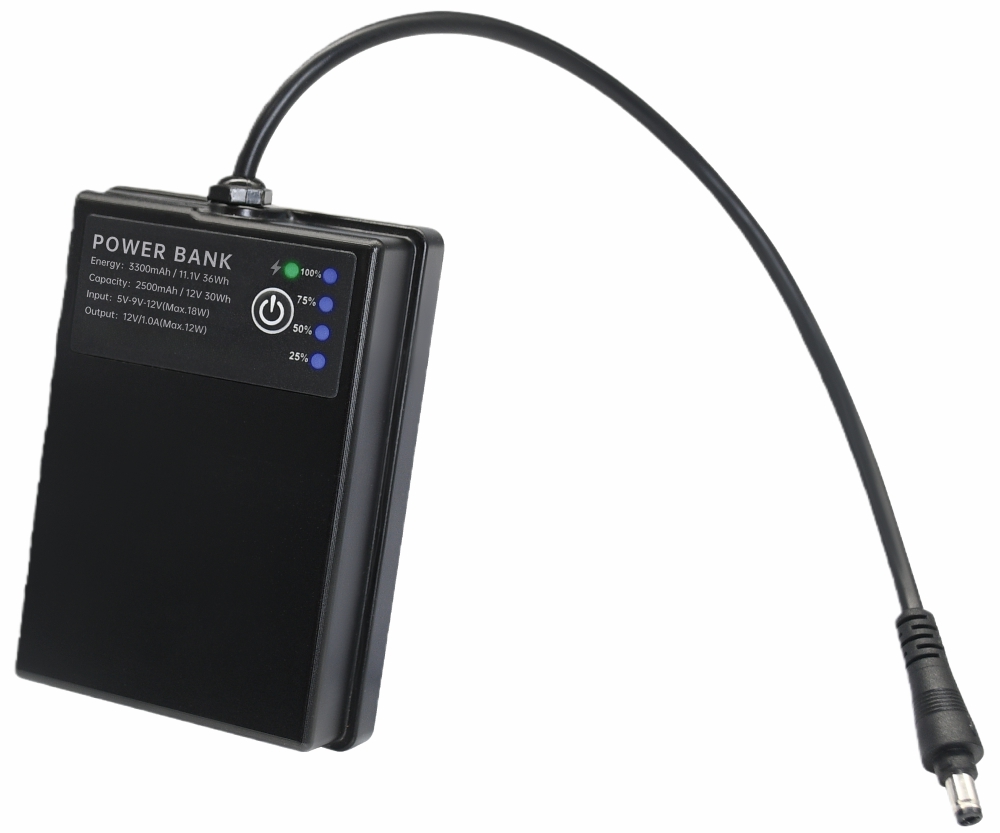

DC12V Mobile Battery Pack
This 12V portable battery pack powers wireless reversing cameras without wiring. Featuring an IP67 waterproof aluminum housing and a strong magnetic base, it ensures secure, flexible camera placement for trucks, caravans, and industrial use.
KDW12VPP26 Approx.14 Hours No IR Usage
A 12V mobile battery pack can be purchased as an optional extra by clicking on the drop down box labelled "Battery - Is a Battery Pack Required" .
Digital Wireless Extension Antenna (ADWC).
5dBi Signal Boost, 3-meter cable that screws onto a camera or monitor, offering the flexibility to extend the antenna.
The antenna base is equipped with a magnetic base, although additional adhesive may be required for secure placement.
Lock Camera & Power Cable Connections
Ensure that the twist lock connection is fitted with the rubber cover and positioned securely over the junction. Additionally, it is advisable, if these connections are expected to be exposed to the elements, to wrap them with insulation tape to prevent water ingress.
7" Digital Wireless Quad Monitor Camera Kit (HDKDWQ7TCFL52PP – Concord) |
| • Wireless Range up to 100m Clear Line of Sight with the Forklift Camera |
| • The monitor can be viewed in Single, Split, three camera split or quad display mode. |
| • Wireless eliminates running cables through machinery. |
| • Power ~ Monitor DC11-32V, Camera DC12V |
| • Suitable for 12V and 24V Trucks, Heavy Equipment Mining and Farming Machinery |
| • The equipment is tough and is made specifically for farming, industrial and mining machinery. |
| Kit Includes |
| • 1 x HDKDWQ7TRec High Quality 7" IPS Screen Touch Screen Quad Digital Wireless Reverse Monitor Built-in DVR (SD Card Not Included) |
| • 1 x CHDDWFL52 HD1080P Wireless 1/2.9 inch Colour CMOS |
| • 1 x KDW12VPP26 rechargeable 12V magnetic battery pack |
| • 1 x Antenna (1 for Monitor) |
| • Camera Emissive Power 18dBm |
| • Electrical Connecting Cables |
| • U-Support Bracket (other bracket styles are suitable too) |
| • Manual |
| • Monitor Two Year Warranty, Camera One Year Warranty |
Images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image pro

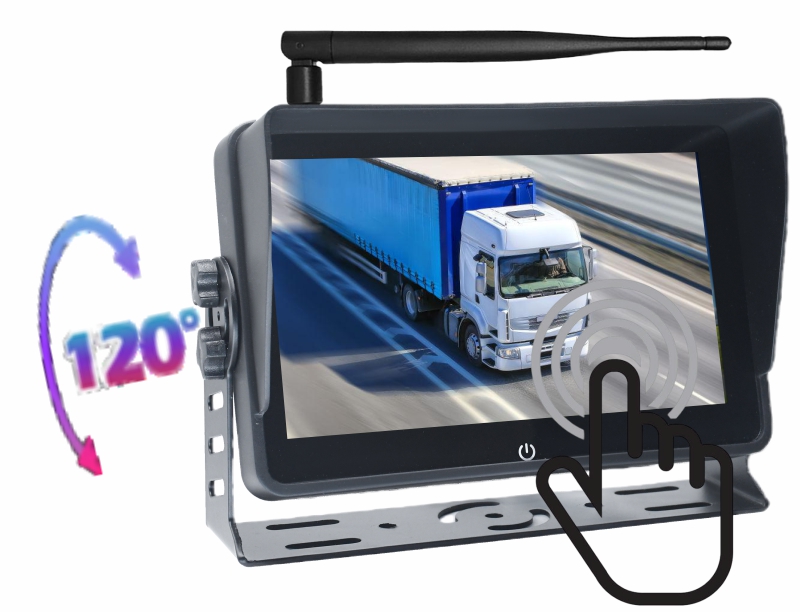

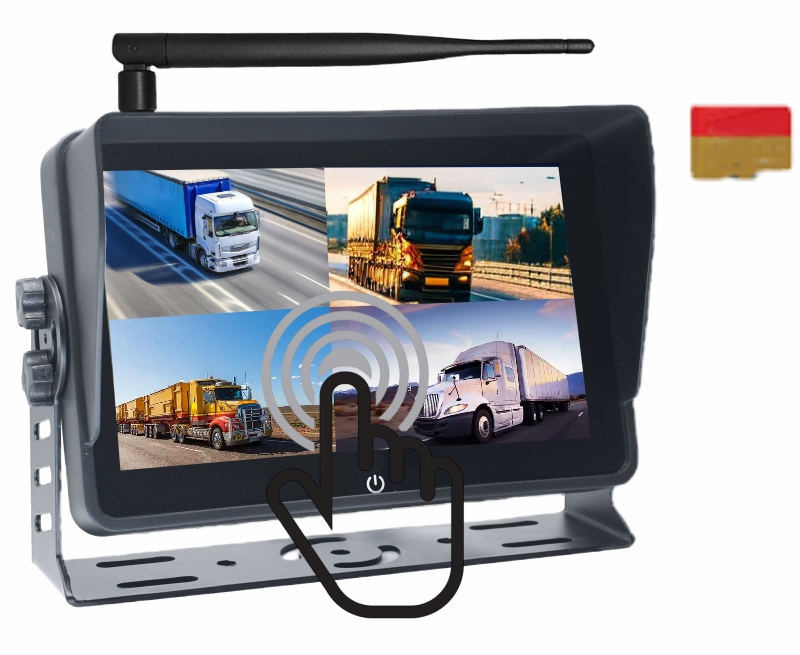

HD 7" Quad Digital Wireless Monitor With Fully Laminated Touch Screen (HDKDWQ7TRec)
TF Card Not Included.
Monitor Viewing Configuration:

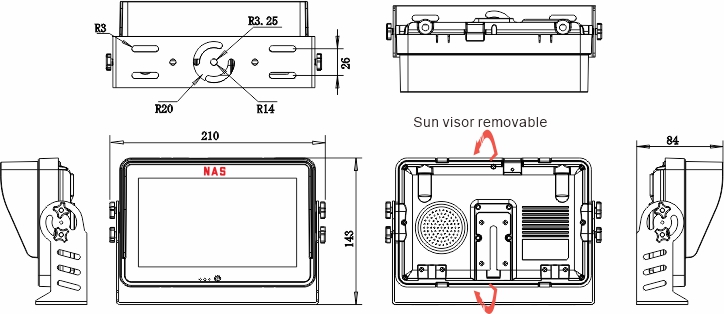

Monitor Dimensions
Recording time & Data Size
Mounting Bracket
The monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
| • 7" IPS Full Laminate HD Touch Screen Monitor with Removable Sun Visor |
| • Built-in 2.4G digital wireless receiver |
| • View Monitor Screen: Quad / Three Way Split / Single screen / Split Dual Screen Display |
| • Operation Frequency Range: 2400 ~ 2483.5MHz |
| • Receiving Sensitivity: ≤-86DB |
| • Colour System: PAL/NTSC (Auto) |
| • Display Resolution: 1024(H) x 600(V) |
| • Surge and load dump protection: ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms） |
| • Response Time: 25ms |
| • Transmission Distance: 200m (No Barriers) |
| • Wide View Angle (LR/UD) : (U/D) : 85/85 (L/R) : 85/85 |
| • Brightness (cd/m²): 600 |
| • Monitor Current: DC9V: 530mA (± 30mA) ; DC32V: 150mA (± 30mA) |
| • Contrast ratio: 800:1 |
| • Video Recording Function: Real-time Recording (2GB per Channel per hour) |
| • Video File Format: AVI |
| • Video Recording Capacity: Supports 16~512GB TF Cards |
| • Load Dump: DC 24 +174V / 350ms |
| • Connector Socket: 18-Pin Waterproof Interface |
| • Vibration Resistance: GB/T 2423.56-2023 Standard (Random 5G Vibration) |
| • External Power Supply Polarity Reversal Protection |
| • Operating temperature: -20℃ to +70℃ |
| • Storage temperature: -30℃ to +80℃ |
| • Power Supply: DC11~32V |
| • External dimensions :(L x W x T) (265 x 168 x 37mm)(Without Sun Visor and U-bracket ) |
| • Weight Approx: 2000g |
| • Two Year Warranty |

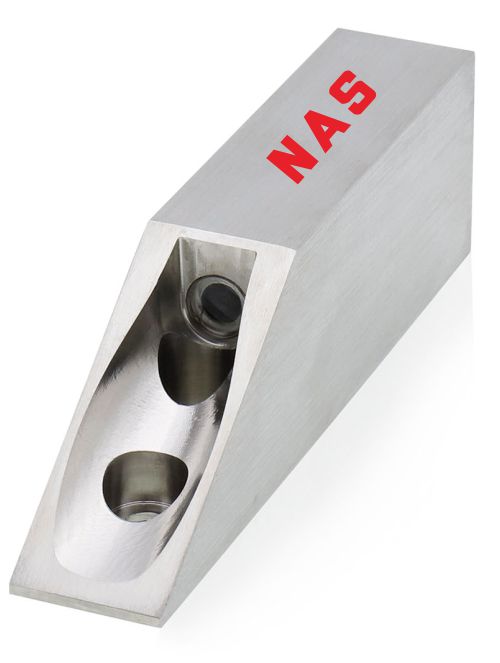

2.4G Digital Wireless 1080P HD Forklift Camera
Stainless Steel and Secure with the screws.
Built-in Internal Antenna

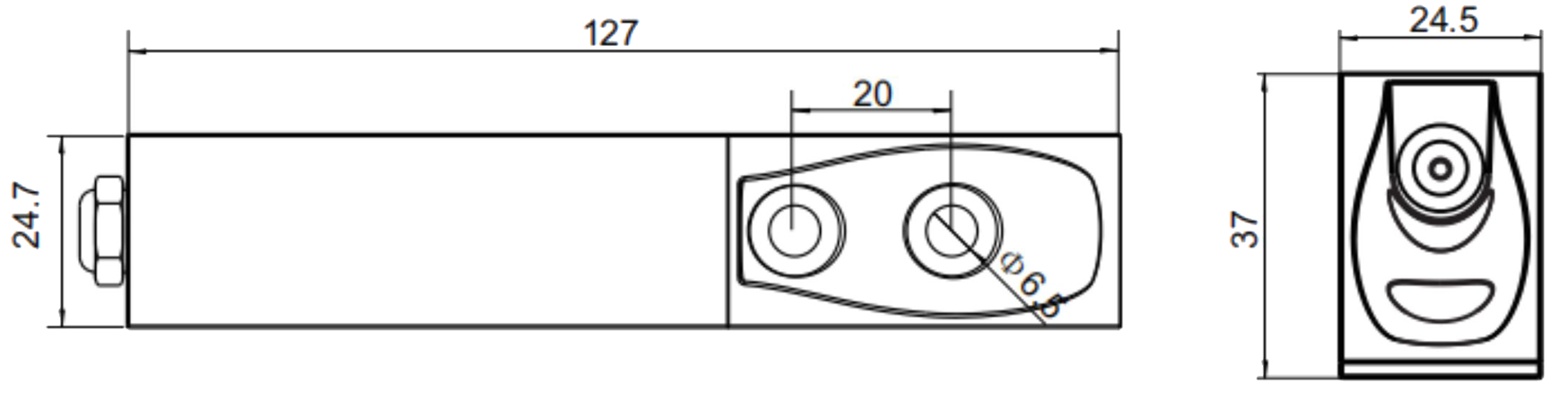

Camera Dimensions

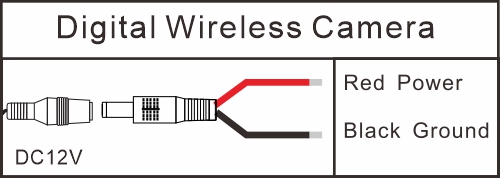

Camera Cable Interface Definition
1080P HD Digital Wireless Forklift Camera (CHDDWFL52) |
| • Free viewing angle: 52° |
| • Waterproof: IP69K (100% waterproof) |
| • Image Type: 1/2.9 inch Colour CMOS |
| • Built in 2.4GHz Digital wireless transmitter |
| • Transmission Power: 18dBm |
| • Wireless Range: No Barriers ≤100m |
| • TV System: PAL (25fps) |
| • Resolution: 1080P |
| • Effective pixels: PAL 1920(H)*1080(V) |
| • Usable Illumination: 0.1Lux |
| • Night Vision Mode: IR-CUT Automatic Switching |
| • Shell material: 304 Stainless Steel, anti-collision design |
| • Free Operating Voltage: DC12Volts |
| • Shockproof: 5G (conforms to GB-T2423056-2006 standard) |
| • Dimensions: 127(W) x 37(H) x 24.5(D) mm (without mounting) |
| • Operating Temperature: -30 To + 70℃ Rh95% Max |
| • Storage Temperature: -40℃ To + 70℃ Rh95% Max |
| • Weight : 700g |
| • One Year Warranty |
DC12V Mobile Power With Aluminium Alloy Housing IP67 Waterproof Stronger Magnetic Base Mount
3.5 hours Fully Charged Approx. 14 hours of power to operate one digital wireless camera if there is not any Camera IR light Usage. Approx. 7 Hours if the Camera is running on full IR Lights because there is no external light source.
Fast charge, input/output overvoltage protection, overcharge/discharge protection, input overcurrent protection, short circuit protection, reset protection, temperature protection, Light load protection, battery PTC(Positive Temperature Coefficient) protection.Supports QC fast charging from 5V to 12V. Over 500 Cycle Lifespan.
18650 Li-ion Cells DC12V Mobile Power (R-KDW12VPP26) |
| • Type Battery ：Li-ion battery (Panasonic 18650 Lithium-ion cell original import) |
| • Cell Capacity ：3300mAh / 11.1V 36Wh |
| • Cell Energy : 36.6Wh |
| • Rated Capacity ：2500mAh/ 12V 30Wh |
| • Type-C Input (support fast charge)：5(V)3A -9V/(2A) -12V(1.5A) |
| • Fast Charge Mode ：QC 2.0/3.0 Agreement 9V/2A, 12V/1.5A (USB adapter needs to carry own QC agreement) |
| • DC Iuput (DC5.5 *2.1) ：12V / 1A (12W Typ.) |
| • Charging Method ：Constant Current (CC) 2A (0.2C) to 4.2V cut-off charge ; Constant Voltage (CV) 4.2V 100mA to charge off; 5A (0.5C) Charging |
| • Maximum Input Power : 18V |
| • Input Current: 1.5A ± 10% |
| • Maximum Input Current : ≤2A |
| • Output Voltage: 12V ± 5% （Actual Output Range: 11.4~12.6V ± 5%) |
| • Output Current: 1.0A ±10%(Output Current Range: 0.06~1A) |
| • Conversion Efficiency: ≥85% |
| • Power Stability Accuracy: ≤10% |
| • Noise Level: ≤50dB |
| • Charging Overvoltage Protection (Cell): 12.6V |
| • Charging Overcurrent Protection (SW): 1.5A |
| • Discharging Undervoltage Protection (Cell): 8.4V |
| • Discharging Undervoltage Protection (SW): 9.3V |
| • Output Overcurrent Protection: ≥1.5A |
| • Charging times: > 500 cycles |
| • Charge Interface:Type-C |
| • Discharge Interface: DC 2.1 * 5.5 male |
| • Seismic Level: 5G |
| • Waterproof Level: IP67 |
| • Installation: With Strong Magnetic |
| • Charging Working Temperature: 0 ℃ to + 45℃ |
| • Discharge Working Temperature: -10℃ to + 50 ℃ |
| • Storage Temperature: -30 ℃ to + 60 ℃ |
| • Dimensions (mm): 108mm x 75mm x 29.5mm (without tails) |
| • Housing: Aluminium Alloy |
| • Installation: Magnetic Mounting (Built-in N52-D15H4 Strong Magnet) Front Pulling Force >25KG, Side Pulling Force >12KG |
| • Input Interface: Type-C |
| • Output Interface: DC5.5/2.1 Male |
| • Weight: 700g |
| • One Year Warranty |

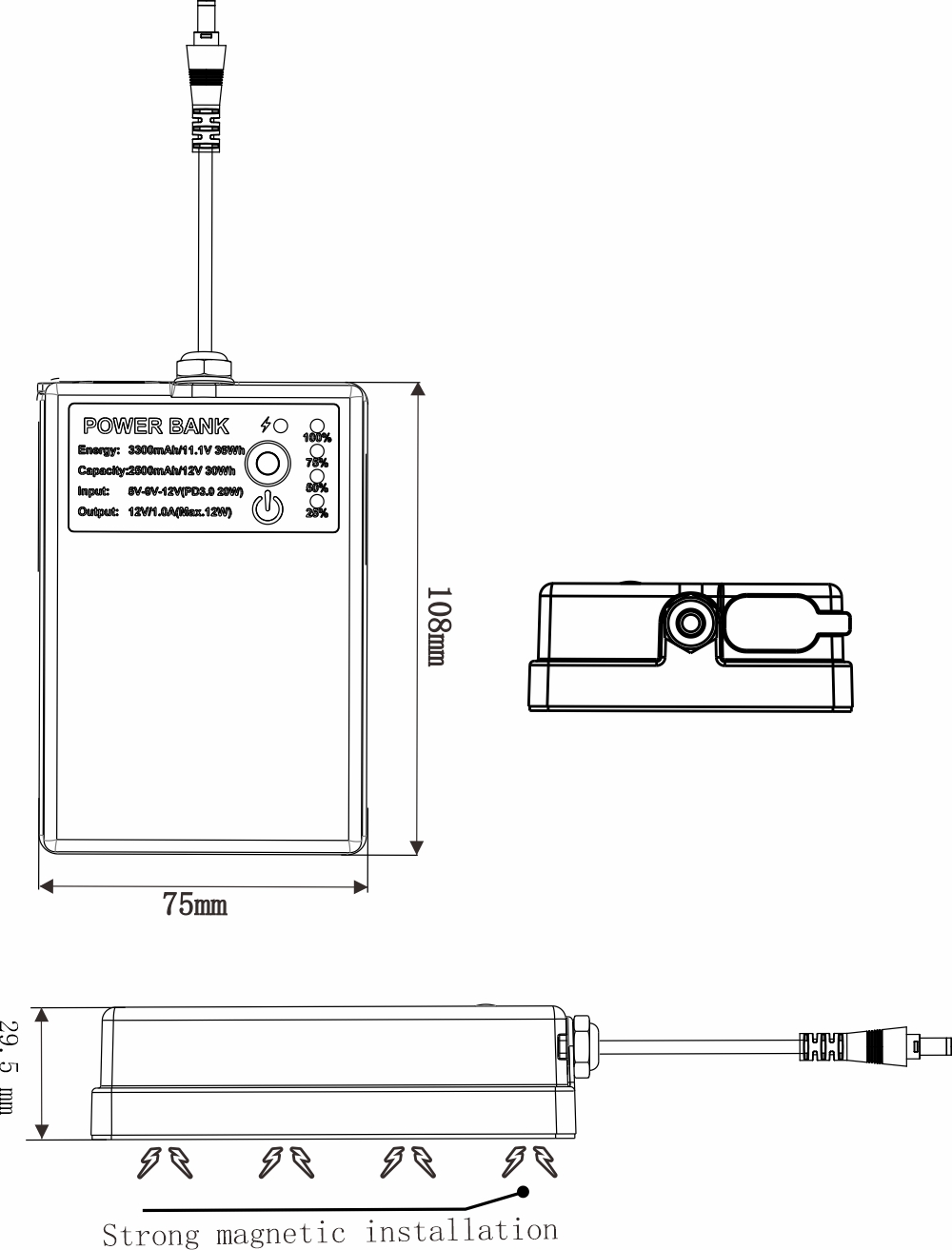

Battery Dimensions: mm
| 4 High-Brightness Blue LED Indicators, Activated by Button Press |
| BATTERY CHARGING And DISCHARGING STATE |
| • 1 LED flashing, the battery power: 0~25% |
| • 2 LED On, 1 LED flashing, the battery power: 25~50% |
| • 3 LED On, 1 LED flashing, the battery power: 50~75% |
| • 4 LDE on, 1 LDE flashing, the battery power is 75~99% |
| • 4 LDE on, the battery power is 100% |
| • The battery charging time is approx.2~4 Hours |
| • Using a DC12V/2A USB charger will take approx. 2 Hours |
| • One Illuminated Green LED : Working Condition |
| • First Blue LED Flashing : Low Voltage Warning ( when voltage drops below 9.5V) |
| • Heat Dissipation Method: Natural Air Cooling |
| • Relative Humidity: 10%~90% |
